Kenmore
Room Air Conditioner

Model # 58074083400 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074083400 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

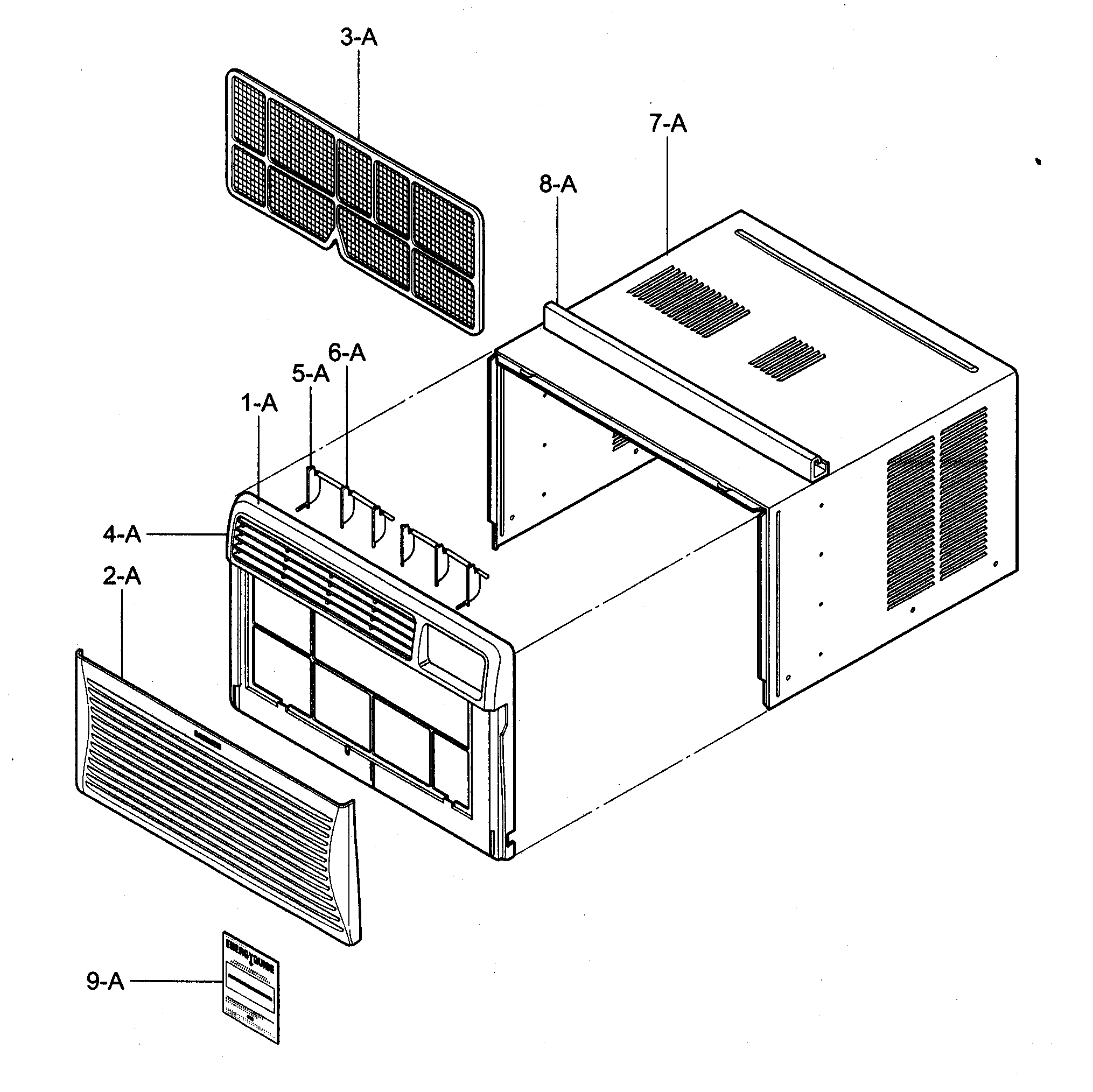

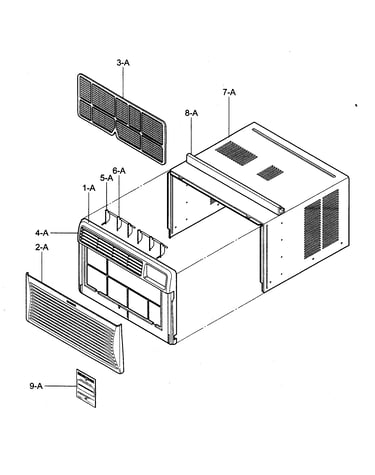

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Accordion Filler Assembly, Right 3211AR3239A
#2-E

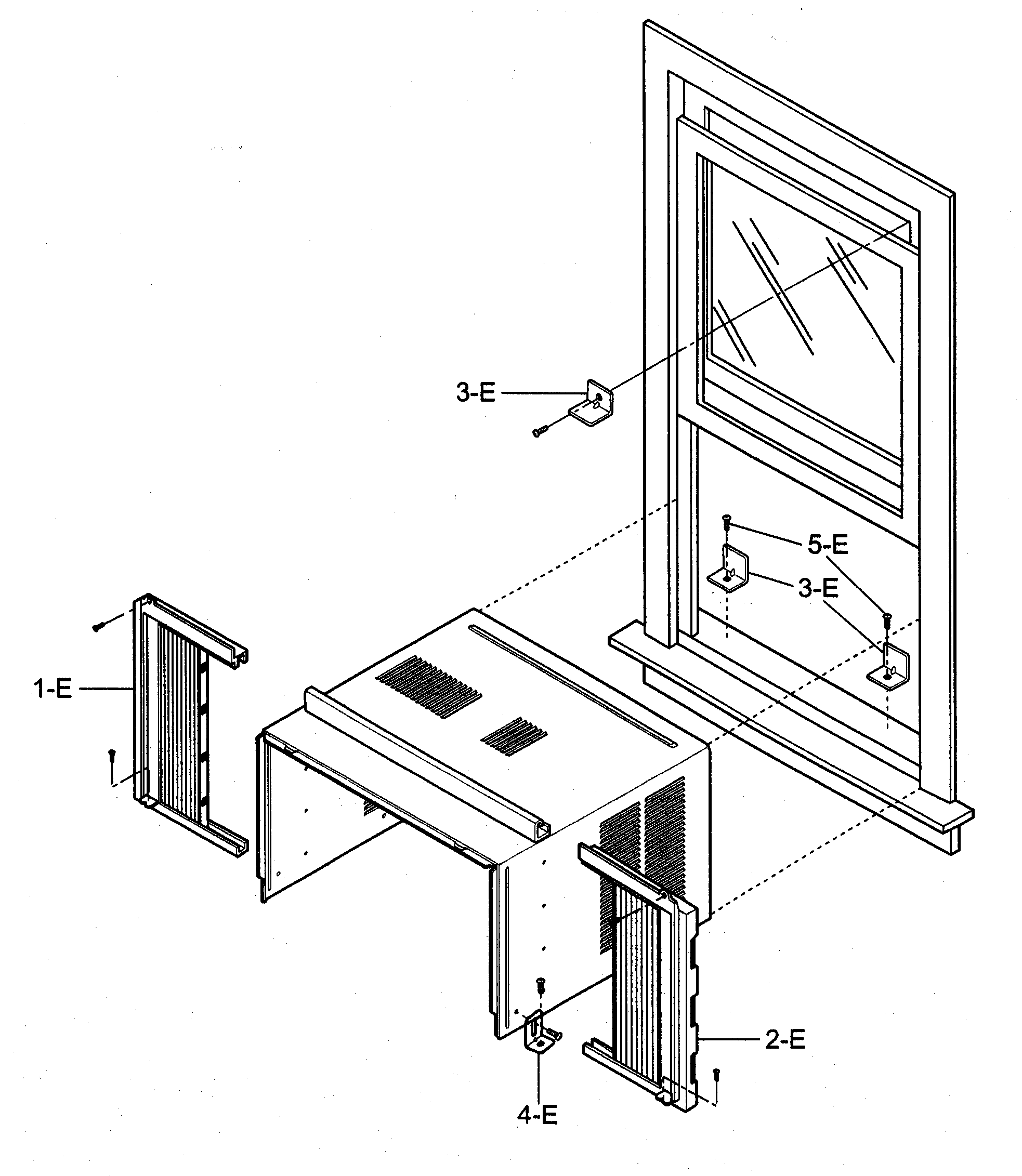

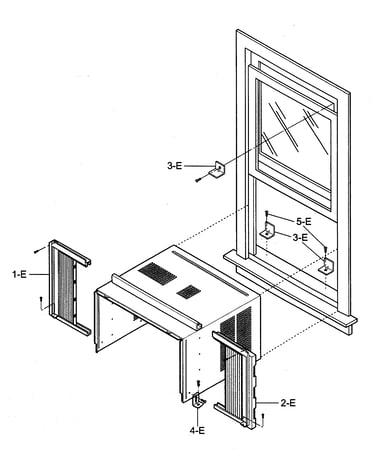

Installation kit assy diagram

Room air conditioner accordion filler assembly, right

Part #3211AR3239A

Replaced by #AET73732404

?
Manufacturer substitution
This part replaces 3211AR3239A. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
15% OFF Phone Price : $32.82
In Stock
Room Air Conditioner Accordion Fillter Assembly, Left 3211AR3239B
#1-E

Installation kit assy diagram

Room air conditioner accordion fillter assembly, left

Part #3211AR3239B

Replaced by #AET73732404

?
Manufacturer substitution
This part replaces 3211AR3239B. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
15% OFF Phone Price : $32.82
In Stock
Room Air Conditioner Condenser Fan Blade (replaces 5900a20015b) 5900A20015A
#9-C

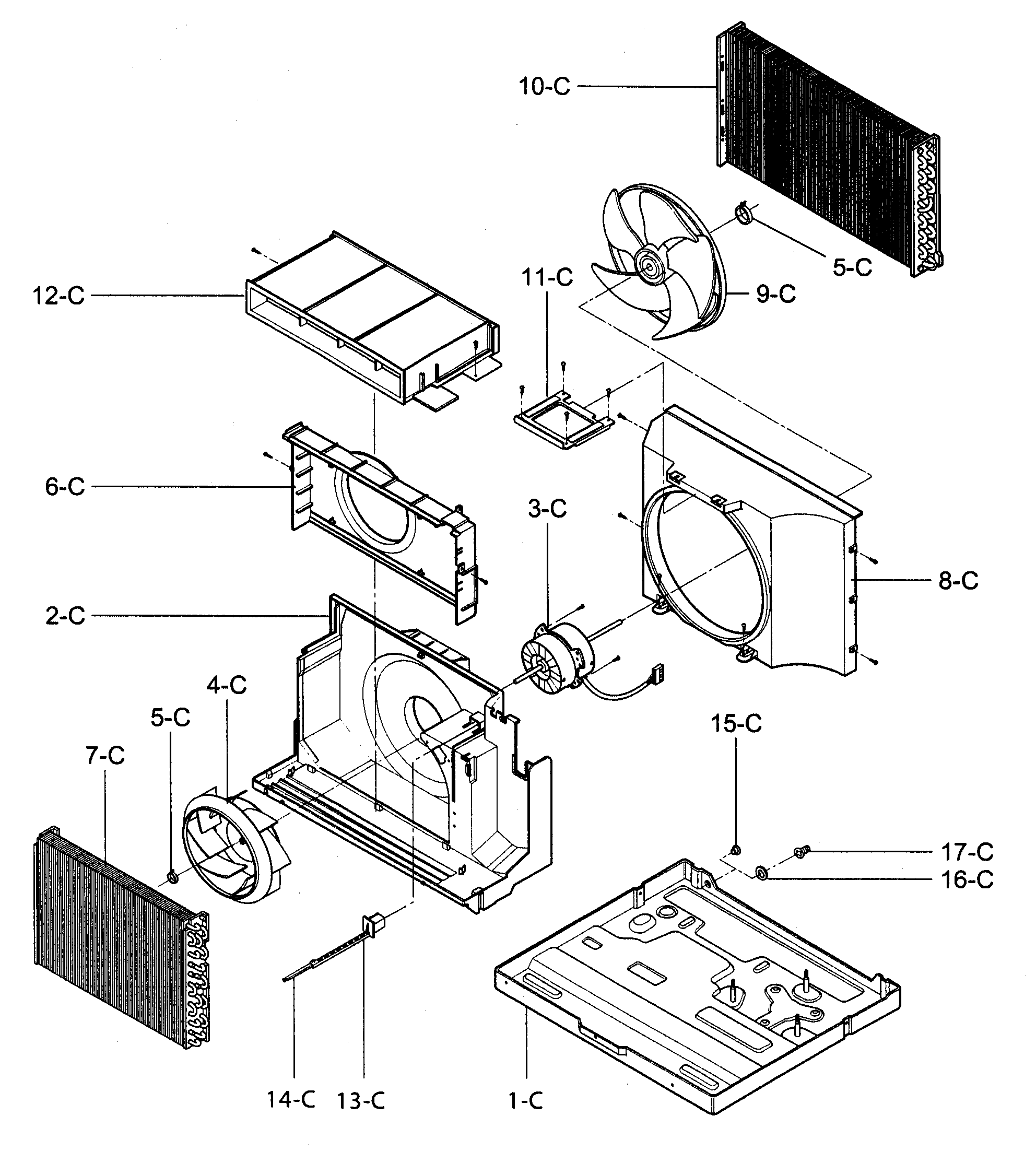

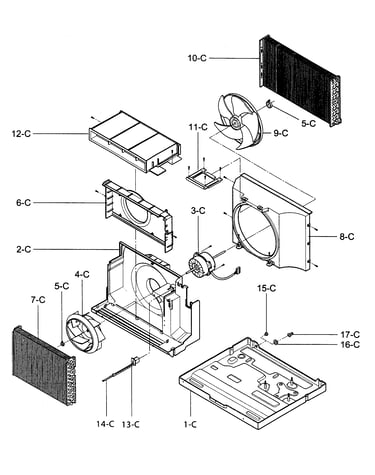

Air handling/cycle parts diagram

Room air conditioner condenser fan blade (replaces 5900a20015b)

Part #5900A20015A

$27.47 |
15% OFF Phone Price : $32.47
In Stock
Remote Control 6711A20056T
#12-B

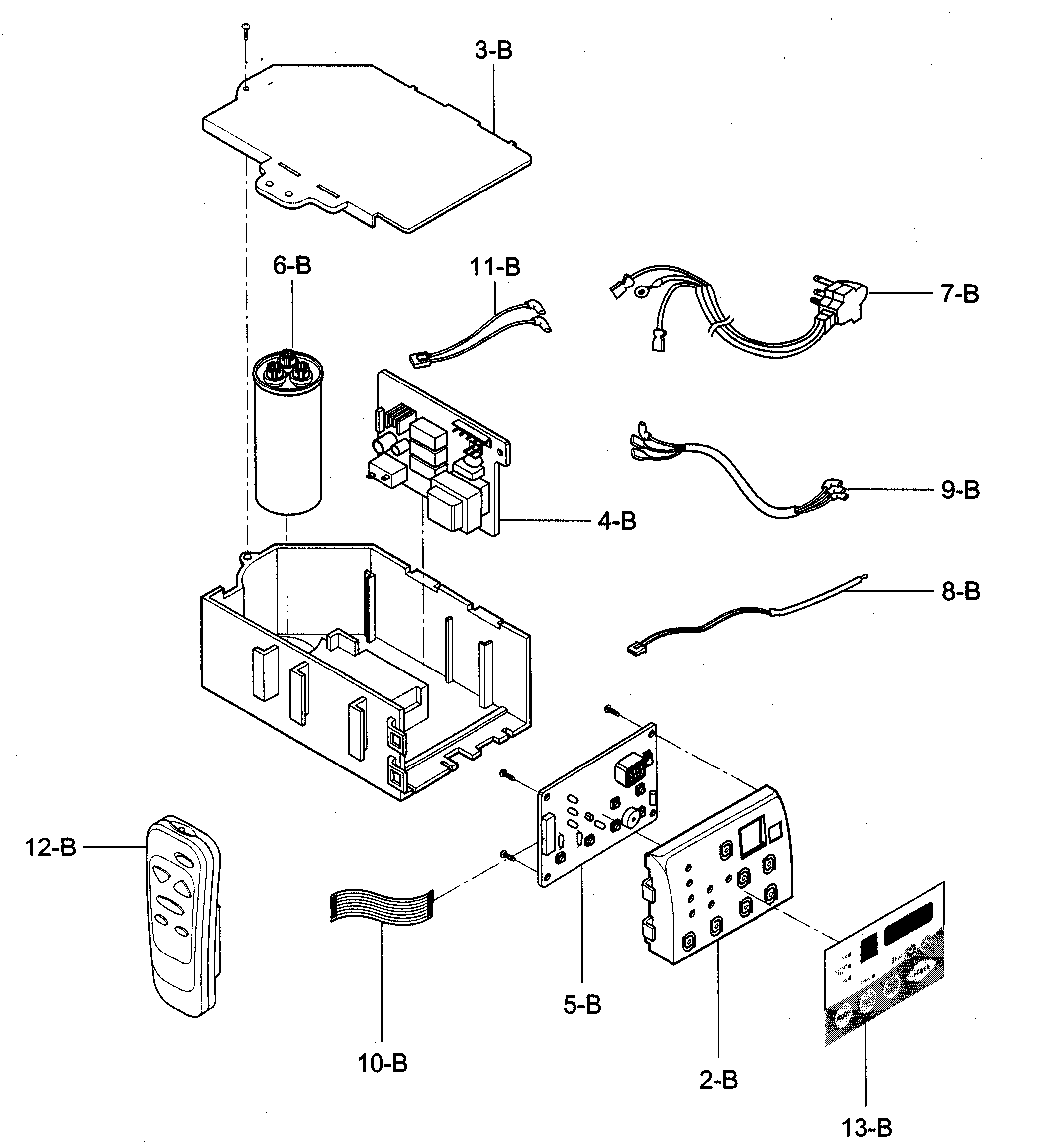

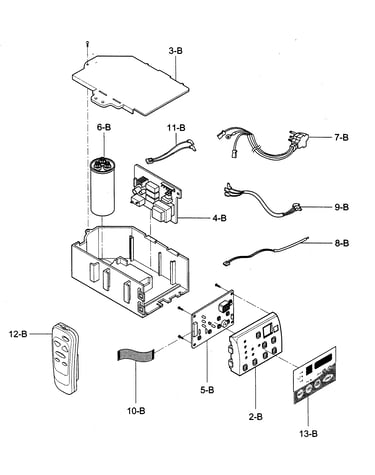

Control box assy diagram

Remote control

Part #6711A20056T

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20056T. Substitute parts can look different from the original.
$31.05 |
14% OFF Phone Price : $36.05
In Stock
Room Air Conditioner Fan Motor Capacitor (replaces 6120ar2359v) 0CZZA20005B
#6-B

Control box assy diagram

Room air conditioner fan motor capacitor (replaces 6120ar2359v)

Part #0CZZA20005B

$29.57 |
14% OFF Phone Price : $34.57
In Stock
Room Air Conditioner Thermistor 6323A20004P
#8-B

Control box assy diagram

Room air conditioner thermistor

Part #6323A20004P

This item is not returnable
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Room Air Conditioner Control Panel 3720A10111C
#2-B

Control box assy diagram

Room air conditioner control panel

Part #3720A10111C

This item is not returnable
$10.60
In Stock
Room Air Conditioner Screw 1TTG0402618
#5-E

Installation kit assy diagram

Room air conditioner screw

Part #1TTG0402618

This item is not returnable
$4.51
In Stock
Connector 6631A20123A
#9-B

Control box assy diagram

Connector

Part #6631A20123A

$18.83
In Stock
Nut 4H00947A
#9-D

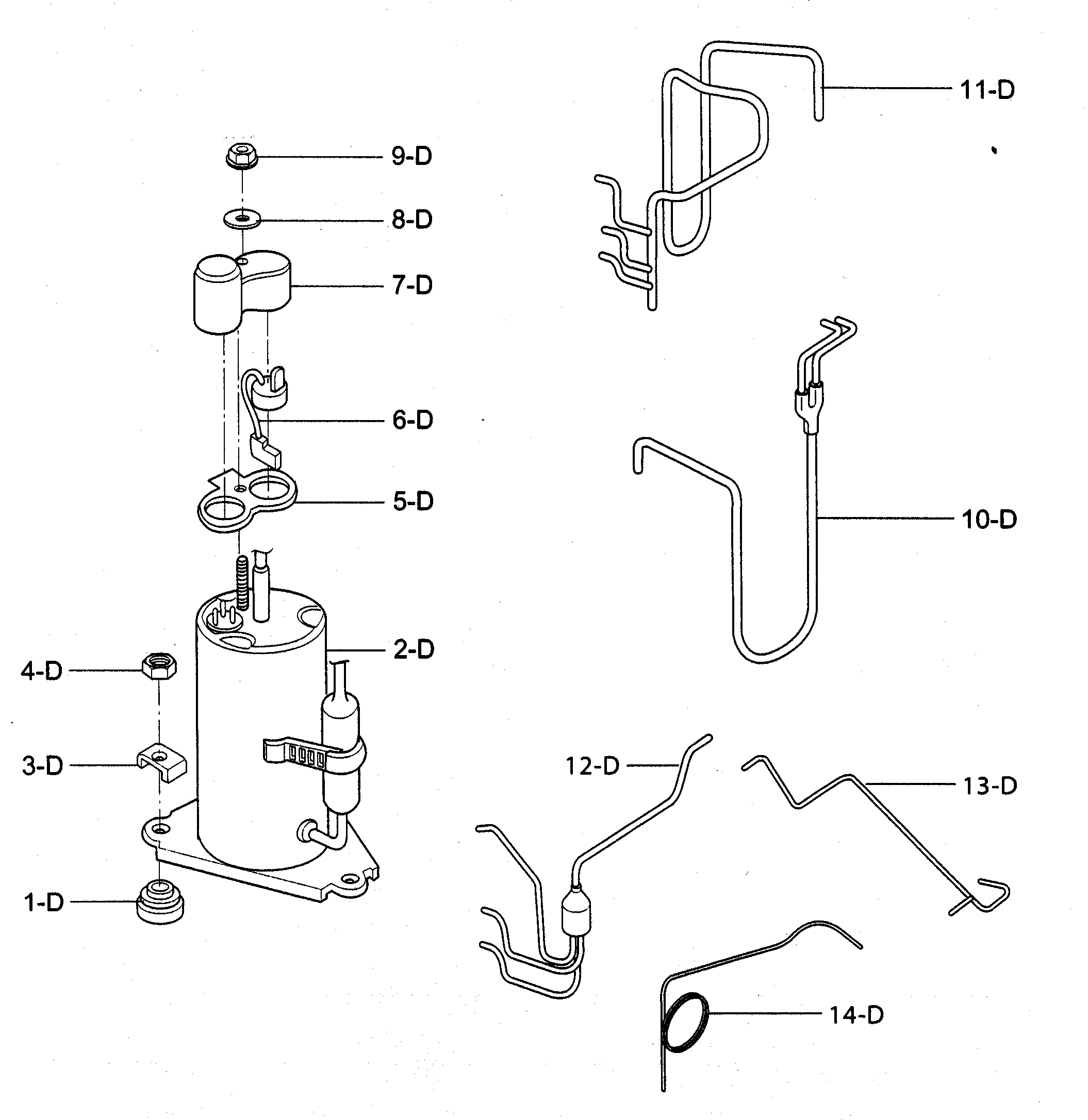

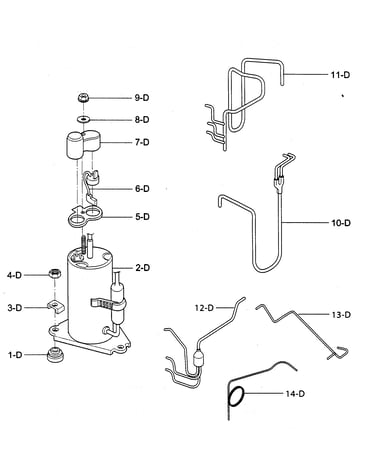

Compressor parts diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
