Payne PY1PNB036090 gas heating & electric cooling Parts
Here are the diagrams and repair parts for Payne PY1PNB036090 gas heating & electric cooling, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
By Schematic
SELECT DIAGRAM
Browse Parts for PY1PNB036090 Gas Heating & Electric Cooling

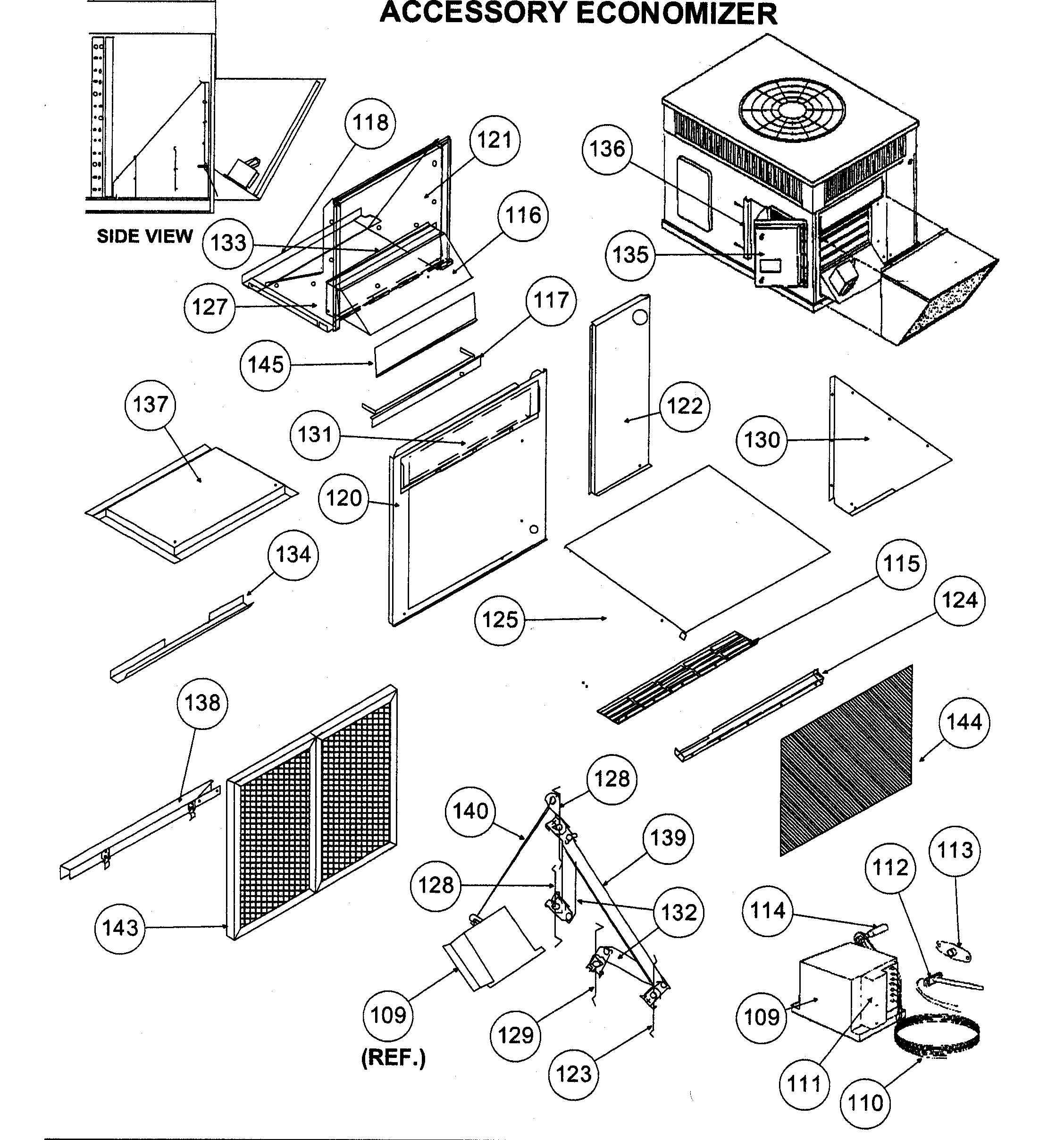

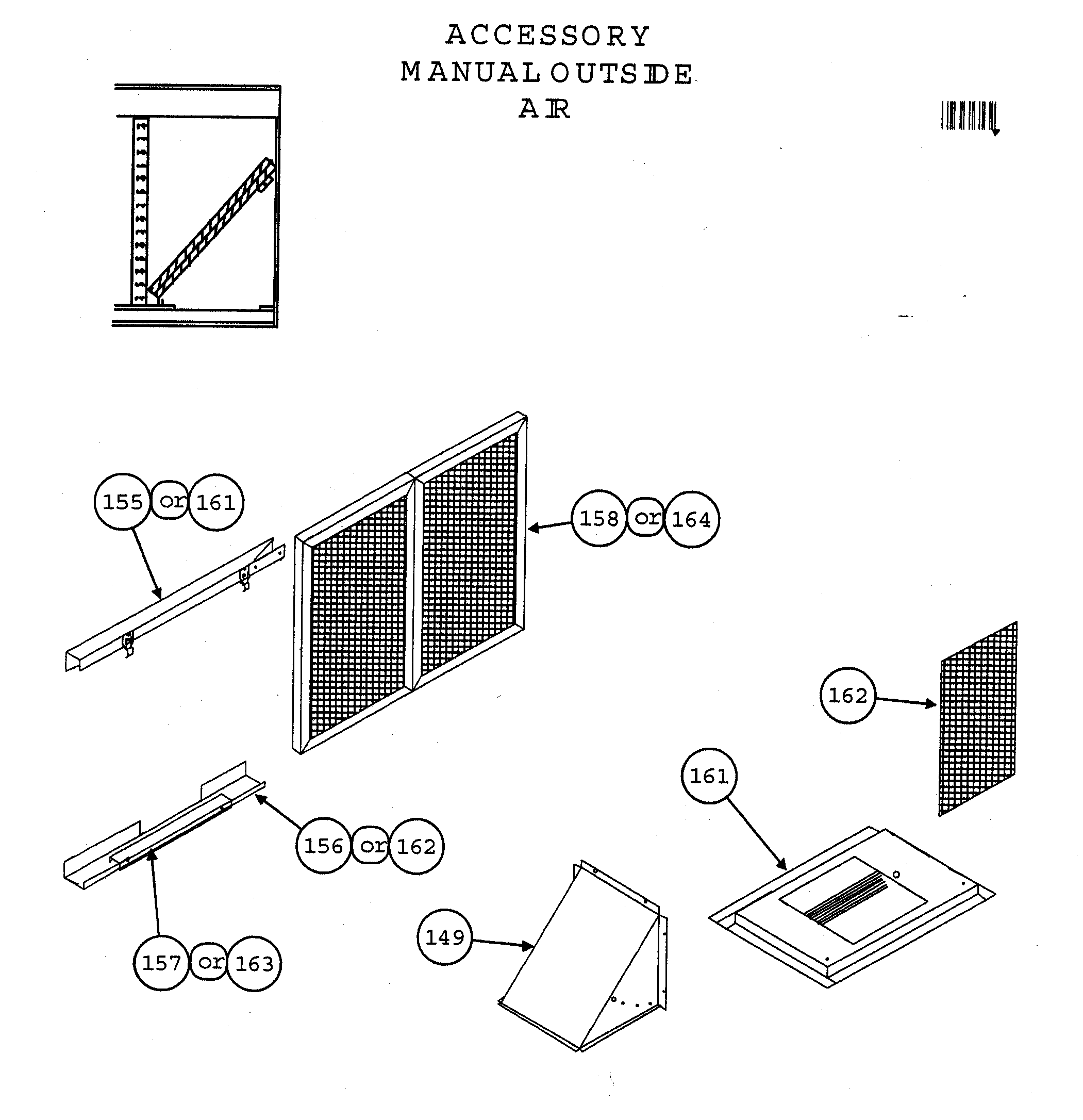

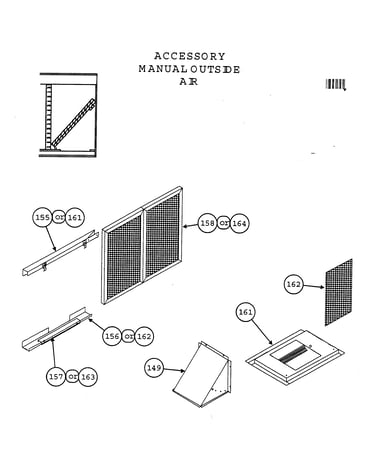

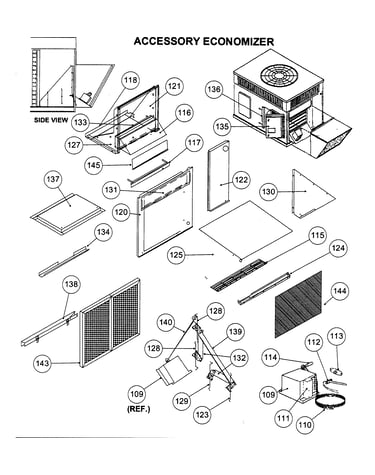

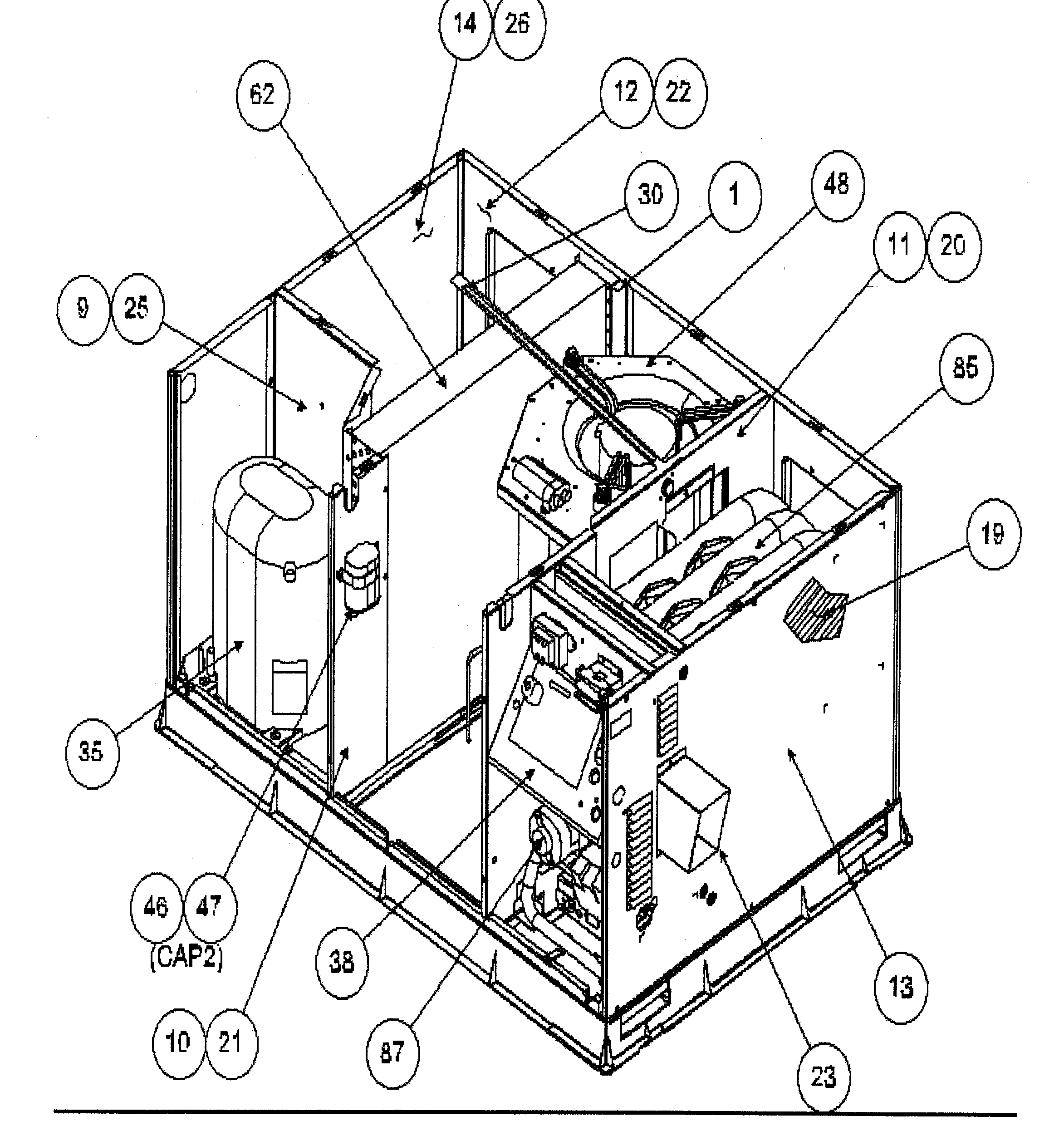

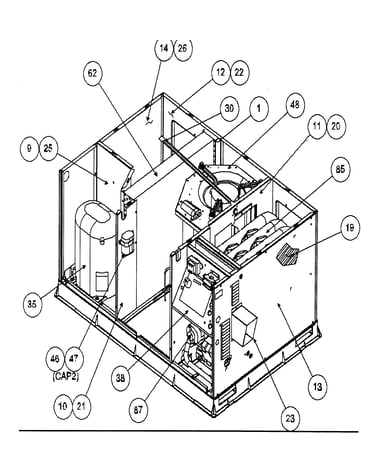

Interior parts diagram
Contactor
Part #HN51JD024Replaced by #90-244
Manufacturer substitutionThis part replaces HN51JD024. Substitute parts can look different from the original.In Stock$31.2316% OFF Phone Price : $37.23
Qty
Interior parts diagram
Capactr Dual
Part #P291-4054
The manufacturer no longer makes this part, and there's no substitute part
Blower Assembly
Part #48GS400106Replaced by #48GS400649
Manufacturer substitutionThis part replaces 48GS400106. Substitute parts can look different from the original.In Stock$388.73$12.00 OFF Phone Price : $400.73QtyInterior parts diagram
Central Air Conditioner Heat Exchanger

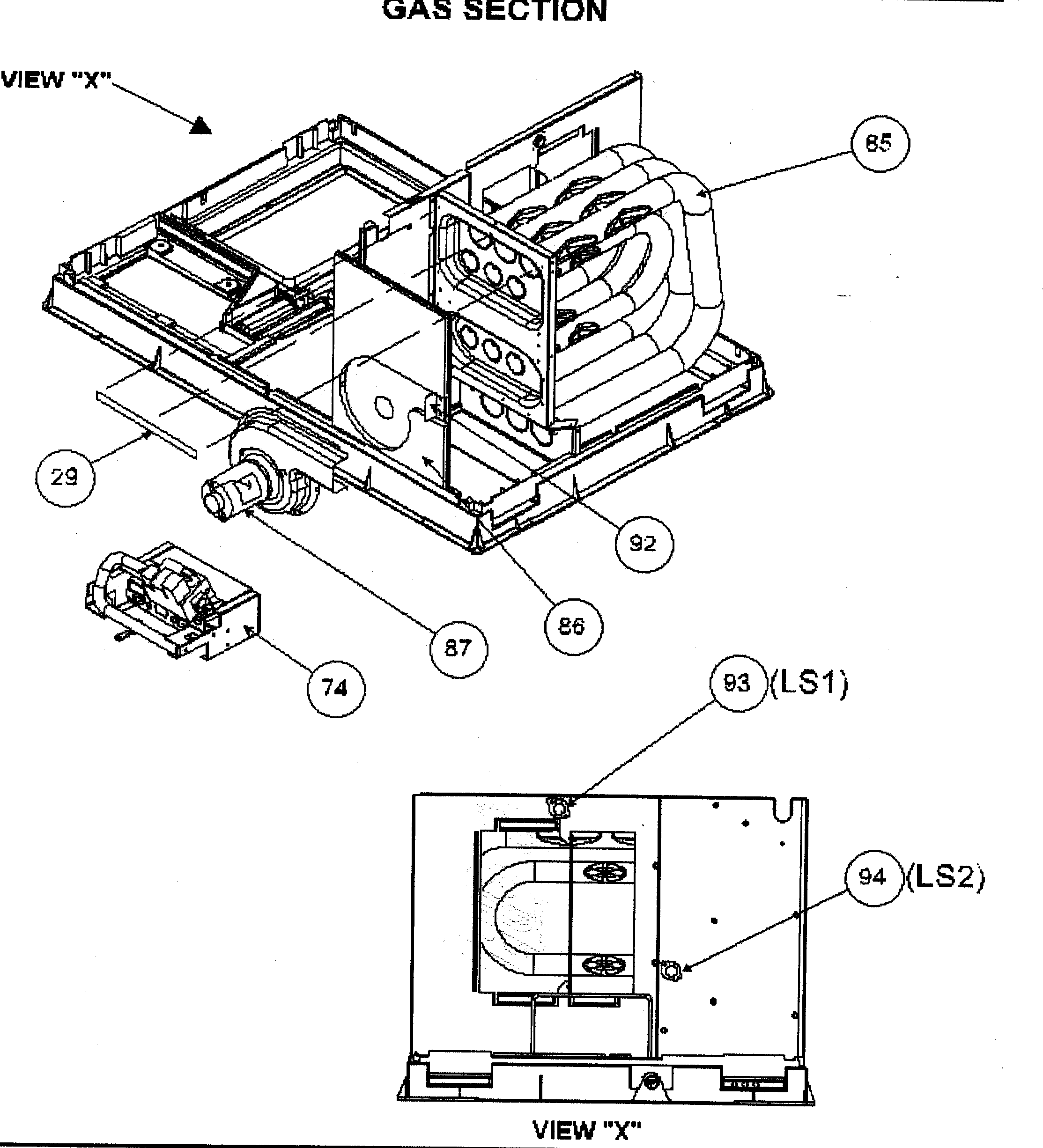

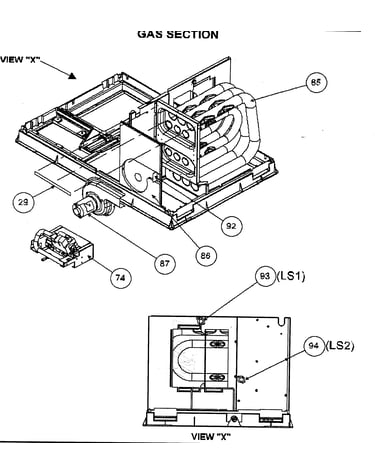

In Stock$974.54QtyGas section diagram
Furnace Heat Exchanger Cover
In Stock$424.72$12.00 OFF Phone Price : $436.72QtyInterior parts diagram
Circ Board
In Stock$721.75$12.00 OFF Phone Price : $733.75QtyTemp Swtch
In Stock$25.33QtyGas section diagram
Gas Valve
Part #EF32CB201Replaced by #EF32CW035

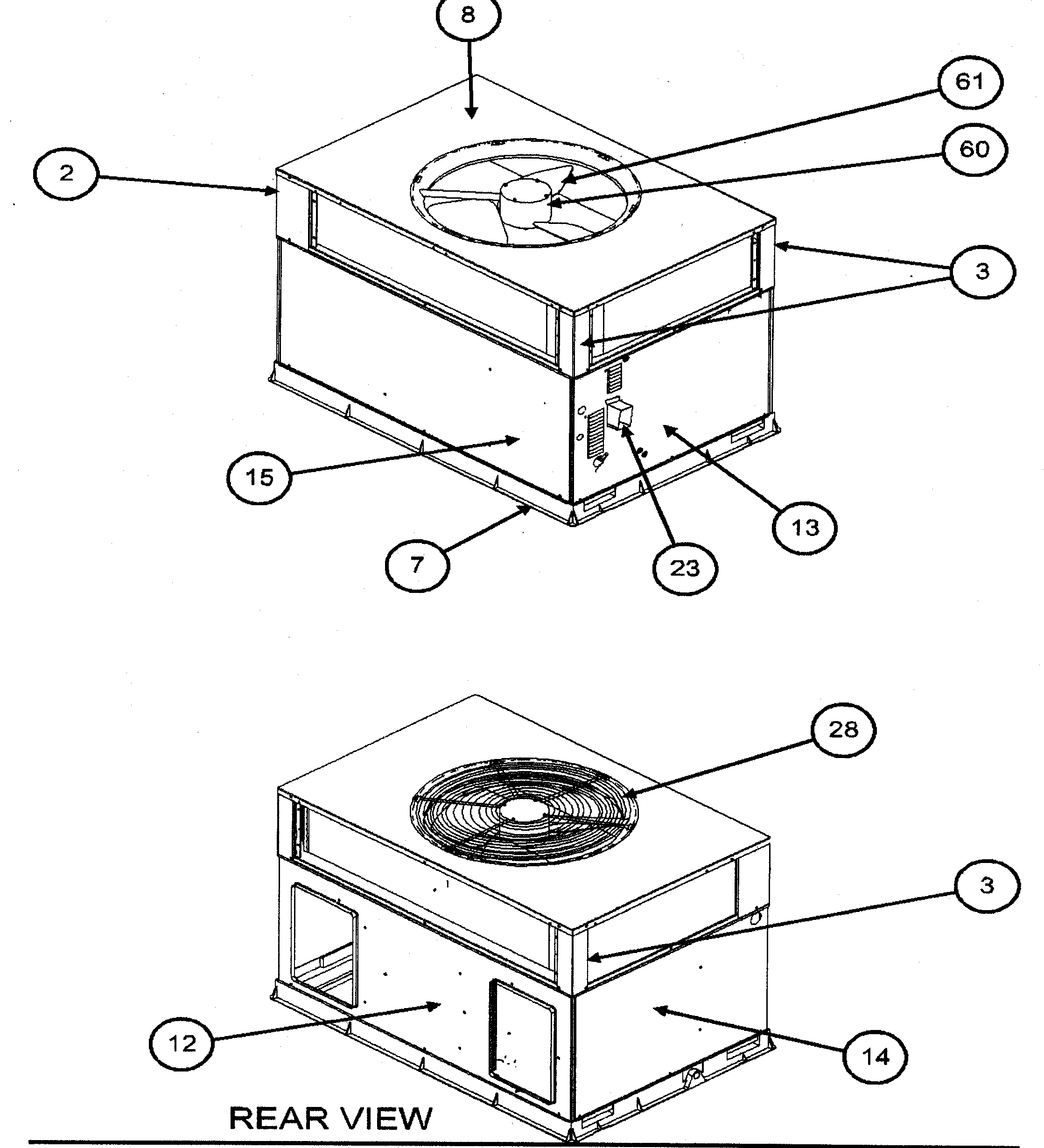

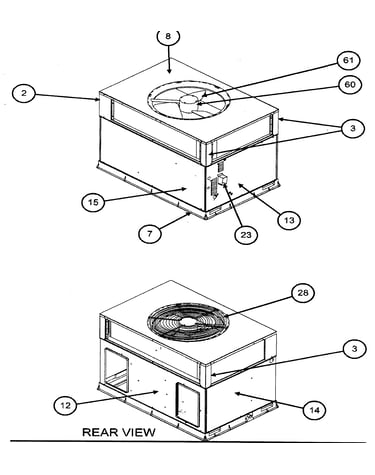

Manufacturer substitutionThis part replaces EF32CB201. Substitute parts can look different from the original.In Stock$171.14QtyOutside view diagram
Motor
Part #HC39GE238
The manufacturer no longer makes this part, and there's no substitute part

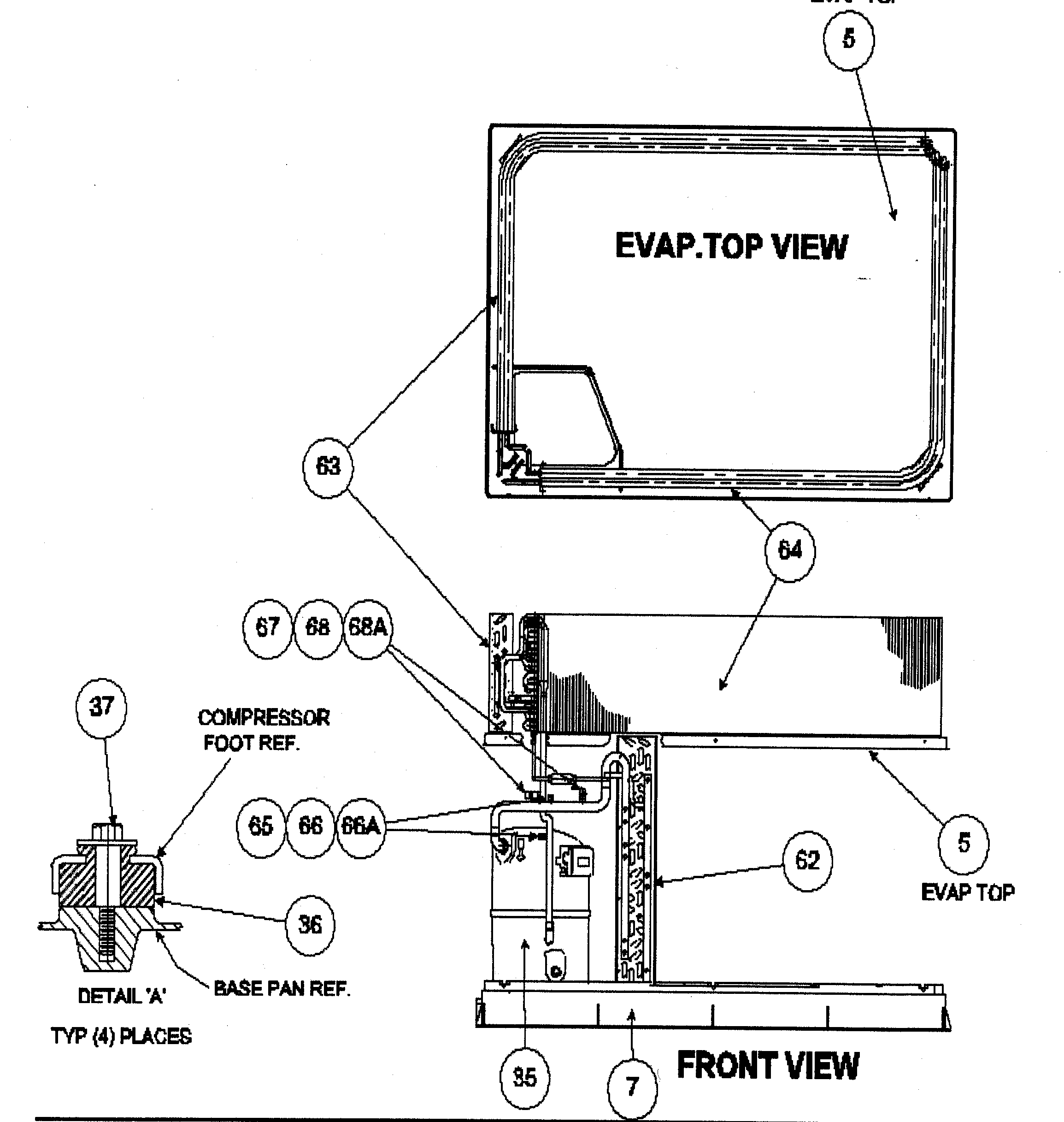

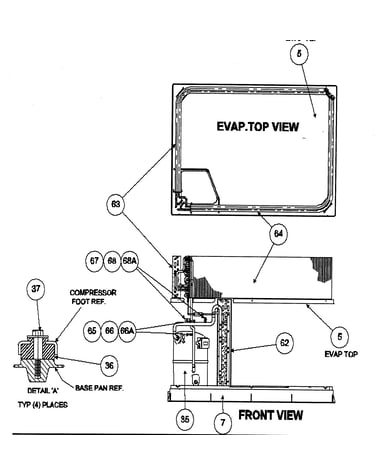

Evaporator diagram
Cap
Part #99CC409372
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your heating & cooling combined units
Choose a symptom to see related heating and air conditioning system repairs.
Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Thermostat problem, clogged air filter, burner failure…
Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…
Main causes: Errant thermostat settings, lack of power, bad interlock switches, lack of exhaust ventilation, wiring fail…
Dirty flame sensor, failed flame sensor, damaged burner, bad high limit switch…
