Frigidaire
Gas Cooktop

Model # FGC36C4AWA Official Frigidaire gas cooktop

Here are the diagrams and repair parts for Official Frigidaire FGC36C4AWA gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

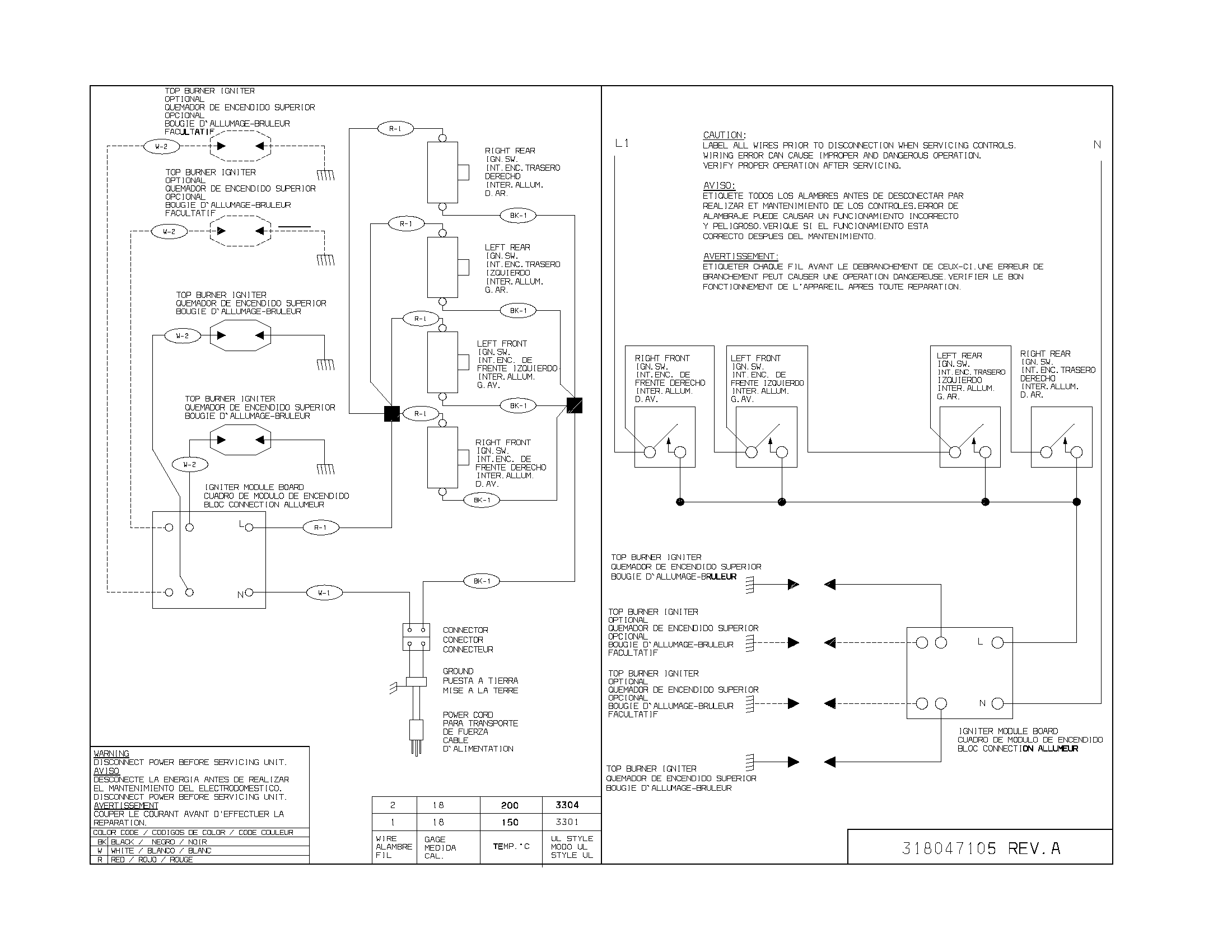

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Range Spark Module 316135700
#8

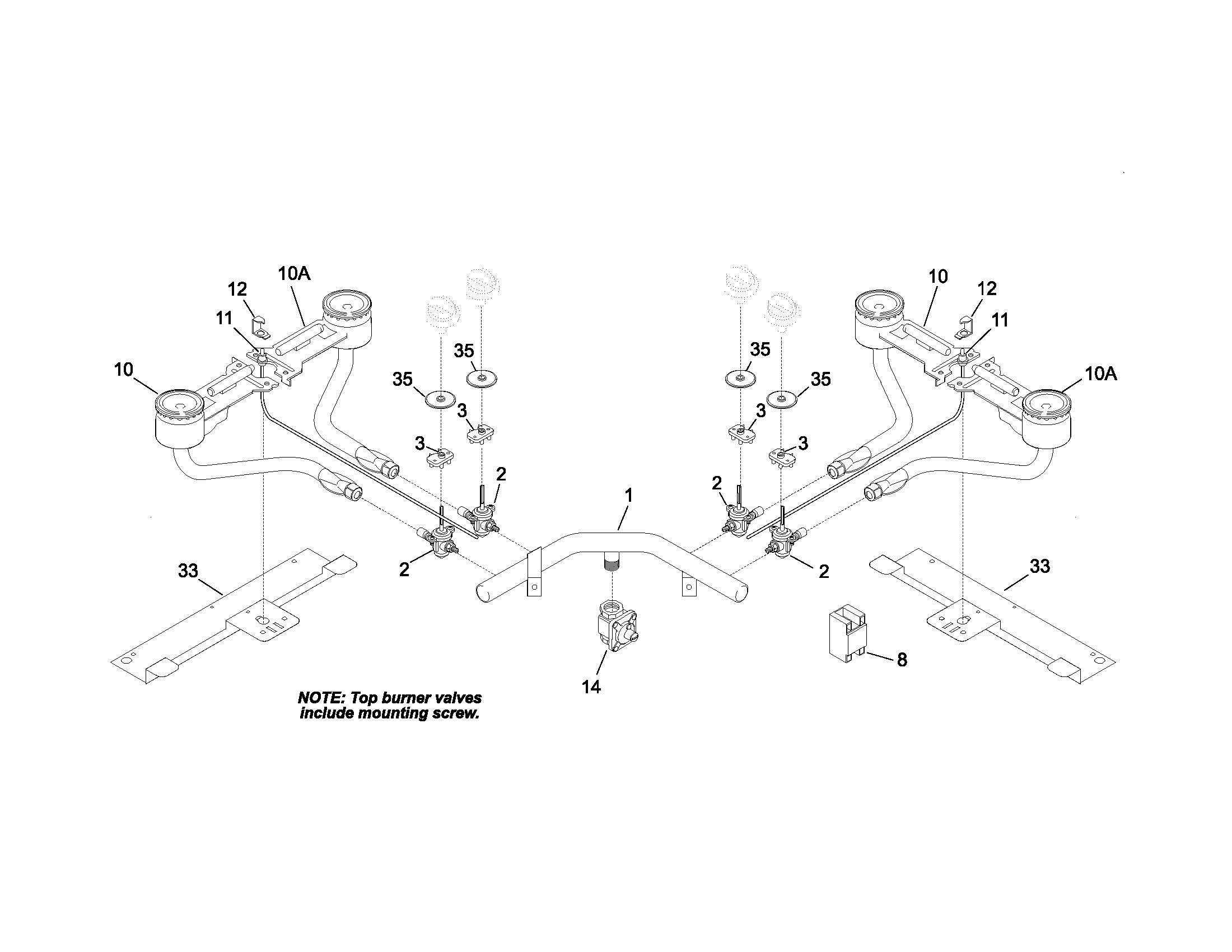

Burner diagram

Range spark module

Part #316135700

Replaced by #5304518635

?
Manufacturer substitution
This part replaces 316135700. Substitute parts can look different from the original.
$89.49
5% OFF Phone Price : $94.49
In Stock
Range Pressure Regulator 5308007974
#14

Burner diagram

Range pressure regulator

Part #5308007974

In Stock
Range Surface Burner Igniter Retainer 3016993
#12

Burner diagram

Range surface burner igniter retainer

Part #3016993

In Stock
Screw 5303311306
Screw

Part #5303311306

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303311306. Substitute parts can look different from the original.
This item is not returnable
In Stock
Grate 316040807
#20

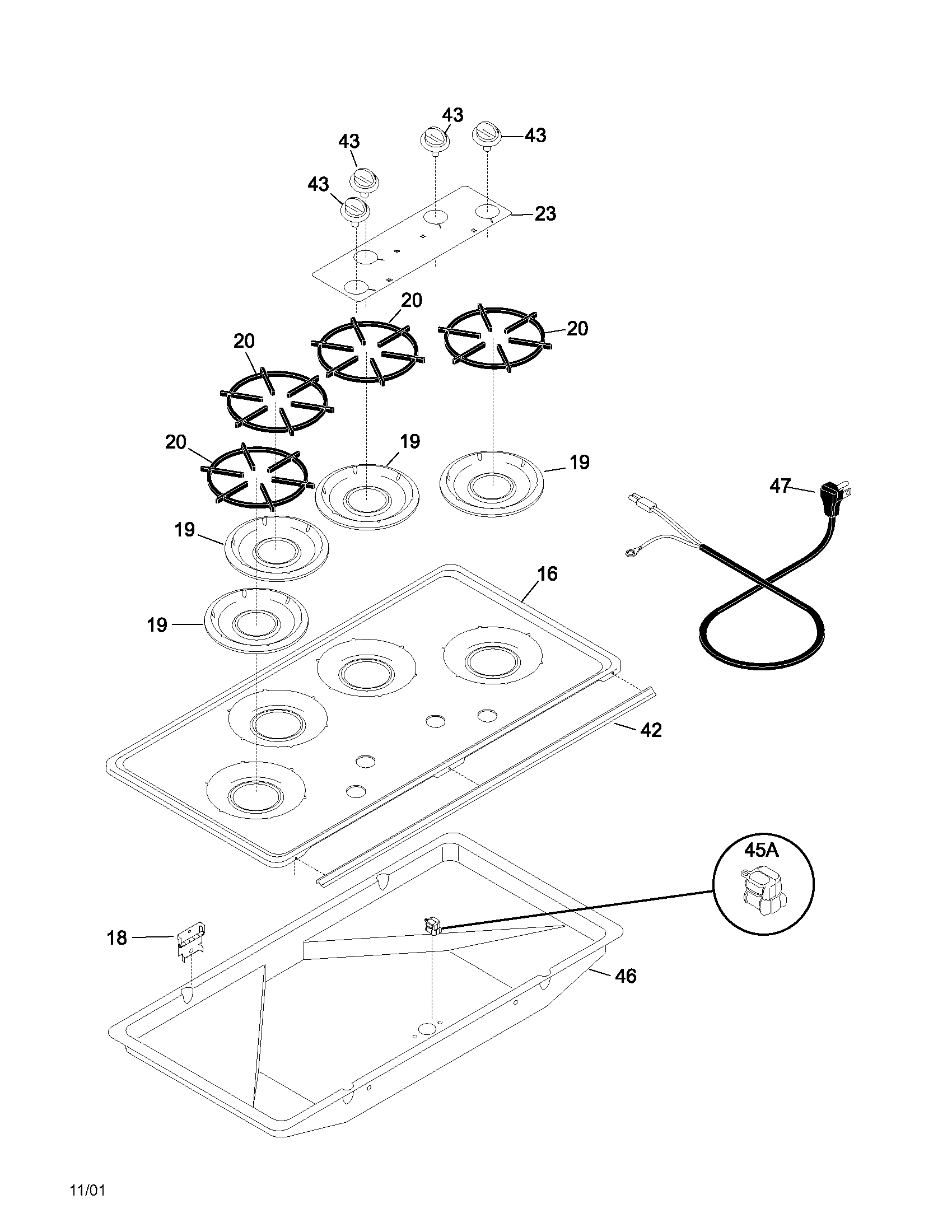

Cooktop diagram

Grate

Part #316040807

Replaced by #316055800

?
Manufacturer substitution
This part replaces 316040807. Substitute parts can look different from the original.
$37.00
12% OFF Phone Price : $42.00
In Stock
Bushing 318146300
#35

Burner diagram

Bushing

Part #318146300

Replaced by #318146301

?
Manufacturer substitution
This part replaces 318146300. Substitute parts can look different from the original.
$35.29
12% OFF Phone Price : $40.29
In Stock
Cooking Appliance Power Cord Strain Relief 3201437
#45A

Cooktop diagram

Cooking appliance power cord strain relief

Part #3201437

Replaced by #5304513507

?
Manufacturer substitution
This part replaces 3201437. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cooktop Screw 5303311532
Cooktop screw

Part #5303311532

Replaced by #316524400

?
Manufacturer substitution
This part replaces 5303311532. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Screw 5303311333
#NI

Cooktop diagram

Range screw

Part #5303311333

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 5303311333. Substitute parts can look different from the original.
In Stock
Trim 5303311316
#42

Cooktop diagram

Trim

Part #5303311316

The manufacturer no longer makes this part, and there's no substitute part
