Electrolux
Dryer

Model #EFME628WTT00 Official Electrolux dryer

Here are the diagrams and repair parts for Electrolux EFME628WTT00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

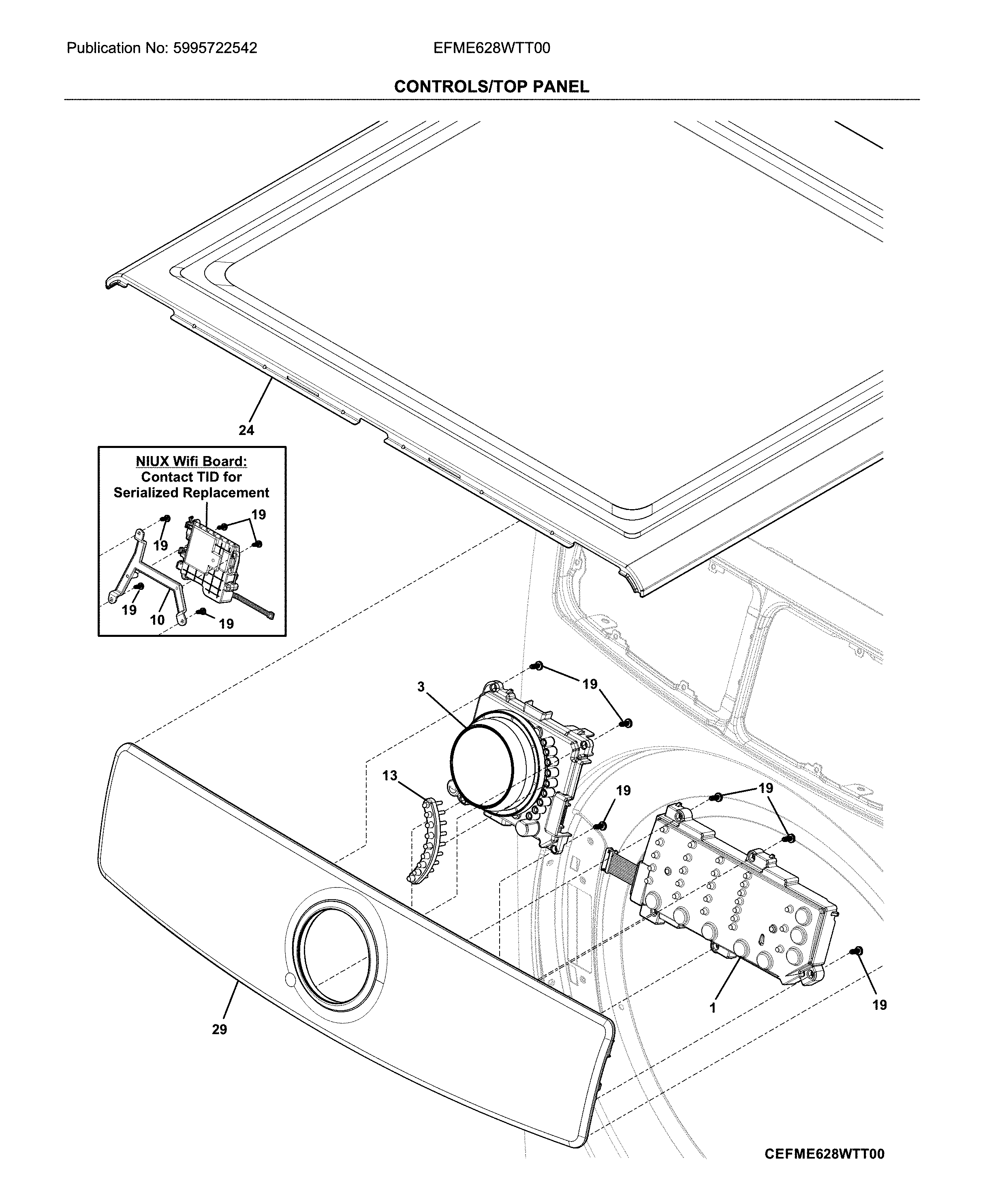

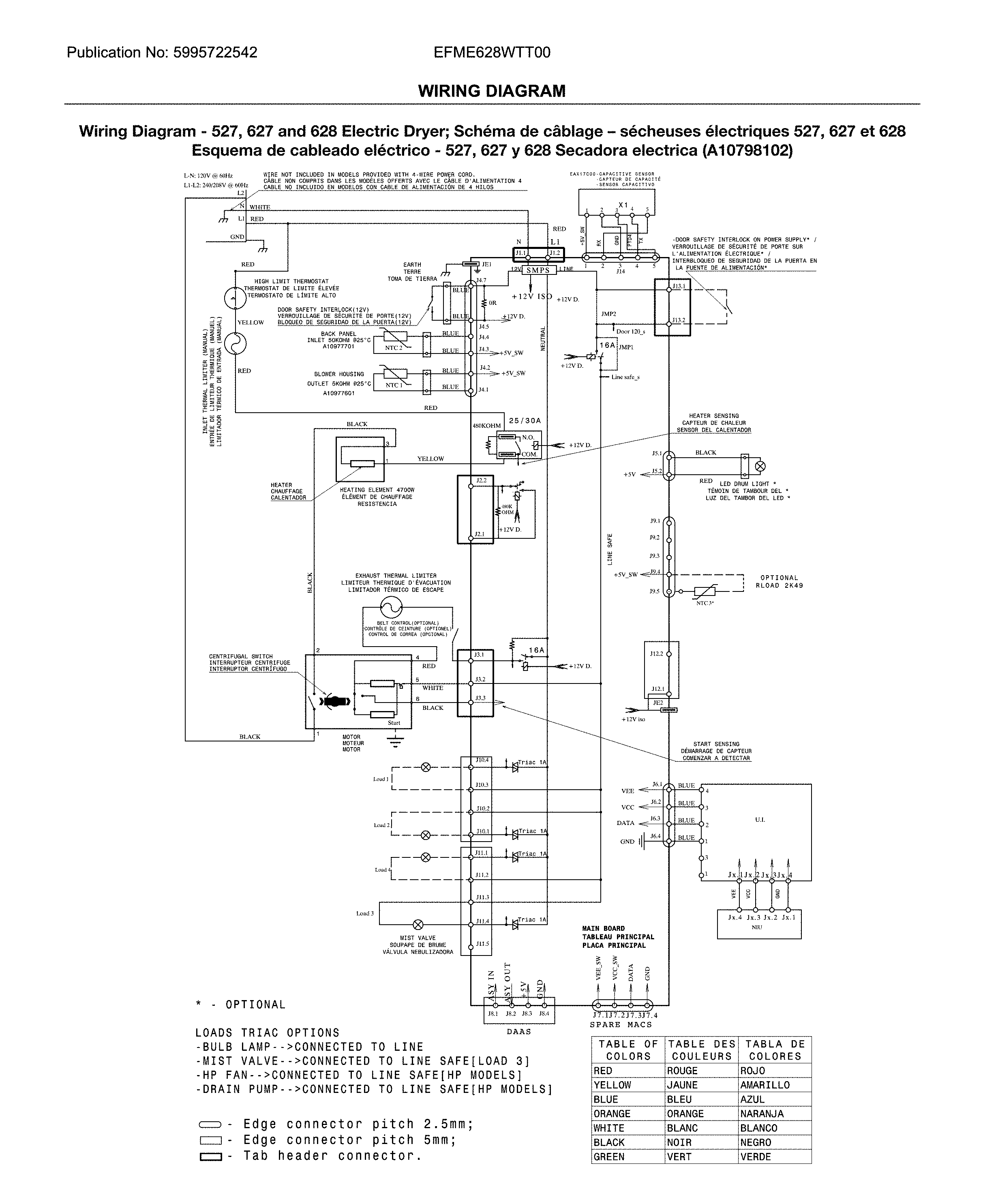

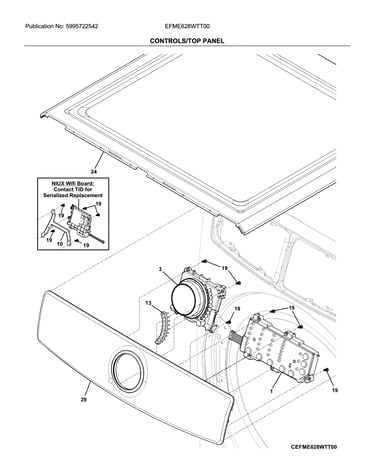

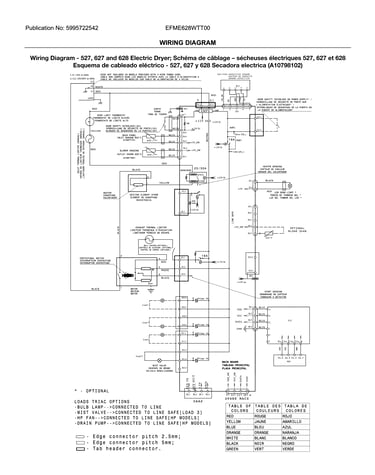

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 106 parts

    Dryer Drum Belt#25

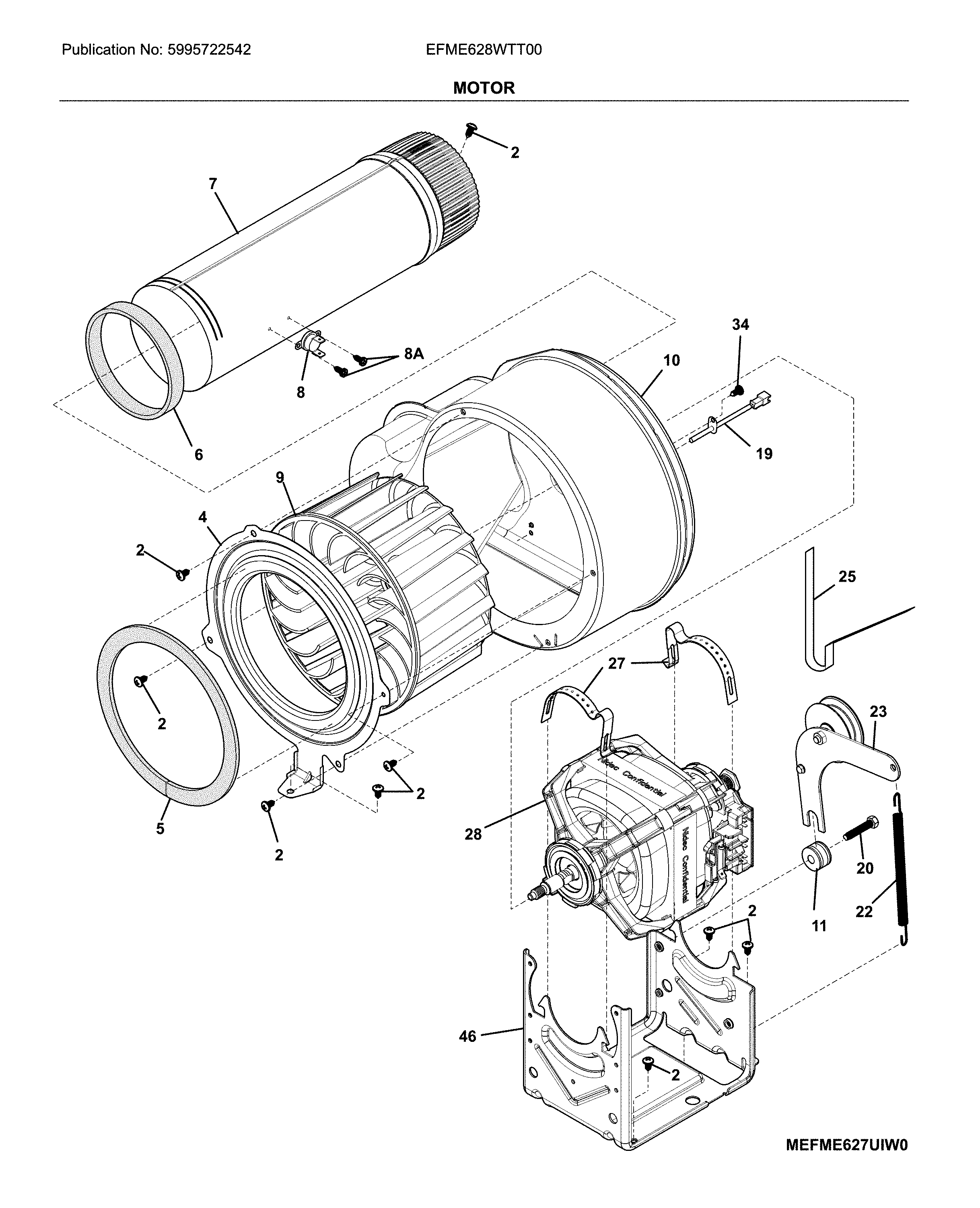

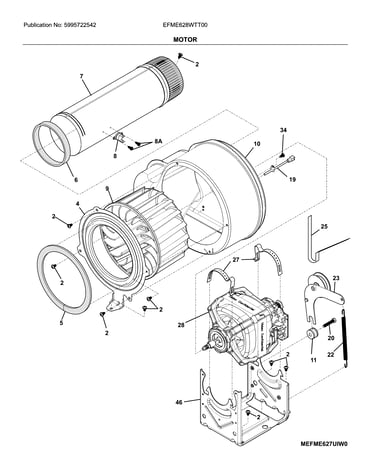

    Motor Diagram

    Dryer drum belt

    Part #134719300
    BEST SELLER
    In Stock
    $52.18 |
    9% OFF
    Phone Price: $57.18
    Dryer High-Limit Thermostat#33

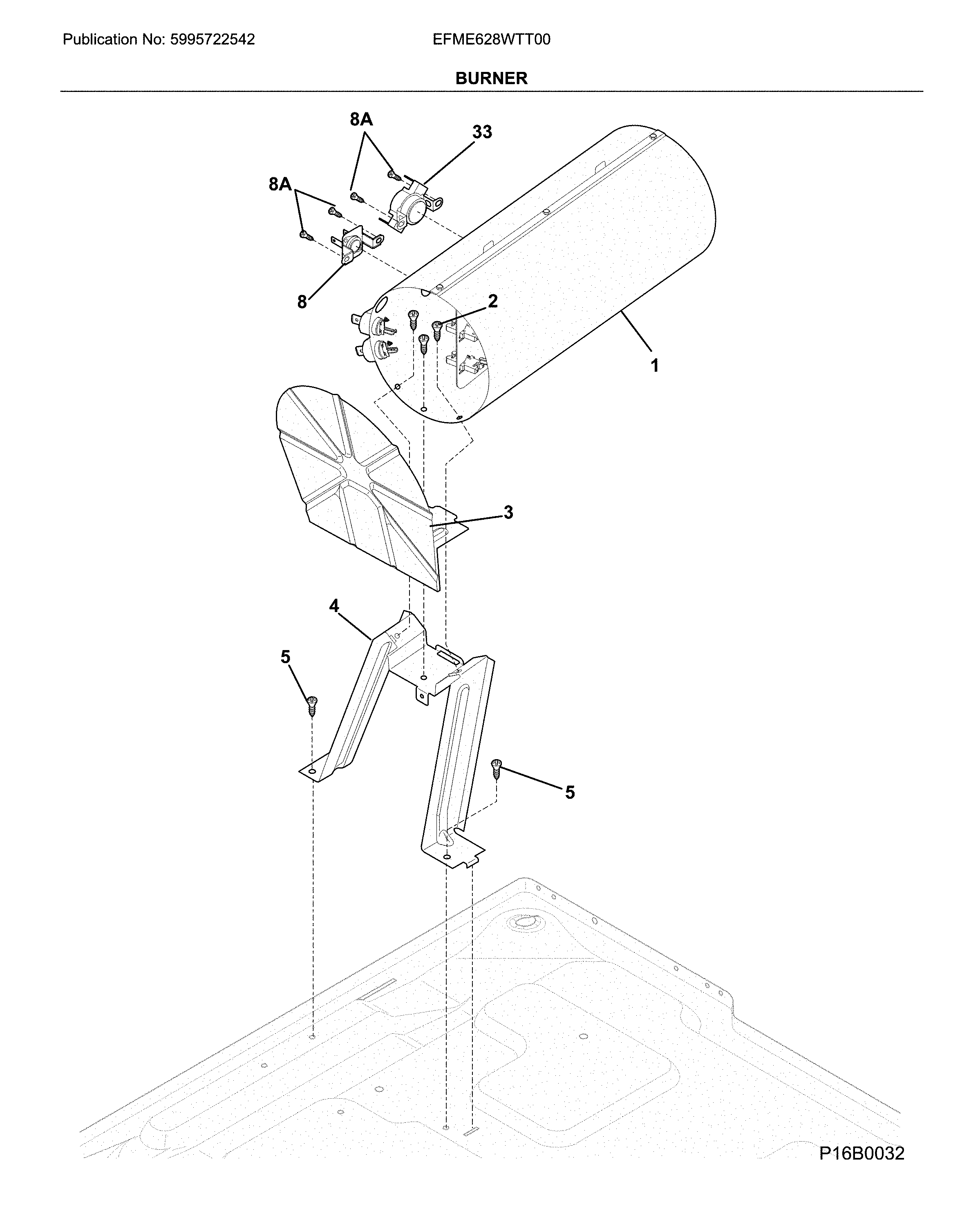

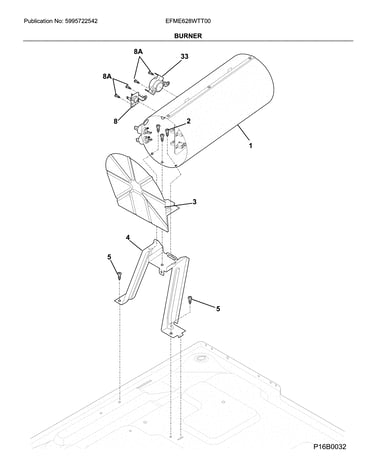

    Burner Diagram

    Dryer high-limit thermostat

    Part #3204267
    BEST SELLER
    In Stock
    $82.59 |
    11% OFF
    MSRP: $93.29
    Dryer Inlet Thermal Limiter#8

    Burner Diagram

    Dryer inlet thermal limiter

    Part #137032600
    BEST SELLER
    In Stock
    $44.13 |
    10% OFF
    Phone Price: $49.13
    Dryer Exhaust Thermal Limiter#8

    Motor Diagram

    Dryer exhaust thermal limiter

    Part #134711401
    BEST SELLER
    In Stock
    $28.36 |
    15% OFF
    Phone Price: $33.36
    Dryer Lint Screen#27

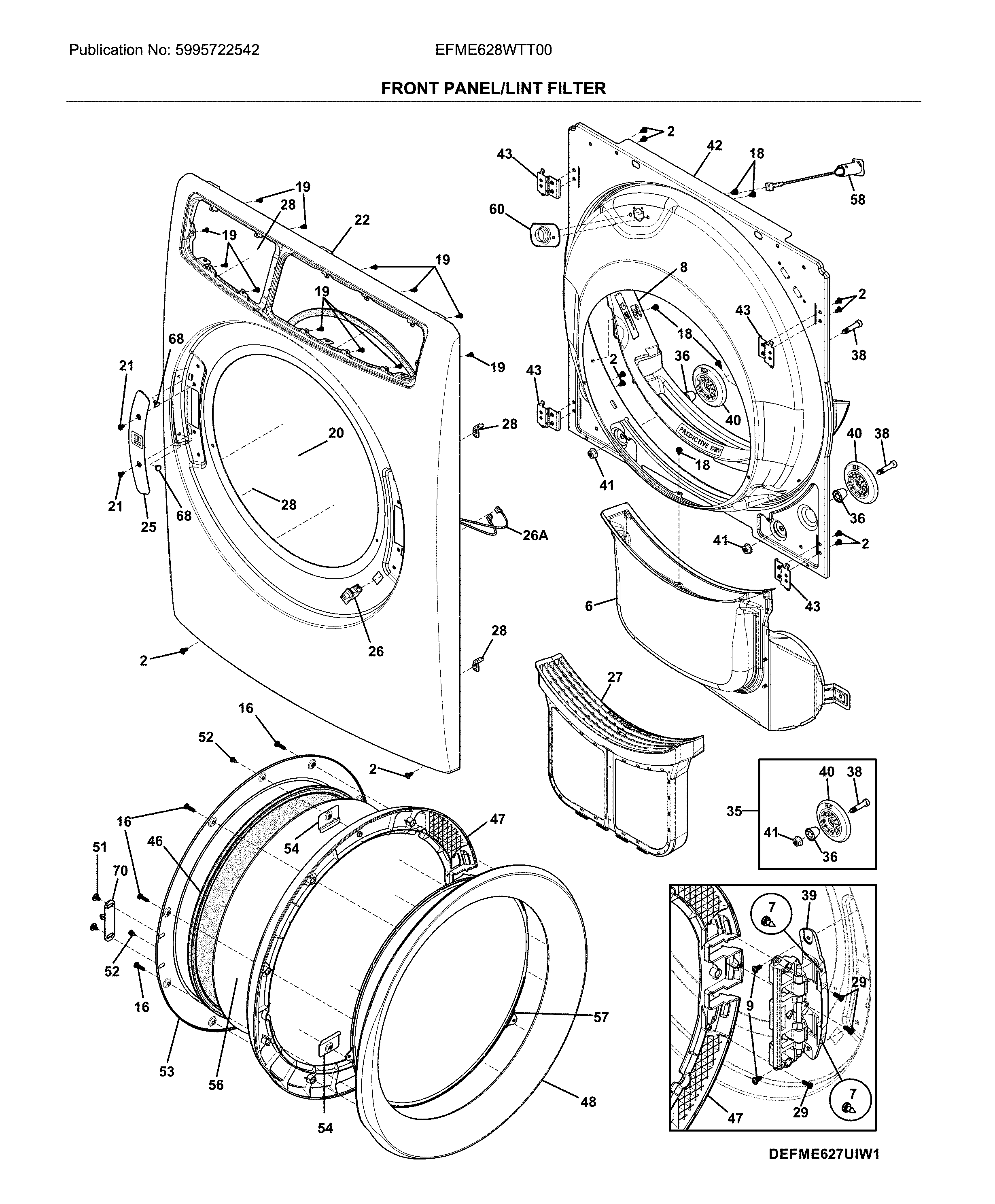

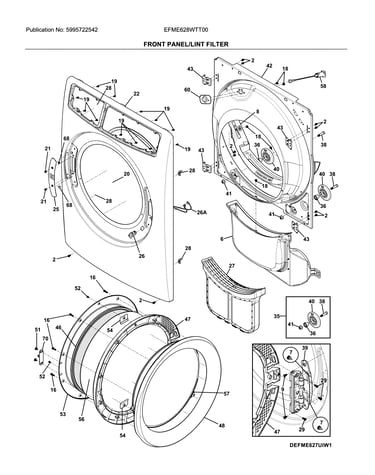

    Front panel/lint filter Diagram

    Dryer lint screen

    Part #5304513574
    Replaced by #5304529766
    ?
    Manufacturer substitution
    This part replaces 5304513574. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $90.84 |
    5% OFF
    Phone Price: $95.84
    Dryer Heating Element#1

    Burner Diagram

    Dryer heating element

    Part #137114000
    BEST SELLER
    In Stock
    $193.86 |
    16% OFF
    MSRP: $230.00
    Laundry Appliance Screw, #8-18 x 31/100-in
    In Stock
    $9.78 |
    30% OFF
    MSRP: $14.00
    Laundry Appliance Screw, #8-18 x 31/100-in#NI

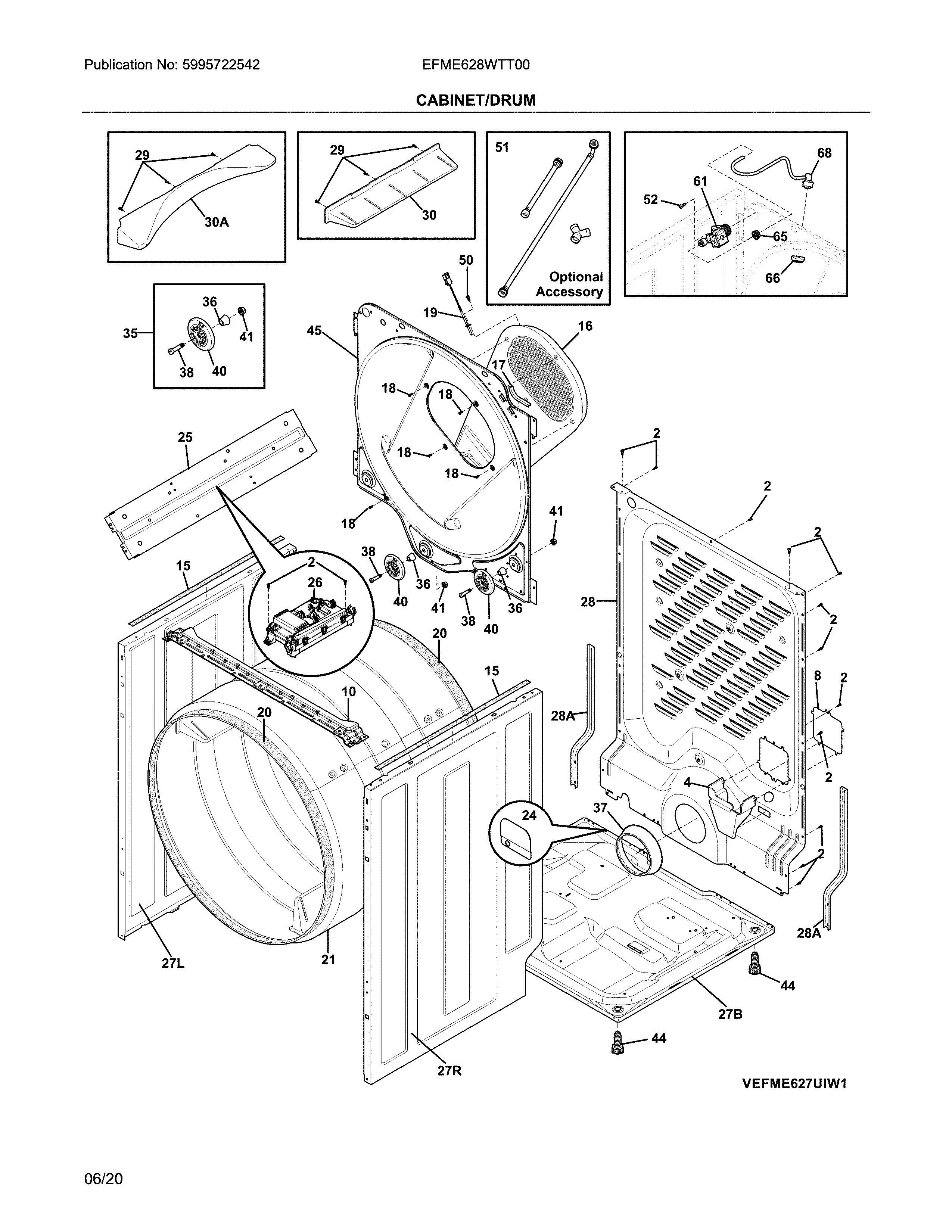

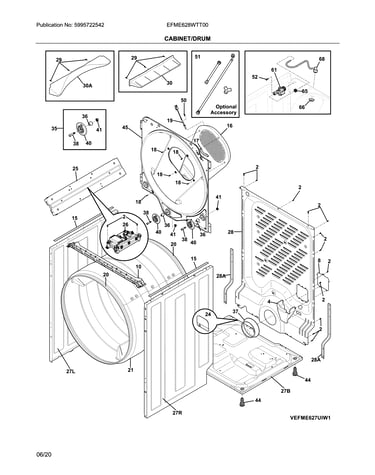

    Cabinet/drum Diagram

    Screw

    Part #5304521493
    Replaced by #131168200
    ?
    Manufacturer substitution
    This part replaces 5304521493. Substitute parts can look different from the original.
    In Stock
    $9.78 |
    30% OFF
    MSRP: $14.00
    Laundry Appliance Screw, #8-18 x 31/100-in

    See All Related Diagrams

    Dryer screw

    Part #131477000
    Replaced by #131168200
    ?
    Manufacturer substitution
    This part replaces 131477000. Substitute parts can look different from the original.
    In Stock
    $9.78 |
    30% OFF
    MSRP: $14.00
    Dryer Drive Motor and Pulley#28

    Motor Diagram

    Dryer drive motor and pulley

    Part #134693302
    Replaced by #5304529782
    ?
    Manufacturer substitution
    This part replaces 134693302. Substitute parts can look different from the original.
    In Stock
    $126.09 |
    21% OFF
    MSRP: $160.00

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
