Kenmore 1199098410 electric range Parts
Here are the diagrams and repair parts for Kenmore 1199098410 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1199098410 Ranges

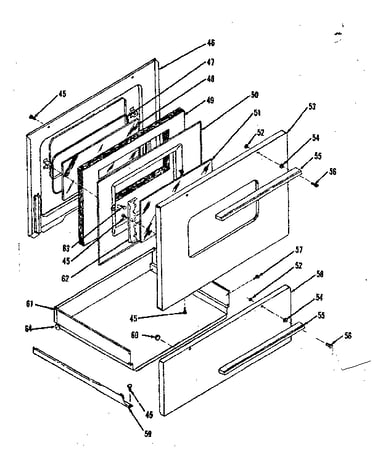

Oven door and storage drawer diagram
Door Panel (almond)
Part #9906Get free shipping with Automatic ReorderReplaced by #WFCB
Manufacturer substitutionThis part replaces 9906. Substitute parts can look different from the original.In Stock$49.7313% OFF Phone Price : $57.27
Qty

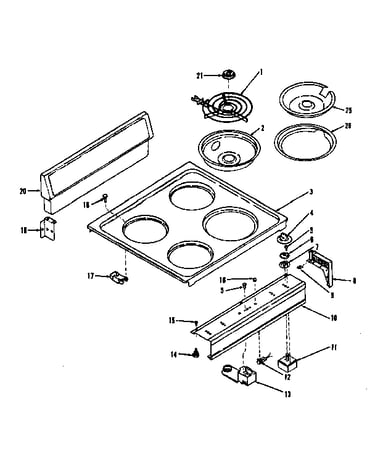

Backguard and cooktop diagram
Terminal Block
Part #9175Replaced by #5303935058
Manufacturer substitutionThis part replaces 9175. Substitute parts can look different from the original.In Stock$9.639% OFF Phone Price : $10.63QtyBackguard and cooktop diagram
Large Bowl
Part #6600Replaced by #316048413
Manufacturer substitutionThis part replaces 6600. Substitute parts can look different from the original.In Stock$14.8212% OFF Phone Price : $16.82QtyBackguard and cooktop diagram
Sm Top Unit
Part #9564Replaced by #318372210
Manufacturer substitutionThis part replaces 9564. Substitute parts can look different from the original.In Stock$53.2410% OFF Phone Price : $59.24QtyScrew
Part #9308Replaced by #5304500008

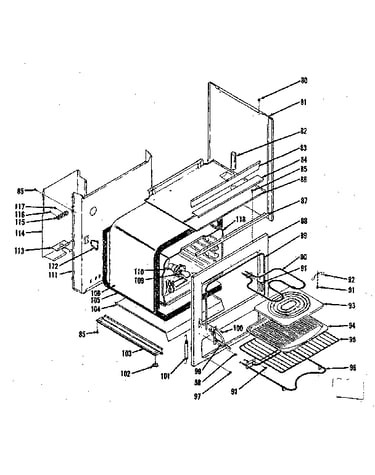

Manufacturer substitutionThis part replaces 9308. Substitute parts can look different from the original.In Stock$35.80QtyBody diagram
Bake Element
Part #9501
The manufacturer no longer makes this part, and there's no substitute part
Backguard and cooktop diagram
Bowl
Part #285571Replaced by #285571

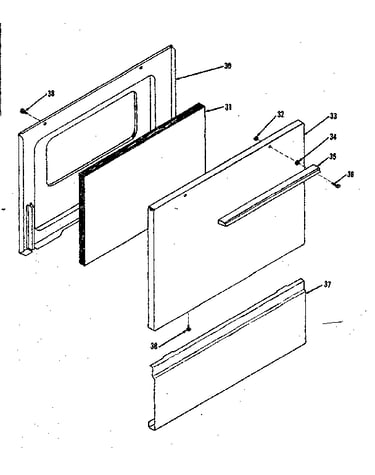

Manufacturer substitutionThis part replaces 285571. Substitute parts can look different from the original.In Stock$46.60QtyOven door and snap-on panel diagram
Door Lining
Part #9723Replaced by #3017711
Manufacturer substitutionThis part replaces 9723. Substitute parts can look different from the original.In Stock$110.49QtyBackguard and cooktop diagram
Medallion
Part #9566Replaced by #5303017715
Manufacturer substitutionThis part replaces 9566. Substitute parts can look different from the original.In Stock$54.6710% OFF Phone Price : $60.67QtyBody diagram
Broiler Element
Part #9503
The manufacturer no longer makes this part, and there's no substitute part
