KitchenAid KUIS155HPB0 ice cube maker Parts
Here are the diagrams and repair parts for KitchenAid KUIS155HPB0 ice cube maker, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part
SELECT DIAGRAM

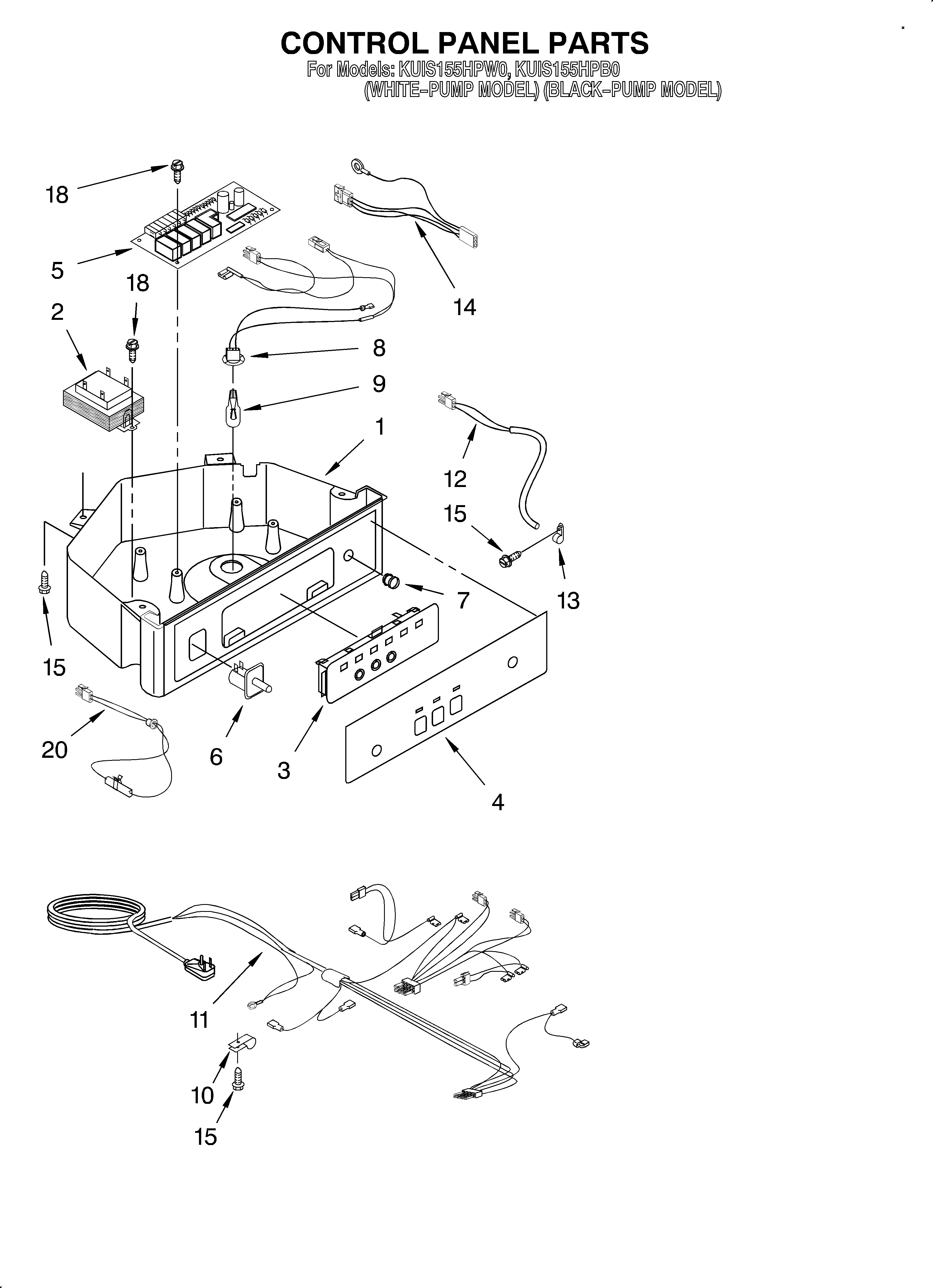

Browse Parts for KUIS155HPB0 Ice Cube Maker

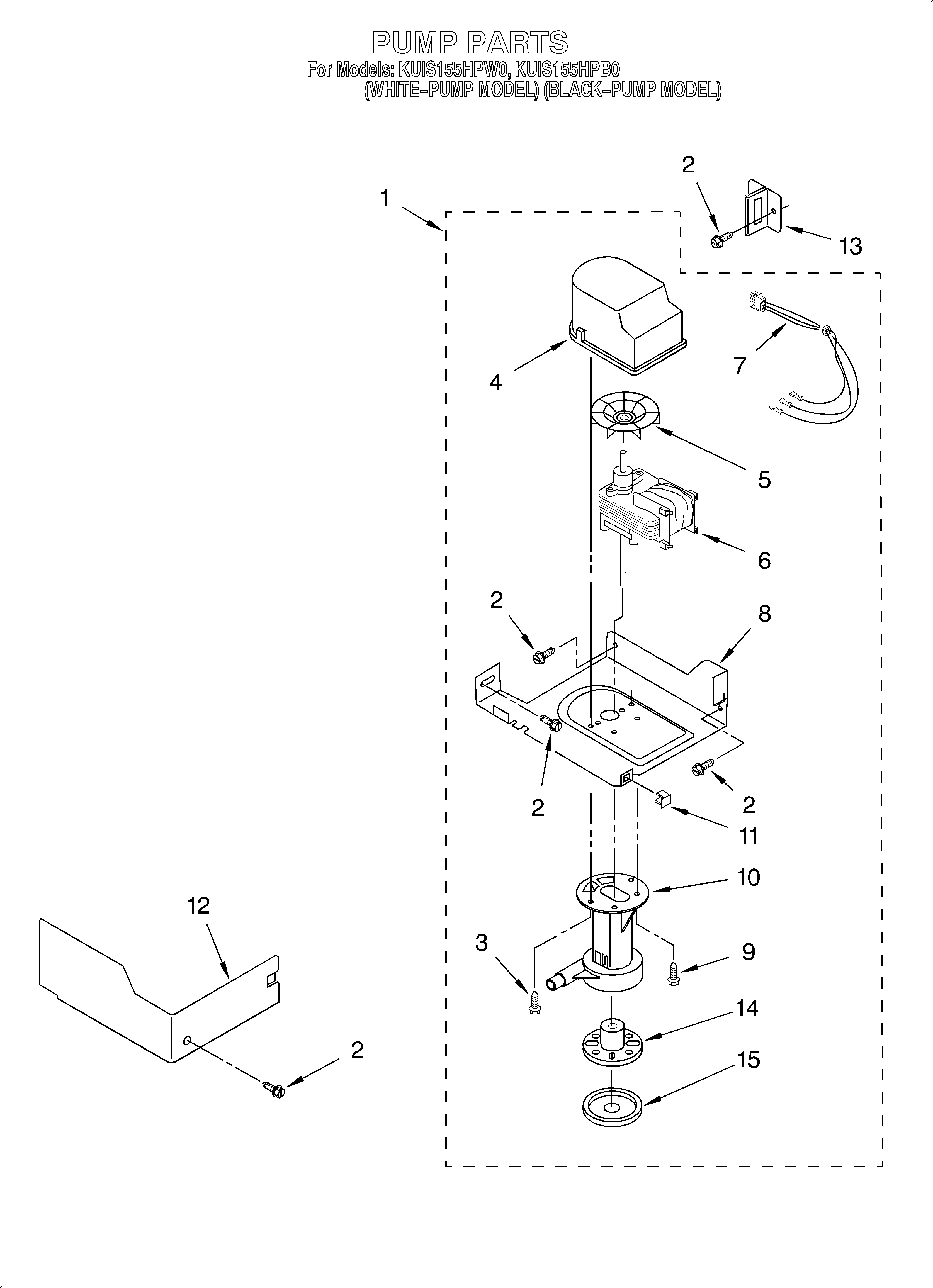

Pump diagram
Bracket
Part #2185751Replaced by #WP2217220
Manufacturer substitutionThis part replaces 2185751. Substitute parts can look different from the original.In Stock$209.455% OFF Phone Price : $221.45
Qty
Pump diagram
Cap Pump
Part #2185749Replaced by #WP2217220

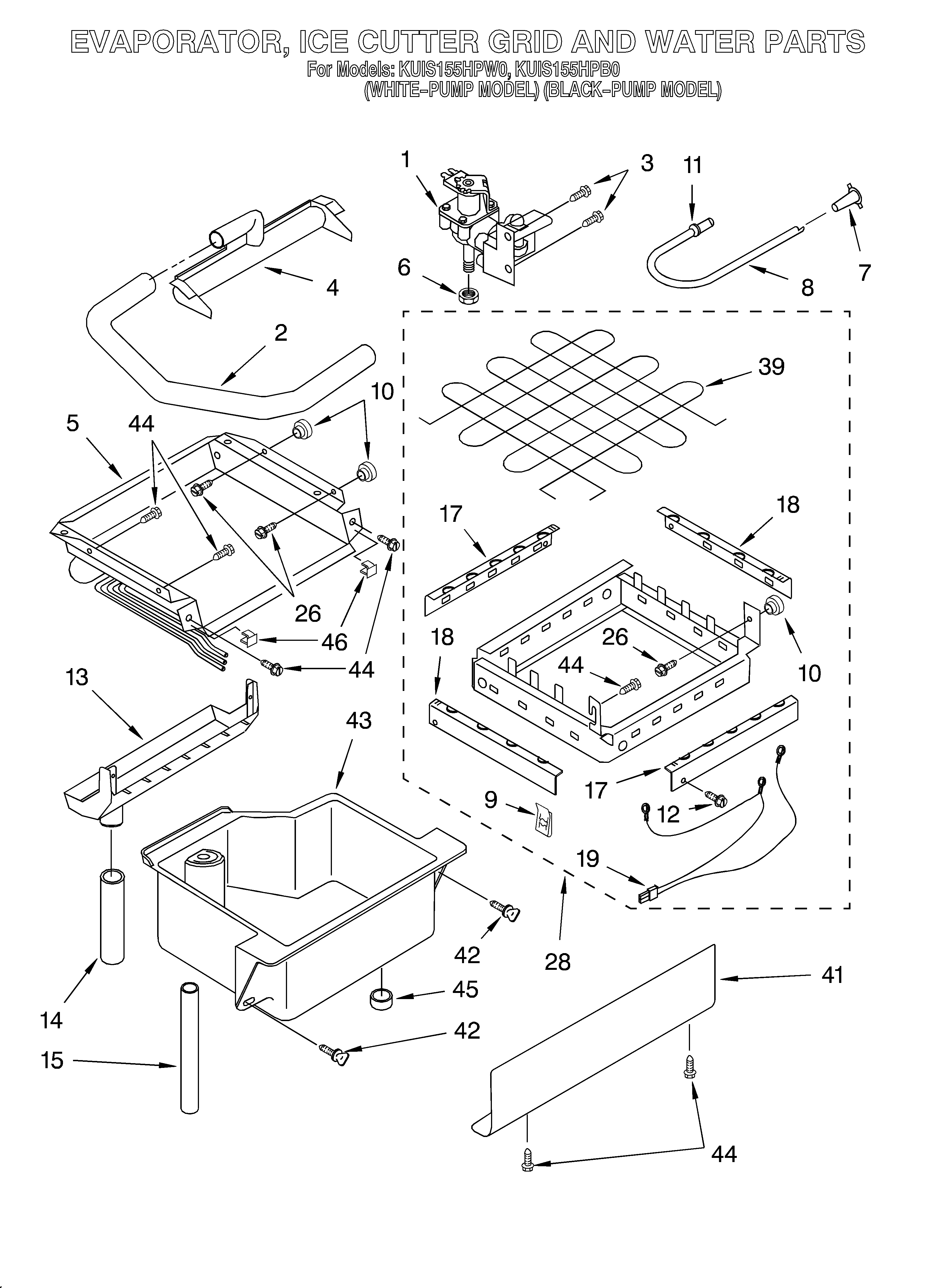

Manufacturer substitutionThis part replaces 2185749. Substitute parts can look different from the original.In Stock$209.455% OFF Phone Price : $221.45QtyEvaporator, ice cutter grid and water diagram
Valve
Part #2185758Replaced by #W10801996

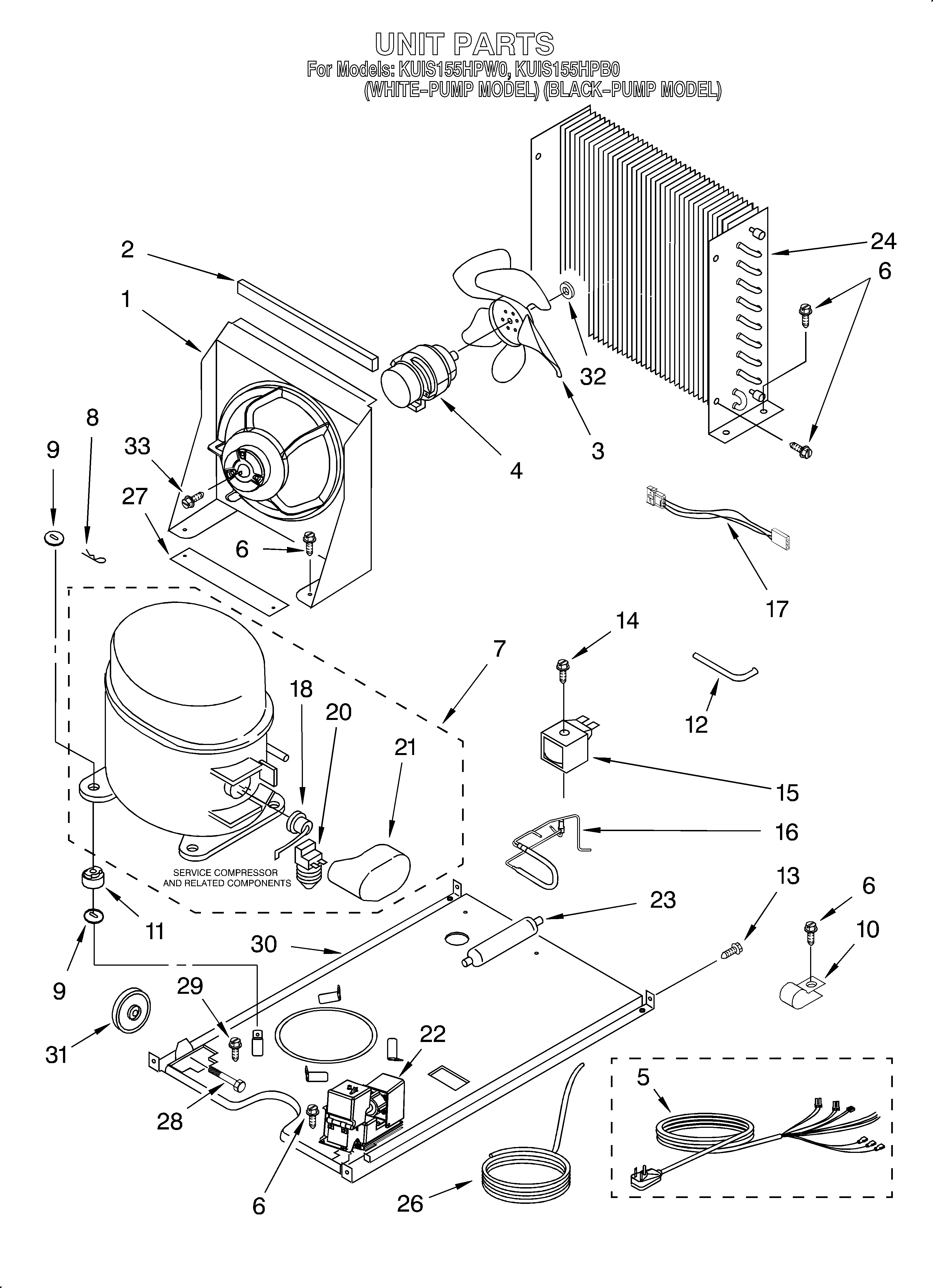

Manufacturer substitutionThis part replaces 2185758. Substitute parts can look different from the original.In Stock$127.419% OFF Phone Price : $139.41QtyUnit diagram
Ice Maker Compressor Grommet
In Stock$27.4518% OFF Phone Price : $33.45QtyCabinet liner and door/lit/optional diagram
End Cap
In Stock$14.29QtyCabinet liner and door/lit/optional diagram
Sleeve
In Stock$94.99QtyPump diagram
Ice Maker Recirculation Pump Cover
In Stock$94.99QtyCabinet liner and door/lit/optional diagram
Hinge
In Stock$95.97QtyCabinet liner and door/lit/optional diagram
Holder
In Stock$67.95QtyCabinet liner and door/lit/optional diagram
Hinge Pin
In Stock$95.39Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Ice Maker Recirculation Pump Cover
In Stock
$94.99
Qty
Hinge
In Stock
$95.97
Qty
Foam Pad
In Stock
$7.70
11% OFF Phone Price : $8.70
Qty
Most common symptoms to help you fix your freestanding ice makers
Choose a symptom to see related ice maker repairs.
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…
Main causes: wiring failure, broken cutting grid, faulty electronic control board…
Main causes: bad bin thermistor, condenser fan failure, faulty control board…
Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
Most common repair guides to help fix your freestanding ice makers
These step-by-step repair guides will help you safely fix what’s broken on your ice maker.
How to replace a freestanding ice maker cutter grid
When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…
Repair time and Difficulty
15 minutes or less
How to replace a freestanding ice maker recirculation pump
If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …
Repair time and Difficulty
45 minutes or less
How to replace a freestanding ice maker electronic control board
When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your freestanding ice makers
Use the advice and tips in these articles and videos to get the most out of your ice maker.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
See what troubleshooting steps to take with your freestanding ice maker before calling for repair.…
