Model #FRS20QRBD0 Frigidaire side-by-side refrigerator - 5995254280

Here are the diagrams and repair parts for Frigidaire FRS20QRBD0 side-by-side refrigerator - 5995254280, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 189 parts

Refrigerator Crisper Drawer

#26

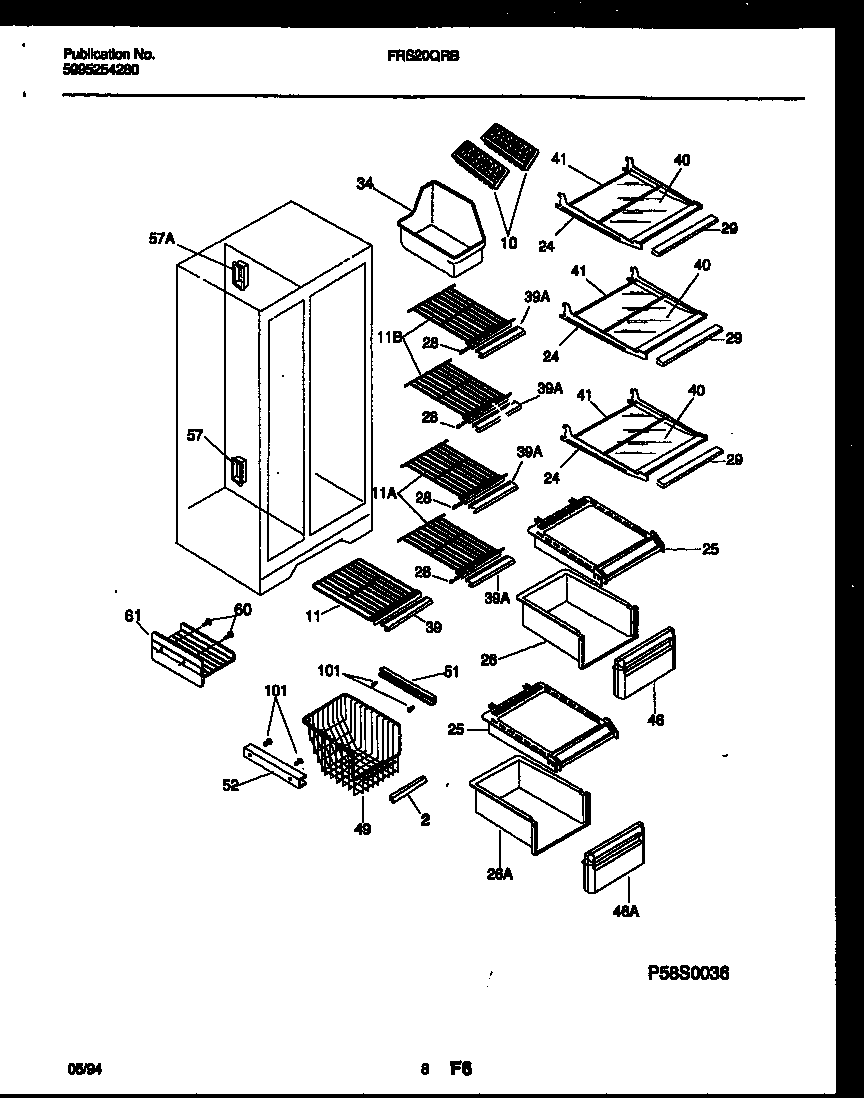

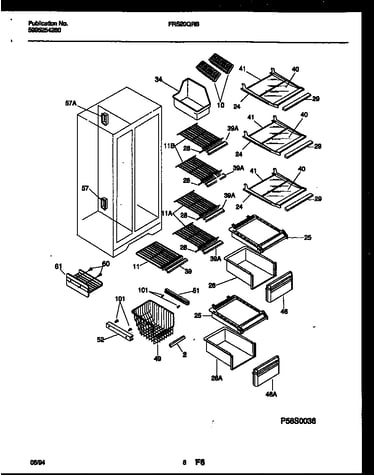

Shelves and supports Diagram

$77.40
30% OFFMSRP:$110.00

In Stock

Refrigerator Crisper Drawer Cover Support Stud

#100

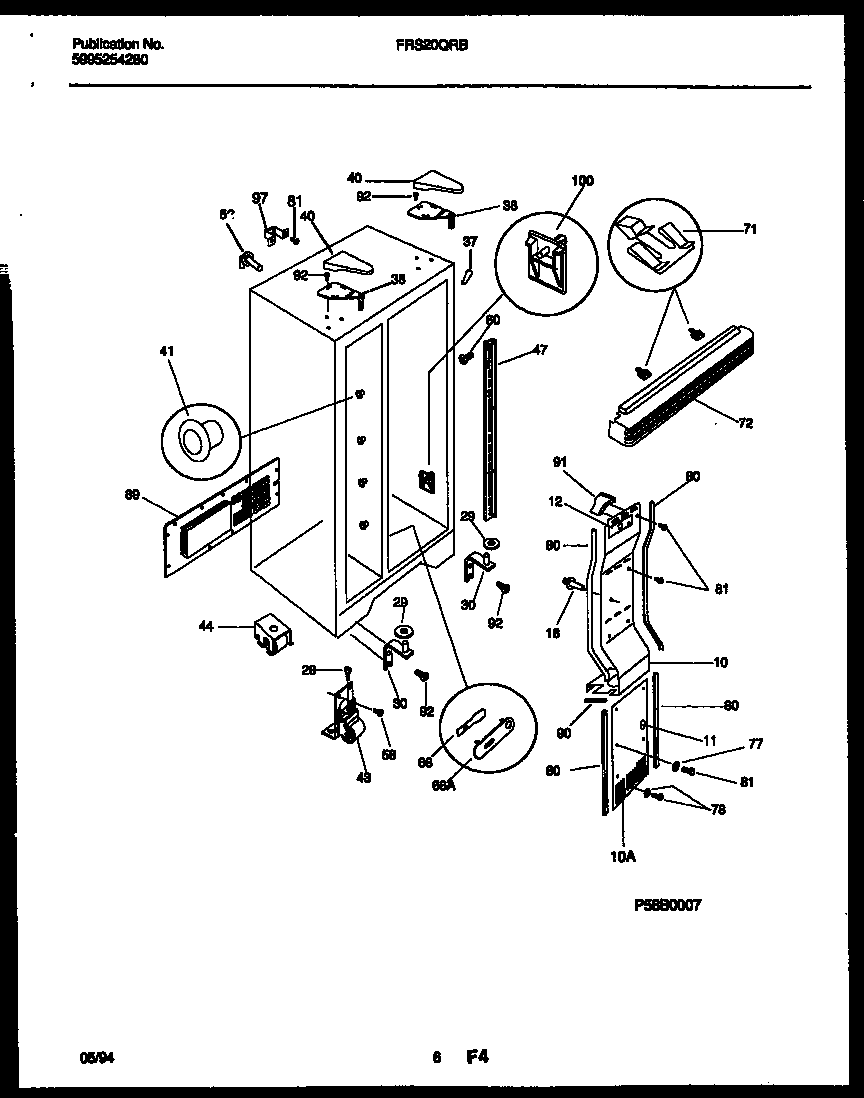

Cabinet parts Diagram

$8.94
36% OFFMSRP:$14.00

In Stock

Refrigerator Evaporator Fan Shaft Washer

#13A

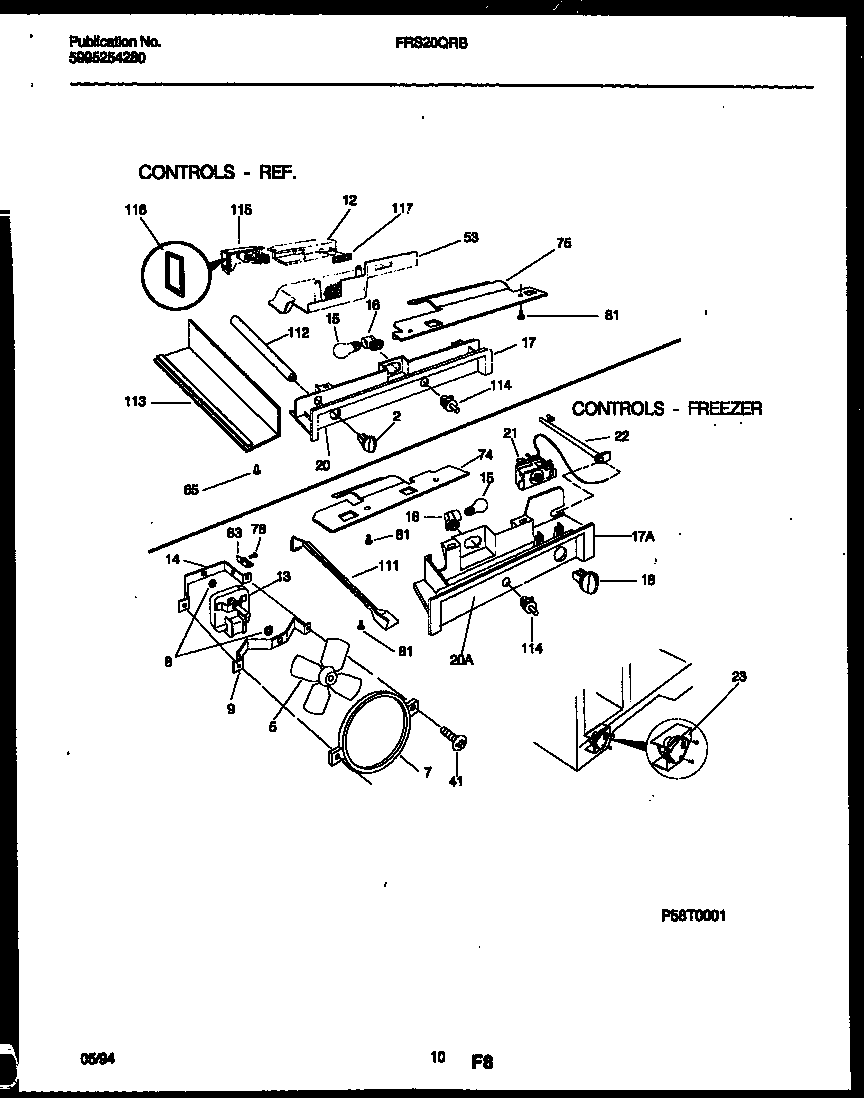

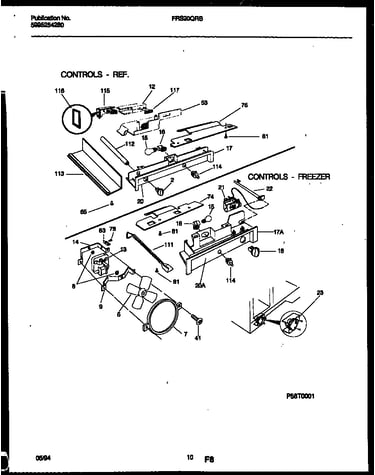

Refrigerator control assembly, damper control assembly and f Diagram

$10.95

In Stock

Refrigerator Egg Bin

#26

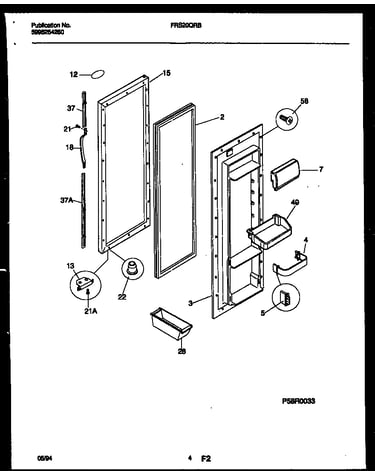

Refrigerator door parts Diagram

Refrigerator egg bin

Part #3204522
$59.45
32% OFFMSRP:$87.43

In Stock

Frame-refr S

#24

Shelves and supports Diagram

Frame-refr s

Part #215919136
$46.04

In Stock

Refrigerator Power Cord

#7

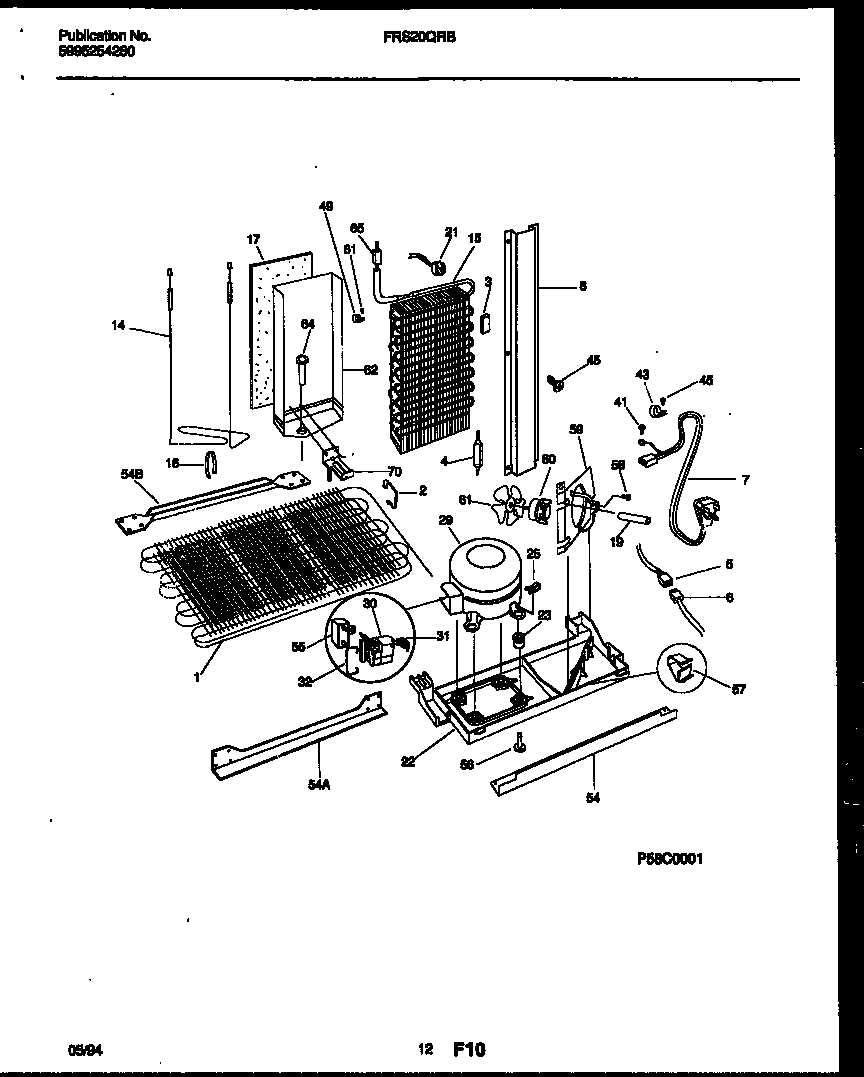

System and automatic defrost parts Diagram

Refrigerator power cord

Part #215459201
$45.40

In Stock

Refrigerator Door Shelf Retainer Clip

#5

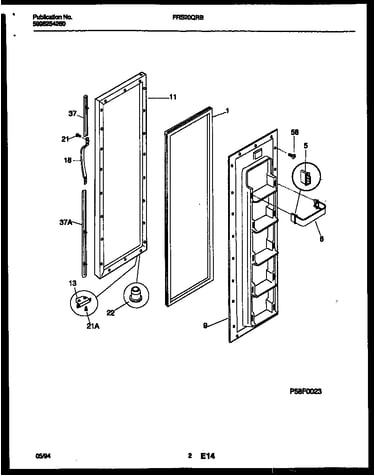

Freezer door parts Diagram

$38.14

In Stock

Refrigerator Bracket

#83

Refrigerator control assembly, damper control assembly and f Diagram

Refrigerator bracket

Part #5308000107
$18.79
30% OFFMSRP:$26.85

In Stock

Refrigerator Cap

#28

Shelves and supports Diagram

Refrigerator cap

Part #08013638
$7.95

In Stock

Refrigerator Condenser Fan Motor

#60

System and automatic defrost parts Diagram

$159.71
41% OFFMSRP:$270.00

In Stock
