Whirlpool WMH31017HS2 microwave/hood combo Parts
Here are the diagrams and repair parts for Whirlpool WMH31017HS2 microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

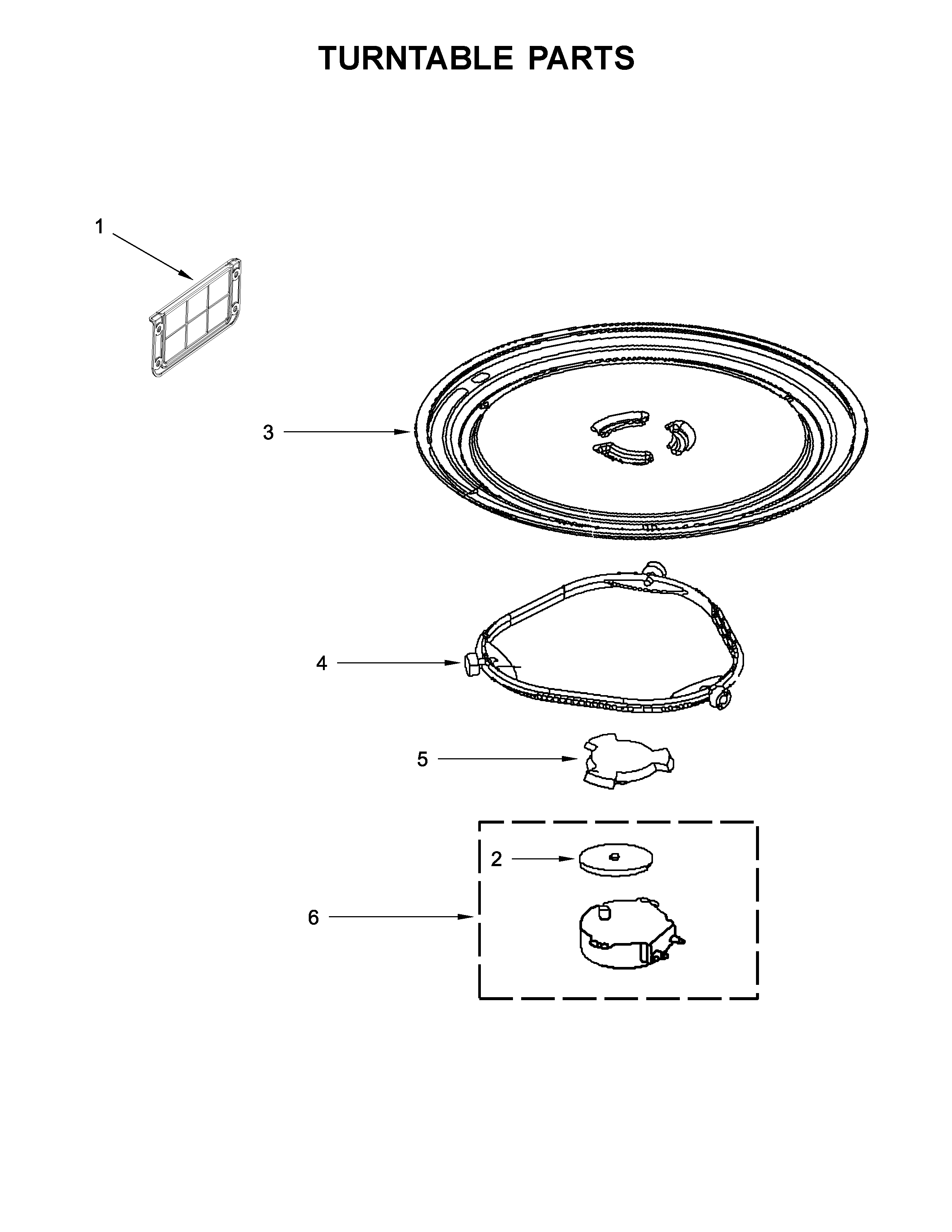

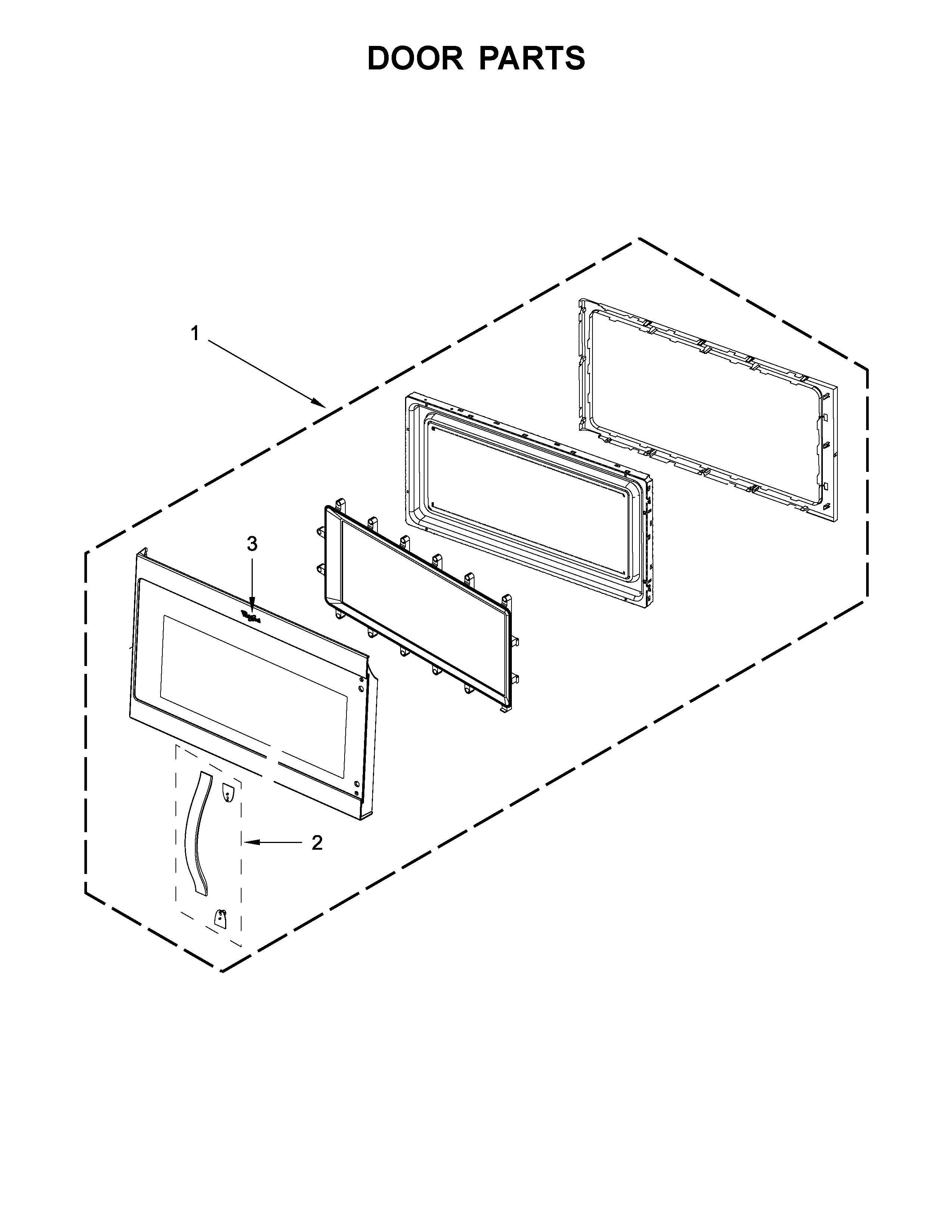

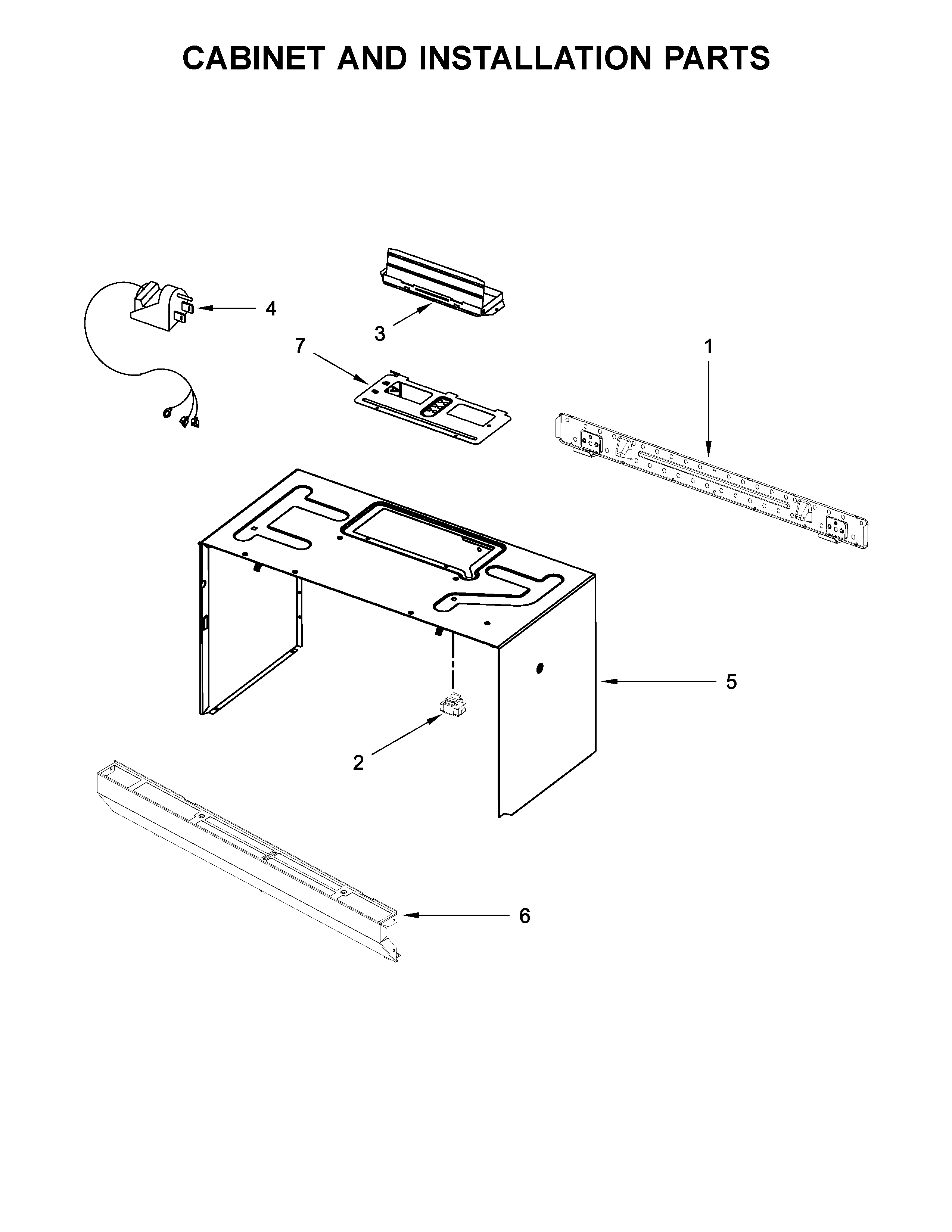

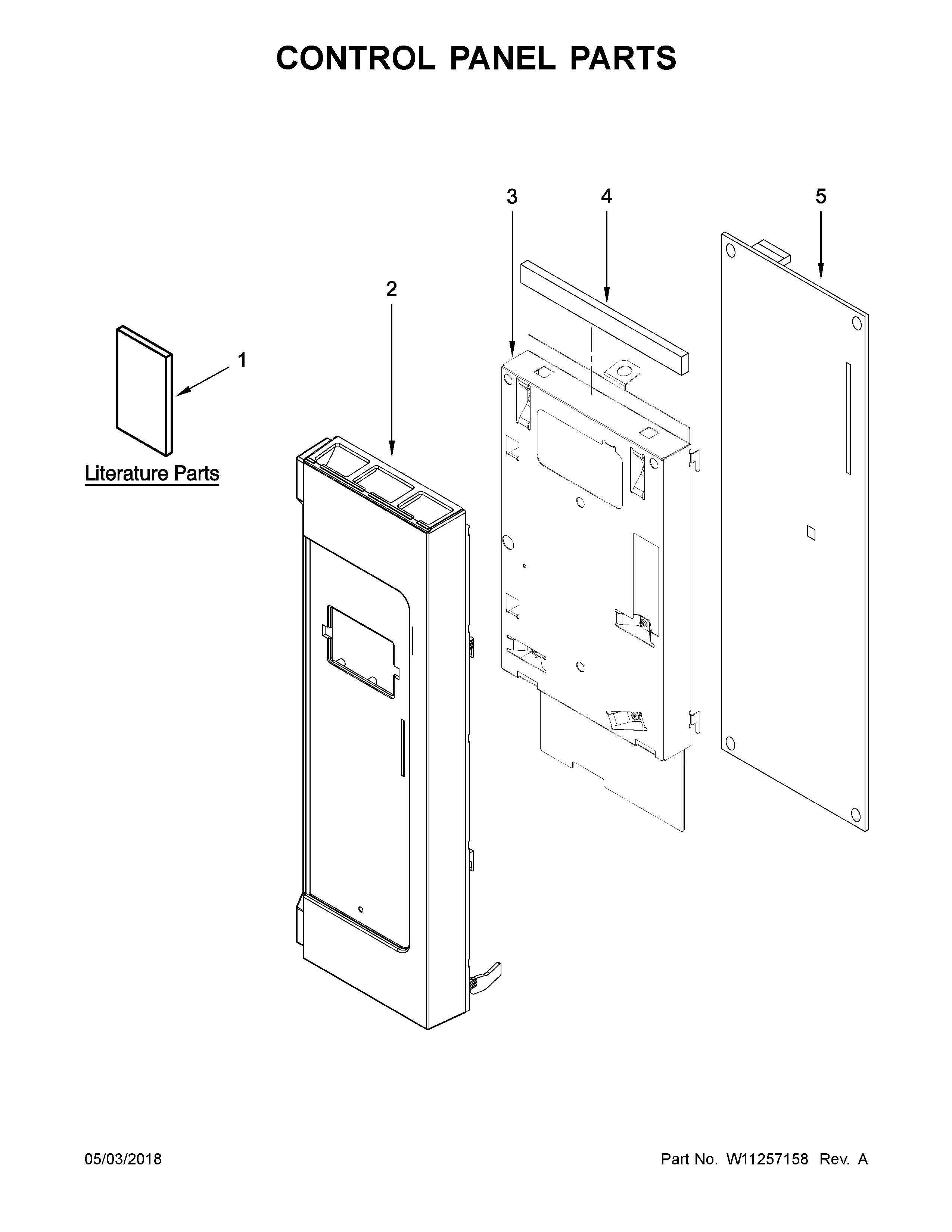

SELECT DIAGRAM
Browse Parts for WMH31017HS2 Microwave/Hood Combo

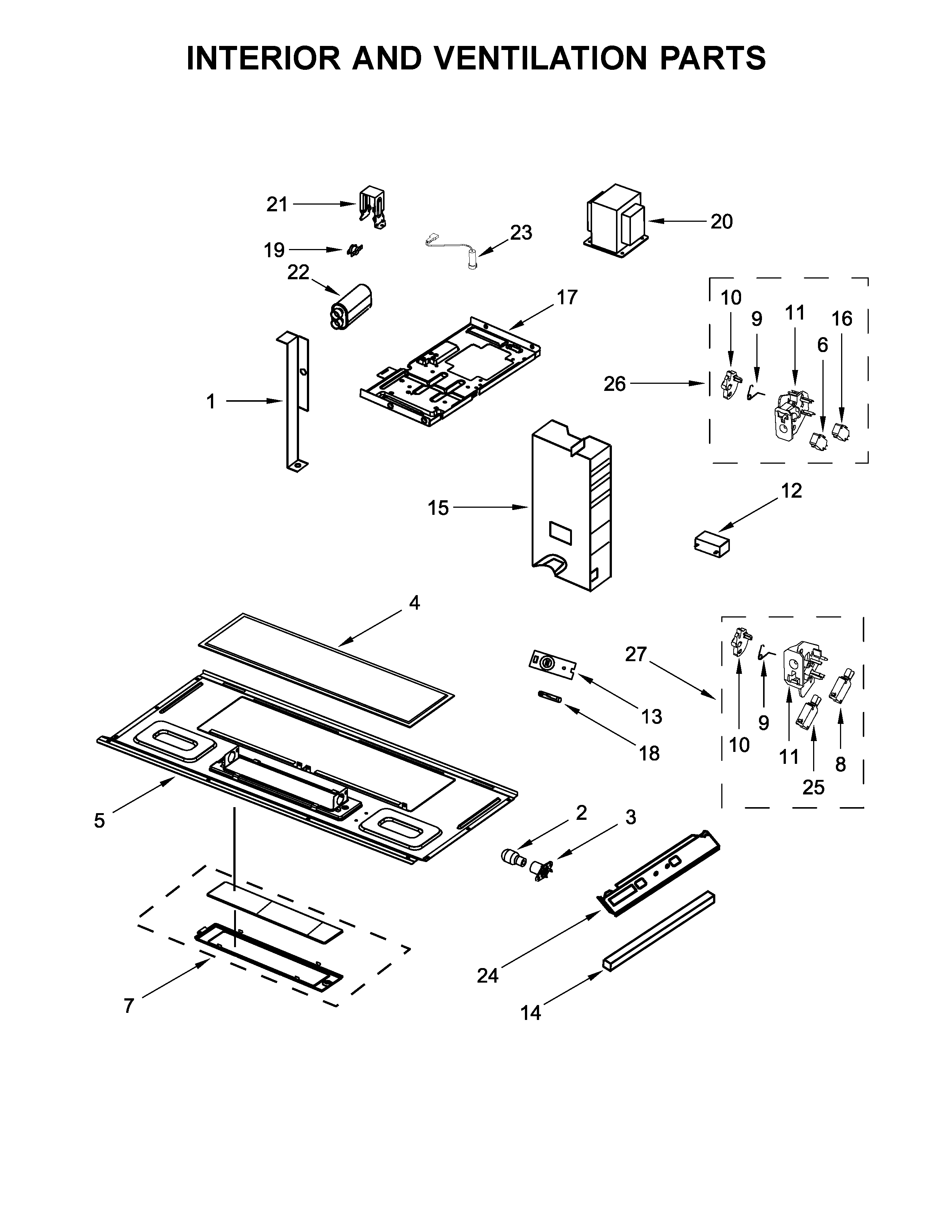

Interior and ventilation parts diagram
Diode
Part #W10886077Replaced by #W11256462
Manufacturer substitutionThis part replaces W10886077. Substitute parts can look different from the original.In Stock$26.8418% OFF Phone Price : $32.84
Qty
Interior and ventilation parts diagram
Microwave Door Switch
Part #W10269457Replaced by #W10727360
Manufacturer substitutionThis part replaces W10269457. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3316% OFF Phone Price : $6.33QtyInterior and ventilation parts diagram
Microwave Fuse
Part #W10138793Replaced by #W11707984
Manufacturer substitutionThis part replaces W10138793. Substitute parts can look different from the original.In Stock$73.638% OFF Phone Price : $79.63QtyInterior and ventilation parts diagram
Microwave Door Interlock Support, Upper
Part #8206419Replaced by #WP8206419
Manufacturer substitutionThis part replaces 8206419. Substitute parts can look different from the original.In Stock$13.7213% OFF Phone Price : $15.72QtyInterior and ventilation parts diagram
Microwave Door Interlock Switch
In Stock$43.8912% OFF Phone Price : $49.89QtyInterior and ventilation parts diagram
Microwave Vent Louver Motor Cam Plate
In Stock$12.8513% OFF Phone Price : $14.85QtyInterior and ventilation parts diagram
Microwave Light Socket

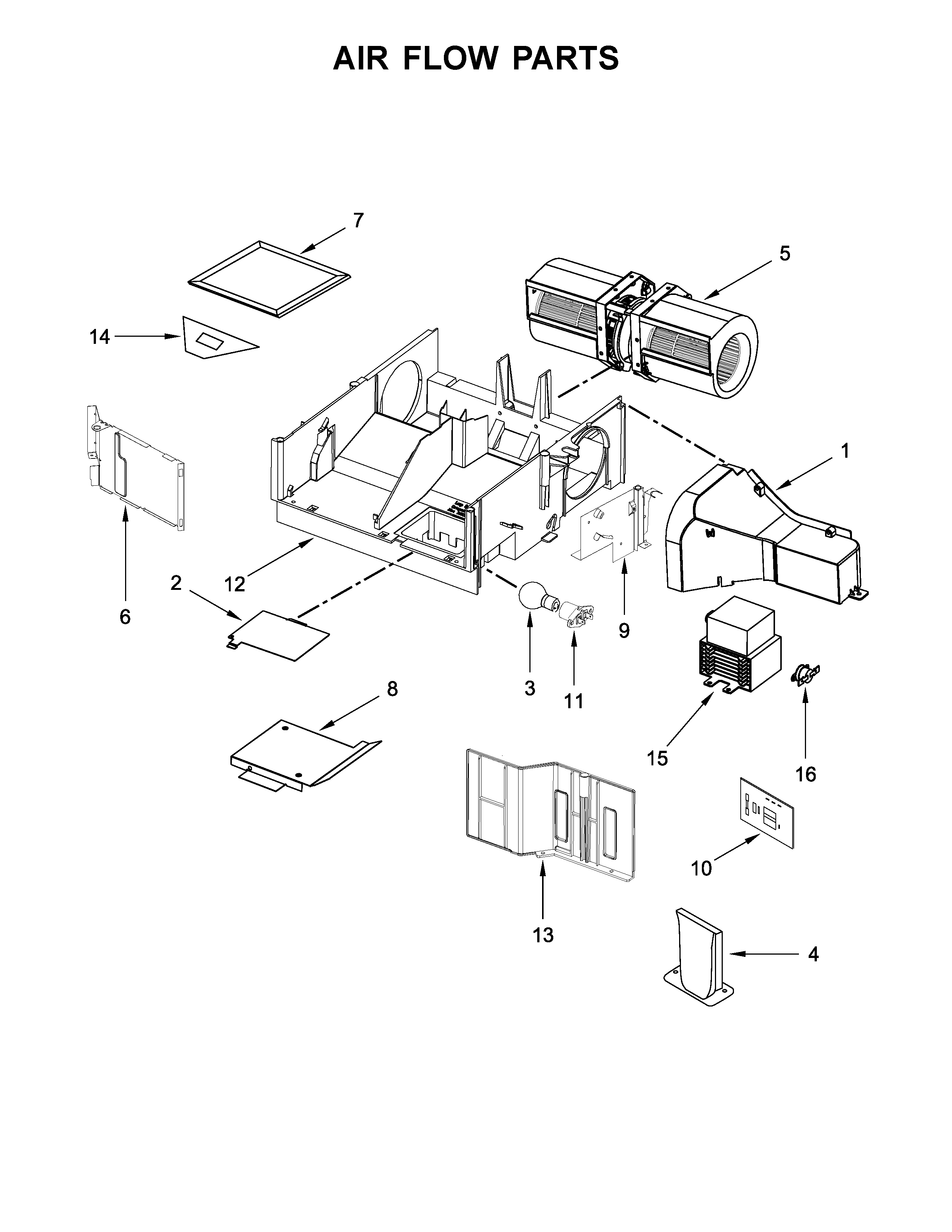

In Stock$8.3911% OFF Phone Price : $9.39QtyAir flow parts diagram
Microwave Magnetron
In Stock$197.626% OFF Phone Price : $209.62QtyInterior and ventilation parts diagram
Filter
Part #W10208631Replaced by #W10208631A
Manufacturer substitutionThis part replaces W10208631. Substitute parts can look different from the original.In Stock$25.8419% OFF Phone Price : $31.84QtyAir flow parts diagram
Microwave Magnetron Thermostat
In Stock$45.3012% OFF Phone Price : $51.30Qty
