Craftsman 536882401 20" 3.5-hp snow thrower Parts
Here are the diagrams and repair parts for Craftsman 536882401 20" 3.5-hp snow thrower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 536882401 Snowblowers
Lock Nut
Part #9424215Replaced by #703251
Manufacturer substitutionThis part replaces 9424215. Substitute parts can look different from the original.In Stock$9.54
Qty

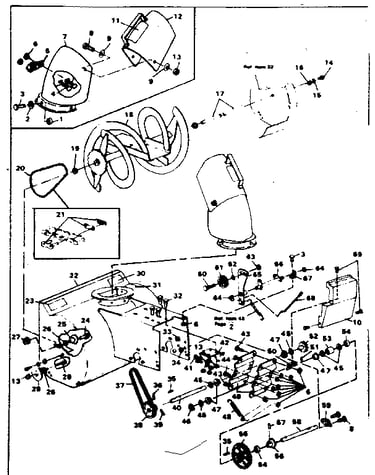

Impeller assembly diagram
Information
Part #70142Replaced by #48X5580MA

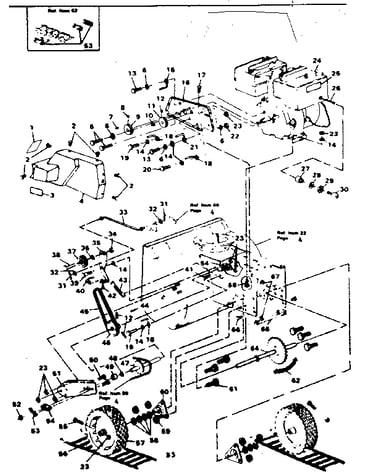

Manufacturer substitutionThis part replaces 70142. Substitute parts can look different from the original.In Stock$24.22QtyEngine diagram
Axle Washer
Part #642Replaced by #17X192MA
Manufacturer substitutionThis part replaces 642. Substitute parts can look different from the original.In Stock$9.71QtyScrew
Part #180016Replaced by #180016MA

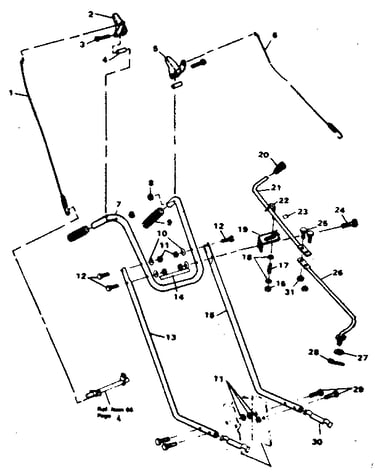

Manufacturer substitutionThis part replaces 180016. Substitute parts can look different from the original.This item is not returnableIn Stock$7.31QtyHandle assembly diagram
J-nut
Part #49441Replaced by #578109MA
Manufacturer substitutionThis part replaces 49441. Substitute parts can look different from the original.In Stock$12.23QtyEngine diagram
Hex Head Screw
Part #120834Replaced by #180073MA
Manufacturer substitutionThis part replaces 120834. Substitute parts can look different from the original.This item is not returnableIn Stock$6.40QtyHandle assembly diagram
Formd Washer
Part #22025Replaced by #311936MA
Manufacturer substitutionThis part replaces 22025. Substitute parts can look different from the original.In Stock$14.94QtyLock Nut
Part #41529Replaced by #41529MA
Manufacturer substitutionThis part replaces 41529. Substitute parts can look different from the original.In Stock$7.60QtyInformation
Part #50632
The manufacturer no longer makes this part, and there's no substitute part
Impeller assembly diagram
Bracket
Part #40597
The manufacturer no longer makes this part, and there's no substitute part
