Tappan
Top-Mount Refrigerator

Model # TRT15DRCD2 Official Tappan top-mount refrigerator - 5995280590

Here are the diagrams and repair parts for Official Tappan TRT15DRCD2 top-mount refrigerator - 5995280590, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 183 parts  |

Range Oven Light Bulb (replaces 241555401, 316538901)
#15

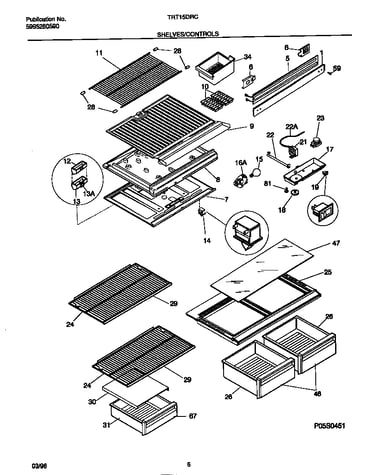

Shelves/controls diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$20.06
20% OFF Phone Price : $25.06
In Stock
Refrigerator Defrost Timer
#23A

Shelves/controls diagram

Refrigerator timer

Part #215267800

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215267800. Substitute parts can look different from the original.
BEST SELLER
$30.53
14% OFF Phone Price : $35.53
In Stock
Refrigerator Run Capacitor (replaces 216985003, 218909913, 75304464438)
#55

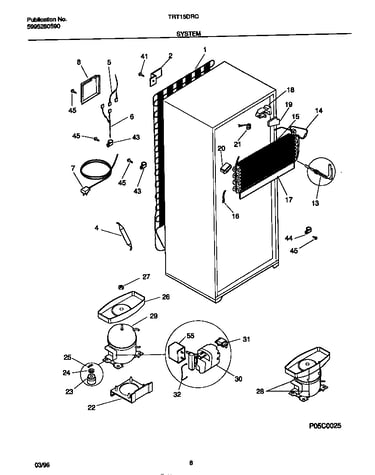

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$46.67
10% OFF Phone Price : $51.67
In Stock
Refrigerator Door Bin Support
#5

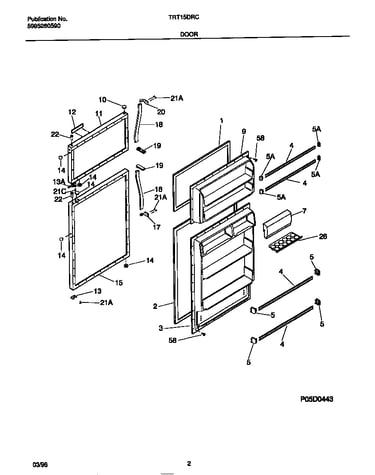

Door diagram

Refrigerator door bin support

Part #215267701

BEST SELLER
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Refrigerator Cut-to-Fit Door Shelf Rail
#4

Door diagram

Refrigerator door rack

Part #218027057

Replaced by #215366002

?
Manufacturer substitution
This part replaces 218027057. Substitute parts can look different from the original.
BEST SELLER
$44.39
10% OFF Phone Price : $49.39
In Stock
Refrigerator Door Bin Support (replaces 215473601)
#5

Door diagram

Refrigerator door support

Part #215473601

Replaced by #215473602

?
Manufacturer substitution
This part replaces 215473601. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.63
18% OFF Phone Price : $5.63
In Stock
Refrigerator Defrost Bi-Metal Thermostat
#21

System diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$23.79
17% OFF Phone Price : $28.79
In Stock
Refrigerator Ice Cube Tray
#10

Shelves/controls diagram

Refrigerator ice cube tray

Part #215667501

This item is not returnable
$4.30
19% OFF Phone Price : $5.30
In Stock
Refrigerator Freezer Door Gasket (White) (replaces 215608911, 215608941, 215608971, 235608911, 5303200258, G161588-09, G168930-03, G175324-03, G186803-03, R009000103)
#1

Door diagram

Refrigerator seal

Part #215608911

Replaced by #5308007123

?
Manufacturer substitution
This part replaces 215608911. Substitute parts can look different from the original.
$100.74
9% OFF Phone Price : $110.74
In Stock
Refrigerator Door Hinge
#56

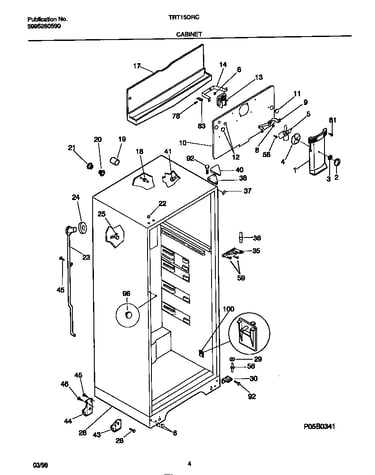

Cabinet diagram

Lower hinge pin

Part #218220300

Replaced by #5303001321

?
Manufacturer substitution
This part replaces 218220300. Substitute parts can look different from the original.
This item is not returnable
$8.59
10% OFF Phone Price : $9.59
In Stock
