Frigidaire FRSS2623AW8 side-by-side refrigerator Parts

Here are the diagrams and repair parts for Frigidaire FRSS2623AW8 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

Frigidaire FRSS2623AW8 side-by-side refrigerator
By Schematic
By Part

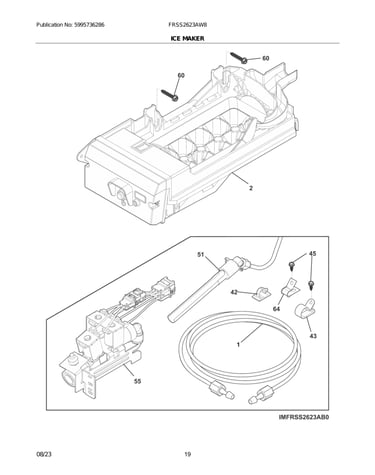

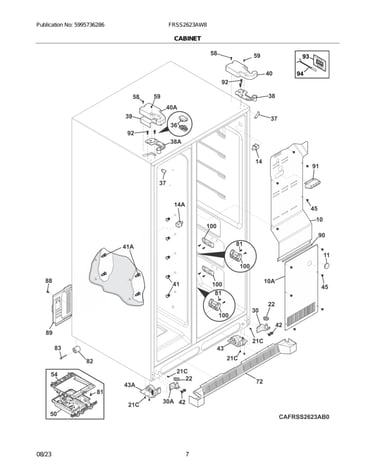

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FRSS2623AW8 Refrigerators

Frigidaire Side-by-Side Refrigerator FRSS2623AW8 FAQs

Most Frigidaire Gallery refrigerators last 10 to 15 years with normal household use. For a Frigidaire side-by-side like FRSS2623AW8, keeping airflow strong (clean coils), maintaining tight door seals, and changing the water filter on schedule helps you reach the high end of that range.

Typical lifespan and what affects it

A refrigerator’s life is mostly driven by compressor run time, heat removal, and how well the doors seal.

  • Maintenance: dirty condenser areas make the compressor work harder
  • Door seal condition: leaks cause longer run times and frost issues
  • Water quality: heavy sediment can shorten filter life and reduce dispenser flow
  • Room temperature and ventilation: hot, tight spaces increase wear
  • Usage habits: frequent door openings and overpacking reduce efficiency

Maintenance checklist to help it last longer

Use this as a simple routine for Frigidaire side-by-side refrigerators.

Task How often What it prevents
Replace water filter About every 6 months (typical) Low flow, bad taste/odor, ice maker issues
Clean condenser area Every 6 to 12 months Overheating, poor cooling, high energy use
Inspect/clean door gaskets Every 3 to 6 months Warm air leaks, frost, temperature swings
Keep vents clear inside Ongoing Warm spots, freezing in fresh food section

If you need model-matched parts, common wear items for FRSS2623AW8 include the Frigidaire refrigerator water filter FPPWFU01 and door seals such as the refrigerator freezer door gasket 241786014.

Why it matters

A refrigerator that is running longer than normal to hold temperature wears out key components faster (especially the compressor and fans). Basic upkeep reduces run time, stabilizes temperatures, and helps food stay fresh longer.

For dispenser or ice maker performance, we also recommend following the steps in how to replace the water filter in a Frigidaire refrigerator.

Last updated: February 2026

For your Frigidaire FRSS2623AW8 side-by-side refrigerator, the most reliable reset is a power reset: unplug the refrigerator (or switch the breaker off) for 5 to 10 minutes, then restore power and allow several minutes for the control to reboot and cooling to resume.

Quick reset options (start here)

  • Power reset (best all-purpose reset): Unplug for 5 to 10 minutes, then plug back in.
  • Breaker reset: Turn the refrigerator circuit breaker OFF for 5 to 10 minutes, then ON.
  • Clear an alarm or alert: If the display is beeping or showing an alert, use the control panel’s alert clear function (wording varies by Frigidaire model).
  • After a filter change: Reset the filter indicator using the filter reset option on the control panel (if equipped).

When a reset helps (and when it will not)

A reset is useful for control glitches, beeping after a power event, or a stuck indicator light. It will not fix a failed cooling component (like a fan motor, sensor, or control board) that is no longer operating correctly.

Symptom Try this first Next likely step
Display acting odd, lights flashing Power reset Check for error codes using Frigidaire refrigerator error codes
Water tastes slow or indicator stays on after filter change Filter indicator reset Replace the filter with Frigidaire refrigerator water filter FPPWFU01
Warm fridge or freezer after reset Wait 12 to 24 hours for temps to stabilize Check airflow and evaporator fan operation

Why it matters

Resetting clears temporary control logic issues and restores normal operation after a power interruption. It also helps you separate a one-time glitch from a repeatable problem that points to a part such as a temperature sensor, evaporator fan, or main control.

Last updated: February 2026

Yes. The Frigidaire FRSS2623AW8 is typically worth the cost if you want a straightforward, standard-depth side-by-side refrigerator with dependable cooling, a built-in water/ice dispenser, and readily available maintenance parts like the Frigidaire refrigerator water filter FPPWFU01.

What “worth it” usually means for this model

We judge value by how well the refrigerator holds temperature, how easy it is to maintain, and whether common wear items are easy to replace.

  • Strong fit for everyday family use and frequent door openings
  • Good choice when you want water and ice without premium pricing
  • Maintenance is simple (filter changes, door seal upkeep)
  • Side-by-side layout keeps frozen foods at eye level

Quick value checklist (use this before you buy)

If most of these are true, the FRSS2623AW8 is a good value:

  • You prefer a side-by-side layout over a French door design
  • You will use the dispenser regularly (water and ice)
  • You are OK with practical storage features rather than “luxury” extras
  • You want predictable upkeep costs (filters, gaskets, bulbs)
  • Your kitchen space fits a standard-depth 36-inch class refrigerator

Typical ownership costs to plan for

Even a “good value” refrigerator has routine maintenance. Here are the most common items people replace.

Item What it affects Example part for FRSS2623AW8
Water filter Water taste, flow, ice quality Frigidaire refrigerator water filter FPPWFU01
Door gasket Temperature stability, frost, energy use Refrigerator door gasket (white) 241786013
Light bulb Interior visibility Refrigerator light bulb 5304522314

Why it matters

A side-by-side can feel like a bargain up front, but long-term value comes from stable temperatures and easy maintenance. Staying on top of filter changes and fixing air leaks (gaskets) helps prevent warm spots, frost buildup, and extra run time.

Helpful DIY guidance

Last updated: February 2026

Cooling performance problems are the most common issue we see on Frigidaire refrigerators, including model FRSS2623AW8. Typical symptoms are a warm fresh-food section, freezer frost buildup, or uneven temperatures; the most frequent causes are dirty condenser coils, door air leaks, or restricted airflow.

Most common symptoms and likely causes

  • Fridge warm, freezer OK: evaporator airflow issue, iced-over evaporator, or a temperature sensor problem
  • Freezer frost buildup: door not sealing, door left ajar, frequent openings
  • Both sections warm: dirty condenser coil, poor ventilation, or a compressor/sealed-system issue
  • Ice maker or dispenser acting up: clogged filter, air in the water line, low water pressure

Quick checks we recommend first (10 to 20 minutes)

  • Set targets: 37°F refrigerator, 0°F freezer
  • Inspect door sealing: look for gaps, tears, or doors that do not self-close
  • Clean condenser area: vacuum dust and keep airflow space around the cabinet
  • Check vents inside: do not block return vents with food packages
  • Replace the water filter if flow is slow or ice is small/hollow
Problem area Most common cause Typical fix
Cooling weak Dirty condenser coil Clean coil, improve airflow
Frost buildup Door not sealing Reseat or replace gasket
Water/ice issues Clogged filter Replace filter, purge line
Temp swings Sensor drifting Test or replace sensor

Parts that often solve these issues on FRSS2623AW8

Why it matters

Most “not cooling” complaints start with airflow or sealing. Fixing those early protects food, reduces compressor run time, and helps prevent frost and ice buildup.

Last updated: February 2026

We do not treat the Frigidaire FRSS2623AW8 as “garage ready” unless the refrigerator is specifically rated for a wide ambient-temperature range. For reliable food safety, we recommend installing it in a climate-controlled space; if you must use a garage, monitor temperatures closely.

What to check before putting a refrigerator in a garage

Garages can swing from very cold to very hot; that can affect compressor run time, defrost performance, and ice maker operation.

  • Measure the garage temperature across a full day (morning and afternoon).
  • Keep the refrigerator out of direct sun and away from heat sources.
  • Maintain airflow around the cabinet so the condenser can shed heat.
  • Use a thermometer in both sections; target about 37°F fresh food and 0°F freezer.
  • If temps drift, move the unit indoors rather than forcing colder settings.

If cooling becomes inconsistent, these checks solve most issues we see on side-by-side refrigerators:

Symptom in a garage Most common cause What to inspect on FRSS2623AW8
Frost buildup, warm spots Airflow restriction or defrost issue Evaporator area, defrost components such as the refrigerator defrost heater 5304526032
Condensation, sweating, warm air leaks Door not sealing Door gaskets such as the refrigerator freezer door gasket 241786014
Temperature swings, odd behavior Control sensing or fan issues Thermistor and airflow; see Frigidaire refrigerator error codes for related fault displays

Why it matters

A refrigerator that is not rated for unconditioned spaces can run too little in cold weather or struggle in extreme heat; either condition can lead to unsafe food temperatures and nuisance frost or moisture.

Last updated: February 2026
