Roper
Chest Freezer

Model # RH1500RDW00 Official Roper chest freezer

Here are the diagrams and repair parts for Official Roper RH1500RDW00 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Door Gasket 4356488
#13

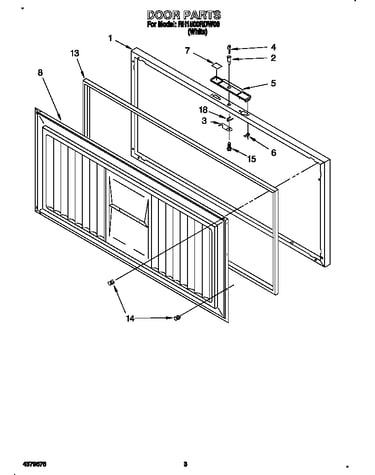

Door diagram

Door gasket

Part #4356488

Replaced by #WP4-35260-005

?
Manufacturer substitution
This part replaces 4356488. Substitute parts can look different from the original.
$124.66
17% OFF MSRP : $150.00
In Stock
Screw 4356491
#14

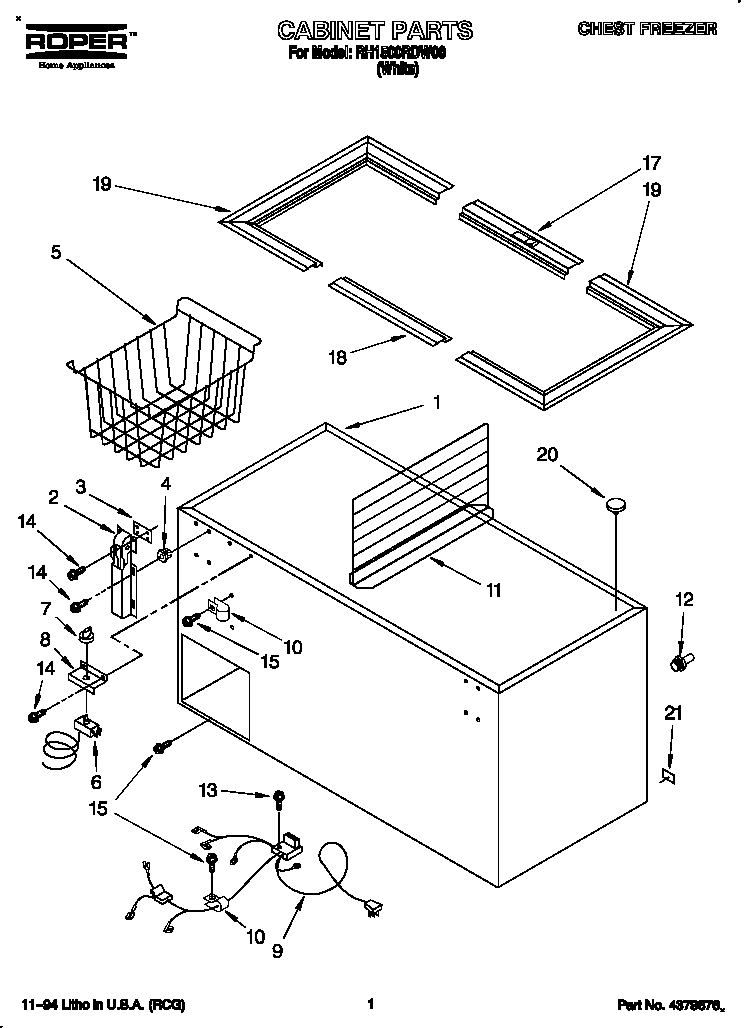

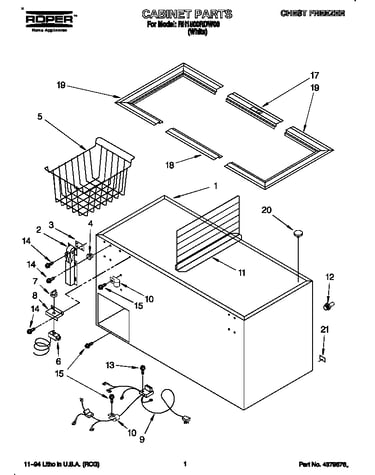

Cabinet diagram

Screw

Part #4356491

In Stock
Nameplate 4356372
#7

Door diagram

Nameplate

Part #4356372

In Stock
Grommet 4356321
#4

Cabinet diagram

Grommet

Part #4356321

$15.29
12% OFF Phone Price : $17.29
In Stock
Door Hinge 4356490
#2

Cabinet diagram

Door hinge

Part #4356490

In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

#NI

All parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$98.79
10% OFF MSRP : $110.00
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

$8.29
11% OFF Phone Price : $9.29
In Stock
Spacer 4356369
#3

Cabinet diagram

Spacer

Part #4356369

Replaced by #1-17548-006

?
Manufacturer substitution
This part replaces 4356369. Substitute parts can look different from the original.
In Stock
Drier Tube 4356332
#4

Unit diagram

Drier tube

Part #4356332

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356332. Substitute parts can look different from the original.
$31.58
31% OFF MSRP : $46.00
In Stock
Lock Clip 4356493
#18

Door diagram

Lock clip

Part #4356493

Replaced by #1-26359

?
Manufacturer substitution
This part replaces 4356493. Substitute parts can look different from the original.
In Stock
