Model # WAT28402UC/06 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAT28402UC-06 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

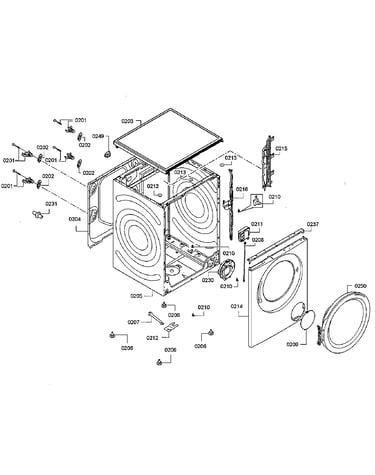

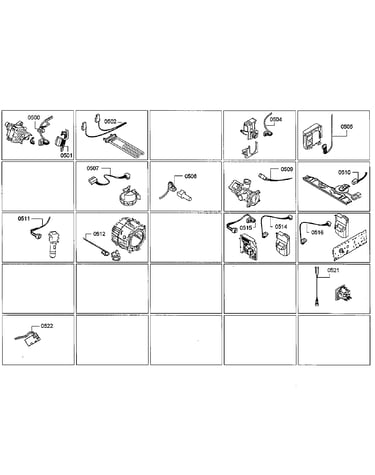

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Washer Drain Pump (replaces 00144844, 00144977) 00145753
#422

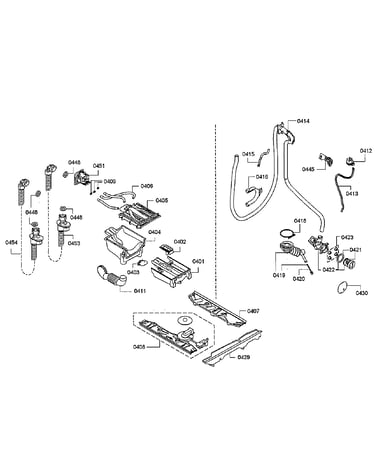

Dispenser/pump diagram

Washer drain pump (replaces 00144844, 00144977)

Part #00145753

$149.02 |
7% OFF Phone Price : $161.02
In Stock
Washer Shock Absorber 00742719
#319

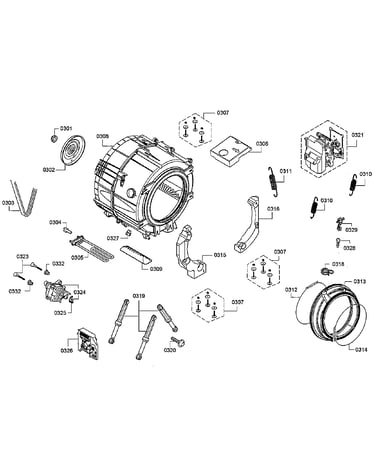

Tub diagram

Washer shock absorber

Part #00742719

$64.49 |
9% OFF Phone Price : $70.49
In Stock
Ocillating 00713962
#308

Tub diagram

Ocillating

Part #00713962

The manufacturer no longer makes this part, and there's no substitute part

Knob 00633523
#117

Control diagram

Knob

Part #00633523

$62.69
In Stock
Washer Door Boot 00772662
#313B

Tub diagram

Washer door boot

Part #00772662

$103.79 |
10% OFF Phone Price : $115.79
In Stock
Washer Drive Belt 00439490
#303

Tub diagram

Washer drive belt

Part #00439490

$38.96 |
13% OFF Phone Price : $44.96
In Stock
Washer Dispenser Valve 00635399
#451

Dispenser/pump diagram

Washer dispenser valve

Part #00635399

$90.13 |
6% OFF Phone Price : $96.13
In Stock
Hose 11006030
#414

Dispenser/pump diagram

Hose

Part #11006030

$46.47 |
11% OFF Phone Price : $52.47
In Stock
Spring 00629930
#311

Tub diagram

Spring

Part #00629930

This item is not returnable
$4.97
In Stock
Washer Door Boot Spring Clamp 00670743
#314

Tub diagram

Washer door boot spring clamp

Part #00670743

$16.63
In Stock
