Model # YWCD3090JW0 Official Whirlpool laundry, residential, electric dryer, compact

Here are the diagrams and repair parts for Official Whirlpool YWCD3090JW0 laundry, residential, electric dryer, compact, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

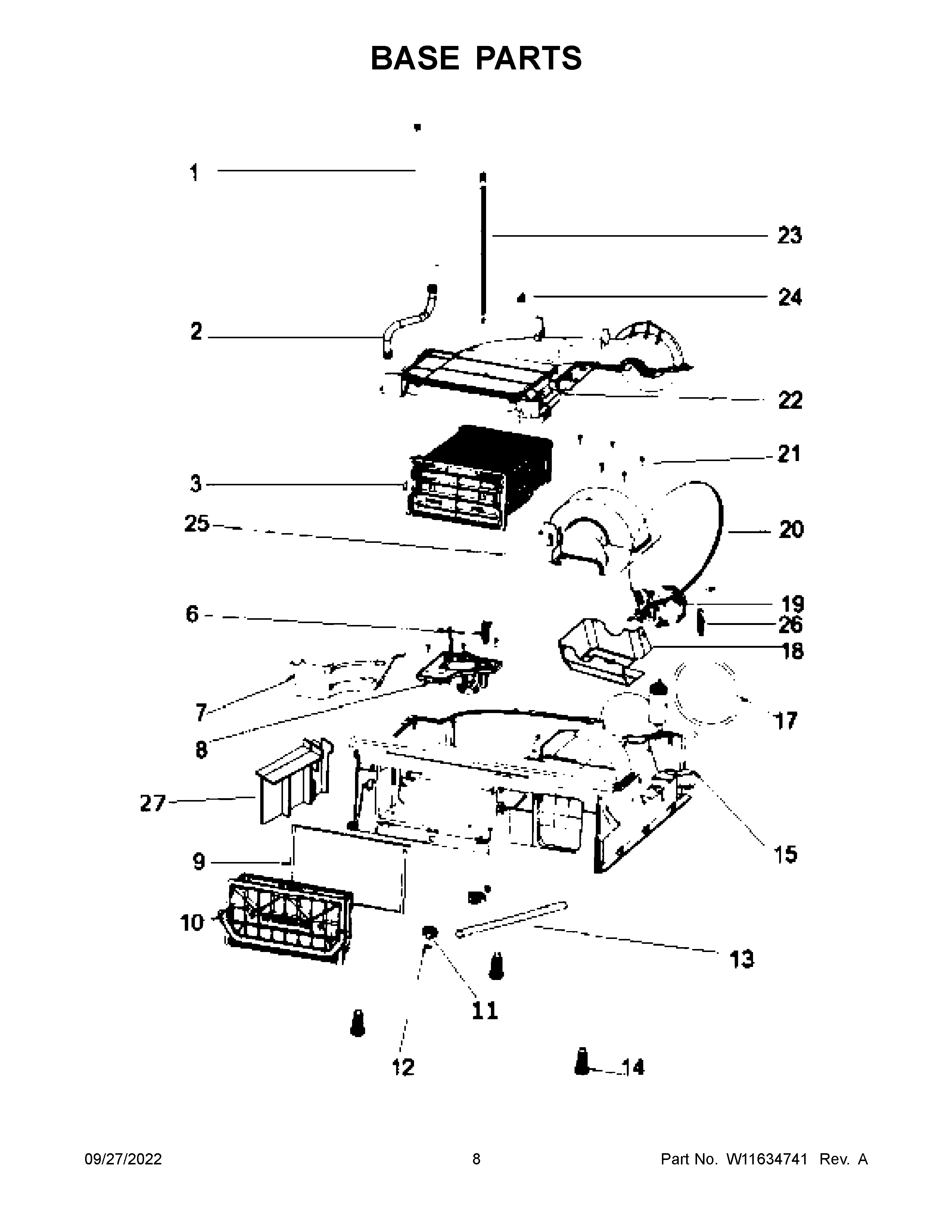

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Washer Detergent Level Sensor W11195379
#24

Tub and cabinet parts diagram

Washer detergent level sensor

Part #W11195379

$84.29
In Stock
Primary Lint W10882414
#18

Door and cabinet parts diagram

Primary lint

Part #W10882414

Replaced by #W11512159

?
Manufacturer substitution
This part replaces W10882414. Substitute parts can look different from the original.
$53.20
In Stock
Bushing-hing 461971424051
#15A

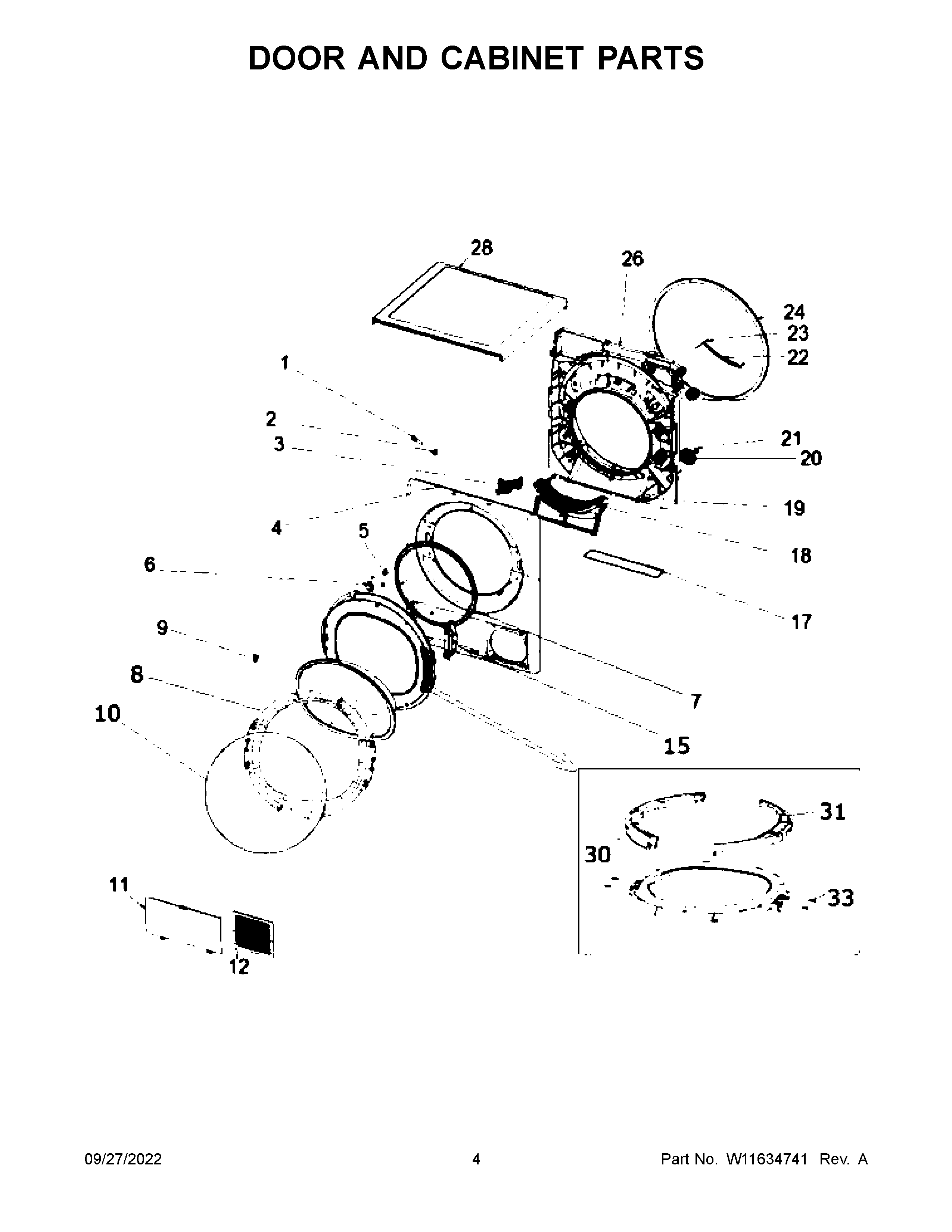

Door and cabinet parts diagram

Bushing-hing

Part #461971424051

$11.13
In Stock
Pod-template 461975011651
#1

Door and cabinet parts diagram

Pod-template

Part #461975011651

$29.31
In Stock
Seal - Air C W10713648
#7

Door and cabinet parts diagram

Seal - air c

Part #W10713648

$24.08
In Stock
Door, Inner (lock) W10615855
#30

Door and cabinet parts diagram

Door, inner (lock)

Part #W10615855

$31.29 |
14% OFF Phone Price : $36.29
In Stock
Filter W10347721
#14

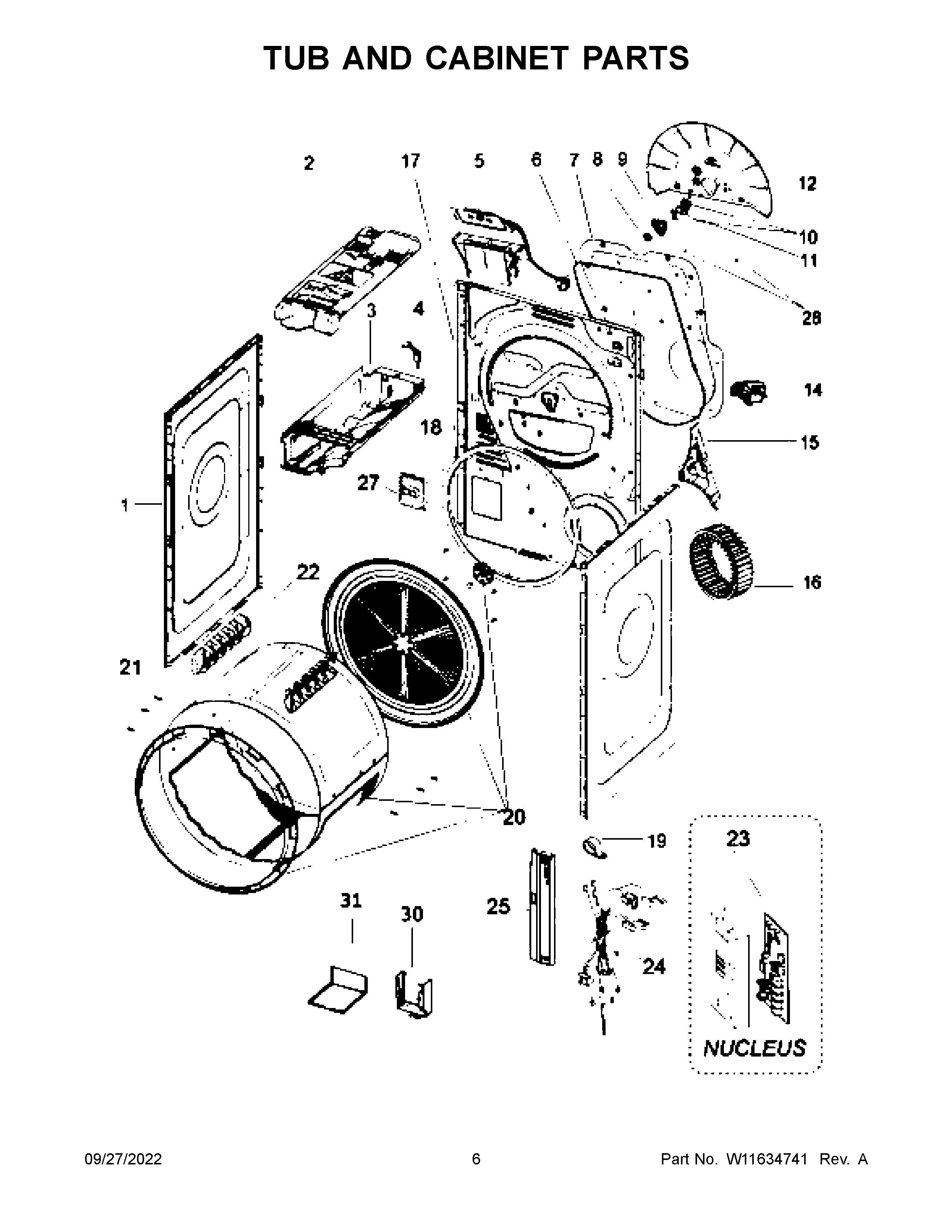

Tub and cabinet parts diagram

Filter

Part #W10347721

$55.82
In Stock
Knob W10681351
#6

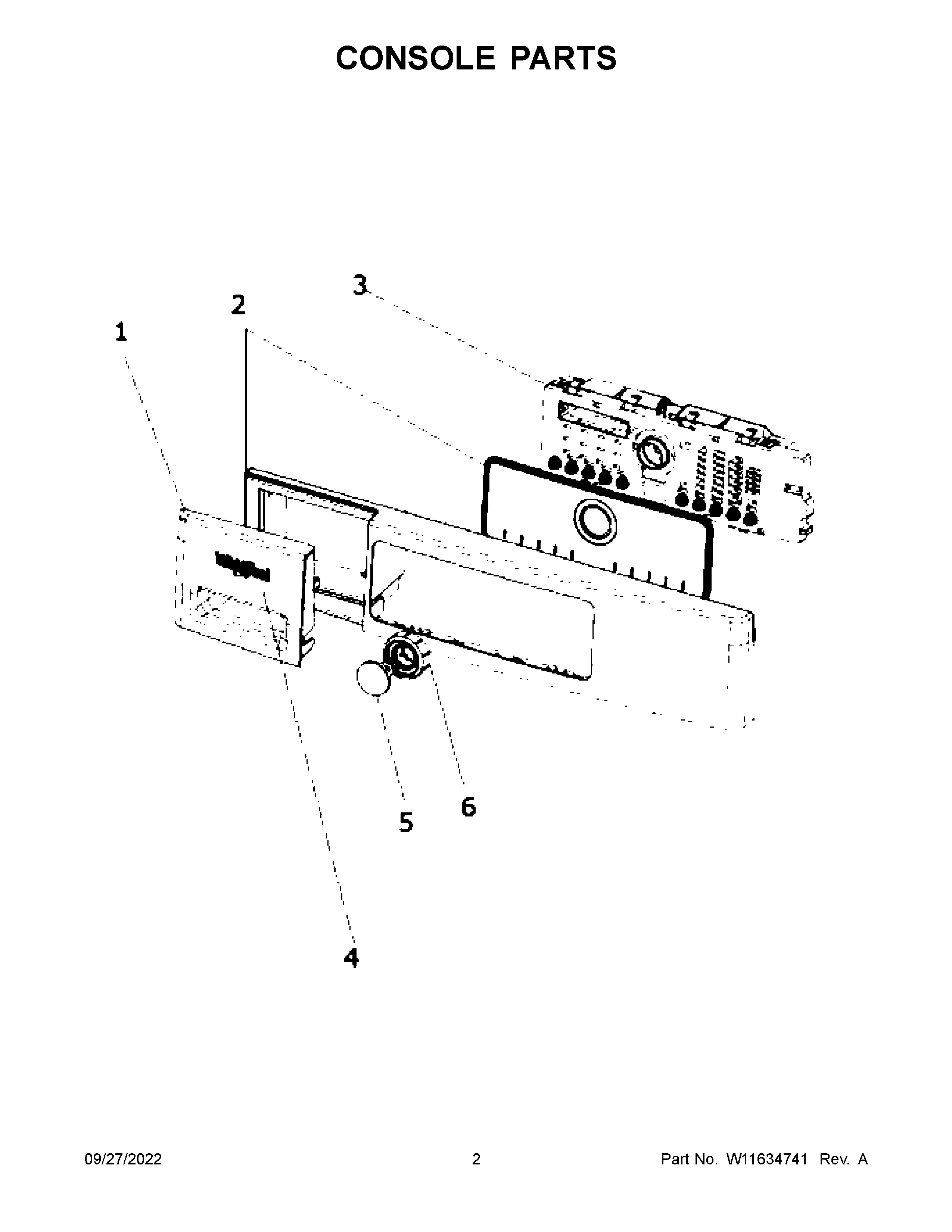

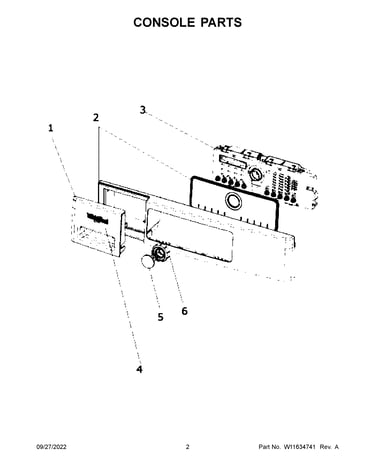

Console parts diagram

Knob

Part #W10681351

$31.29
In Stock
