Model # 72162292200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162292200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

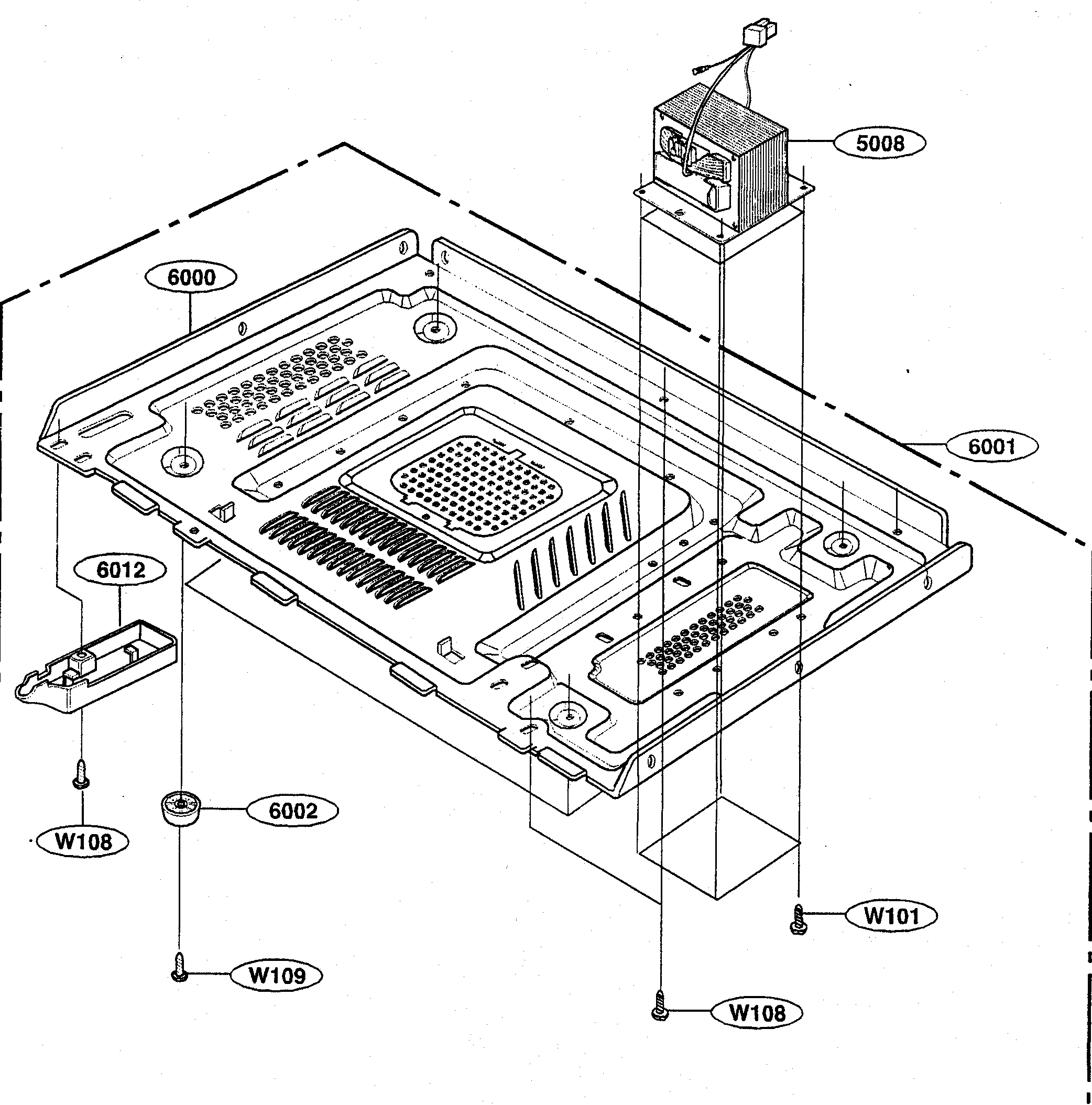

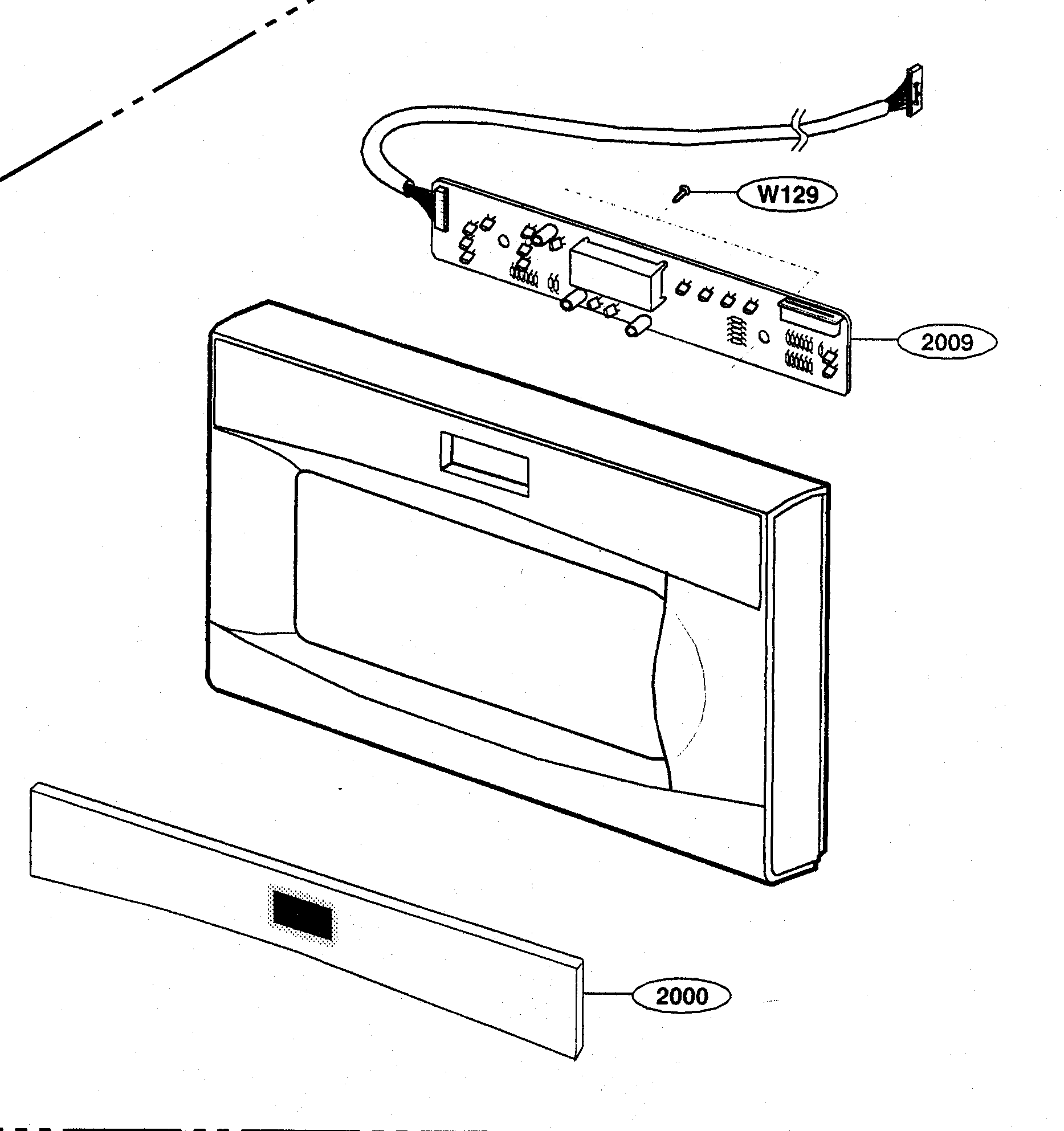

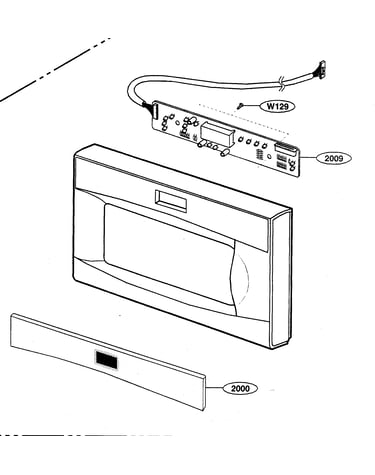

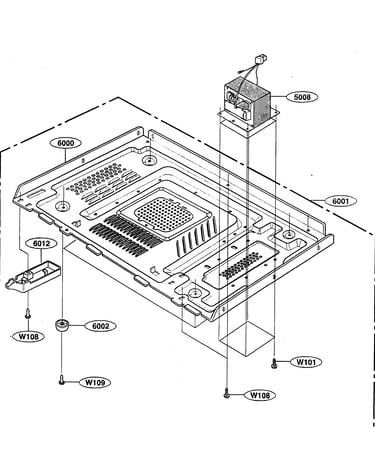

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Microwave Door Interlock Switch 3B73361E
#4003

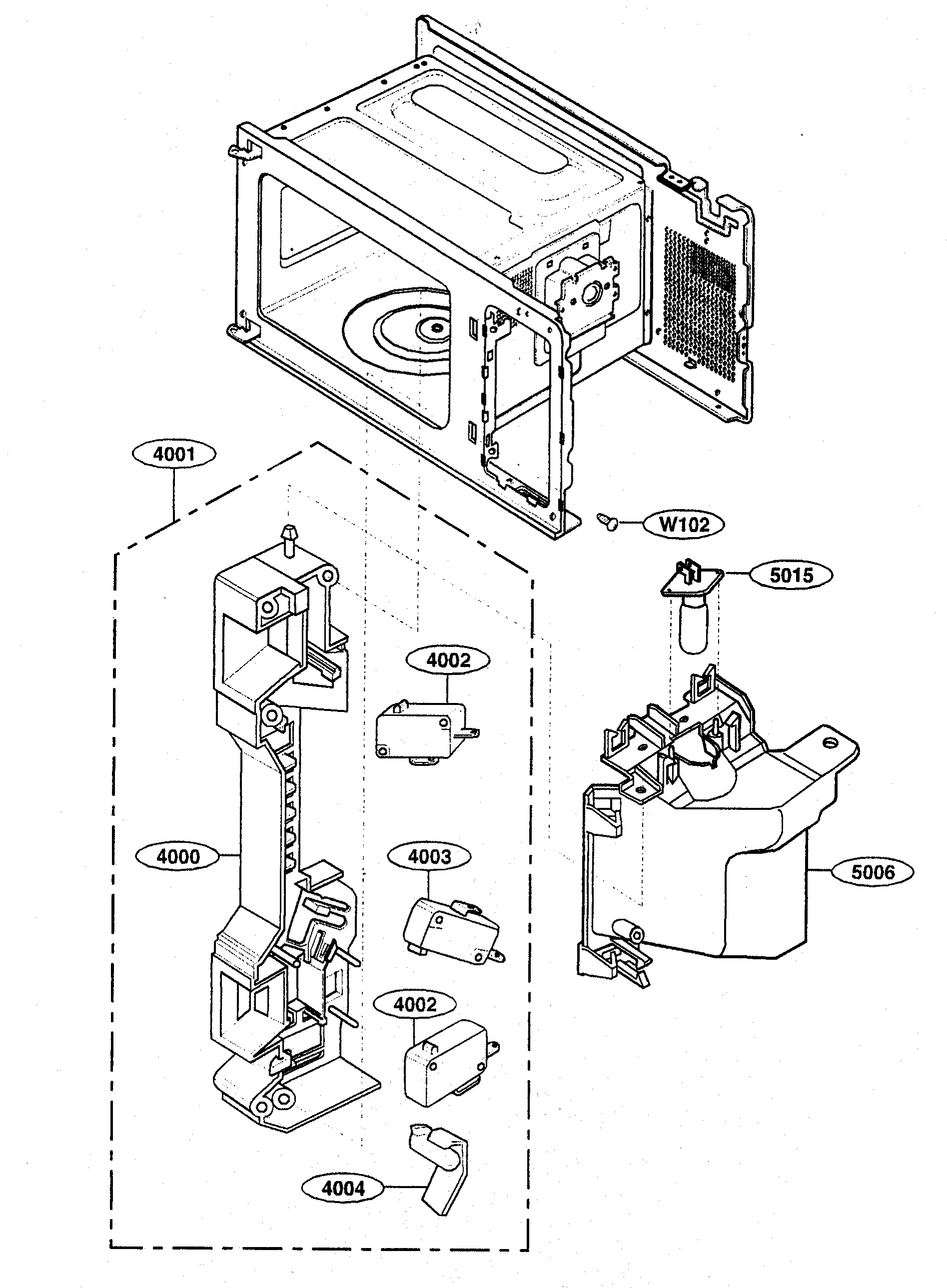

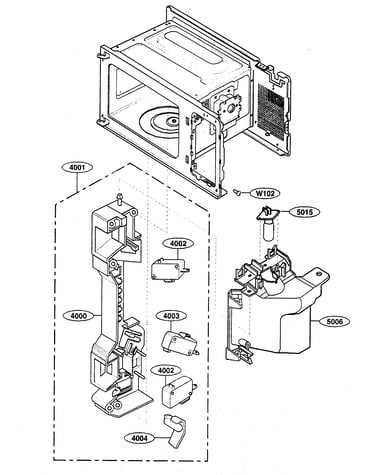

Latch board diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.54
14% OFF Phone Price : $14.54
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

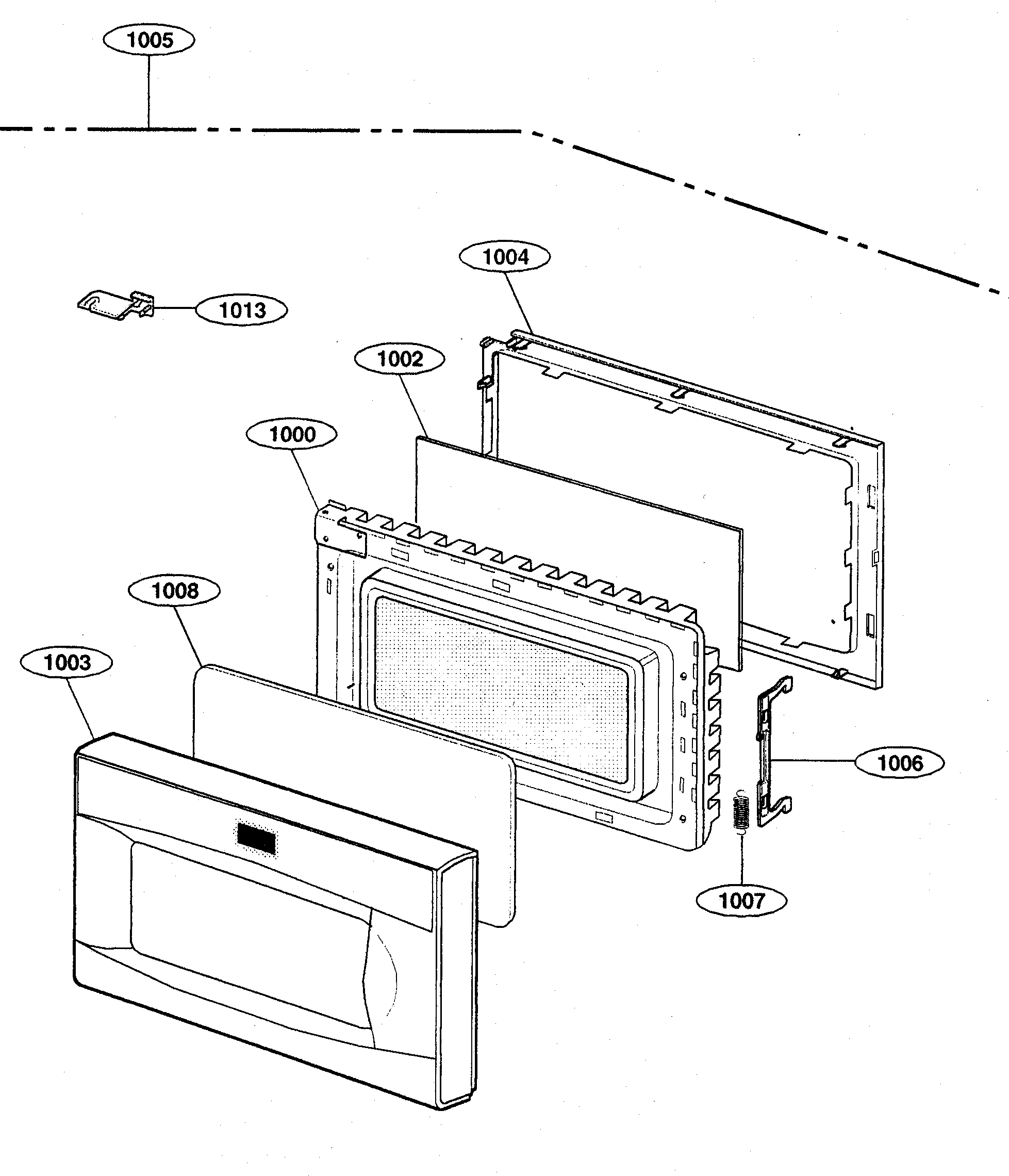

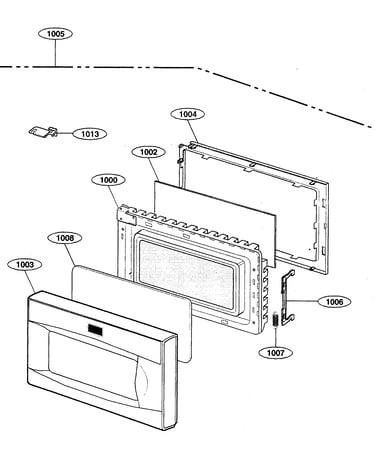

Door diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Oven Switch 503387
#4002

Latch board diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.27
14% OFF Phone Price : $7.27
In Stock
Lamp 6912W3B002G
#5015

Latch board diagram

Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
Microwave High-voltage Diode 6021W3B001M
#5013

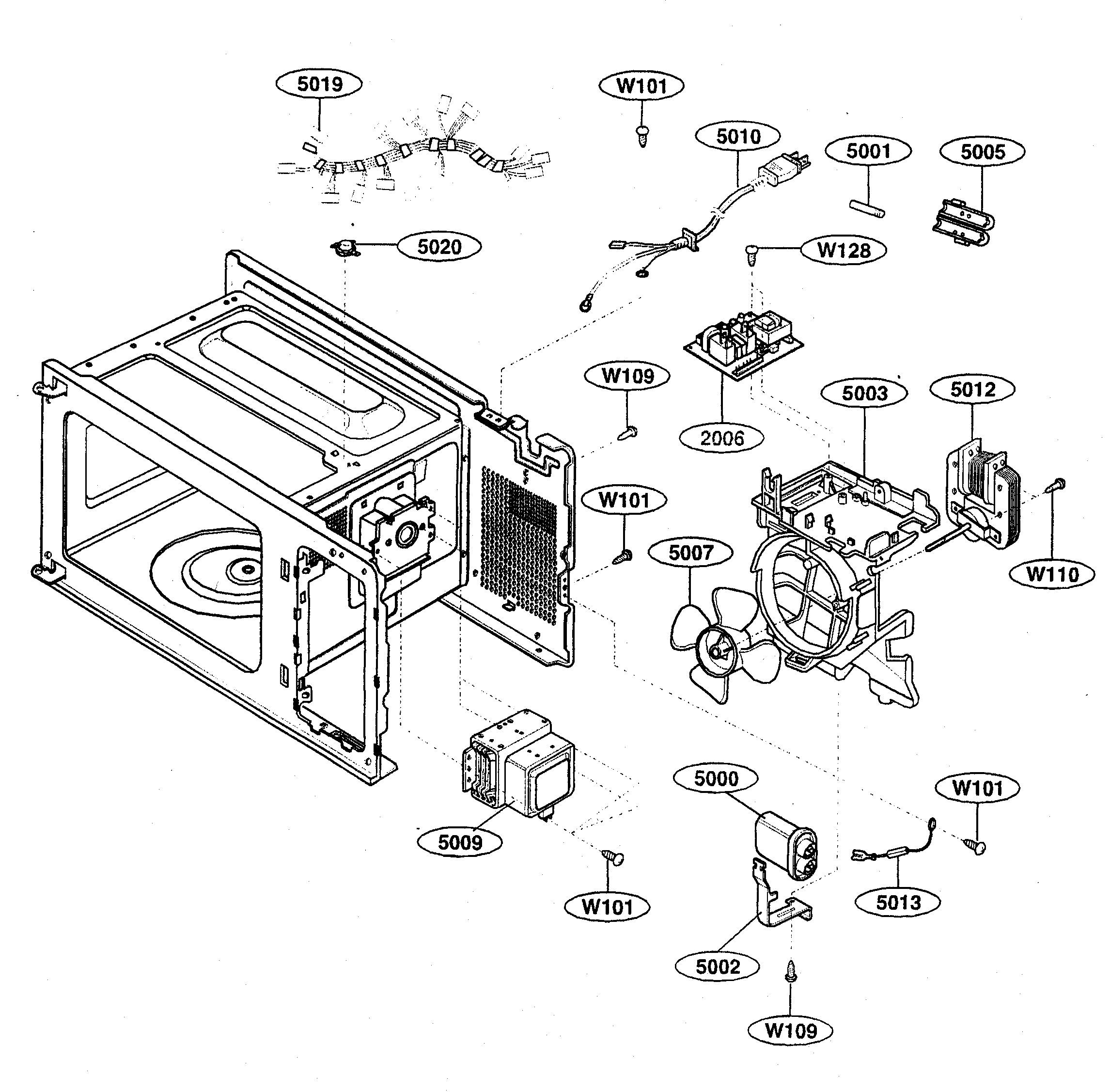

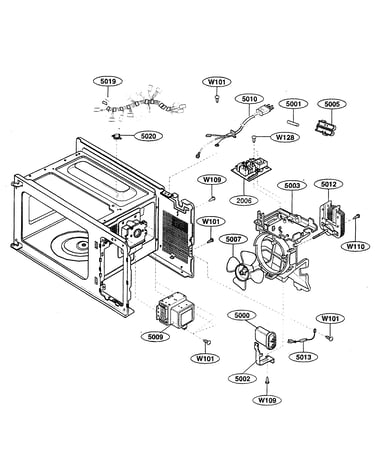

Oven interior diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Microwave Door Latch Spring 4970WRA001E
#1007

Door diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$5.52
15% OFF Phone Price : $6.52
In Stock
Microwave Door Latch Lever 4510W4A005A
#4004

Latch board diagram

Microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.06
14% OFF Phone Price : $7.06
In Stock
Microwave Turntable Motor 2B72754E
#3009

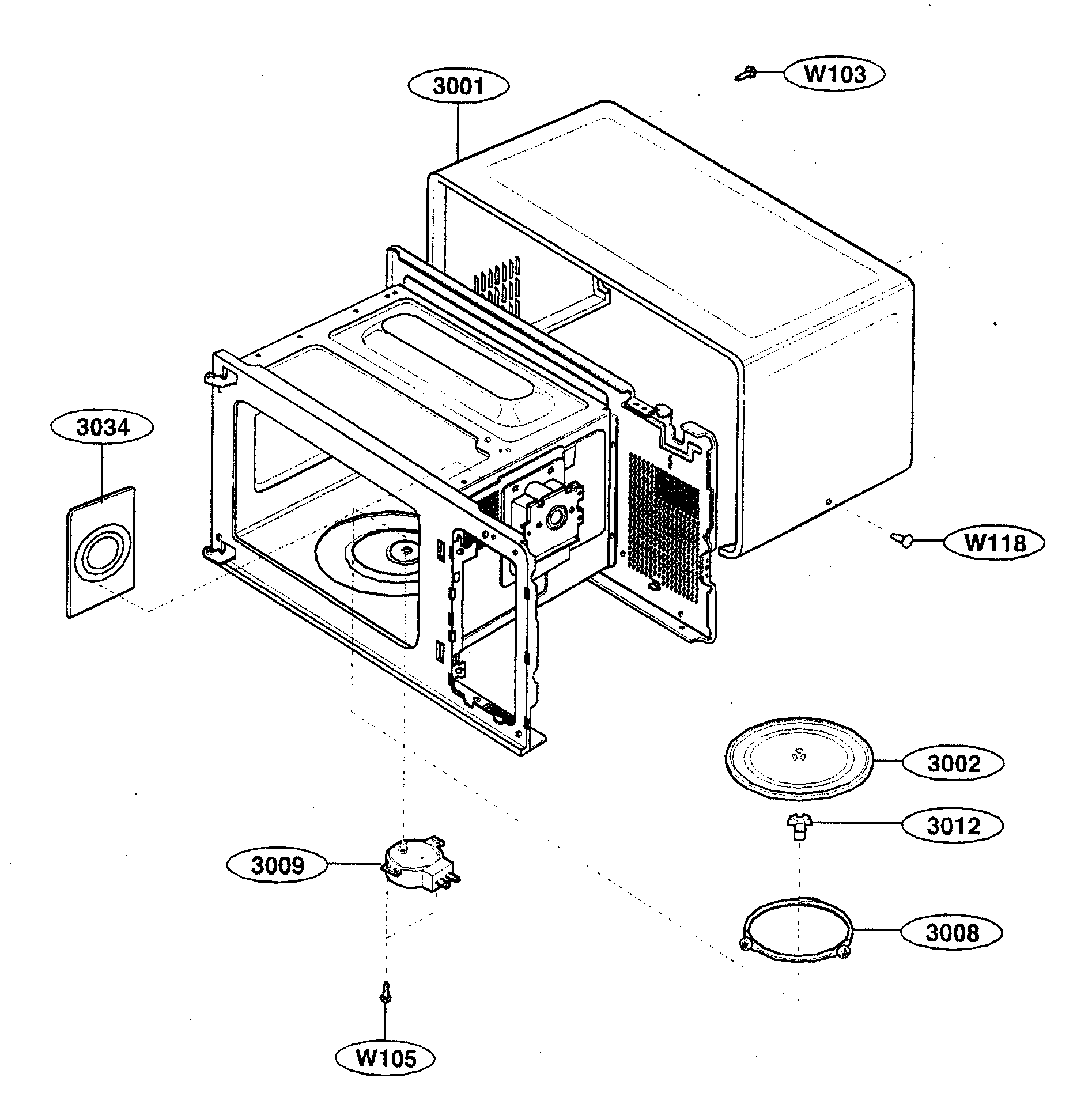

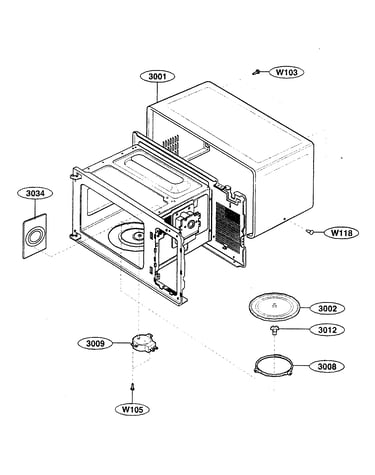

Oven cavity diagram

Microwave turntable motor

Part #2B72754E

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 2B72754E. Substitute parts can look different from the original.
$29.52
14% OFF Phone Price : $34.52
In Stock
Lever 4510W1A007A
#7028

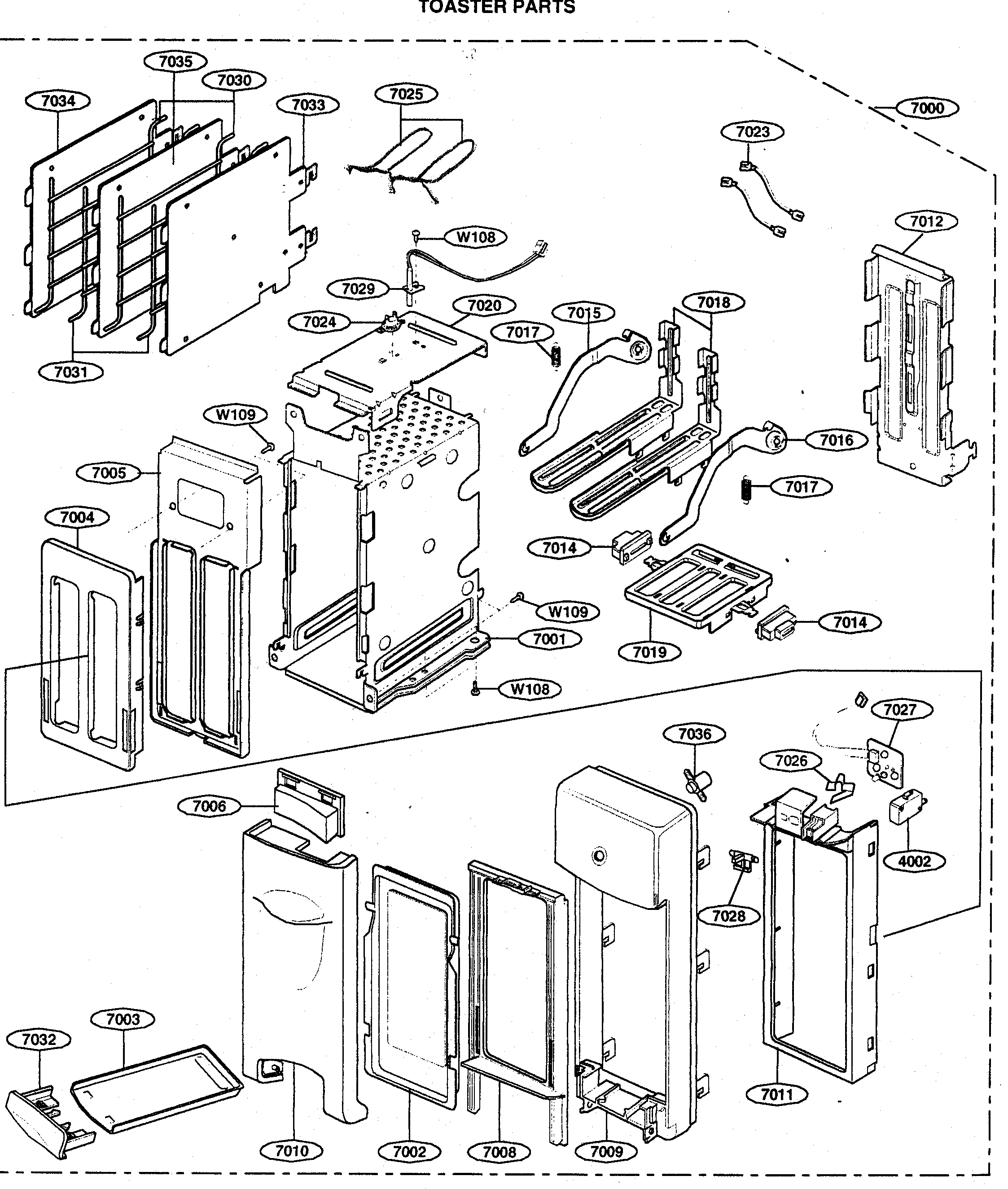

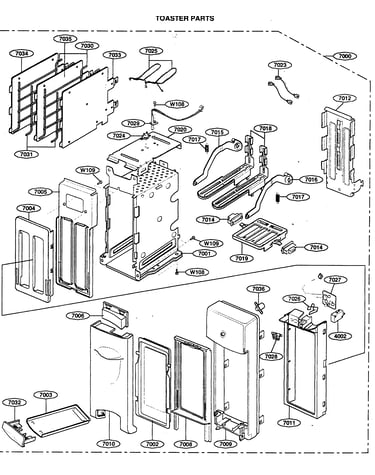

Toaster diagram

Lever

Part #4510W1A007A

In Stock
Duct 5208W1A009A
#5006

Latch board diagram

Duct

Part #5208W1A009A

In Stock
