Char-Broil
Gas Grill

Model # 463820208 Official Char-Broil gas grill

Here are the diagrams and repair parts for Official Char-Broil 463820208 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Gas Grill Vaporizer Bar 80008273
#S

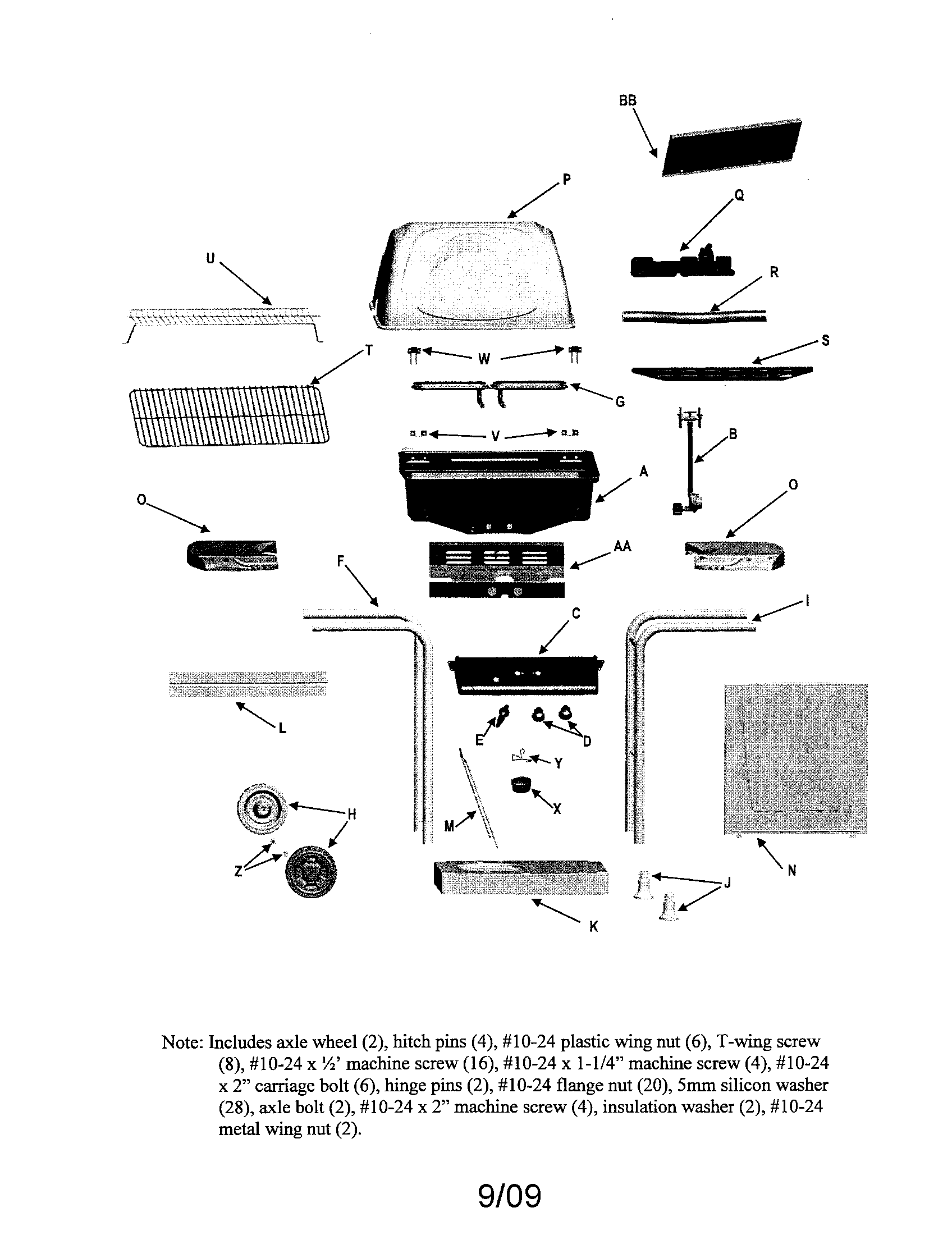

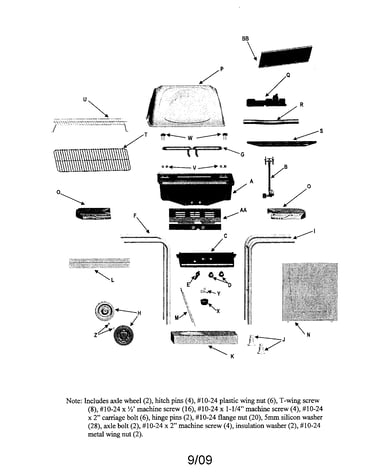

Gas grill diagram

Gas grill vaporizer bar

Part #80008273

This item is not returnable
$10.17
In Stock
Igniter 80008322
#E

Gas grill diagram

Igniter

Part #80008322

Replaced by #G206-0701-W1

?
Manufacturer substitution
This part replaces 80008322. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Hinge 80011617
#W

Gas grill diagram

Hinge

Part #80011617

This item is not returnable
$2.16
In Stock
Model 463820 80016427

#NI01

All parts diagram

Model 463820

Part #80016427

This item is not returnable
$2.16
In Stock
Gas Grill Swing-away Shelf 80008275
#U

Gas grill diagram

Gas grill swing-away shelf

Part #80008275

$9.99
In Stock
Gas Grill Cooking Grate 80008274
#T

Gas grill diagram

Gas grill cooking grate

Part #80008274

$22.99
In Stock
Control Knob 80008245
#D

Gas grill diagram

Control knob

Part #80008245

Replaced by #G436-0032-W1

?
Manufacturer substitution
This part replaces 80008245. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Logo Plate A 80011611
#Q

Gas grill diagram

Logo plate a

Part #80011611

Replaced by #G305-0008-W1

?
Manufacturer substitution
This part replaces 80011611. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Grease Cup 80000270
#X

Gas grill diagram

Grease cup

Part #80000270

Replaced by #G430-0033-W1

?
Manufacturer substitution
This part replaces 80000270. Substitute parts can look different from the original.
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Hardware 80016521

#NI02

All parts diagram

Hardware

Part #80016521

The manufacturer no longer makes this part, and there's no substitute part
