Model # 6175 Official Milwaukee 14" cutoff saw

Here are the diagrams and repair parts for Official Milwaukee 6175 14" cutoff saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |

Screw 05-77-0020
#35

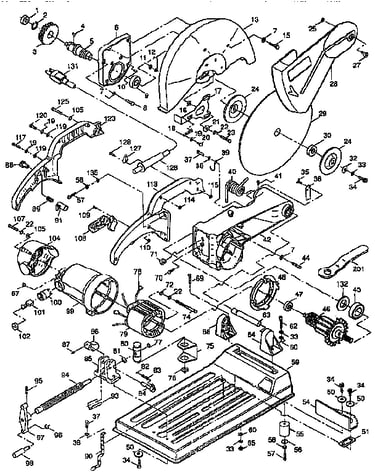

Unit parts diagram

Screw

Part #05-77-0020

The manufacturer no longer makes this part, and there's no substitute part

Screw 05-75-0050
#34

Unit parts diagram

Screw

Part #05-75-0050

The manufacturer no longer makes this part, and there's no substitute part

Bearing 02-04-0020
#47

Unit parts diagram

Bearing

Part #02-04-0020

The manufacturer no longer makes this part, and there's no substitute part

Spring 40-50-0040
#83

Unit parts diagram

Spring

Part #40-50-0040

The manufacturer no longer makes this part, and there's no substitute part

Washer 45-88-0625
#135

Unit parts diagram

Washer

Part #45-88-0625

The manufacturer no longer makes this part, and there's no substitute part

Cut-off Saw Trigger Switch 23-66-0020
#108

Unit parts diagram

Cut-off saw trigger switch

Part #23-66-0020

The manufacturer no longer makes this part, and there's no substitute part

Washer 45-88-0115
#38

Unit parts diagram

Washer

Part #45-88-0115

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 18-82-0010
#79

Unit parts diagram

Field assembly

Part #18-82-0010

The manufacturer no longer makes this part, and there's no substitute part

Ret.ring 05-92-0030
#2

Unit parts diagram

Ret.ring

Part #05-92-0030

The manufacturer no longer makes this part, and there's no substitute part

Lever 44-10-0030
#84

Unit parts diagram

Lever

Part #44-10-0030

The manufacturer no longer makes this part, and there's no substitute part
