KitchenAid KGCC506RWW03 gas counter unit Parts

Name: KitchenAid KGCC506RWW03 Parts | Diagrams, Manuals, Installation guides | Sears PartsDirect
Brand: KitchenAid
SKU: KGCC506RWW03
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KGCC506RWW03 gas counter unit, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for KGCC506RWW03 Cooktops

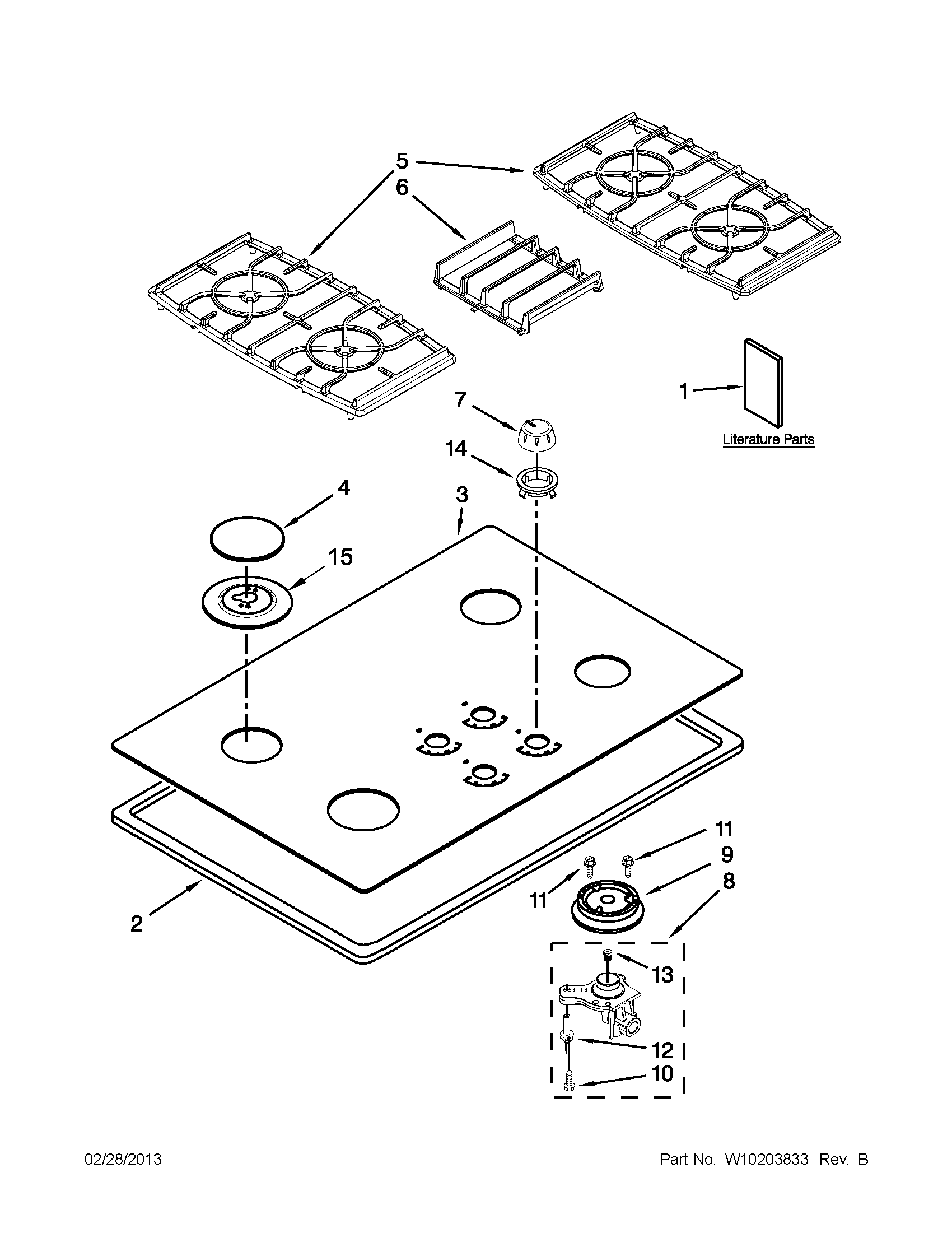

Cooktop, burner and grate parts diagram
Range Screw
Part #3368921
Replaced by #WP3368921
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.10
24% OFF Phone Price : $4.10
Qty
Cooktop, burner and grate parts diagram
Range Screw
Part #8273062
Replaced by #WP8273062
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.94
20% OFF Phone Price : $4.94
Qty

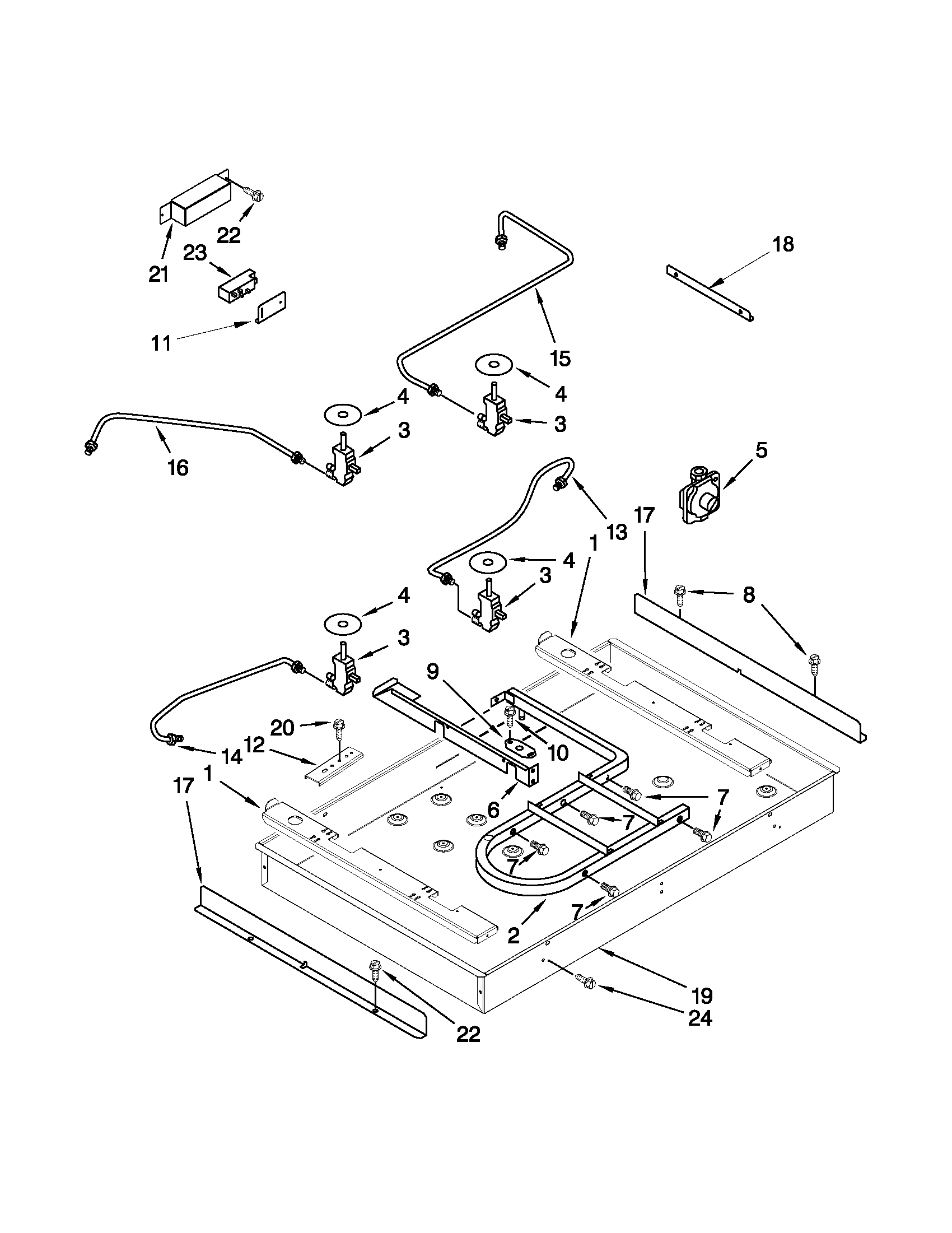

Burner box, gas valves and switches diagram
Range Screw
Part #3196160
Replaced by #W10491985
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty
Parts not illustrated diagram
Cooktop Igniter Switch And Harness Assembly
Part #4456905
Replaced by #WP4456905
Manufacturer substitution
This part replaces 4456905. Substitute parts can look different from the original.
In Stock
$141.76
8% OFF Phone Price : $153.76
Qty
Cooktop, burner and grate parts diagram
Cooktop Holder Orifice
Part #W10128448
Replaced by #WPW10128448
Manufacturer substitution
This part replaces W10128448. Substitute parts can look different from the original.
In Stock
$86.91
6% OFF Phone Price : $92.91
Qty
Cooktop, burner and grate parts diagram
Cooktop Holder Orifice
Part #W10128450
Replaced by #WPW10128450
Manufacturer substitution
This part replaces W10128450. Substitute parts can look different from the original.
In Stock
$61.92
9% OFF Phone Price : $67.92
Qty
Cooktop, burner and grate parts diagram
Range Surface Burner Head, 17,000-btu
Part #8286183
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Burner Head
Part #8286184
Replaced by #WPW10406283
Manufacturer substitution
This part replaces 8286184. Substitute parts can look different from the original.
In Stock
$63.56
9% OFF Phone Price : $69.56
Qty
Parts not illustrated diagram
Tape
Part #8286642
Replaced by #WP8286642
Manufacturer substitution
This part replaces 8286642. Substitute parts can look different from the original.
In Stock
$83.01
7% OFF Phone Price : $89.01
Qty
Cooktop, burner and grate parts diagram
Cooktop Holder Orifice
Part #W10128451
Replaced by #WPW10128451
Manufacturer substitution
This part replaces W10128451. Substitute parts can look different from the original.
In Stock
$64.56
9% OFF Phone Price : $70.56
Qty
