GE
Microwave/Hood Combo

Model #JVM2070BH01 GE microwave

Here are the diagrams and repair parts for GE JVM2070BH01 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 123 parts

Microwave Thermal Cut-Off

#59

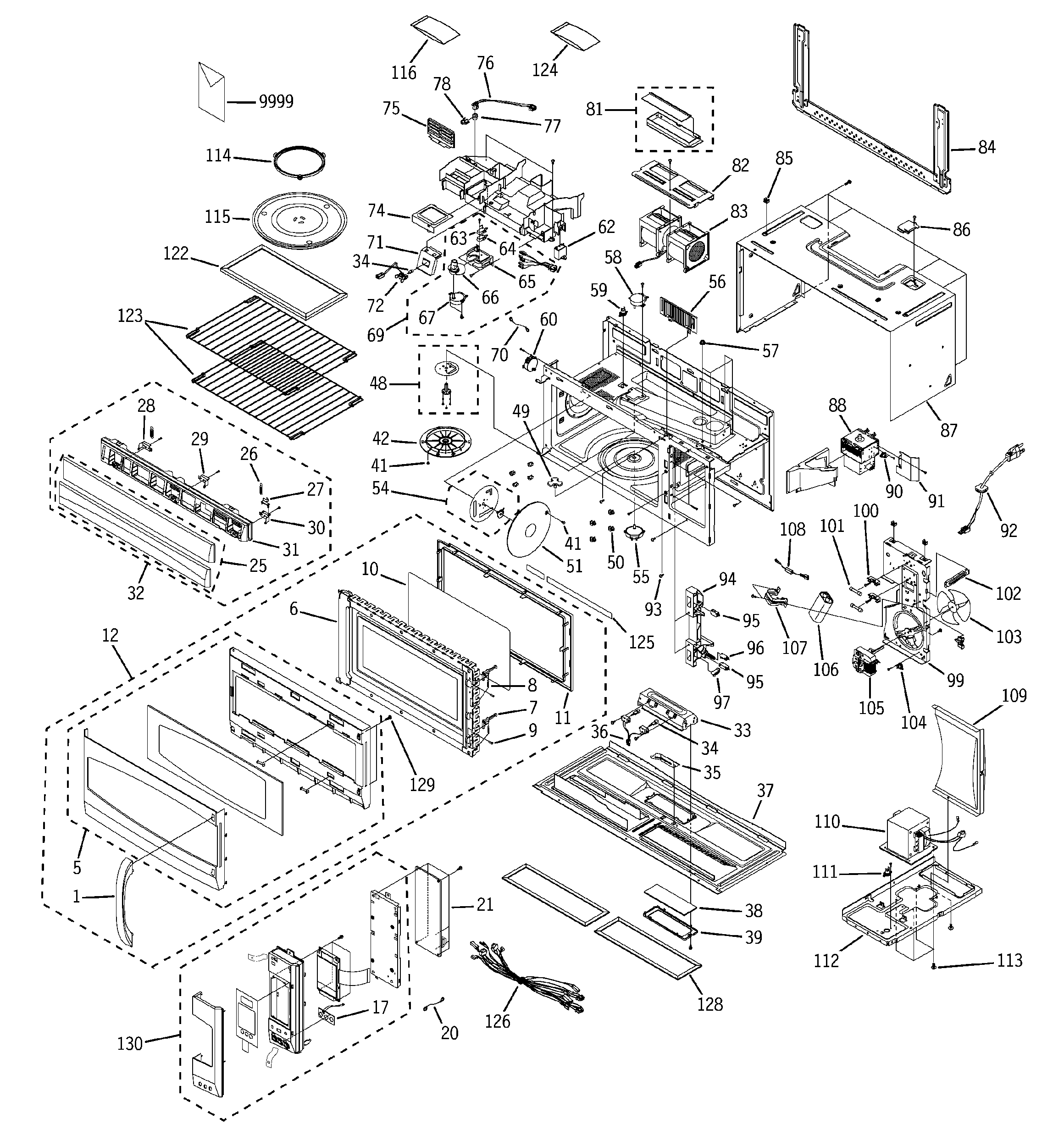

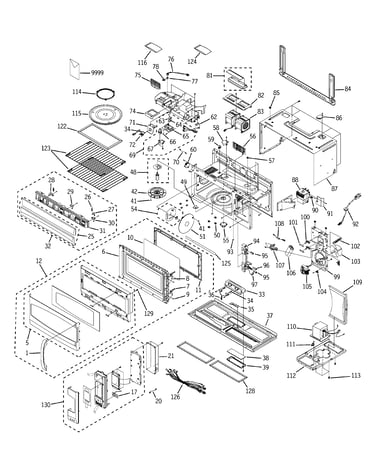

Microwave Diagram

Microwave thermal cut-off

Part #WB27X10195
$28.93

In Stock

Microwave High-Voltage Diode

#108

Microwave Diagram

$43.29

In Stock

Microwave Grease Filter

#128

Microwave Diagram

Microwave grease filter

Part #WB06X10288
$18.53

In Stock

Microwave Charcoal Filter

#122

Microwave Diagram

Microwave charcoal filter

Part #WB02X10956
$15.68

In Stock

Microwave Door Interlock Switch Lever

#97

Microwave Diagram

Microwave door interlock switch lever

Part #WB06X10128
This item is not returnable
$5.29

In Stock

Microwave Thermal Cut-Off

#104

Microwave Diagram

Microwave thermal cut-off

Part #WB27X10194
$21.26

In Stock

Microwave Mounting Plate

#84

Microwave Diagram

Microwave mounting plate

Part #WB56X10446
$70.30

In Stock

Microwave Surface Light Lens

#38

Microwave Diagram

$9.54

In Stock

Microwave Louver Spring

#26

Microwave Diagram

Microwave louver spring

Part #WB01X10246
This item is not returnable
$3.04

In Stock

Microwave Vent Damper

#81

Microwave Diagram

Microwave vent damper

Part #WB06X10436
$20.92

In Stock
