Whirlpool
Wall Oven/Microwave Combo

Model #GMC305PDQ6 Whirlpool electric built-in oven with microwave

Here are the diagrams and repair parts for Whirlpool GMC305PDQ6 electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 225 parts

    Range Oven Door Removal Hinge Pin Set

    #NI

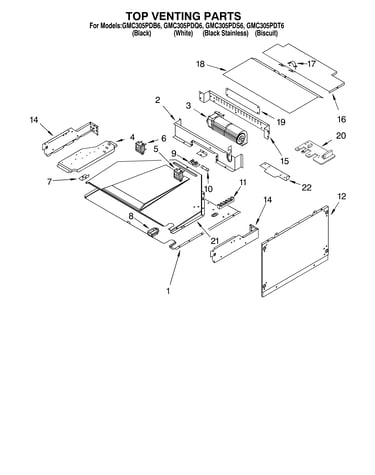

    Top venting/optional Diagram

    Range oven door removal hinge pin set

    Part #814381
    This item is not returnable
    $5.19

    In Stock

    Wall Oven Door Bumper

    #4

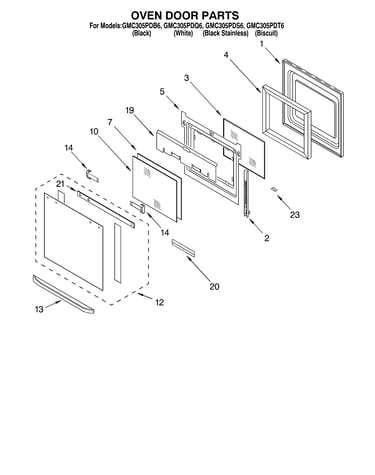

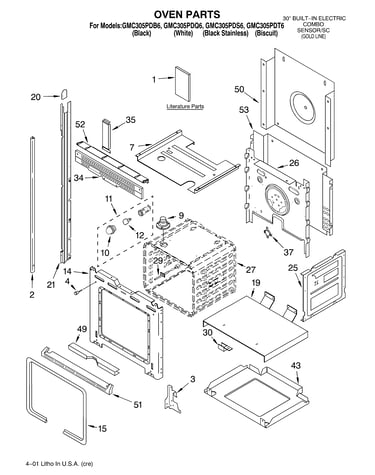

    Oven/literature Diagram

    Wall oven door bumper

    Part #4448520
    $14.24

    In Stock

    Bracket

    #30

    Oven/literature Diagram

    Bracket

    Part #4449845
    $15.89

    In Stock

    Oven Mounting Plate

    #22

    Top venting/optional Diagram

    Oven mounting plate

    Part #4455191
    $11.30

    In Stock

    Wall Oven Microwave Ground Wire Harness

    #NI

    Top venting/optional Diagram

    $7.80

    In Stock

    Oven Spacer

    #20

    Oven/literature Diagram

    Oven spacer

    Part #4451605
    $25.17

    In Stock

    Wall Oven Insulation

    #NI

    Oven/literature Diagram

    Wall oven insulation

    Part #4449316
    $67.88

    In Stock

    Wall Oven Conduit Bracket

    #17

    Top venting/optional Diagram

    $14.00

    In Stock

    Cooking Appliance 14-gauge Splicing Wire, 200-degree C (Red)

    #NI

    Top venting/optional Diagram

    $214.42 |
    31% OFF
    MSRP: $311.99

    In Stock

    Oven Elbow

    #18

    Latch Diagram

    Oven elbow

    Part #4455177
    $9.68

    In Stock
