Jenn-Air JC2228PEHB-PJC2228PHB0 refrigerator

Jenn-Air JC2228PEHB-PJC2228PHB0 refrigerator Parts

Here are the diagrams and repair parts for Jenn-Air JC2228PEHB-PJC2228PHB0 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

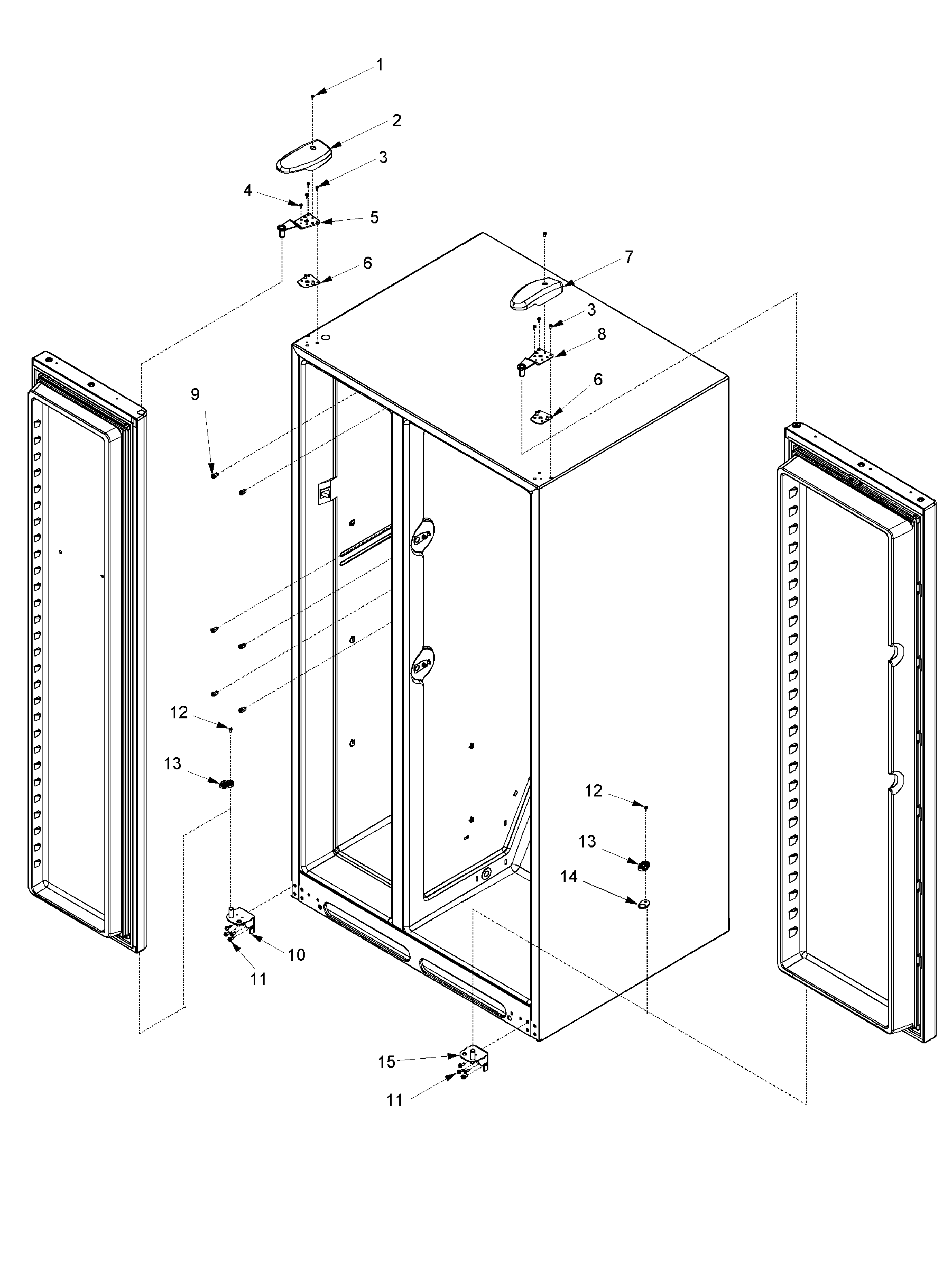

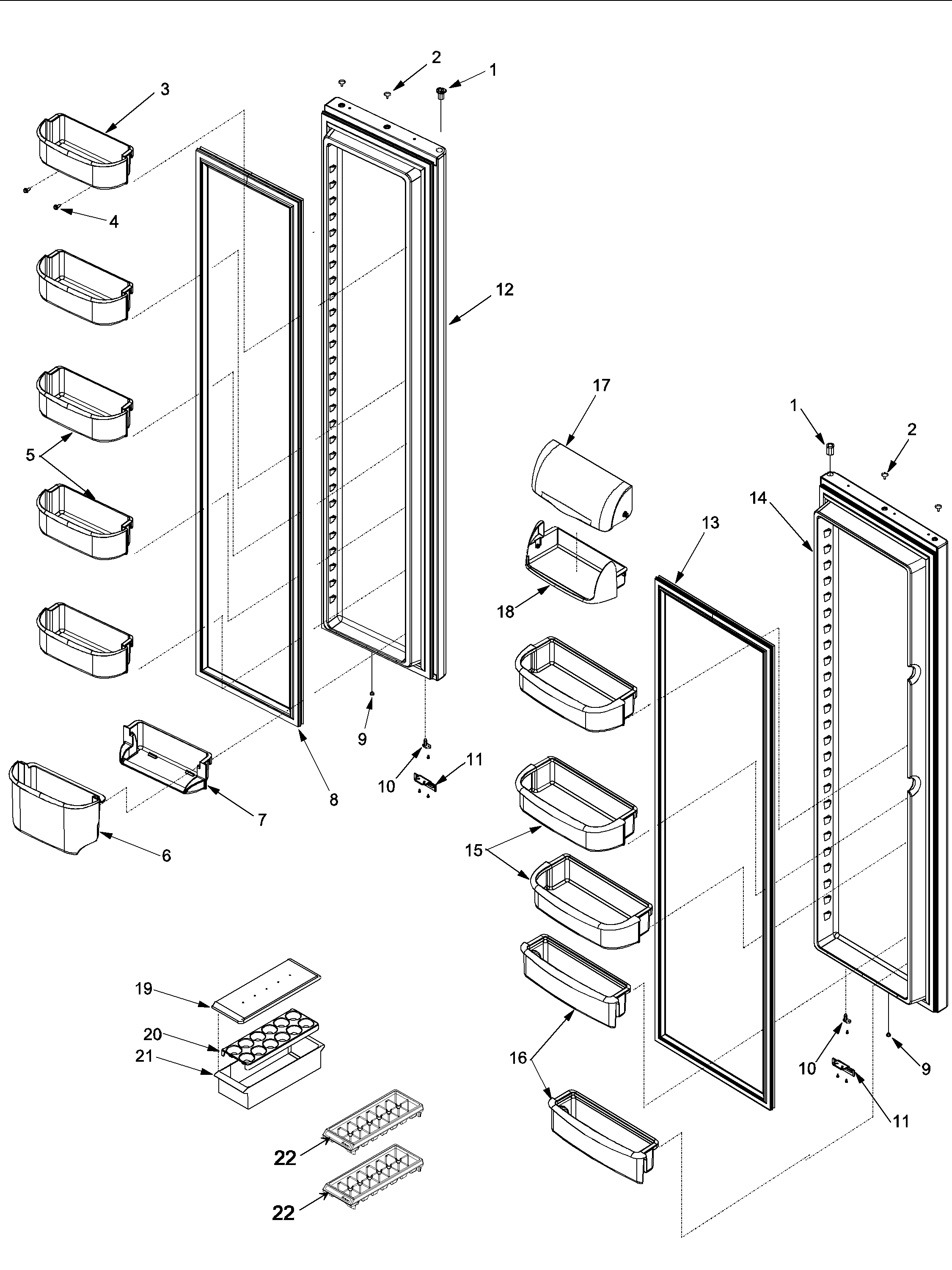

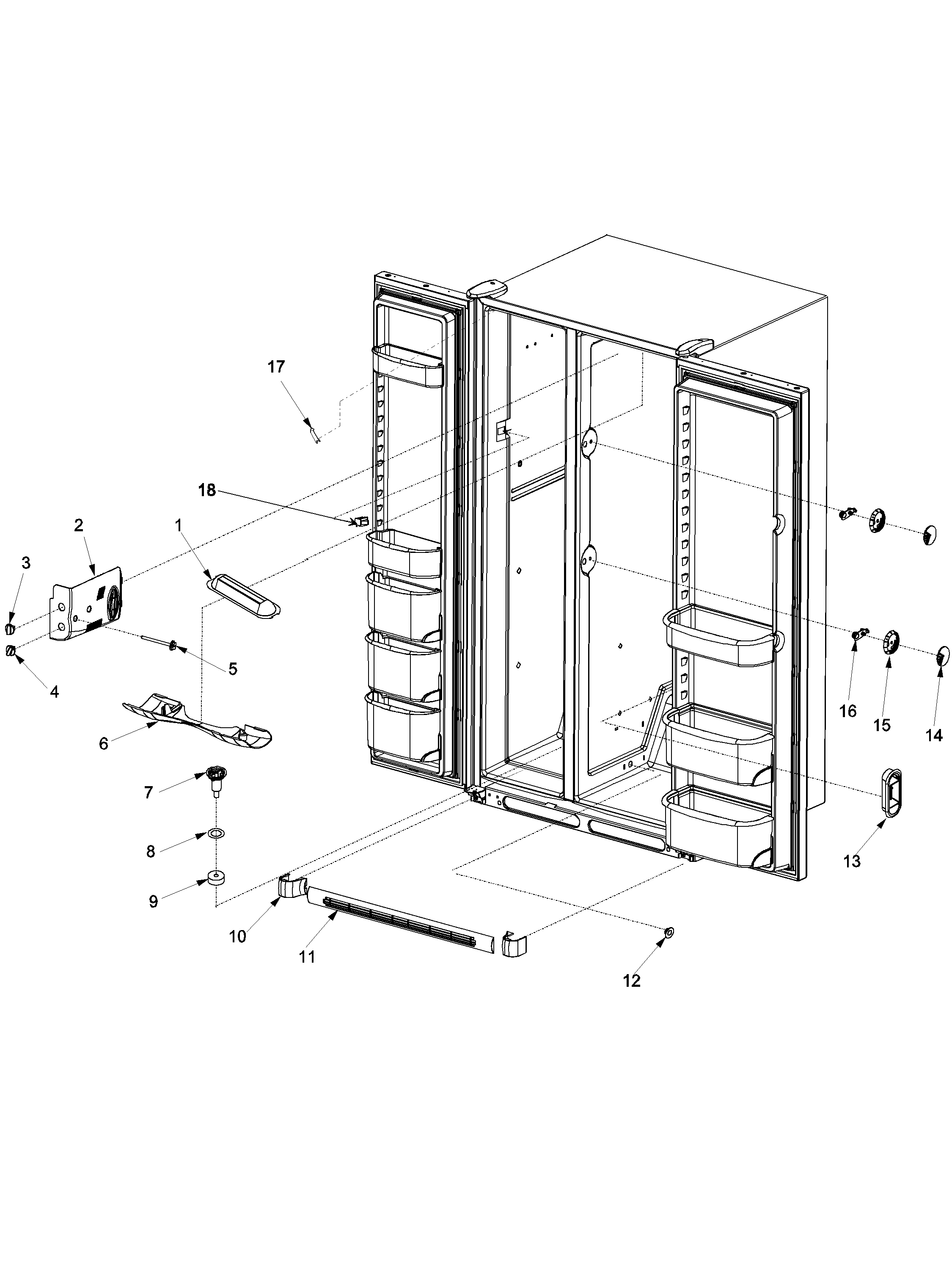

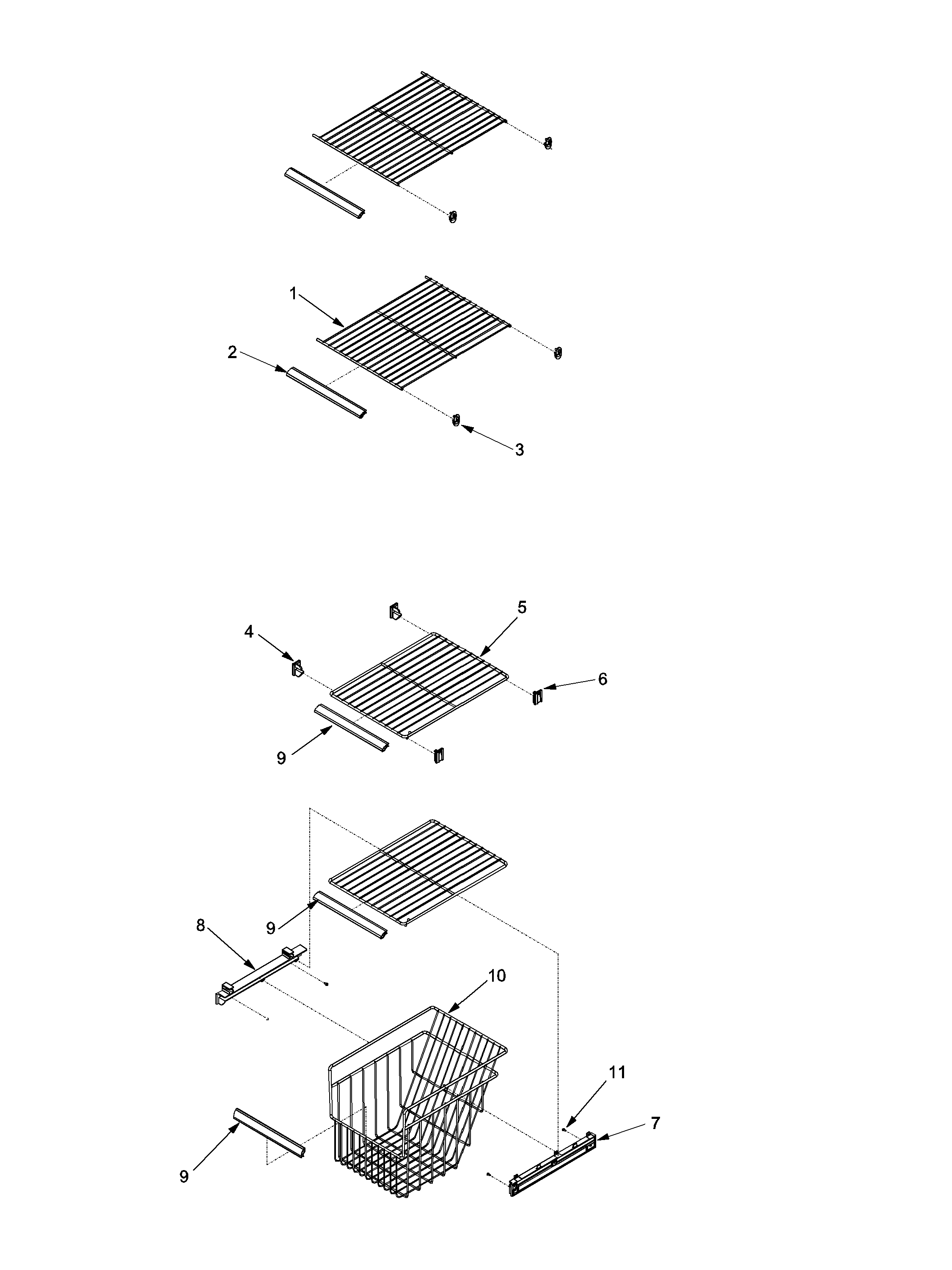

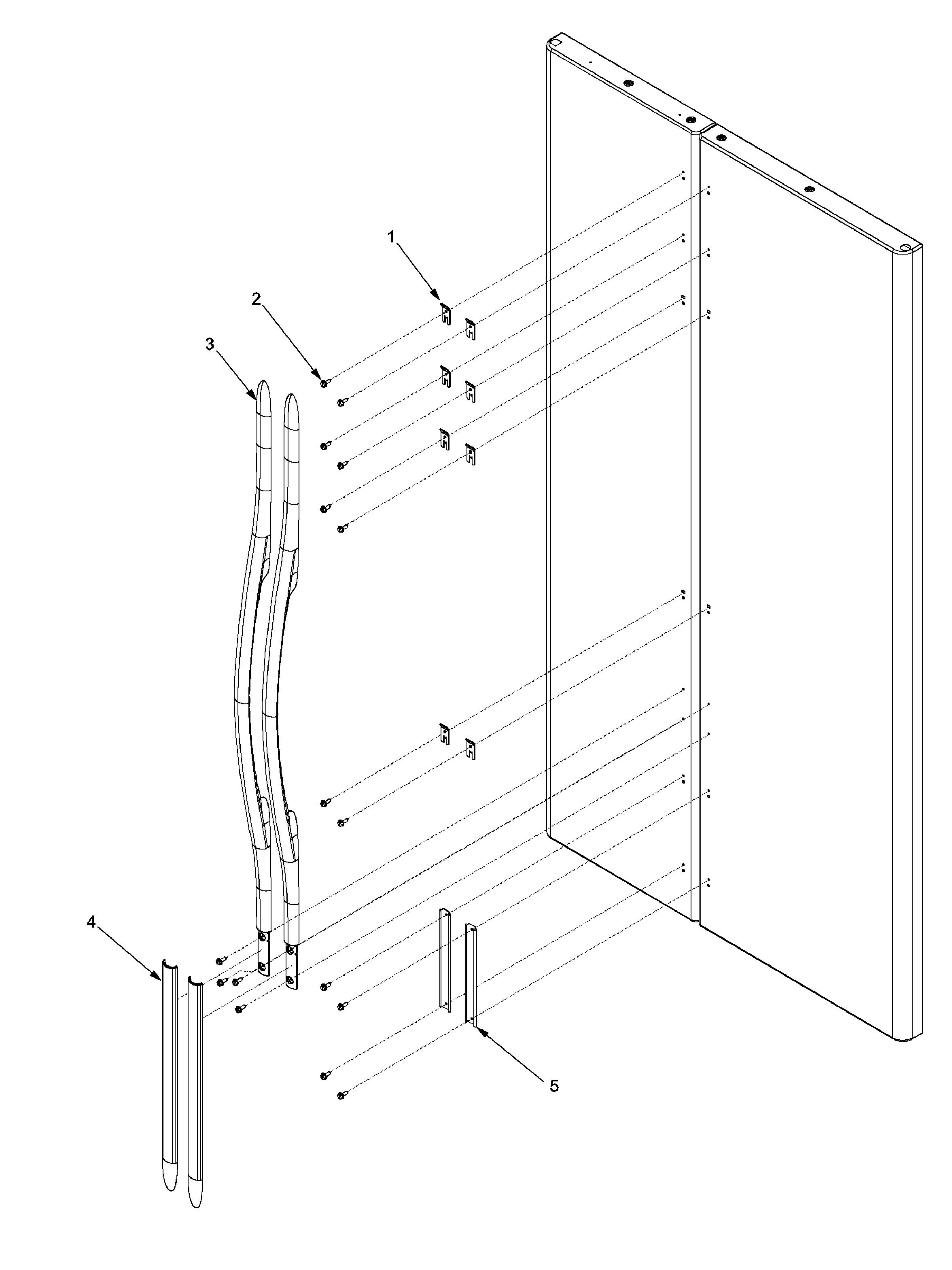

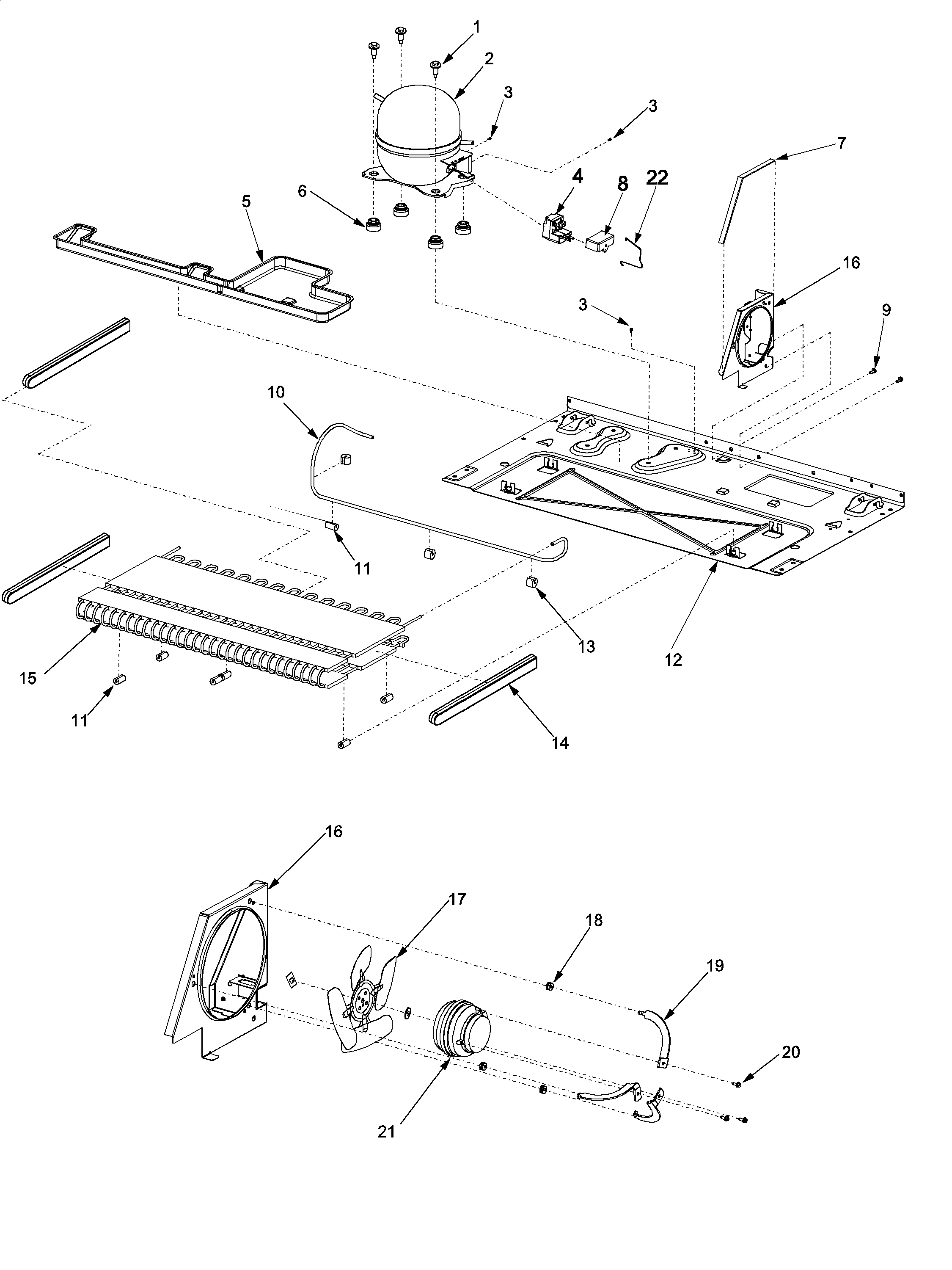

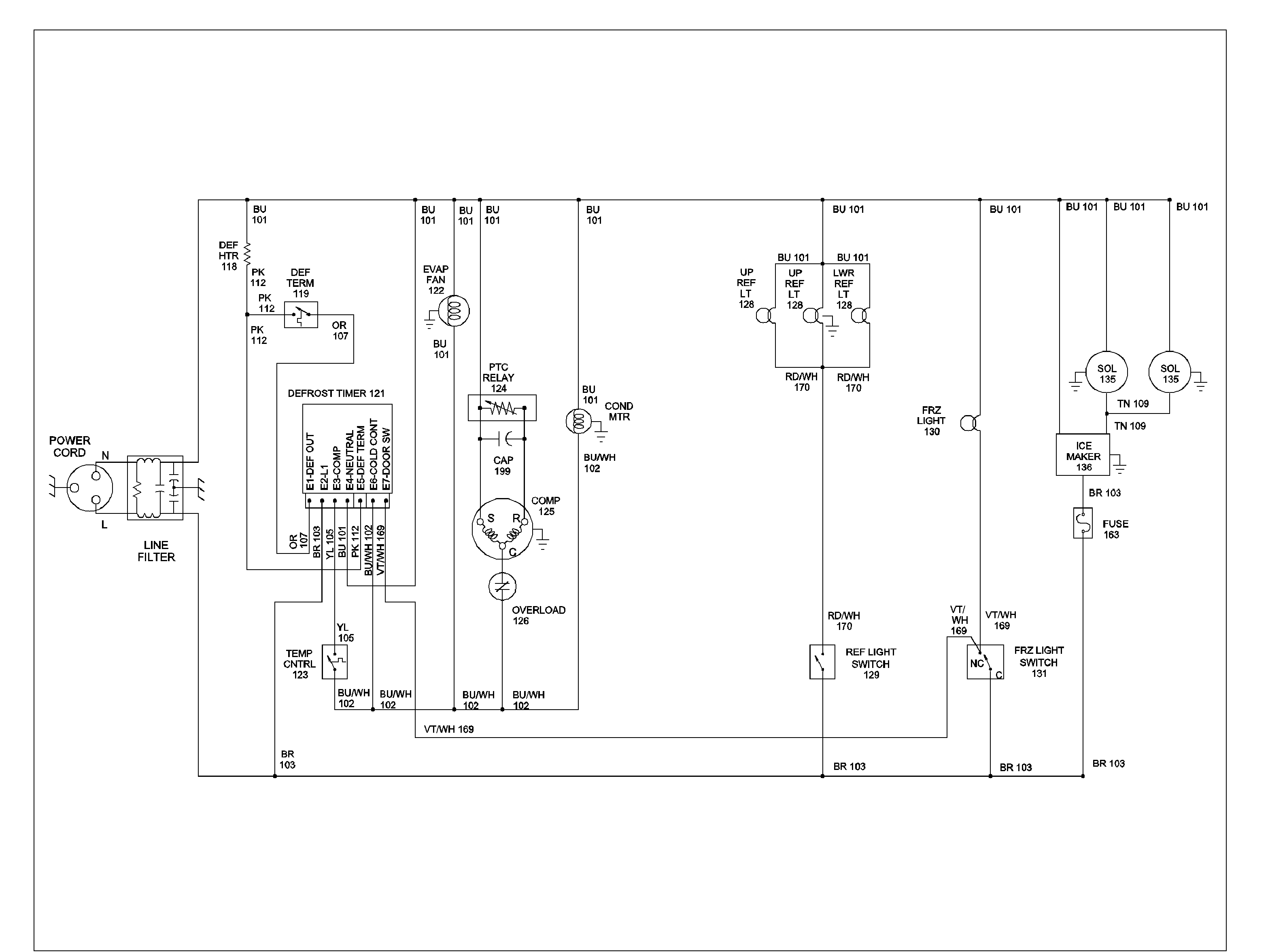

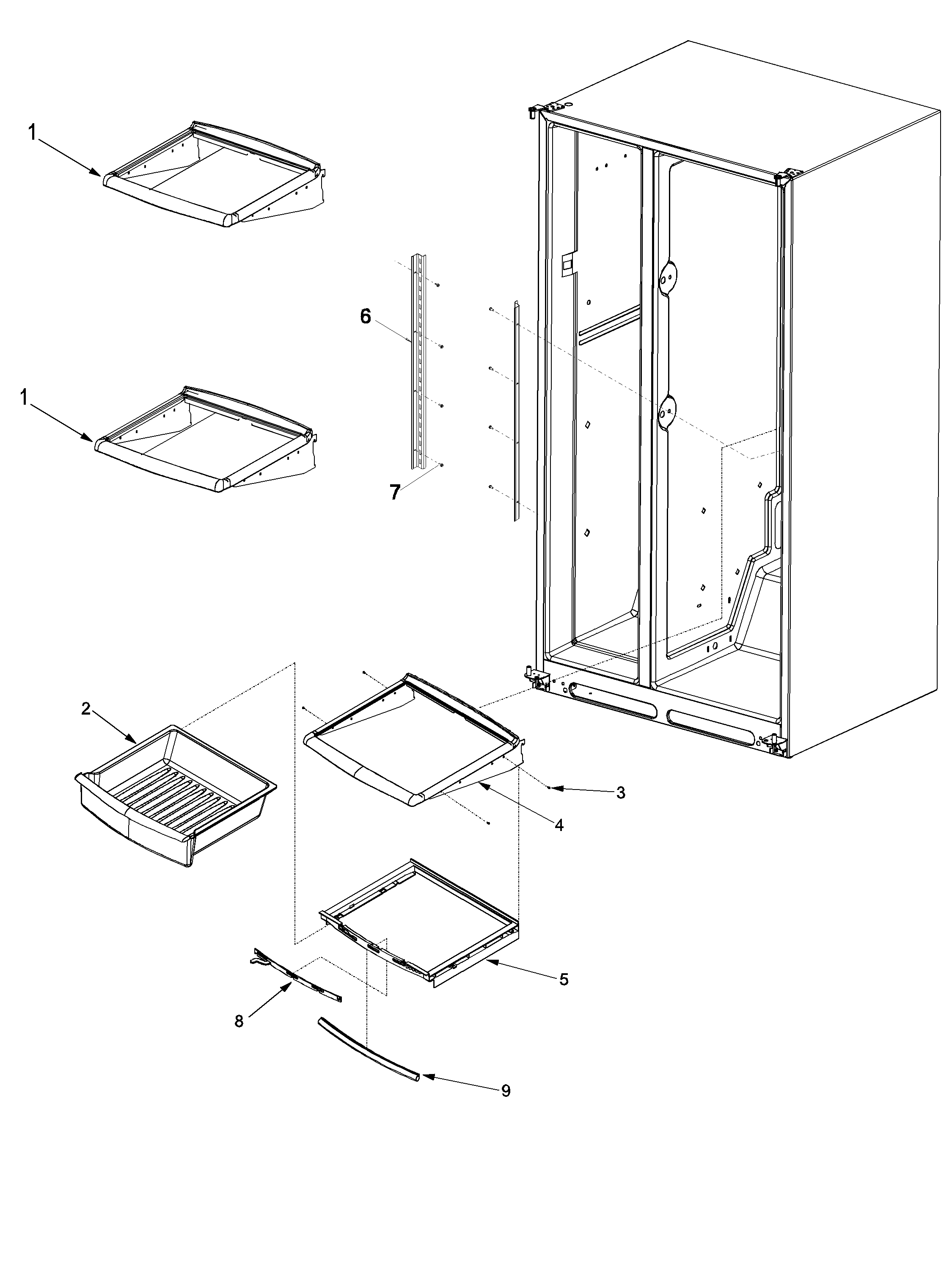

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JC2228PEHB-PJC2228PHB0 Refrigerators

  • Refrigerator Evaporator Fan Blade for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WP2169142

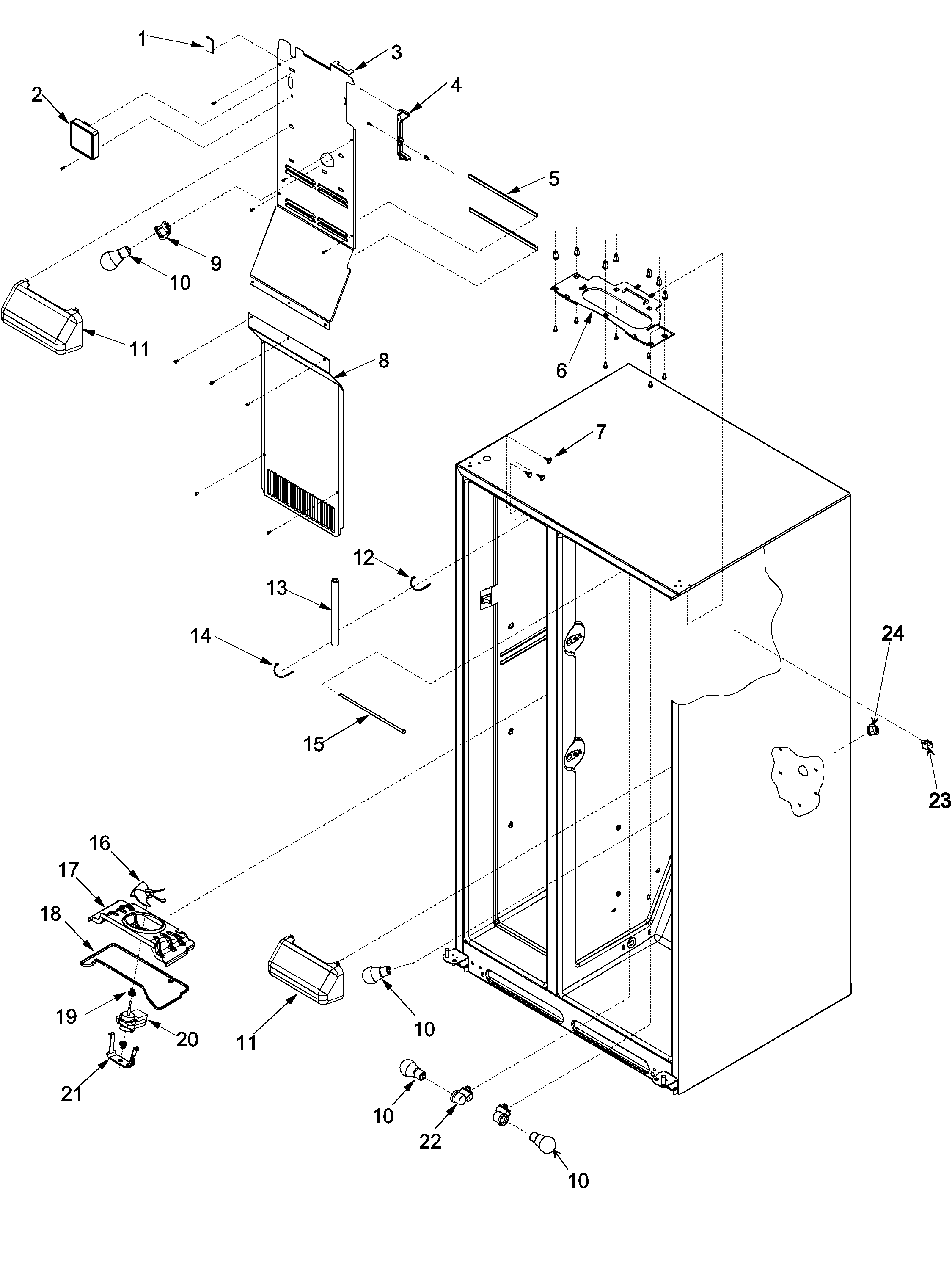

    Evap fan assy and lights diagram

    Refrigerator Evaporator Fan Blade

    Part #12217201

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 12217201. Substitute parts can look different from the original.
    In Stock
    $25.00
    19% OFF Phone Price : $31.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part W10823511

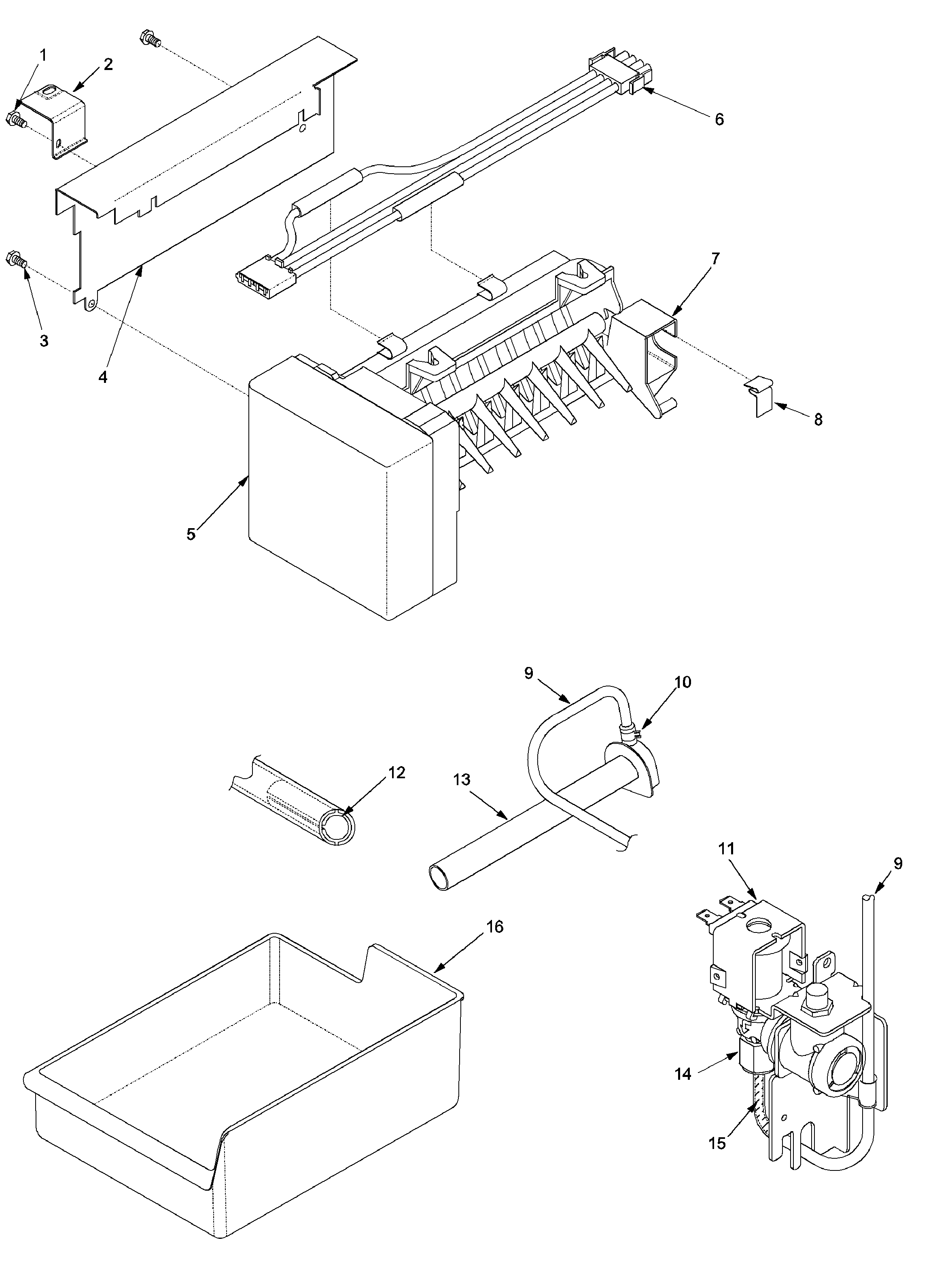

    Ice maker diagram

    Refrigerator Tube

    Part #B5705323

    Replaced by #W10823511

    Info Icon
    Manufacturer substitution
    This part replaces B5705323. Substitute parts can look different from the original.
    In Stock
    $36.39
    14% OFF Phone Price : $42.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WPB2150504

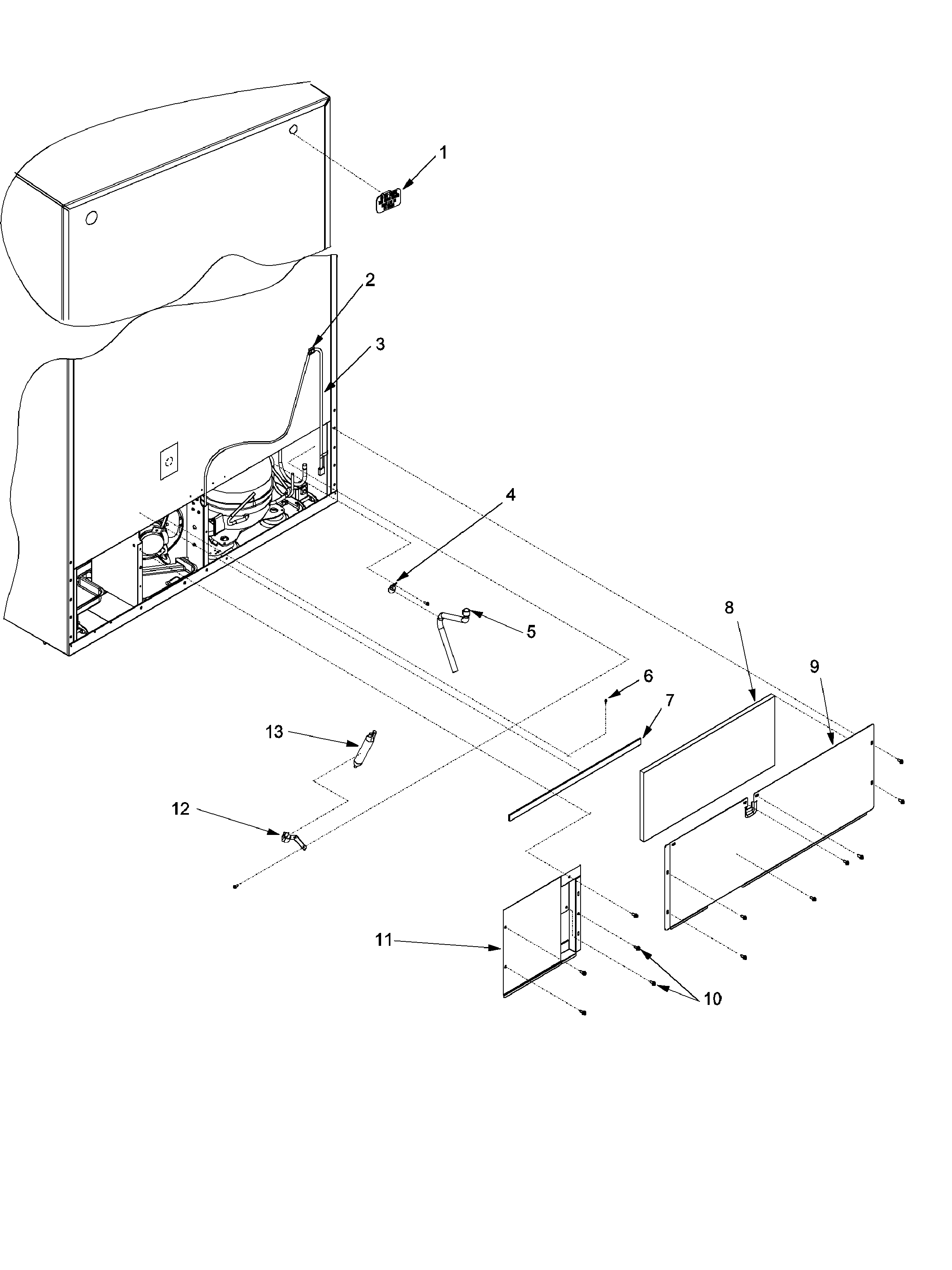

    Cabinet back diagram

    Drier

    Part #B2150504

    Replaced by #WPB2150504

    Info Icon
    Manufacturer substitution
    This part replaces B2150504. Substitute parts can look different from the original.
    In Stock
    $96.97
    11% OFF Phone Price : $108.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WP90767

    Refrigerator Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WP90767

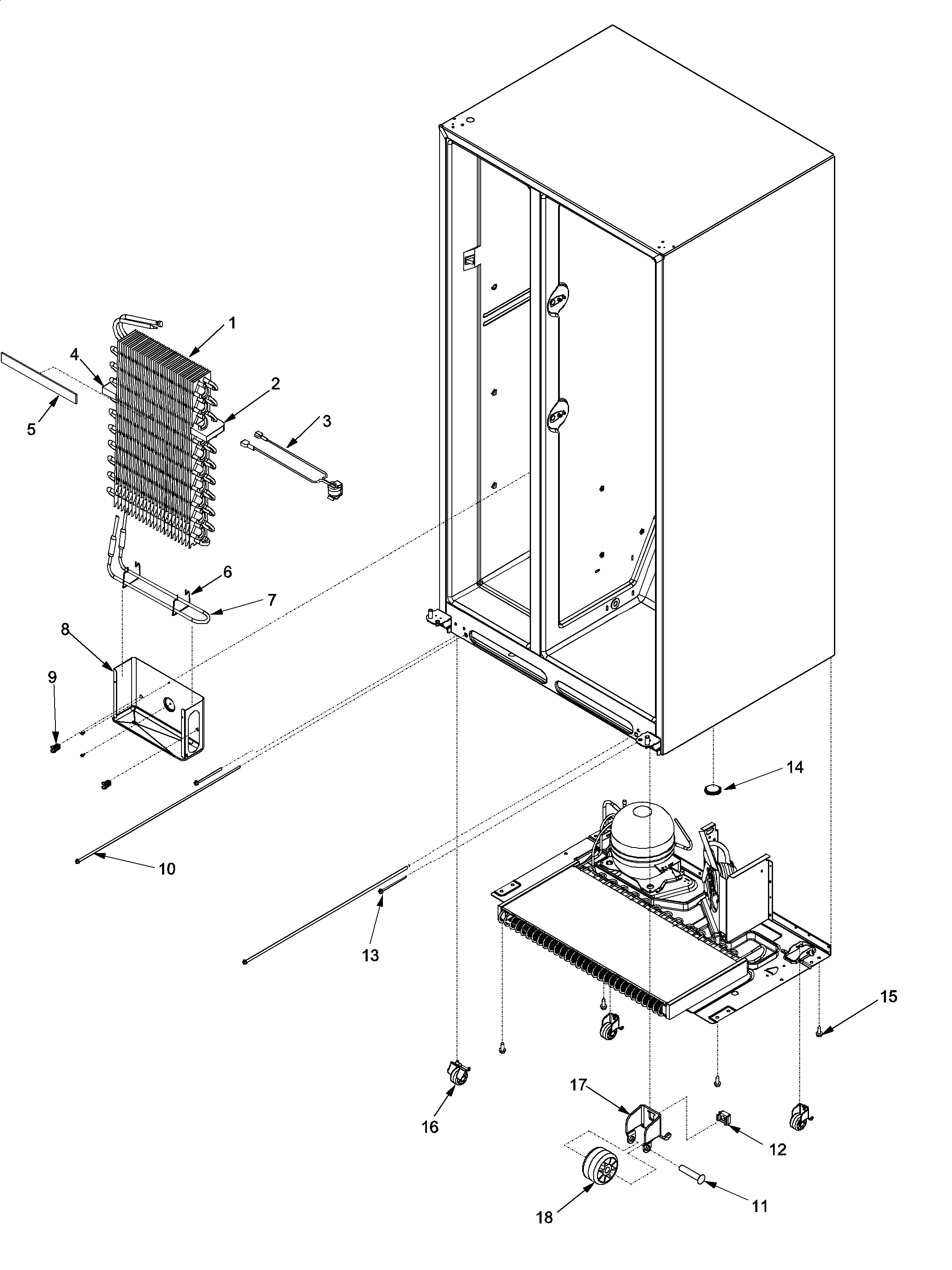

    Evaporator assy and rollers diagram

    Refrigerator Screw

    Part #M0224416

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0224416. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part W11291138

    Refrigerator Light Switch

    Part #12466104

    Replaced by #W11291138

    Info Icon
    Manufacturer substitution
    This part replaces 12466104. Substitute parts can look different from the original.
    In Stock
    $29.59
    17% OFF Phone Price : $35.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WP489069

    Cabinet back diagram

    Refrigerator Screw

    Part #M0220617

    Replaced by #WP489069

    Info Icon
    Manufacturer substitution
    This part replaces M0220617. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Shut-off Arm for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part WP67004028

    Ice maker diagram

    Refrigerator Ice Maker Arm

    Part #67001257

    Replaced by #WP67004028

    Info Icon
    Manufacturer substitution
    This part replaces 67001257. Substitute parts can look different from the original.
    In Stock
    $32.44
    31% OFF Was : $46.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part 67006425

    Ice maker diagram

    Refrigerator Shelf Bracket Mounting Screw

    Part #M0238642

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0238642. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Jenn-Air JC2228PEHB-PJC2228PHB0 - Part 67006425

    Refrigerator Screw

    Part #M0238616

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0238616. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
