Model #917388520 Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Craftsman 917388520 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 209 parts

    Lawn & Garden Equipment Self-Tapping Screw

    #12

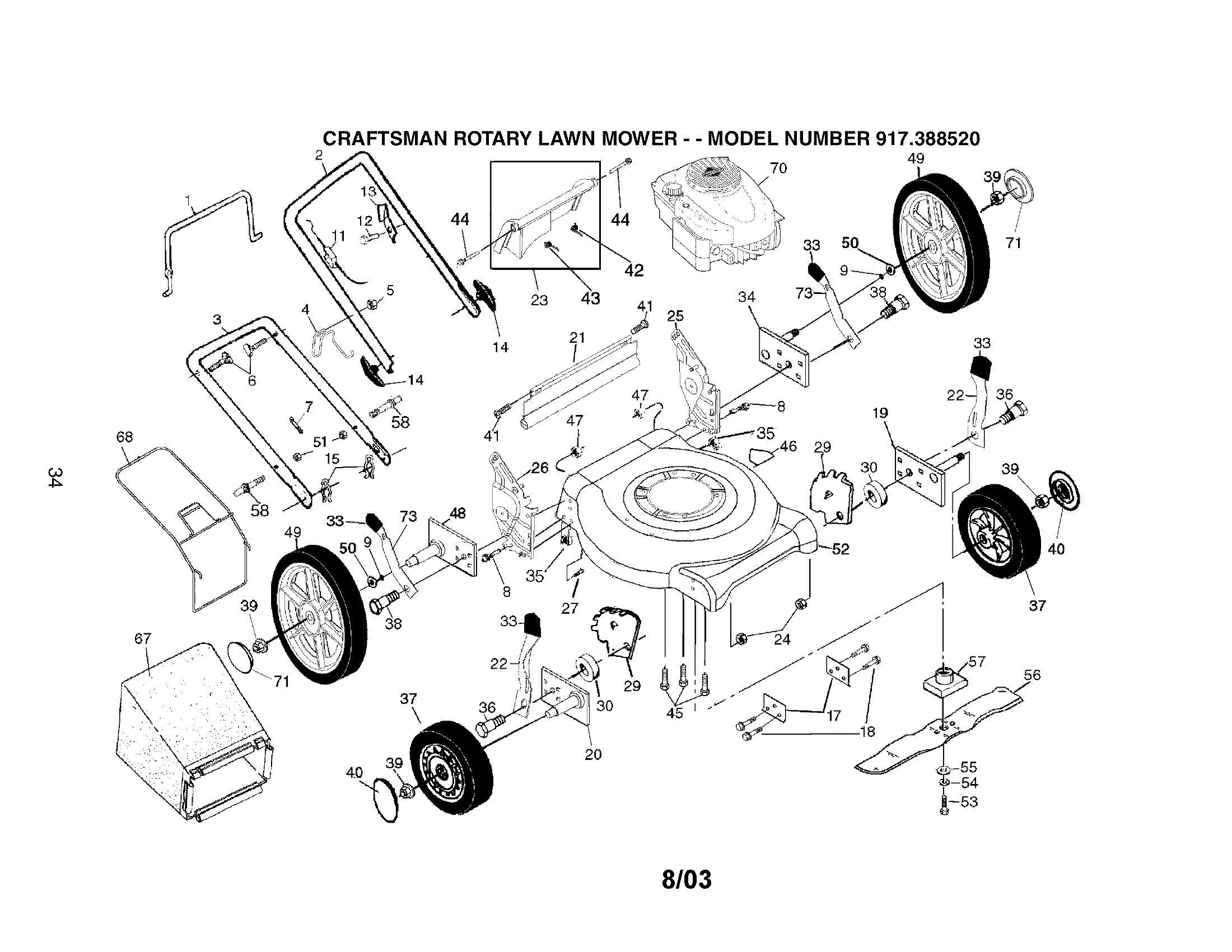

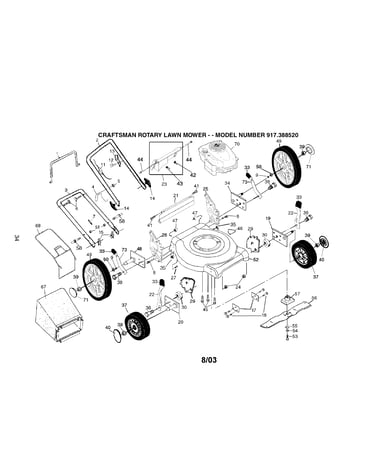

    Engine/housing/handle Diagram

    Lawn & garden equipment self-tapping screw

    Part #750634
    This item is not returnable
    $3.89

    In Stock

    Lawn Mower Hex Head Thread Rolling Screw, 1/4-20 x 3/4-in

    #18

    Engine/housing/handle Diagram

    Lawn mower hex head thread rolling screw, 1/4-20 x 3/4-in

    Part #17600406
    This item is not returnable
    $2.59 |
    22% OFF
    MSRP: $3.30

    In Stock

    Lawn & Garden Equipment Lock Nut

    #24

    Engine/housing/handle Diagram

    Lawn & garden equipment lock nut

    Part #73930500
    This item is not returnable
    $3.99 |
    5% OFF
    MSRP: $4.20

    In Stock

    Lawn Mower Anti-Fold Bracket

    #4

    Engine/housing/handle Diagram

    Lawn mower anti-fold bracket

    Part #186079
    This item is not returnable
    $6.69

    In Stock

    Lawn & Garden Equipment Washer

    #55

    Engine/housing/handle Diagram

    Lawn & garden equipment washer

    Part #851074
    This item is not returnable
    $3.39

    In Stock

    Lawn Mower Wheel, 8 x 2-in

    #37

    Engine/housing/handle Diagram

    $30.99

    In Stock

    Lawn & Garden Equipment Bolt

    #45

    Engine/housing/handle Diagram

    Lawn & garden equipment bolt

    Part #150406
    This item is not returnable
    $4.99

    In Stock

    Lawn & Garden Equipment Engine Oil, SAE 30, 20-oz

    #(NI)

    All parts Diagram

    Lawn & garden equipment engine oil, sae 30, 20-oz

    Part #40020
    ?
    Manufacturer substitution
    This part replaces 33000. Substitute parts can look different from the original.
    This part replaces 33000
    $17.99

    In Stock

    Lawn Mower Bail Control Bar Stop Bracket

    #13

    Engine/housing/handle Diagram

    Lawn mower bail control bar stop bracket

    Part #532850733
    ?
    Manufacturer substitution
    This part replaces 850733X004. Substitute parts can look different from the original.
    This part replaces 850733X004
    This item is not returnable
    $5.09

    In Stock

    Lawn Mower Rear Skirt

    #21

    Engine/housing/handle Diagram

    Lawn mower rear skirt

    Part #413160
    ?
    Manufacturer substitution
    This part replaces 165858. Substitute parts can look different from the original.
    This part replaces 165858
    $13.99

    In Stock
