Model #38YCC048 SERIES300 Carrier heat pump

Here are the diagrams and repair parts for Carrier 38YCC048-SERIES300 heat pump, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 55 parts

Stop Kit

#NI

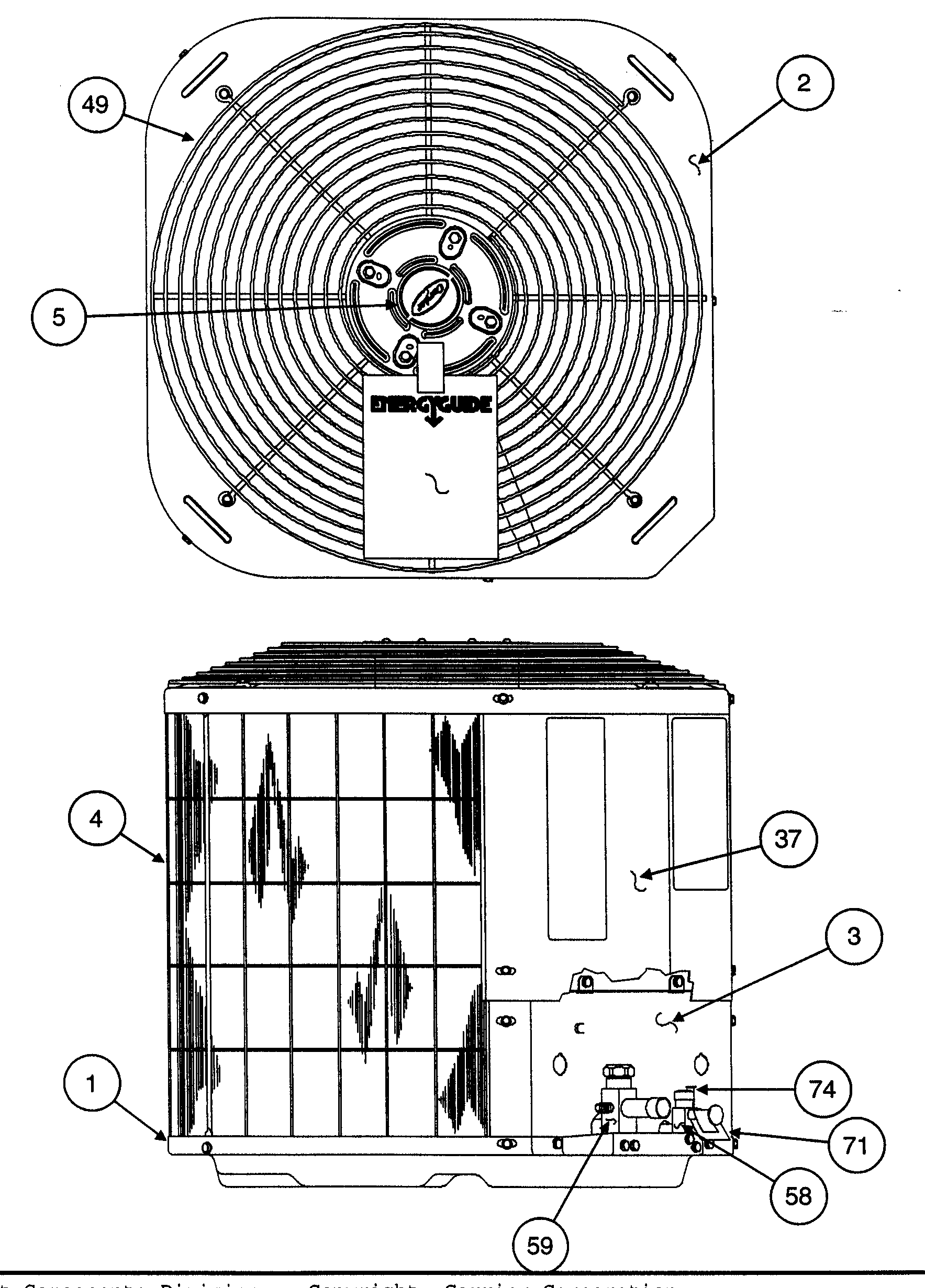

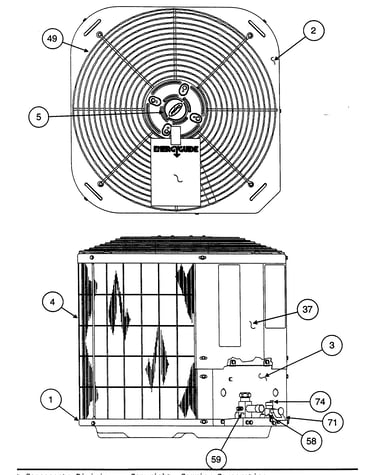

Top view Diagram

Stop kit

Part #KSATX0701HSO
$174.00

In Stock

Accumator

#68

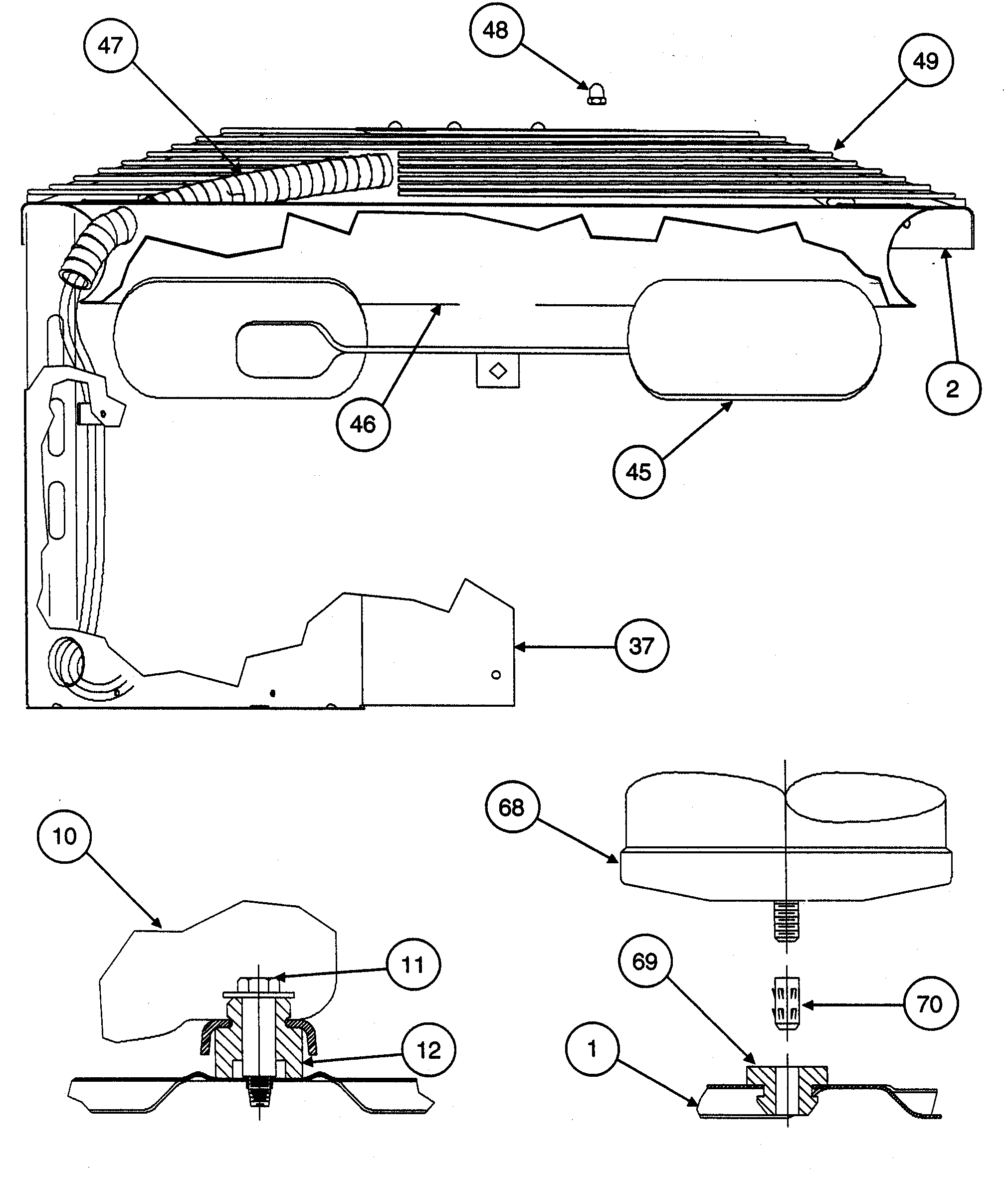

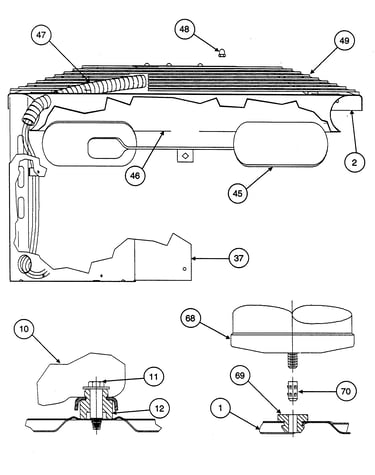

Compressor assy Diagram

Accumator

Part #KH71KN161
$134.68

In Stock

Solend Coil

#NI

Top view Diagram

Solend coil

Part #EF19ZG235
$68.88

In Stock

Adapter/st

#74

Top view Diagram

Adapter/st

Part #320655-701
$18.42

In Stock

Grille   L

#4

Top view Diagram

Grille l

Part #322483-418
$57.70

In Stock

Cushion

#69

Compressor assy Diagram

Cushion

Part #312251-201
This item is not returnable
$2.16

In Stock

Panel

#3

Top view Diagram

Panel

Part #317405-708138
$13.99

In Stock

Clip

#70

Compressor assy Diagram

Clip

Part #AS81ZR001
This item is not returnable
$2.16

In Stock

Dfrost Cntrl

#28

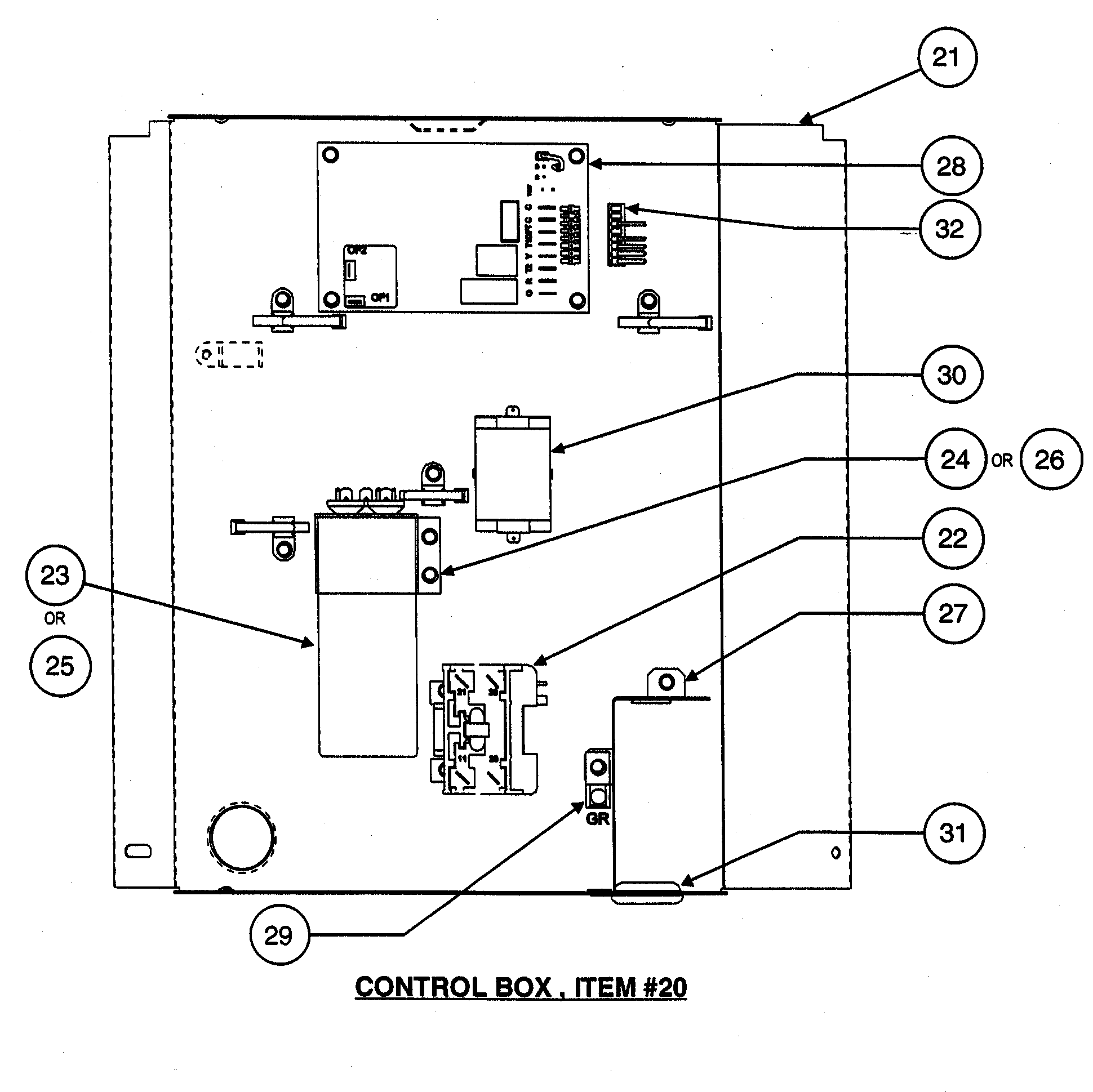

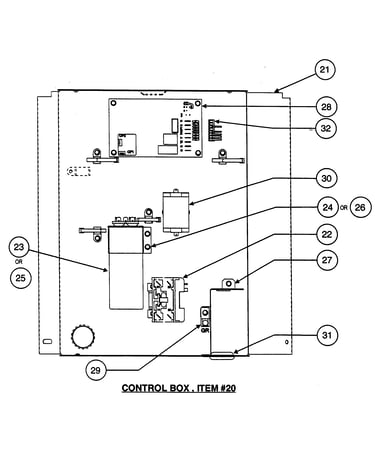

Control box Diagram

Dfrost cntrl

Part #CESO110063-02
$158.00

In Stock

Nameplate

#5

Top view Diagram

Nameplate

Part #323761-101
$8.92

In Stock
