Broan RM503023 range hood

Broan RM503023 range hood Parts

Here are the diagrams and repair parts for Broan RM503023 range hood, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM503023 Range Hood

  • Range Hood Light Bulb for Broan RM503023 - Part SB02300264

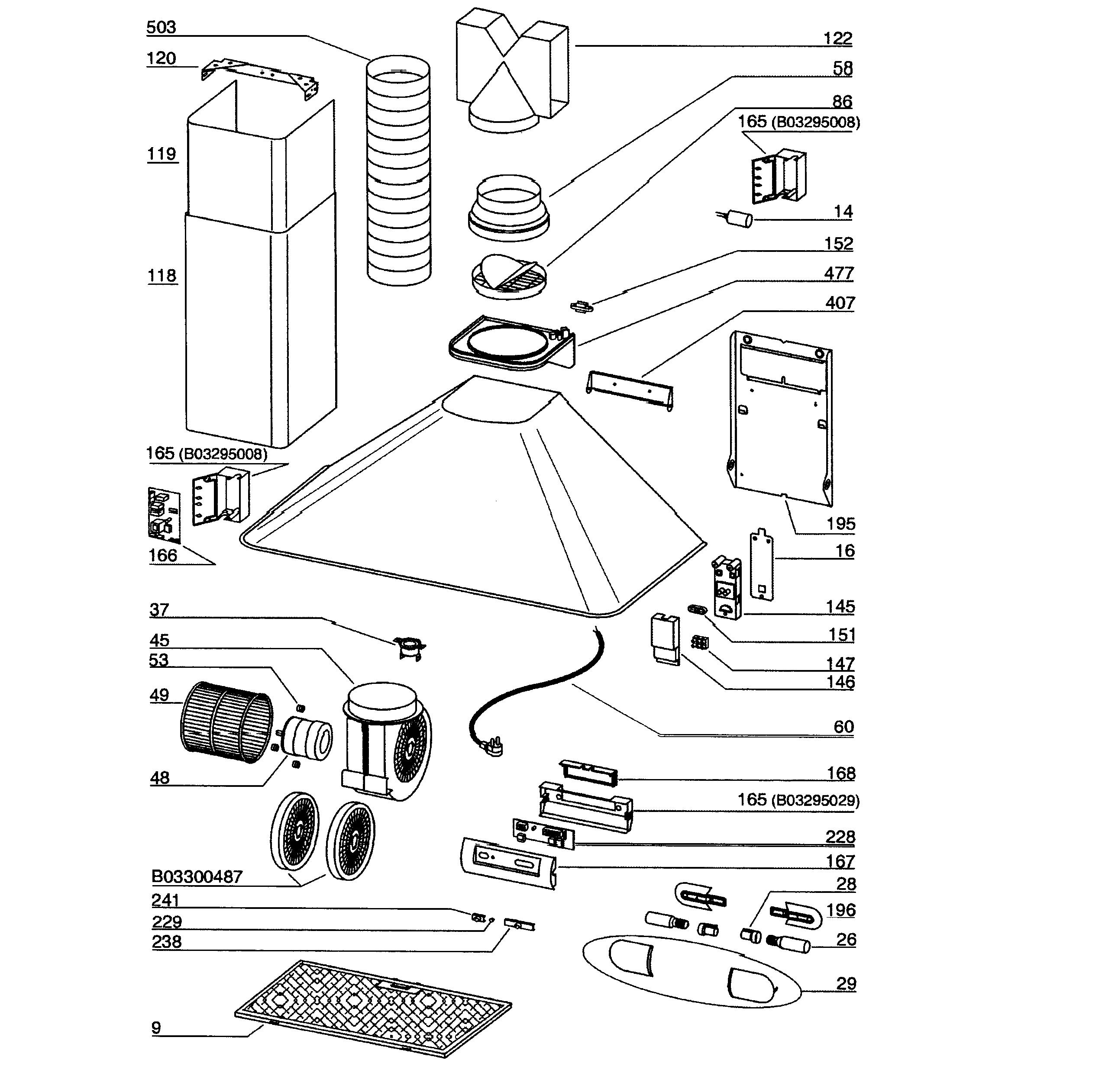

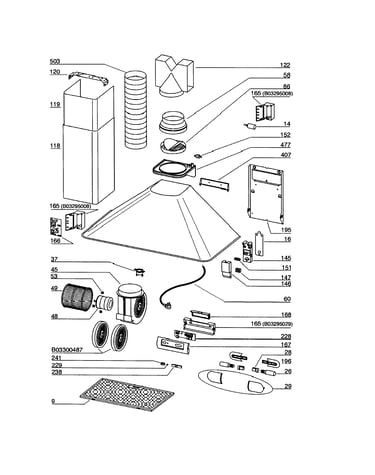

    Range hood assy diagram

    Range Hood Light Bulb

    Part #B02300264

    Replaced by #SB02300264

    Info Icon
    Manufacturer substitution
    This part replaces B02300264. Substitute parts can look different from the original.
    In Stock
    $50.58
    11% OFF Phone Price : $56.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Electronic Control Board for Broan RM503023 - Part SB08086668

    Range hood assy diagram

    Range Hood Electronic Control Board

    Part #B08086668

    Replaced by #SB08086668

    Info Icon
    Manufacturer substitution
    This part replaces B08086668. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $180.27
    6% OFF Phone Price : $192.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Round Vent Damper, 6-in for Broan RM503023 - Part SB08088378

    Range hood assy diagram

    Range Hood Round Damper, 6-in

    Part #B08088378

    Replaced by #SB08088378

    Info Icon
    Manufacturer substitution
    This part replaces B08088378. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $52.14
    10% OFF Phone Price : $58.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Flue Mounting Bracket for Broan RM503023 - Part B08091367

    Range hood assy diagram

    Range Hood Flue Mounting Bracket

    Part #B08091367

    The manufacturer no longer makes this part, and there's no substitute part

  • Range Hood Electronic Control Board Housing for Broan RM503023 - Part SB03295029

    Range hood assy diagram

    Range Hood Electronic Control Board Housing

    Part #B03295029

    Replaced by #SB03295029

    Info Icon
    Manufacturer substitution
    This part replaces B03295029. Substitute parts can look different from the original.
    In Stock
    $65.62
    Minus Item
    Qty
    Plus Item
  • Broan Range Hood Fan Motor for Broan RM503023 - Part SB02310177

    Range hood assy diagram

    Range Hood Fan Motor

    Part #B02310177

    Replaced by #SB02310177

    Info Icon
    Manufacturer substitution
    This part replaces B02310177. Substitute parts can look different from the original.
    In Stock
    $251.91
    5% OFF Phone Price : $263.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Box for Broan RM503023 - Part SB03295008

    Range hood assy diagram

    Box

    Part #B03295008

    Replaced by #SB03295008

    Info Icon
    Manufacturer substitution
    This part replaces B03295008. Substitute parts can look different from the original.
    In Stock
    $100.48
    Minus Item
    Qty
    Plus Item
  • Flex Duct for Broan RM503023 - Part SB02011452

    Range hood assy diagram

    Duct Flex

    Part #B02011452

    Replaced by #SB02011452

    Info Icon
    Manufacturer substitution
    This part replaces B02011452. Substitute parts can look different from the original.
    In Stock
    $68.78
    Minus Item
    Qty
    Plus Item
  • Range Hood Light Reflector for Broan RM503023 - Part SB02011113

    Range hood assy diagram

    Range Hood Light Reflector

    Part #B02011113

    Replaced by #SB02011113

    Info Icon
    Manufacturer substitution
    This part replaces B02011113. Substitute parts can look different from the original.
    In Stock
    $50.69
    Minus Item
    Qty
    Plus Item
  • Range Hood Heat Sensor for Broan RM503023 - Part SB02300787

    Range hood assy diagram

    Ht Sentry

    Part #B02300787

    Replaced by #SB02300787

    Info Icon
    Manufacturer substitution
    This part replaces B02300787. Substitute parts can look different from the original.
    In Stock
    $104.09
    10% OFF Phone Price : $116.09Info Icon
    Minus Item
    Qty
    Plus Item
