Amana NAV8805EWW washer Parts

Here are the diagrams and repair parts for Amana NAV8805EWW washer, as well as links to manuals and error code tables, if available.

Amana NAV8805EWW washer
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forNAV8805EWW Washer

  • Washer Screw for Amana NAV8805EWW - Part WP22002933

    Inner - outer tub diagram

    Screw

    Part #22002933

    Replaced by #WP22002933

    Info Icon
    Manufacturer substitution
    This part replaces 22002933. Substitute parts can look different from the original.
    In Stock
    $28.15
    Minus Item
    Qty
    Plus Item
  • Clip for Amana NAV8805EWW - Part WP25-7220

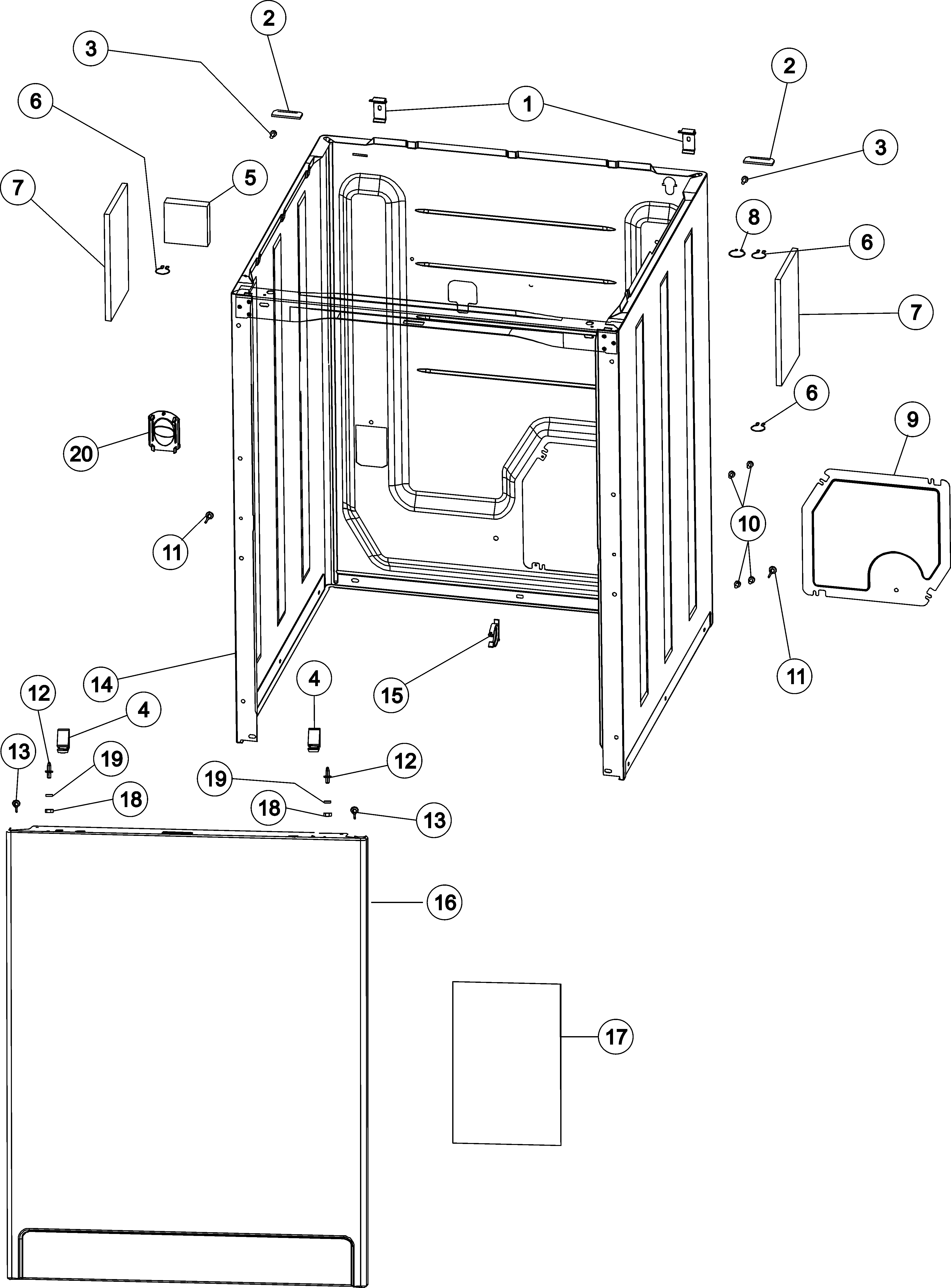

    Cabinet & front panel diagram

    Cabinet Clip

    Part #25-7220

    Replaced by #WP25-7220

    Info Icon
    Manufacturer substitution
    This part replaces 25-7220. Substitute parts can look different from the original.
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Amana NAV8805EWW - Part WP3400872

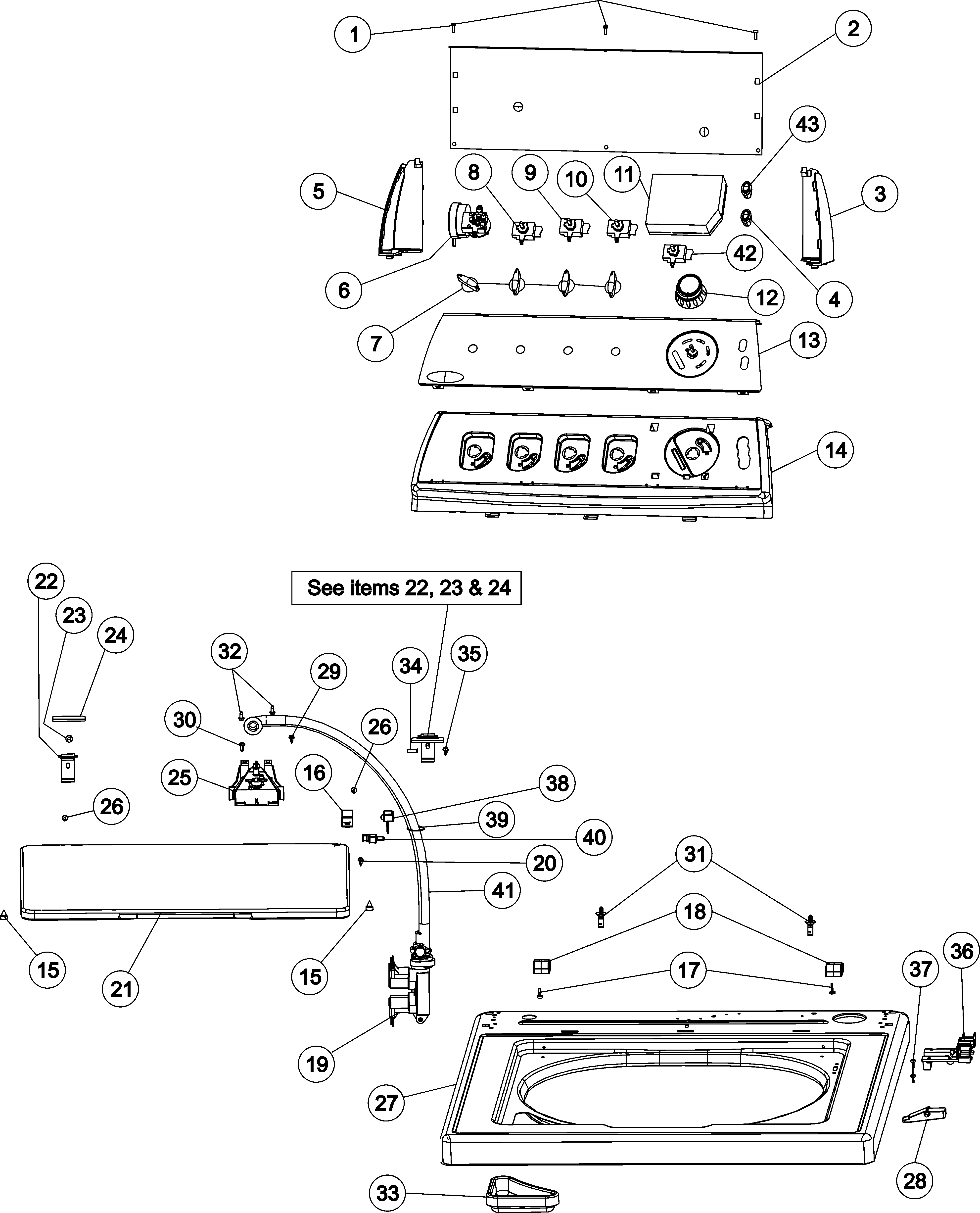

    Control panel & top diagram

    Screw, Switc

    Part #21001136

    Replaced by #WP3400872

    Info Icon
    Manufacturer substitution
    This part replaces 21001136. Substitute parts can look different from the original.
    In Stock
    $28.35
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana NAV8805EWW - Part WPW10309247

    Inner - outer tub diagram

    Bolt, Agitat

    Part #25-7948

    Replaced by #WPW10309247

    Info Icon
    Manufacturer substitution
    This part replaces 25-7948. Substitute parts can look different from the original.
    In Stock
    $39.28
    13% OFF Phone Price : $45.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Hose for Amana NAV8805EWW - Part WP21001872

    Inner - outer tub diagram

    Washer Drain Hose

    Part #21001872

    Replaced by #WP21001872

    Info Icon
    Manufacturer substitution
    This part replaces 21001872. Substitute parts can look different from the original.
    In Stock
    $10.26
    37% OFF Was : $16.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring Kit for Amana NAV8805EWW - Part 21002065

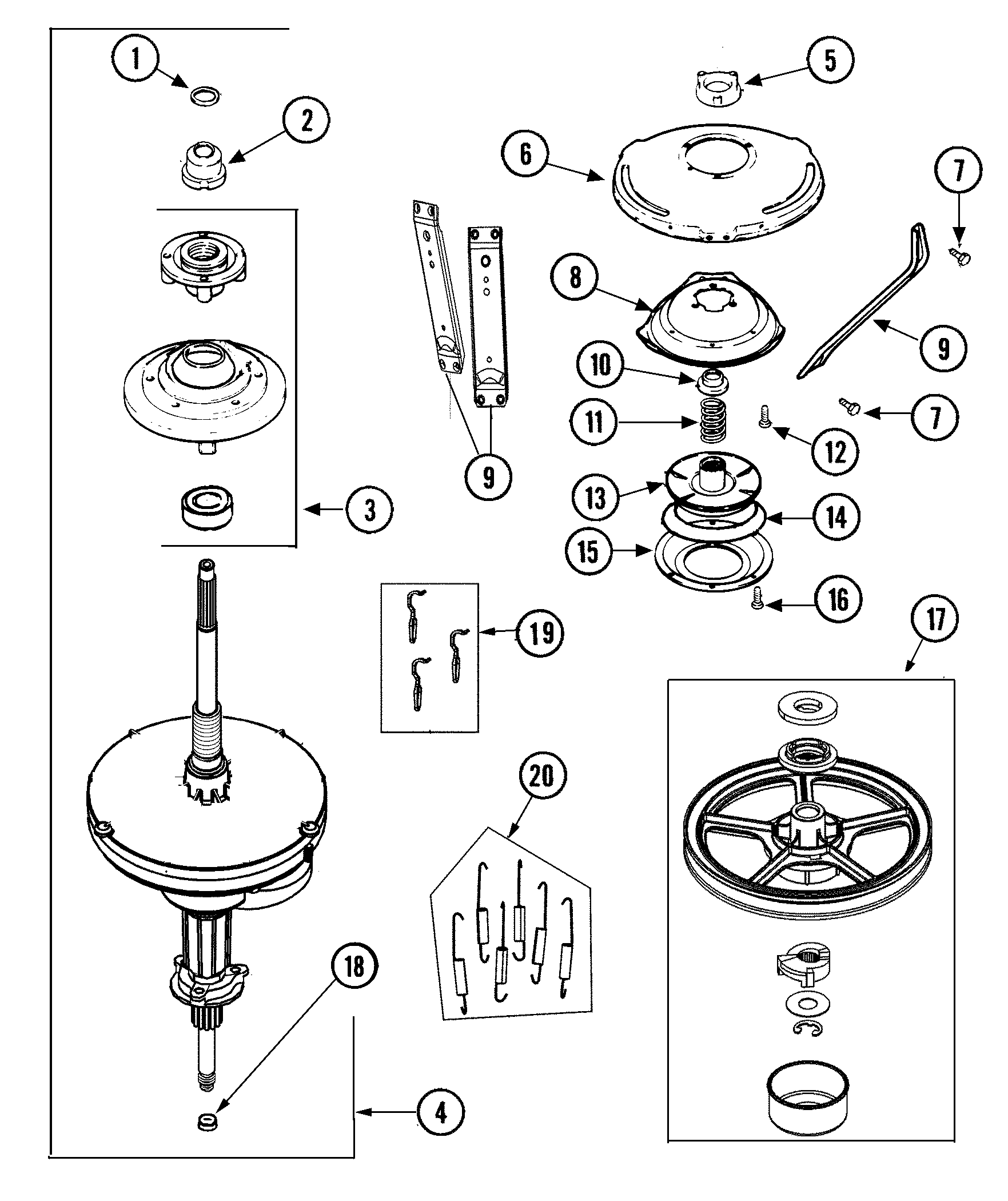

    Transmission diagram

    Spring Kit

    Part #21002065

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer Motor Plate Isolator for Amana NAV8805EWW - Part WP35-3646

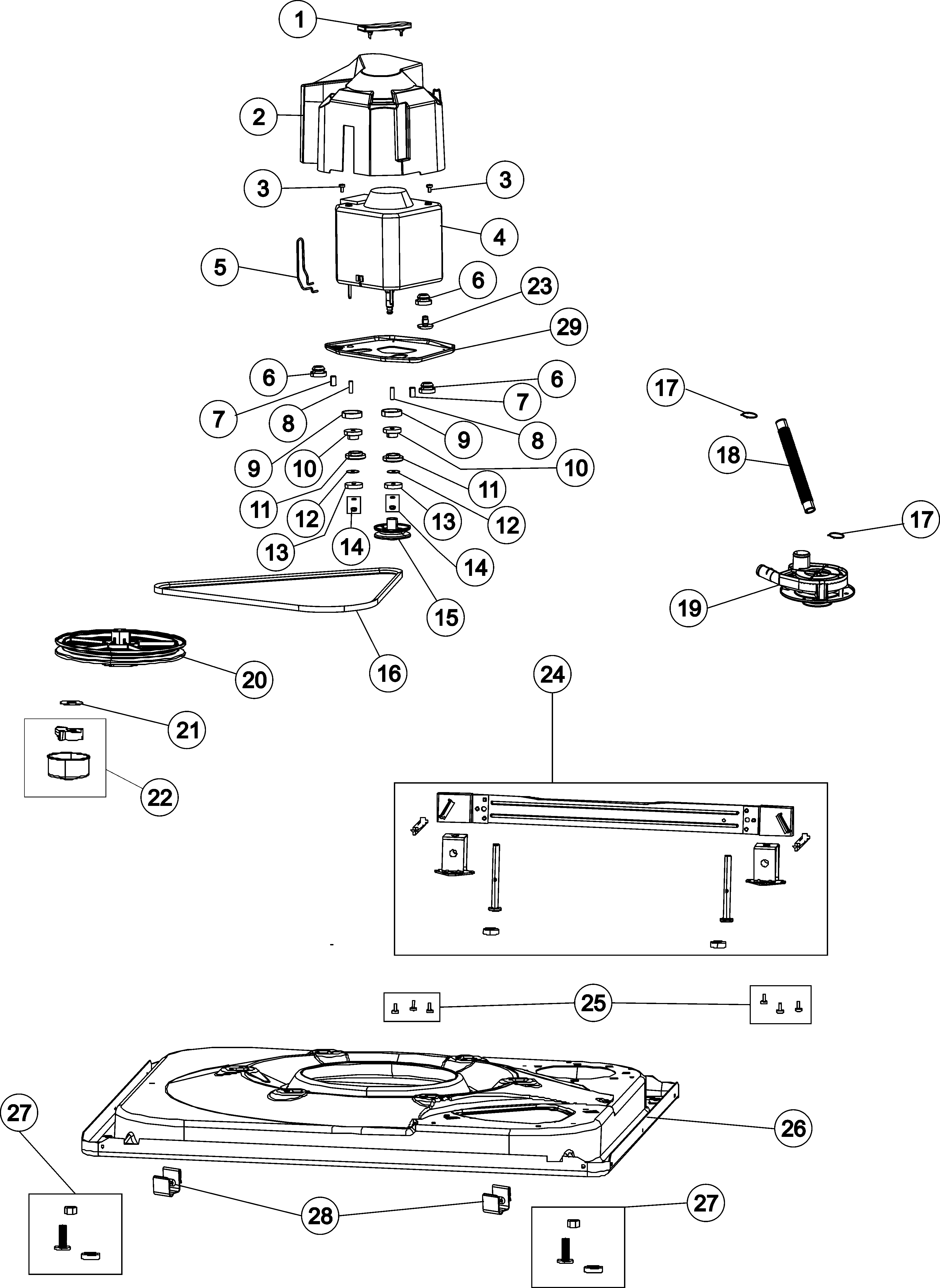

    Base & motor diagram

    Isolator, Motor Plate

    Part #35-3646

    Replaced by #WP35-3646

    Info Icon
    Manufacturer substitution
    This part replaces 35-3646. Substitute parts can look different from the original.
    In Stock
    $30.15
    Minus Item
    Qty
    Plus Item
  • Washer Lid Switch Actuator for Amana NAV8805EWW - Part WP43-0057

    Control panel & top diagram

    Washer Lid Switch Actuator

    Part #43-0057

    Replaced by #WP43-0057

    Info Icon
    Manufacturer substitution
    This part replaces 43-0057. Substitute parts can look different from the original.
    In Stock
    $50.78
    11% OFF Phone Price : $56.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Wiring Clip for Amana NAV8805EWW - Part 31001320

    Cabinet & front panel diagram

    Wiring Clip

    Part #31001320

    The manufacturer no longer makes this part, and there's no substitute part

  • Hose Clip for Amana NAV8805EWW - Part WP22002765

    Hose Clip

    Part #22002765

    Replaced by #WP22002765

    Info Icon
    Manufacturer substitution
    This part replaces 22002765. Substitute parts can look different from the original.
    In Stock
    $37.21
    Minus Item
    Qty
    Plus Item
