GE
Top-Mount Refrigerator

Model # TBXS21BLB Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBXS21BLB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

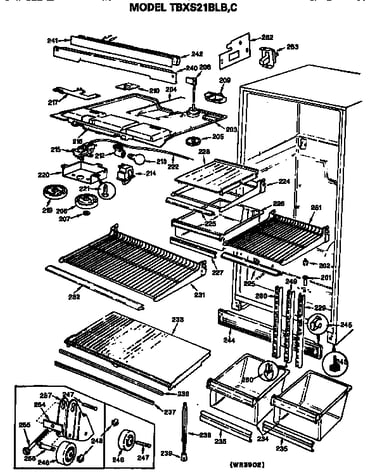

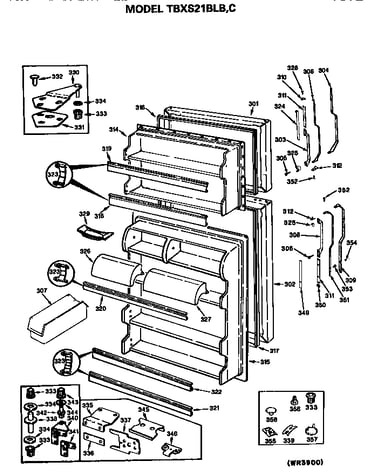

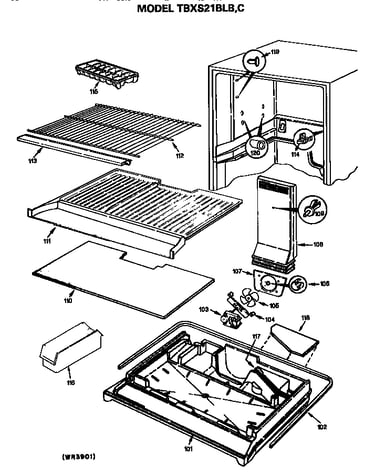

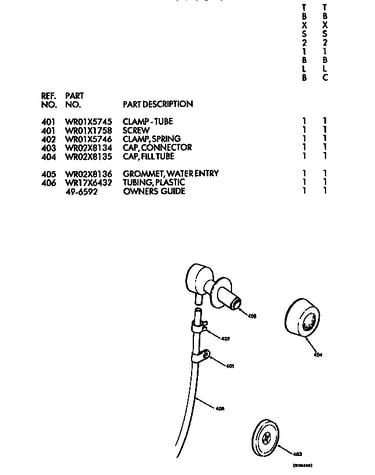

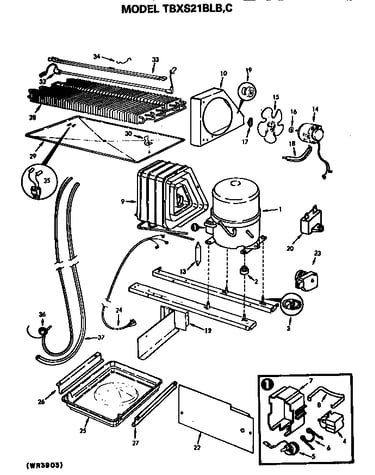

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |

Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18
6% OFF Phone Price : $84.18
In Stock
Refrigerator Switch WR23X5166

#214

All parts diagram

Refrigerator switch

Part #WR23X5166

Replaced by #WR23X10725

?
Manufacturer substitution
This part replaces WR23X5166. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Screw - 12pk WR1X1726

#18

All parts diagram

Screw - 12pk

Part #WR1X1726

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR1X1726. Substitute parts can look different from the original.
This item is not returnable
$23.67
17% OFF Phone Price : $28.67
In Stock
Refrigerator Screw, 2-pack WR1X1727

#18

All parts diagram

Refrigerator screw, 2-pack

Part #WR1X1727

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR1X1727. Substitute parts can look different from the original.
This item is not returnable
$23.67
17% OFF Phone Price : $28.67
In Stock
Refrigerator Screw, 2-pack WR1X1784

#18

All parts diagram

Refrigerator screw, 2-pack

Part #WR1X1784

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR1X1784. Substitute parts can look different from the original.
This item is not returnable
$23.67
17% OFF Phone Price : $28.67
In Stock
Refrigerator Screw WR1X5719

#103

All parts diagram

Refrigerator screw

Part #WR1X5719

This item is not returnable
In Stock
Ff O Dr Ha WR78X8183

#302

All parts diagram

Ff o dr ha

Part #WR78X8183

In Stock
In Dr Frz WR77X5684

#314

All parts diagram

In dr frz

Part #WR77X5684

In Stock
Refrigerator Control Knob WR2X8111

#219

All parts diagram

Refrigerator control knob

Part #WR2X8111

In Stock
Refrigerator Thermostat WR50X5041

#35

All parts diagram

Refrigerator thermostat

Part #WR50X5041

Replaced by #WR50X50

?
Manufacturer substitution
This part replaces WR50X5041. Substitute parts can look different from the original.
$14.34
12% OFF Phone Price : $16.34
In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…
