Model # 58075062500 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075062500 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

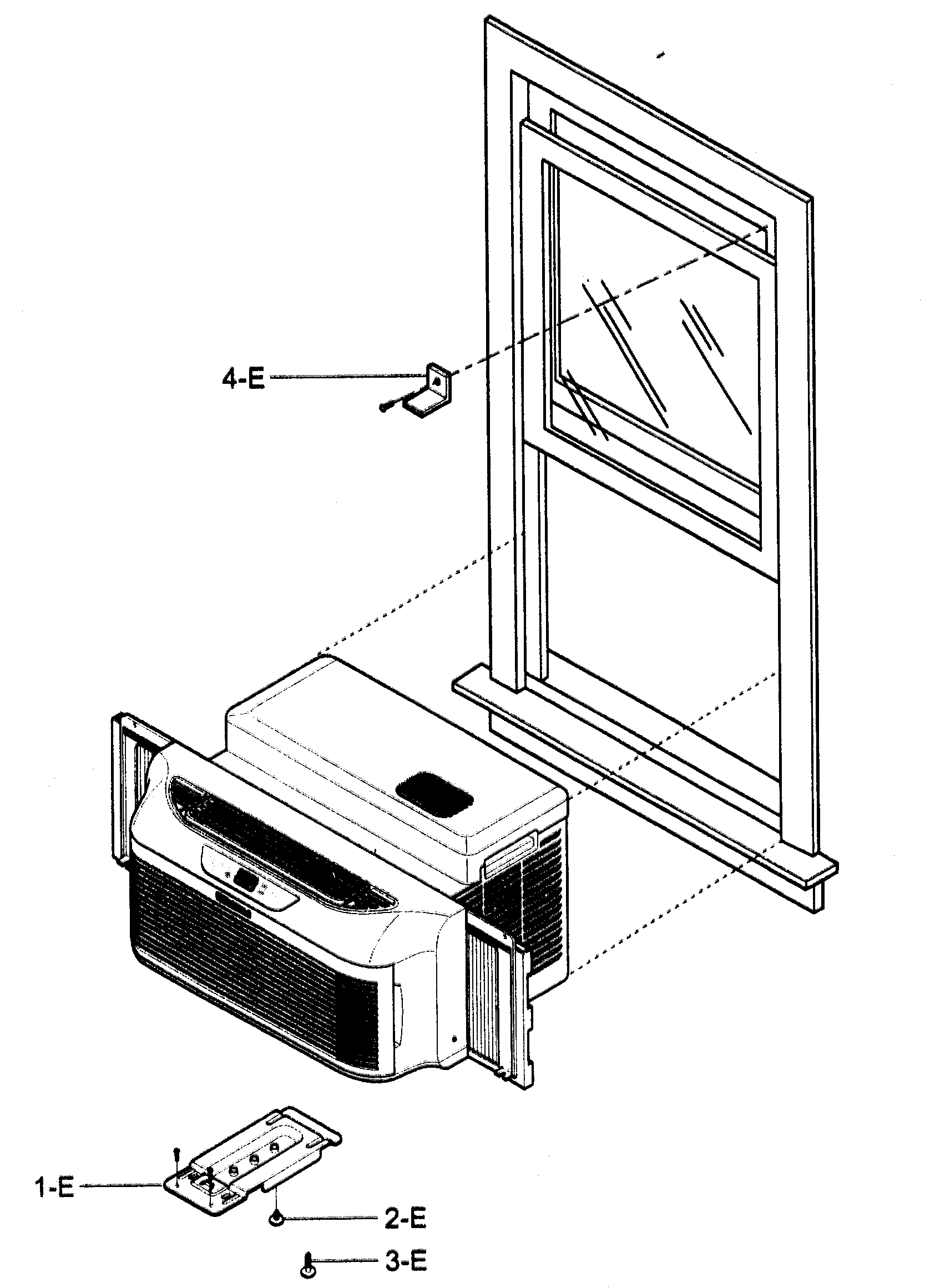

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Capacitor 6120AR2359V
#12-C

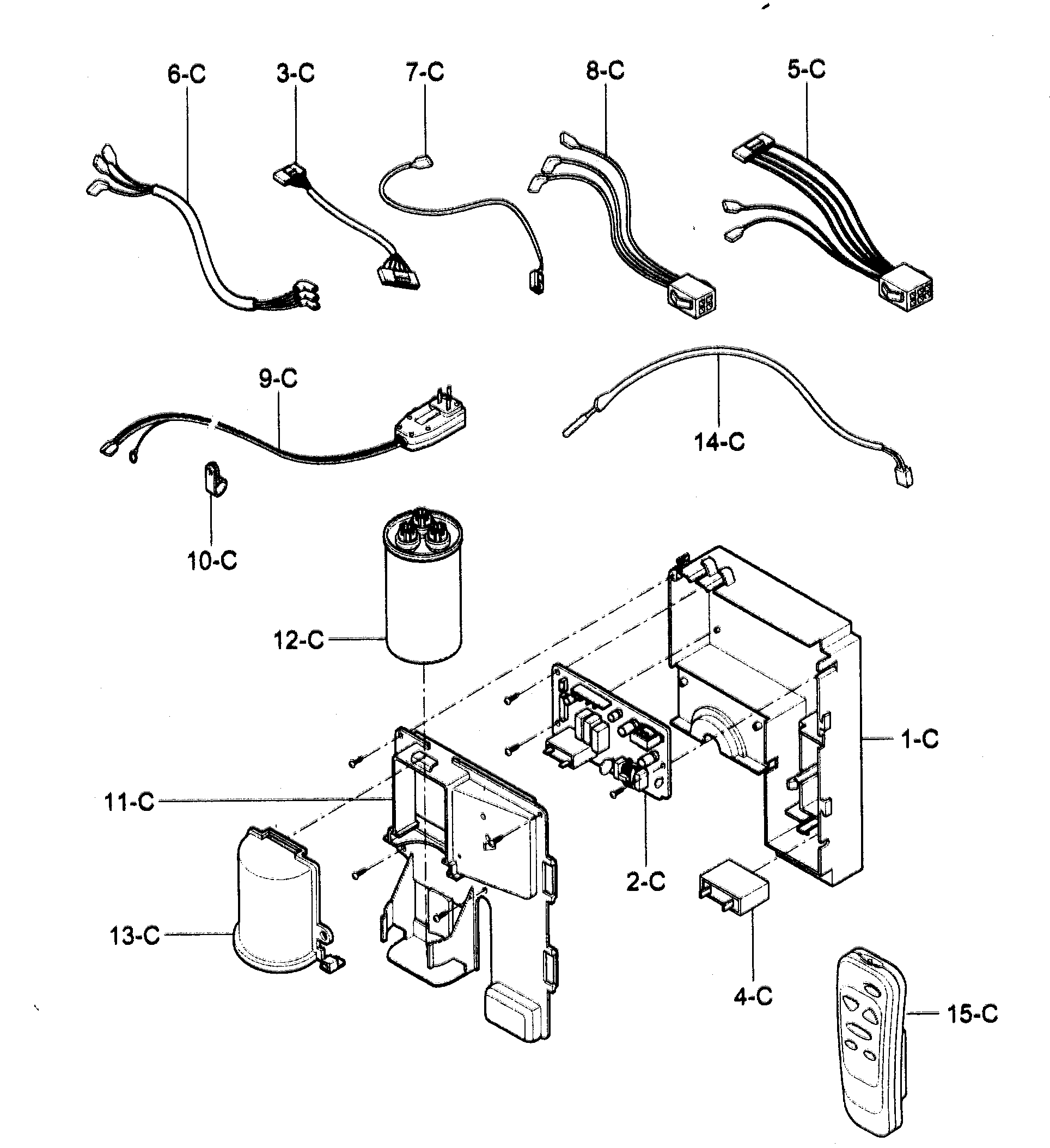

Control box assy diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
14% OFF Phone Price : $34.57
In Stock
Power Cord 6411A20048Y
#9-C

Control box assy diagram

Power cord

Part #6411A20048Y

Replaced by #6411A20056A

?
Manufacturer substitution
This part replaces 6411A20048Y. Substitute parts can look different from the original.
$62.92 |
7% OFF Phone Price : $67.92
In Stock
Capacitor 3A02157J
#4-C

Control box assy diagram

Capacitor

Part #3A02157J

$14.51
In Stock
Nut 4H00947A
#9-D

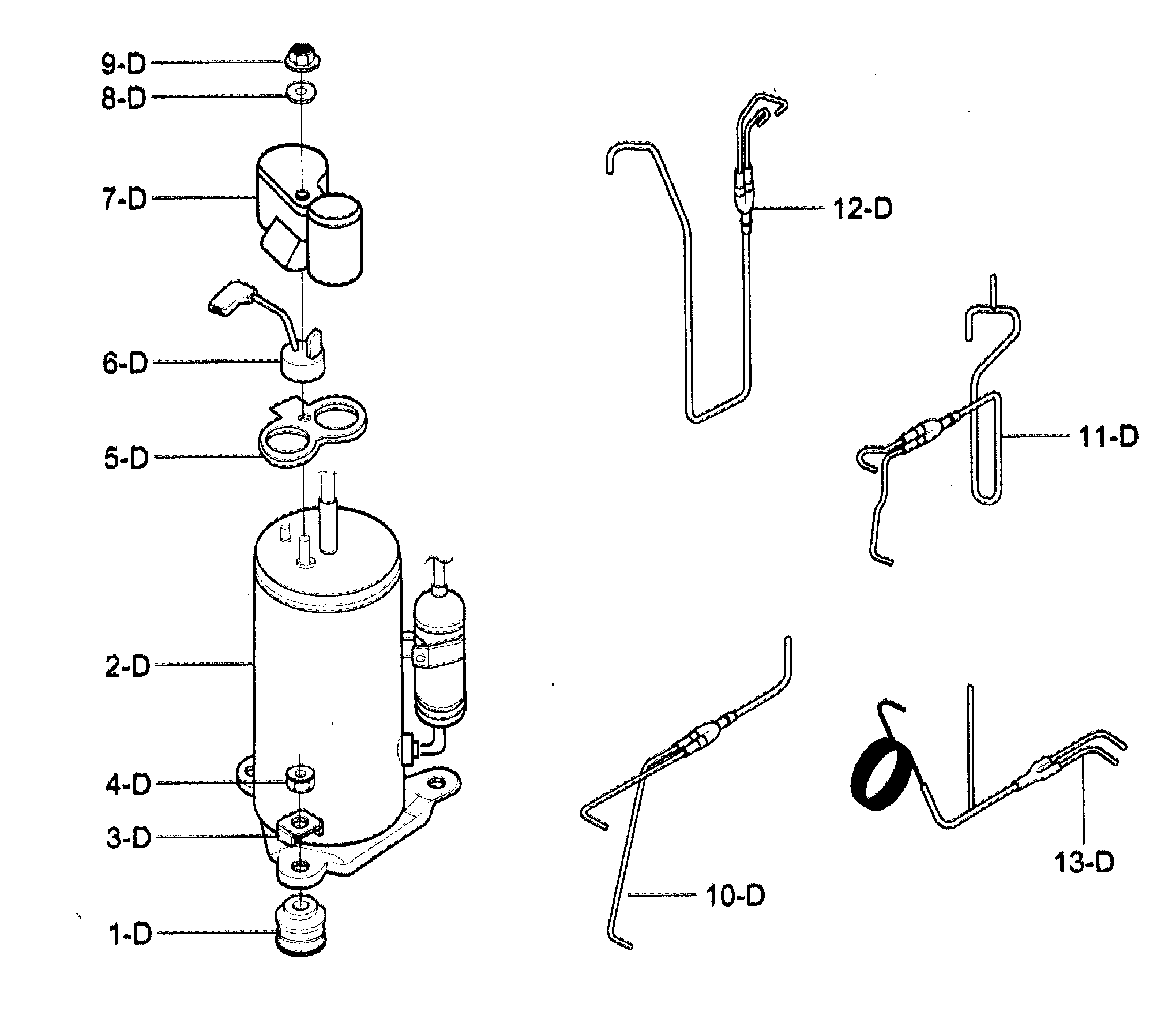

Compressor parts diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
Label 3850A21286V
#20-B

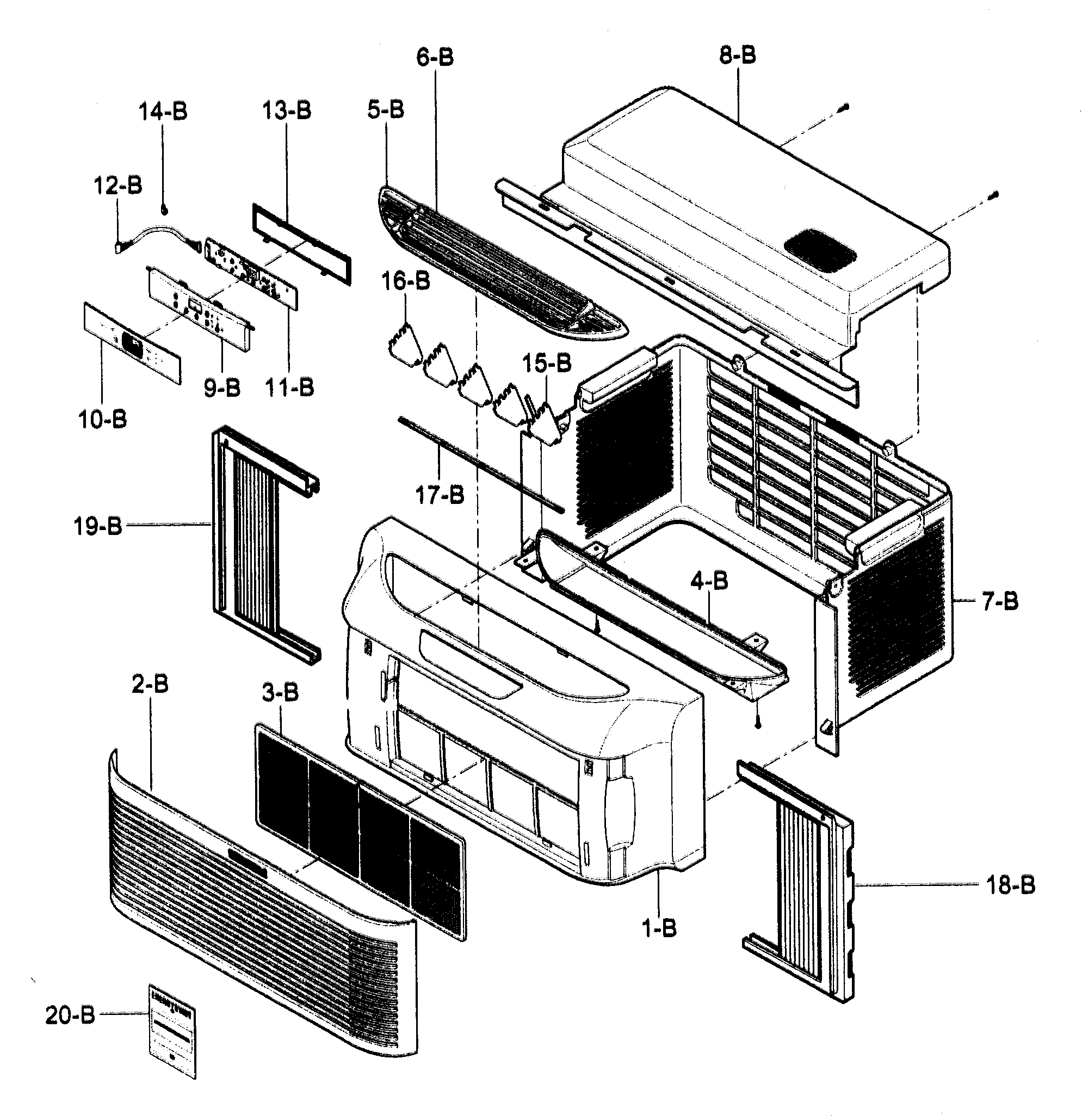

Cabinet/front grille assy diagram

Label

Part #3850A21286V

This item is not returnable
$2.16
In Stock
Room Air Conditioner Compressor Grommet 5040AR4195A
#1-D

Compressor parts diagram

Room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Gasket 4986U-L001G
#5-D

Compressor parts diagram

Gasket

Part #4986U-L001G

This item is not returnable
$4.51
In Stock
Grille 3530A10152A
#2-B

Cabinet/front grille assy diagram

Grille

Part #3530A10152A

$15.49
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#12-A

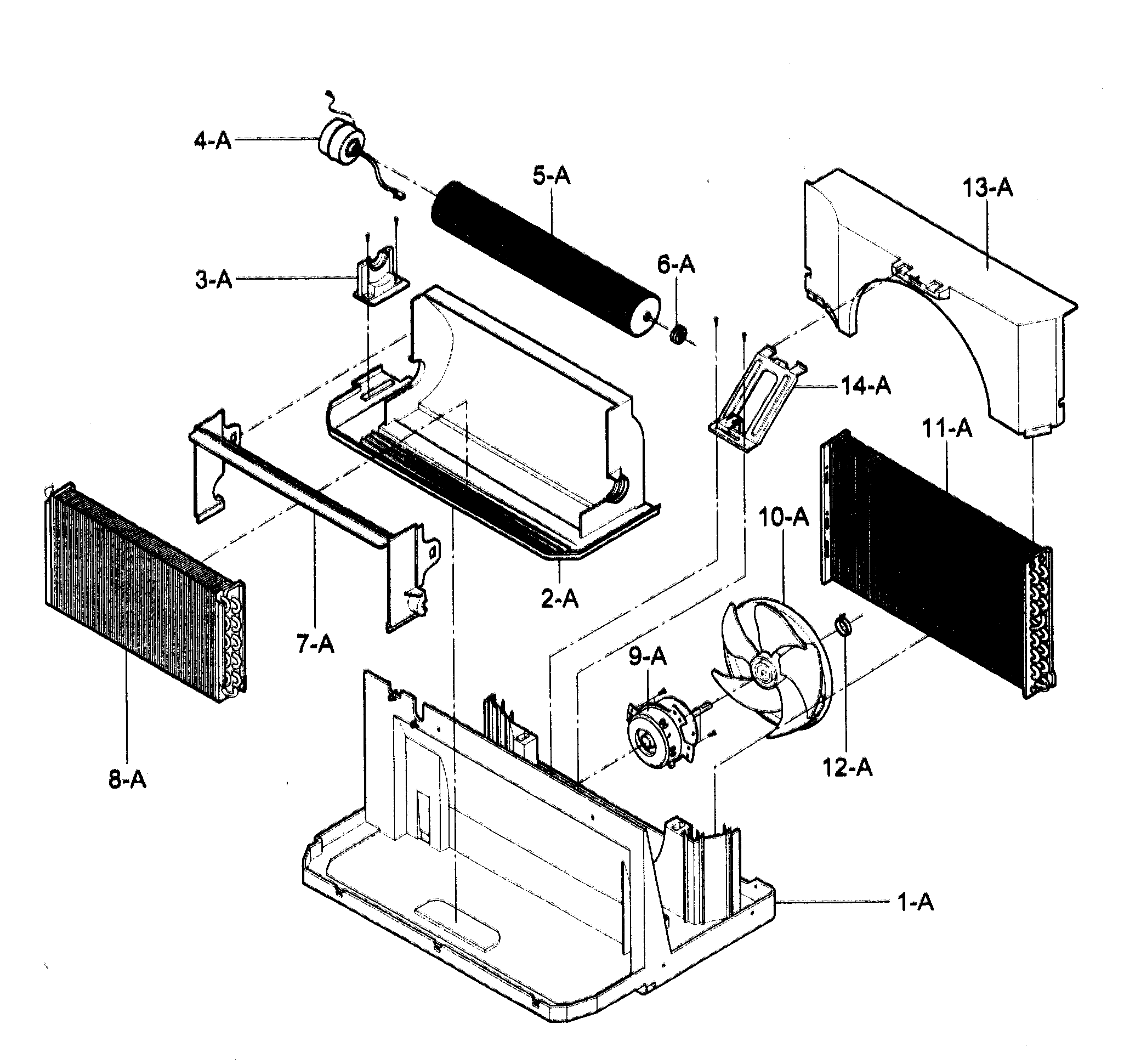

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Hex Nut 1NHA0801206
#4-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
