GE JRP24GP3BG electric wall oven Parts
Here are the diagrams and repair parts for GE JRP24GP3BG electric wall oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JRP24GP3BG Wall Ovens

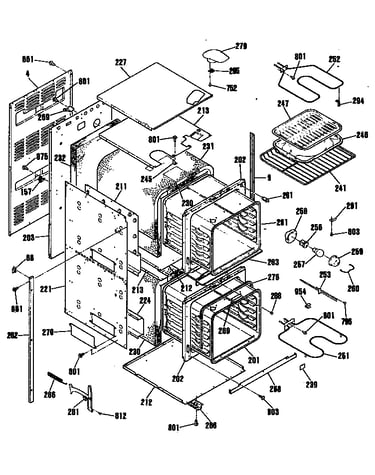

Ovens diagram
Bulb Oven Li
Part #BUY LOCAL
The manufacturer no longer makes this part, and there's no substitute part
Ovens diagram
Oven Door Spring
Part #WB9K5017
The manufacturer no longer makes this part, and there's no substitute part

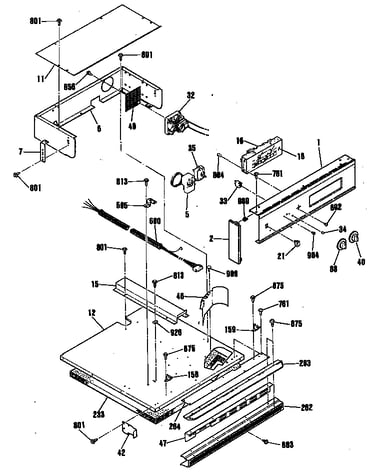

Control panel diagram
Control Panel
Part #WB36K5146
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
End Cap Panel
Part #WB36K5129
The manufacturer no longer makes this part, and there's no substitute part
Ovens diagram
Bulb Retainer Clip
Part #WB1K5133
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Limit Switch
Part #WB24K5045
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Wall Oven Cooling Fan Motor
Part #WB26X113
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #31-0974
The manufacturer no longer makes this part, and there's no substitute part

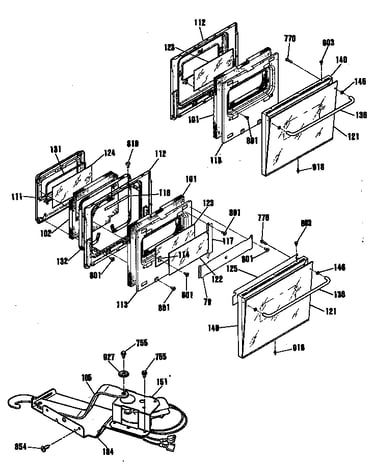

Doors diagram
Ovdr Gl R
Part #WB2K5131
The manufacturer no longer makes this part, and there's no substitute part
Doors diagram
Ov Door Glass Retainer
Part #WB2M01
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
