Model #7498VRV Magic Chef gas range

Here are the repair parts and diagrams for your Magic Chef 7498VRV gas range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 188 parts

Range Oven Light Rocker Switch

#10

Top assembly Diagram

$37.80

In Stock

Range Wing Nut

#21

Gas controls Diagram

Range wing nut

Part #7103P030-60
This item is not returnable

$4.99

In Stock

Range Surface Burner Assembly

#7B

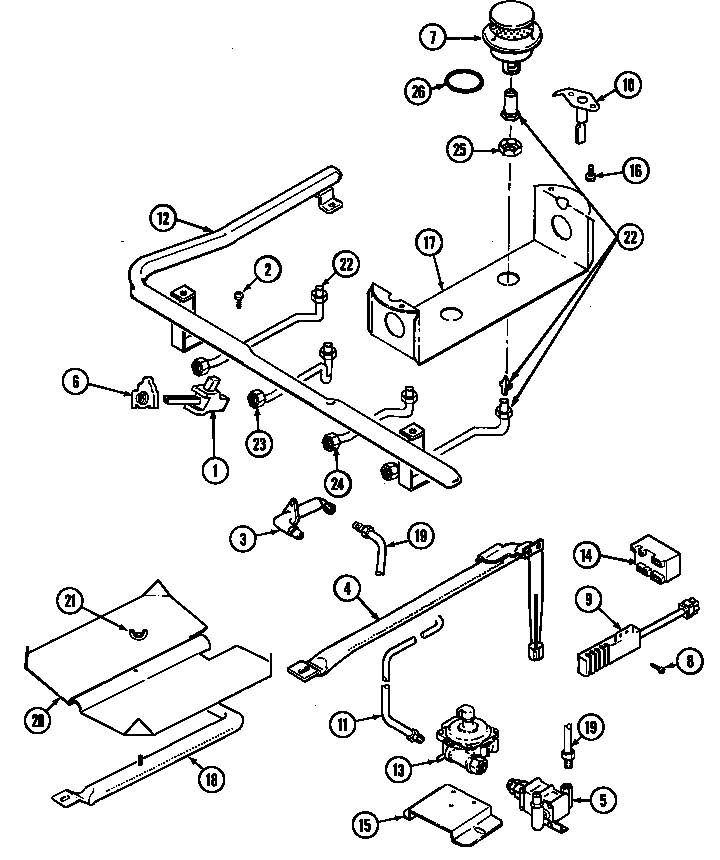

Gas controls Diagram

Range surface burner assembly

Part #WP3412D024-09
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3412D018-09
This part replaces 3412D018-09

$48.97

Back Order

Screw

#22A

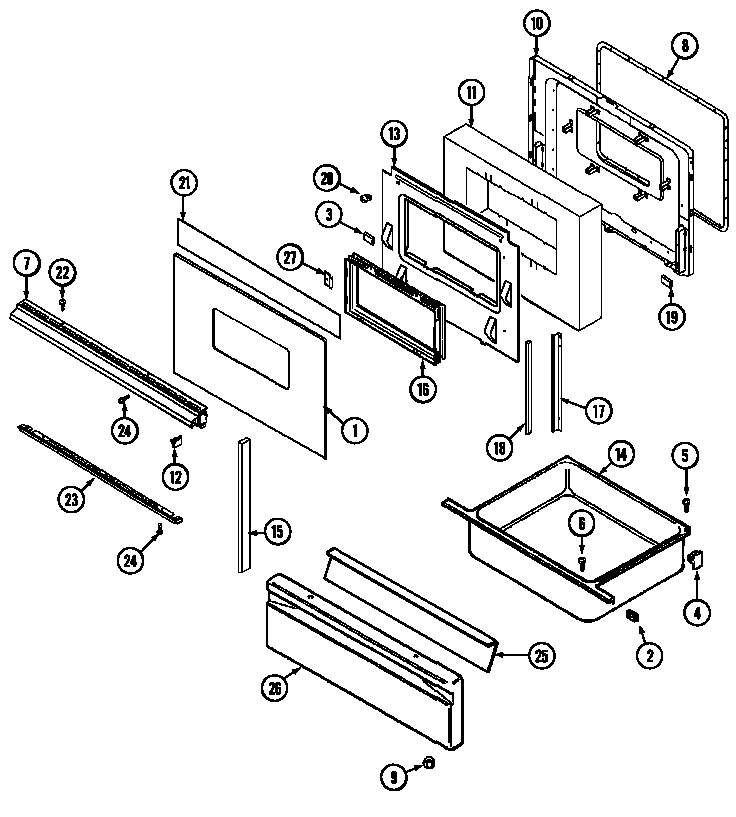

Door/drawer Diagram

Screw

Part #WP74009541
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7101P307-60
This part replaces 7101P307-60
This item is not returnable

$3.29

In Stock

Appliance Screw

#3A

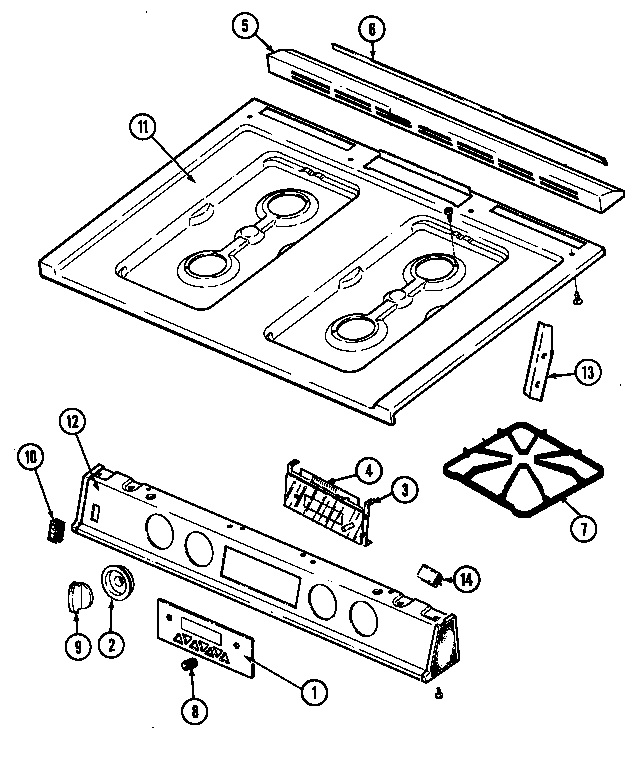

Top assembly Diagram

Appliance screw

Part #WP59002061
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7101P077-60
This part replaces 7101P077-60
This item is not returnable

$3.33

In Stock

Range Oven Light Socket

#8

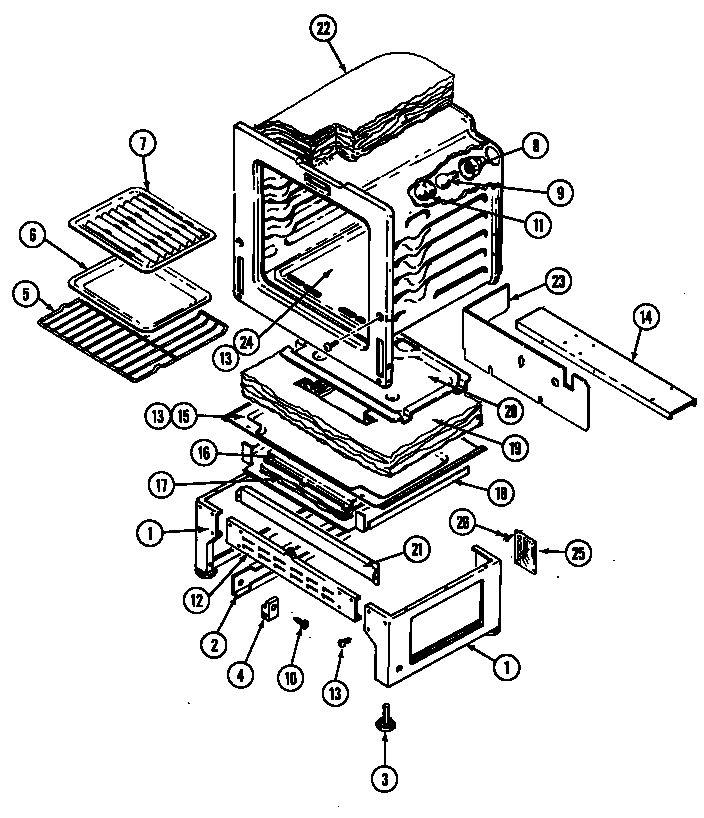

Oven Diagram

Range oven light socket

Part #WP7407P182-60
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7407P088-60
This part replaces 7407P088-60

$33.81

In Stock

Range Screw

#5

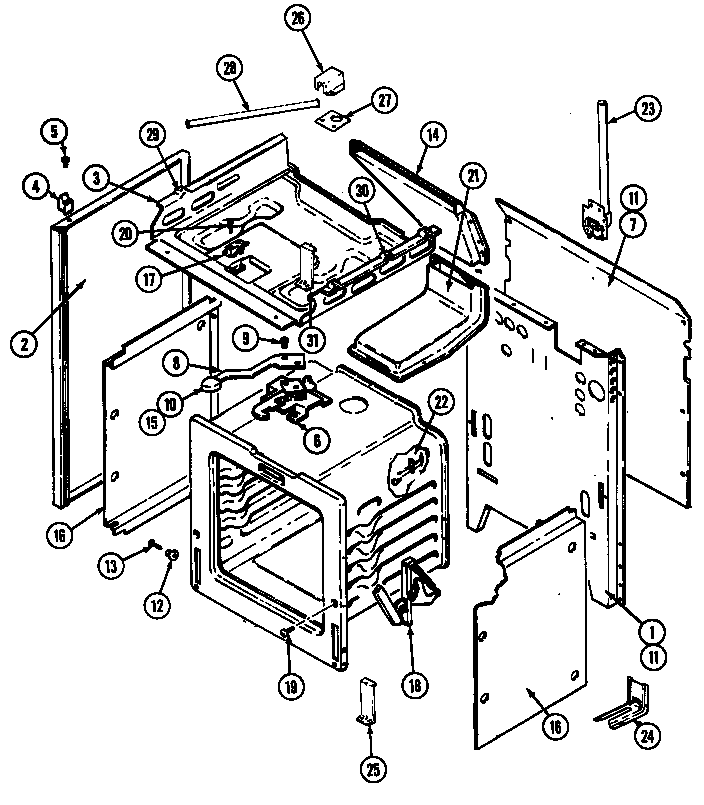

Body Diagram

Range screw

Part #WP74004005
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7118P013-60
This part replaces 7118P013-60
This item is not returnable

$3.29

In Stock

Range Anti-Tip Bracket

#24

Body Diagram

Range anti-tip bracket

Part #WP3801F656-51
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3801F218-51
This part replaces 3801F218-51
This item is not returnable

$4.84

In Stock

Retainer

#23B

Door/drawer Diagram

Retainer

Part #3804F245-51
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7744P105-60
This part replaces 7744P105-60

$48.96

In Stock

Range Surface Burner Grate, 4-pack

#7B

Top assembly Diagram

Range surface burner grate, 4-pack

Part #W11400301
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  2003W027-00
This part replaces 2003W027-00

$99.16

In Stock
