Dacor
Built-In Microwave

Model #DCM24S Dacor microwave

Here are the diagrams and repair parts for Dacor DCM24S microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 129 parts

Microwave High-Voltage Diode

#118

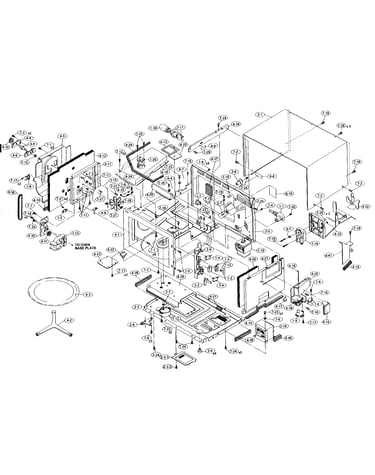

Cabinet parts Diagram

Microwave high-voltage diode

Part #66386

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp

#111

Cabinet parts Diagram

Microwave lamp

Part #66380

The manufacturer no longer makes this part, and there's no substitute part

Nut

#727

Cabinet parts Diagram

Nut

Part #66445

The manufacturer no longer makes this part, and there's no substitute part

Hldr Plate

#48

Cabinet parts Diagram

Hldr plate

Part #66470

The manufacturer no longer makes this part, and there's no substitute part

Air Guide

#411B

Cabinet parts Diagram

Air guide

Part #66475

The manufacturer no longer makes this part, and there's no substitute part

Cushion

#421

Cabinet parts Diagram

Cushion

Part #66488

The manufacturer no longer makes this part, and there's no substitute part

Hinge-uppe

#435

Cabinet parts Diagram

Hinge-uppe

Part #66502

The manufacturer no longer makes this part, and there's no substitute part

Rectangle Plate

#441

Cabinet parts Diagram

Rectangle plate

Part #66508

The manufacturer no longer makes this part, and there's no substitute part

Spring

#58

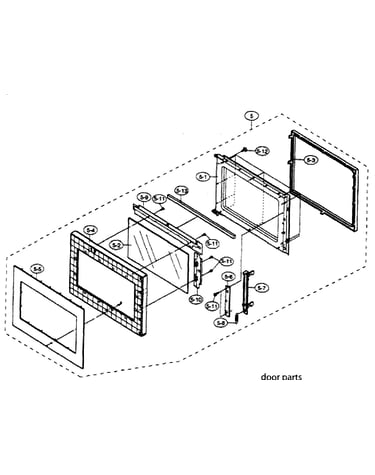

Door assy Diagram

Spring

Part #66523

The manufacturer no longer makes this part, and there's no substitute part

Damper Motor

#19

Cabinet parts Diagram

Damper motor

Part #66378

The manufacturer no longer makes this part, and there's no substitute part
