Kenmore
Humidifier

Model # 758144071 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 758144071 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Humidifier Caster Wheel 828515
#15

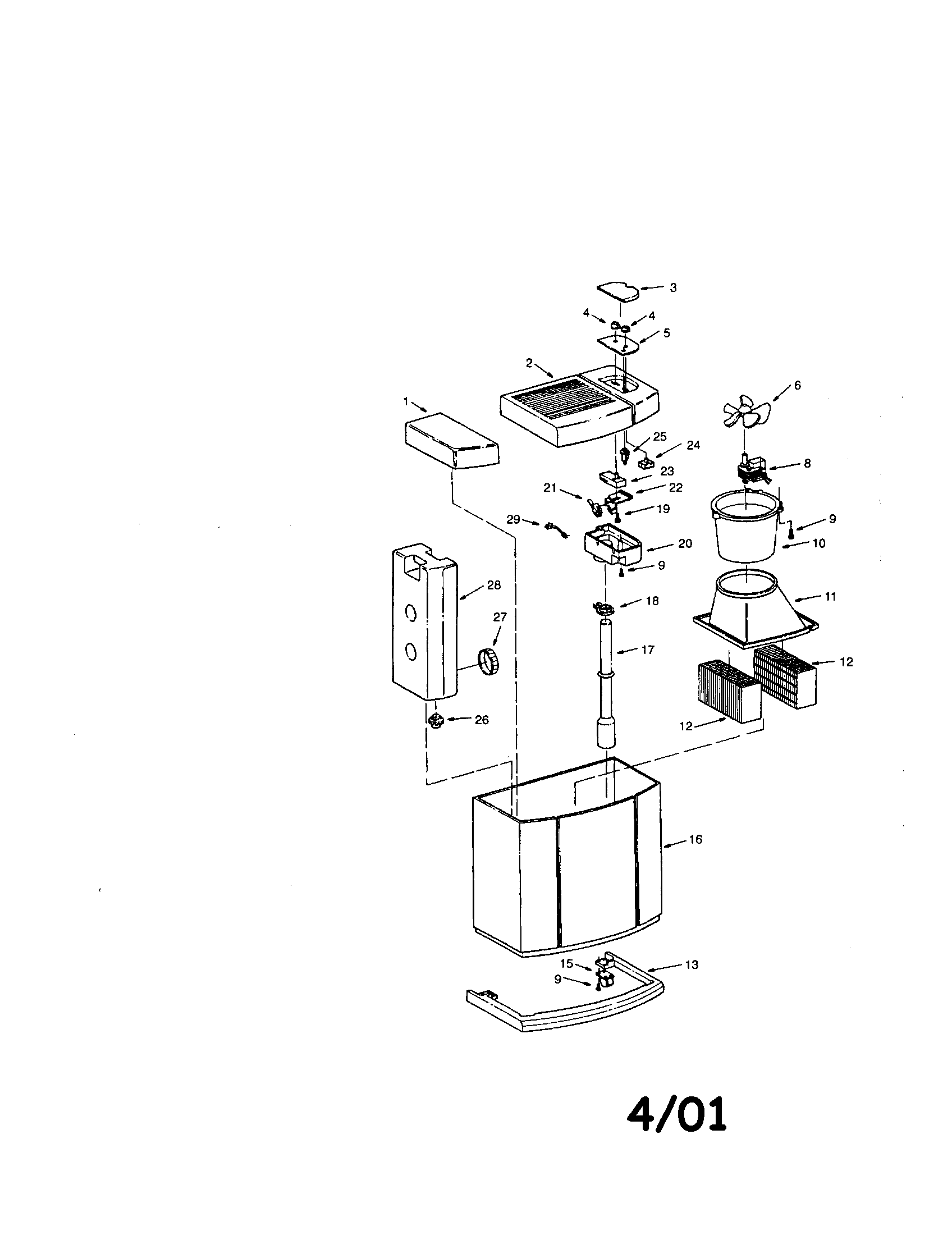

Humidifiers diagram

Humidifier caster wheel

Part #828515

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Valve Cap 509229-1
#26

Humidifiers diagram

Humidifier valve cap

Part #509229-1

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Fill Cap 824690
#27

Humidifiers diagram

Humidifier fill cap

Part #824690

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Float Retainer 824101-1
#18

Humidifiers diagram

Humidifier float retainer

Part #824101-1

The manufacturer no longer makes this part, and there's no substitute part

Label 828427
#5

Humidifiers diagram

Label

Part #828427

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Fan Blade 822406-1
#6

Humidifiers diagram

Humidifier fan blade

Part #822406-1

The manufacturer no longer makes this part, and there's no substitute part

Filter 42-14909
#12

Humidifiers diagram

Filter

Part #42-14909

The manufacturer no longer makes this part, and there's no substitute part

Float 828200-2
#17

Humidifiers diagram

Float

Part #828200-2

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual SP6326

#(NI)

All parts diagram

Owner's manual

Part #SP6326

The manufacturer no longer makes this part, and there's no substitute part

Lid 825837
#2

Humidifiers diagram

Lid

Part #825837

The manufacturer no longer makes this part, and there's no substitute part
