Hotpoint
Top-Mount Refrigerator

Model # CTA15CJBLWH Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTA15CJBLWH refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |

40a15/22 STD372402

#435

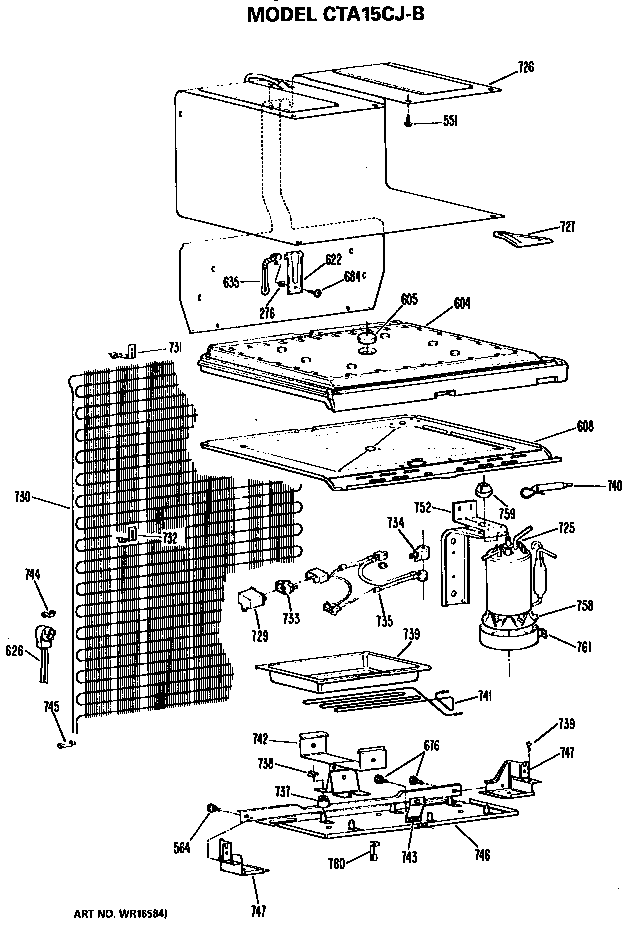

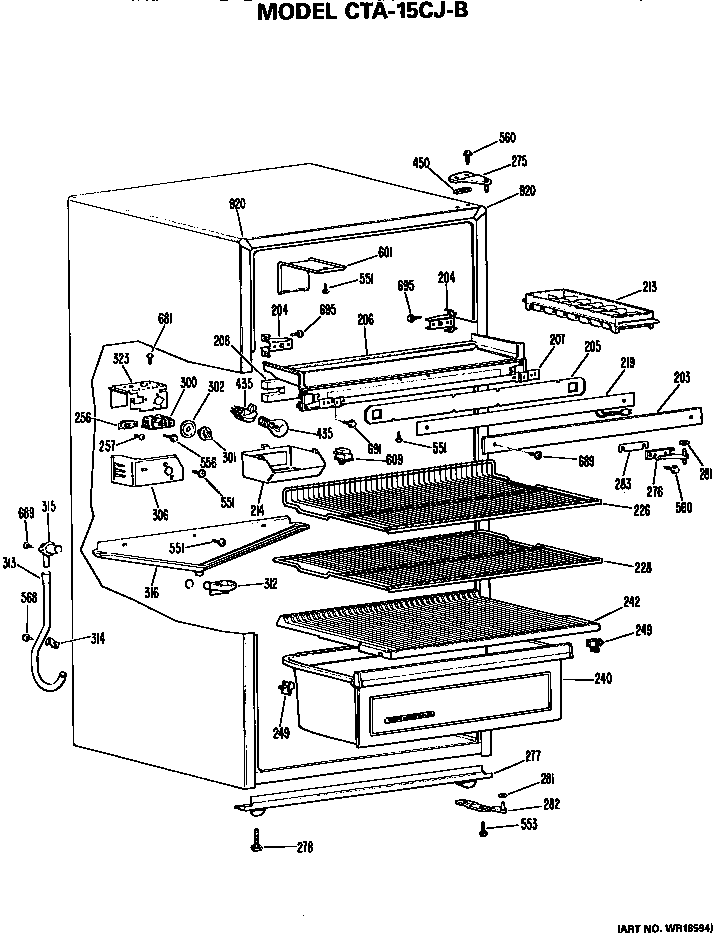

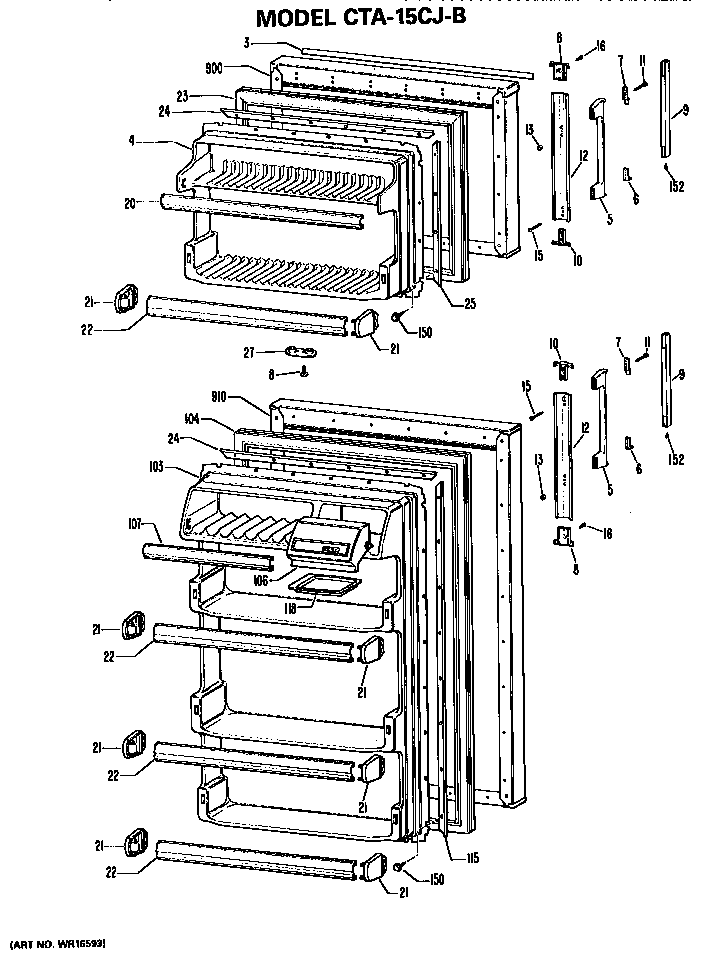

All parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$16.08
11% OFF Phone Price : $18.08
In Stock
