Craftsman
Gas Walk-Behind Mower

Model #91760639 Craftsman sickle bar lawn mower

Here are the diagrams and repair parts for Craftsman 91760639 sickle bar lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 140 parts

    Lawn Tractor Mandrel Bearing#15

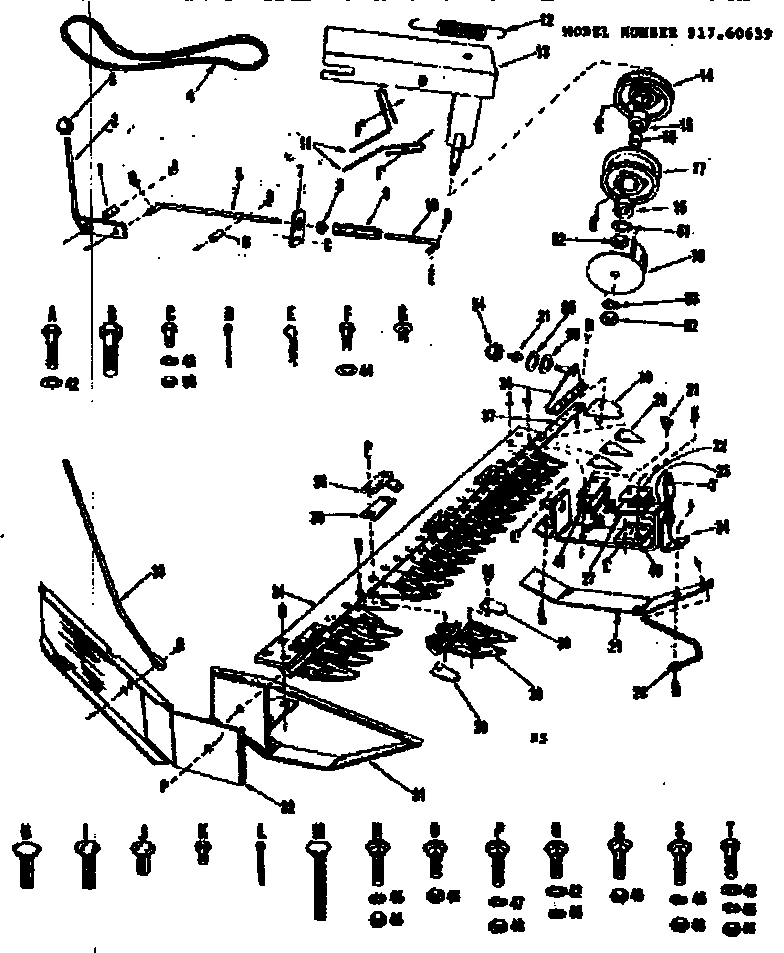

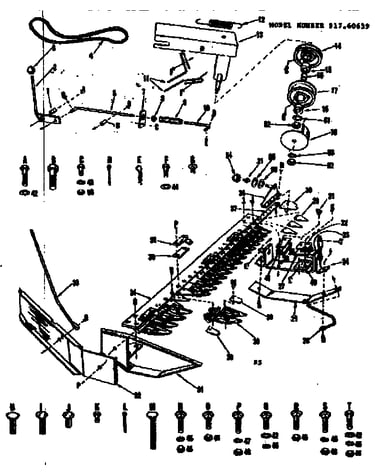

    Cutter bar Diagram

    Bearing

    Part #697H
    Replaced by #110485X
    ?
    Manufacturer substitution
    This part replaces 697H. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $9.29 |
    37% OFF
    MSRP: $14.75
    Lawn Tractor Lock Nut#48

    Cutter bar Diagram

    Nut

    Part #5394H
    Replaced by #73930600
    ?
    Manufacturer substitution
    This part replaces 5394H. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $2.59 |
    16% OFF
    MSRP: $3.07
    Lawn Tractor Washer#47

    Cutter bar Diagram

    Lock washer

    Part #10040600
    Replaced by #596238701
    ?
    Manufacturer substitution
    This part replaces 10040600. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $2.16
    Lawn & Garden Equipment Needle Bearing#6

    Cutter bar Diagram

    Needle brg

    Part #4895H
    Replaced by #532004895
    ?
    Manufacturer substitution
    This part replaces 4895H. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $12.79
    Cap Screw#54K

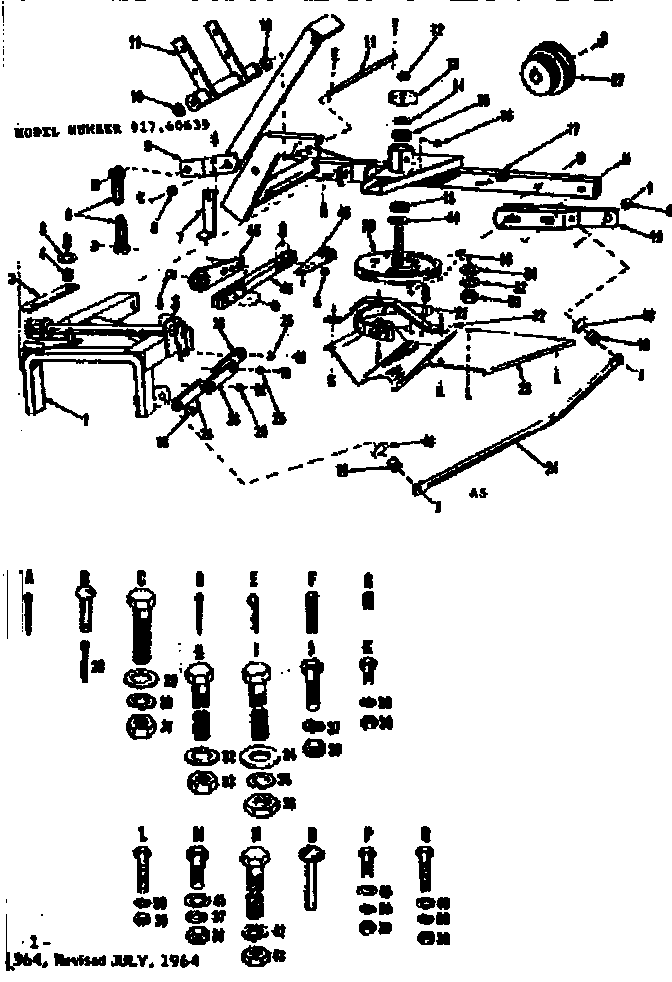

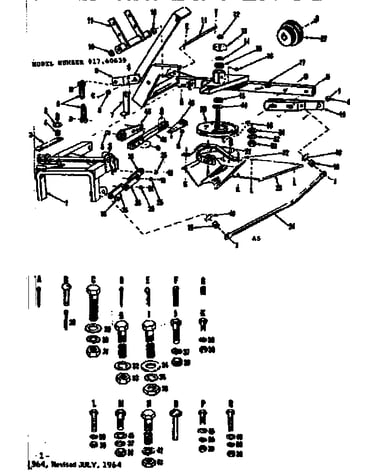

    Main frame Diagram

    Cap screw

    Part #04760512

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn & Garden Equipment Lock Washer#50

    Main frame Diagram

    Lock washer

    Part #10030500
    Replaced by #596238801
    ?
    Manufacturer substitution
    This part replaces 10030500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.16
    Lawn Tractor Grease Fitting#16

    Main frame Diagram

    Lawn tractor grease fitting

    Part #6855M
    This item is not returnable
    Back Order
    $2.92
    Tiller Clevis Pin#54B

    Main frame Diagram

    Rivet

    Part #5297H
    Replaced by #4929H
    ?
    Manufacturer substitution
    This part replaces 5297H. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.69 |
    8% OFF
    MSRP: $7.30
    Stop Nut#12

    Main frame Diagram

    Stop nut

    Part #5304H

    The manufacturer no longer makes this part, and there's no substitute part

    Bolt#57A

    Cutter bar Diagram

    Bolt

    Part #17920624

    The manufacturer no longer makes this part, and there's no substitute part
