Model # 833287500 Official Craftsman electric log splitter

Here are the diagrams and repair parts for Official Craftsman 833287500 electric log splitter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Washer 245-6276P06
#54

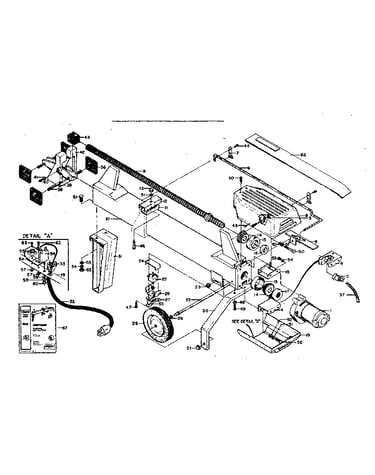

Replacement parts diagram

Washer

Part #245-6276P06

The manufacturer no longer makes this part, and there's no substitute part

Log Splitter Nut 245-6267P19
#65

Replacement parts diagram

Log splitter nut

Part #245-6267P19

The manufacturer no longer makes this part, and there's no substitute part

Nut 774-8097
#43

Replacement parts diagram

Nut

Part #774-8097

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 752-8555
#64

Replacement parts diagram

Rectifier

Part #752-8555

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 757-8726A
#68

Replacement parts diagram

Owner's manual

Part #757-8726A

The manufacturer no longer makes this part, and there's no substitute part

Screw 745-8099P77
#50

Replacement parts diagram

Screw

Part #745-8099P77

The manufacturer no longer makes this part, and there's no substitute part

Bracket 752-8407
#26

Replacement parts diagram

Bracket

Part #752-8407

The manufacturer no longer makes this part, and there's no substitute part

Switch 794-8460
#25

Replacement parts diagram

Switch

Part #794-8460

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 705-8723
#21

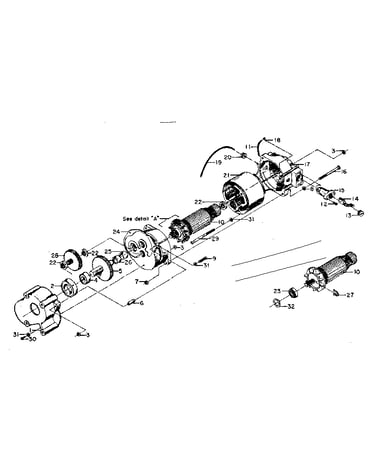

Motor diagram

Field assembly

Part #705-8723

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 752-8361P1
#18

Replacement parts diagram

Mounting bracket

Part #752-8361P1

The manufacturer no longer makes this part, and there's no substitute part
