How to replace a log splitter flexible pump coupler

How to replace a log splitter flexible pump coupler

This DIY repair guide explains how to replace the flexible log splitter pump coupler. The hydraulic pump coupling connects the engine drive shaft to the hydraulic pump. The coupler is designed to break if the hydraulic pump seizes up, protecting the engine from damage. The log splitter pump coupler deteriorates over time, causing vibration and noise when the hydraulic pump is running. If the log splitter hydraulic pump coupling breaks or the coupler is worn, use the manufacturer-approved replacement part to install a new one.

Use these steps to replace the flexible pump coupler on Craftsman, MTD and Troybilt log splitters.

Quick links
Tools required
Wrench set
Thin 1/2-inch wrench
Work gloves
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less

Instructions

  1. 01.

    Disconnect the spark plug wire

    Disconnect the spark wire so there's no chance that the log splitter engine could accidentally start.

    PHOTO: Disconnect the spark plug wire.

    PHOTO: Disconnect the spark plug wire.

  2. 02.

    Remove the hydraulic pump

    Using the thin 1/2-inch wrench to keep the hex-head bolts from moving, remove the 3 flange lock nuts from the hex-head bolts that secure the pump to the flexible pump coupler shield.

    Pull the pump off of the engine.

    Tip: The thin 1/2-inch wrench fits in the small space between the heads of the hex-head bolts and the side of the engine.
    PHOTO: Remove the flange lock nuts.

    PHOTO: Remove the flange lock nuts.

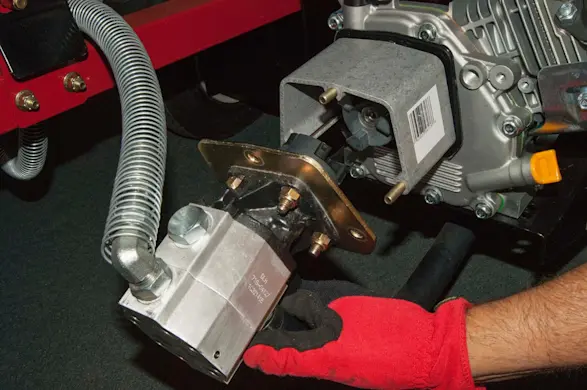

    PHOTO: Remove the pump from the engine.

    PHOTO: Remove the pump from the engine.

  3. 03.

    Remove the flexible pump coupler

    Slide the coupling shield off of the hex-head bolts on the side of the engine.

    Pull the flexible pump coupler out of the coupler halves.

    Clean any residue from the broken flexible pump coupler out of the coupler halves.

    PHOTO: Remove the coupling shield.

    PHOTO: Remove the coupling shield.

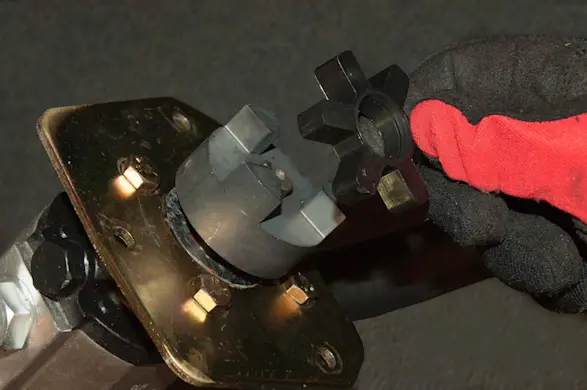

    PHOTO: Remove the flexible coupler.

    PHOTO: Remove the flexible coupler.

  4. 04.

    Install the new flexible pump coupler

    Reinstall the coupling shield.

    Position the new flexible pump coupler on the pump-side coupler half.

    Slide yourself under the coupling shield so you can guide the coupler halves together.

    Push the pump onto the hex-head bolts and guide the pump-side coupler half into the engine-side coupler half, rotating the pump-side coupler half to line up the coupler halves.

    Reinstall the 3 flange lock nuts on the hex-head bolts to secure the pump on the engine. Tighten the 3 flange lock nuts securely.

    Tip: Use the thin 1/2-inch wrench to hold the hex-head bolts stationary as you reinstall and tighten the 3 flange lock nuts on the base of the hydraulic pump.

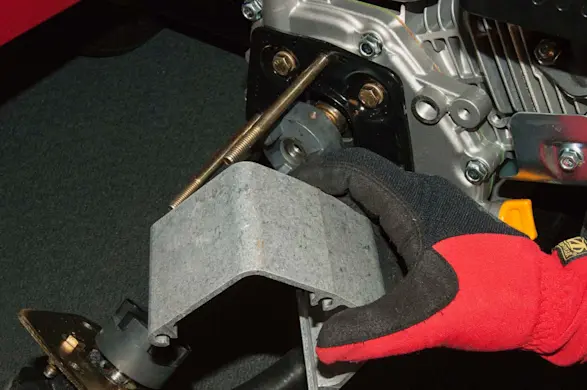

    PHOTO: Reinstall the coupling shield.

    PHOTO: Reinstall the coupling shield.

    PHOTO: Reinstall the flexible coupler.

    PHOTO: Reinstall the flexible coupler.

    PHOTO: Reinstall the hydraulic pump.

    PHOTO: Reinstall the hydraulic pump.

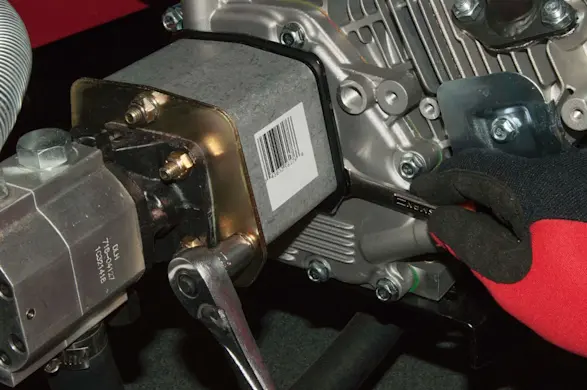

    PHOTO: Reinstall the flange lock nuts.

    PHOTO: Reinstall the flange lock nuts.

  5. 05.

    Reconnect the spark plug wire

    Attach the spark plug wire and make sure the log splitter engine works properly.

    PHOTO: Reconnect the spark plug.

    PHOTO: Reconnect the spark plug.

  6. 06.

    Test the hydraulic pump operation

    Start the log splitter and test the operation of the hydraulic pump and the flexible coupler.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
