Model # 6093WD Official Makita cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6093WD cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

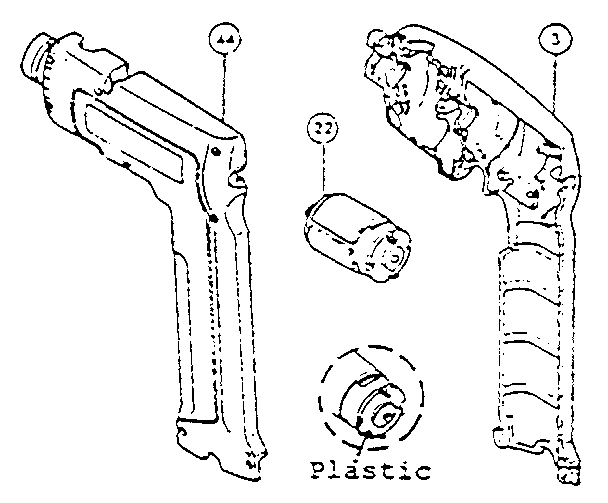

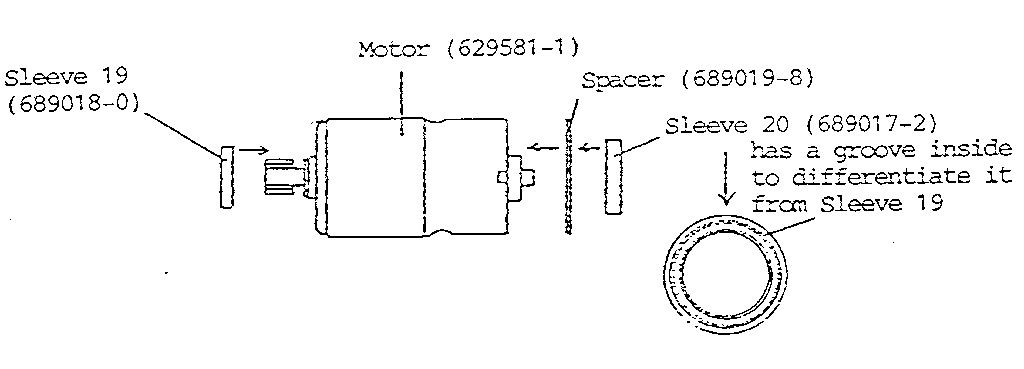

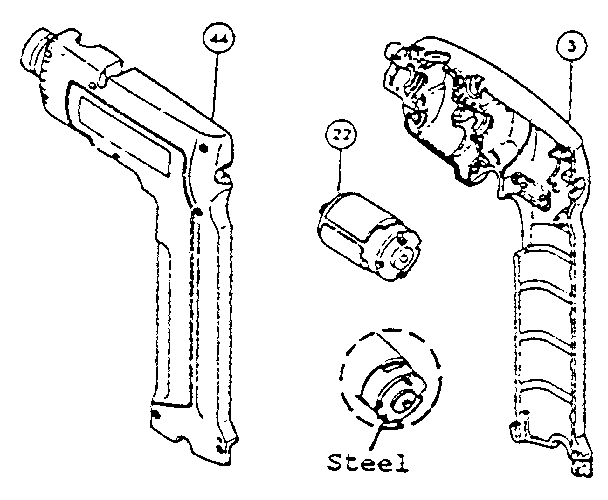

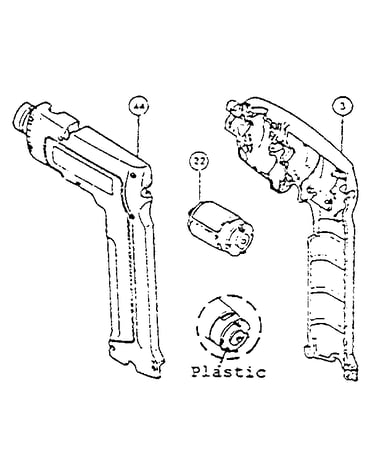

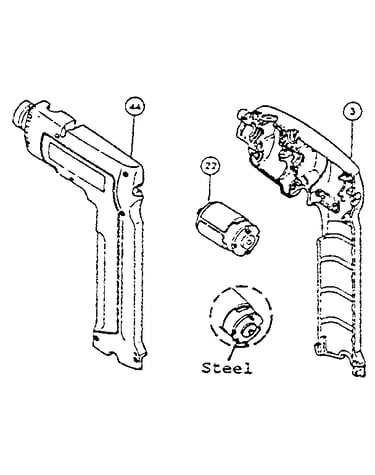

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Stip Ring 961015-1
#12

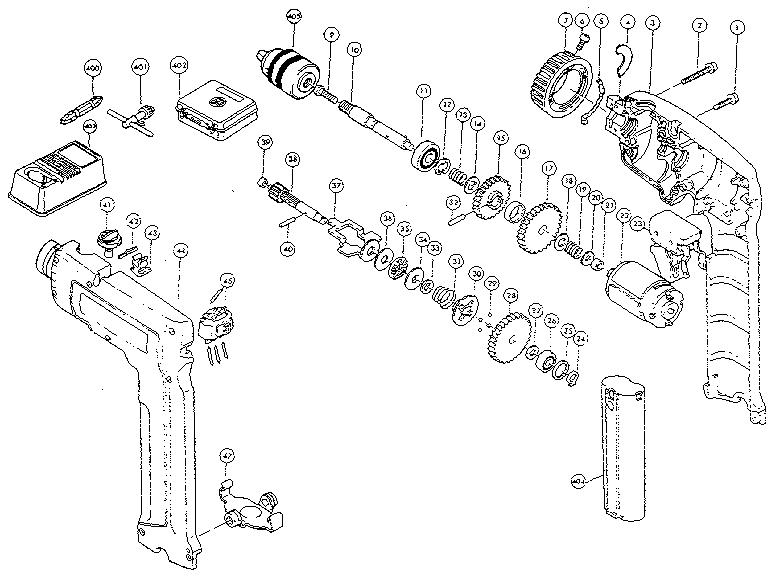

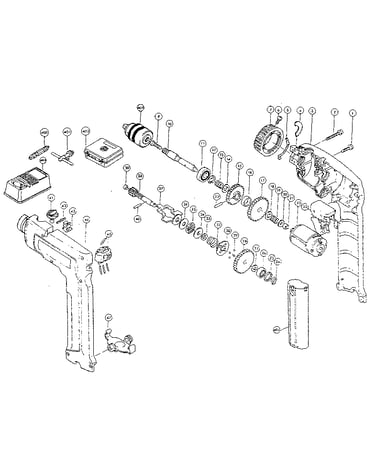

Gear assembly diagram

Stip ring

Part #961015-1

The manufacturer no longer makes this part, and there's no substitute part

Leaf Spring 232053-3
#42

Gear assembly diagram

Leaf spring

Part #232053-3

The manufacturer no longer makes this part, and there's no substitute part

Guide Plate 343421-6
#4

Gear assembly diagram

Guide plate

Part #343421-6

The manufacturer no longer makes this part, and there's no substitute part

Pln Bearing 214017-9
#21

Gear assembly diagram

Pln bearing

Part #214017-9

The manufacturer no longer makes this part, and there's no substitute part

Cam Plate 343410-1
#5

Gear assembly diagram

Cam plate

Part #343410-1

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 253842-3
#25

Gear assembly diagram

Flat washer

Part #253842-3

The manufacturer no longer makes this part, and there's no substitute part

Change Ring 410936-9
#7

Gear assembly diagram

Change ring

Part #410936-9

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 253804-1
#27

Gear assembly diagram

Flat washer

Part #253804-1

The manufacturer no longer makes this part, and there's no substitute part

Body 182141-5
Body

Part #182141-5

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 253807-5
#20

Gear assembly diagram

Flat washer

Part #253807-5

The manufacturer no longer makes this part, and there's no substitute part
