KitchenAid KN15E1XMJ0 mixer Parts
Here are the diagrams and repair parts for KitchenAid KN15E1XMJ0 mixer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

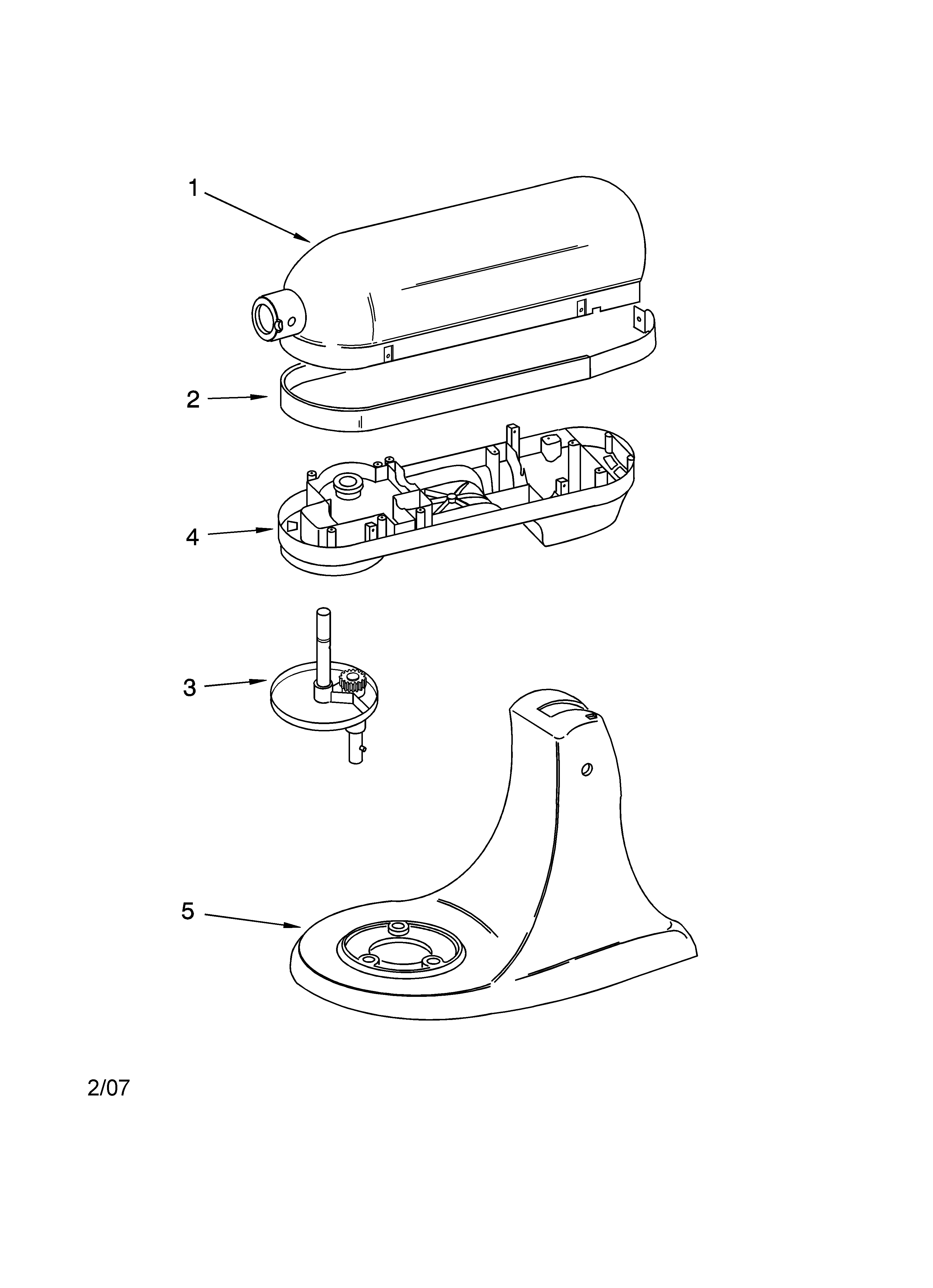

SELECT DIAGRAM
Browse Parts for KN15E1XMJ0 Mixer

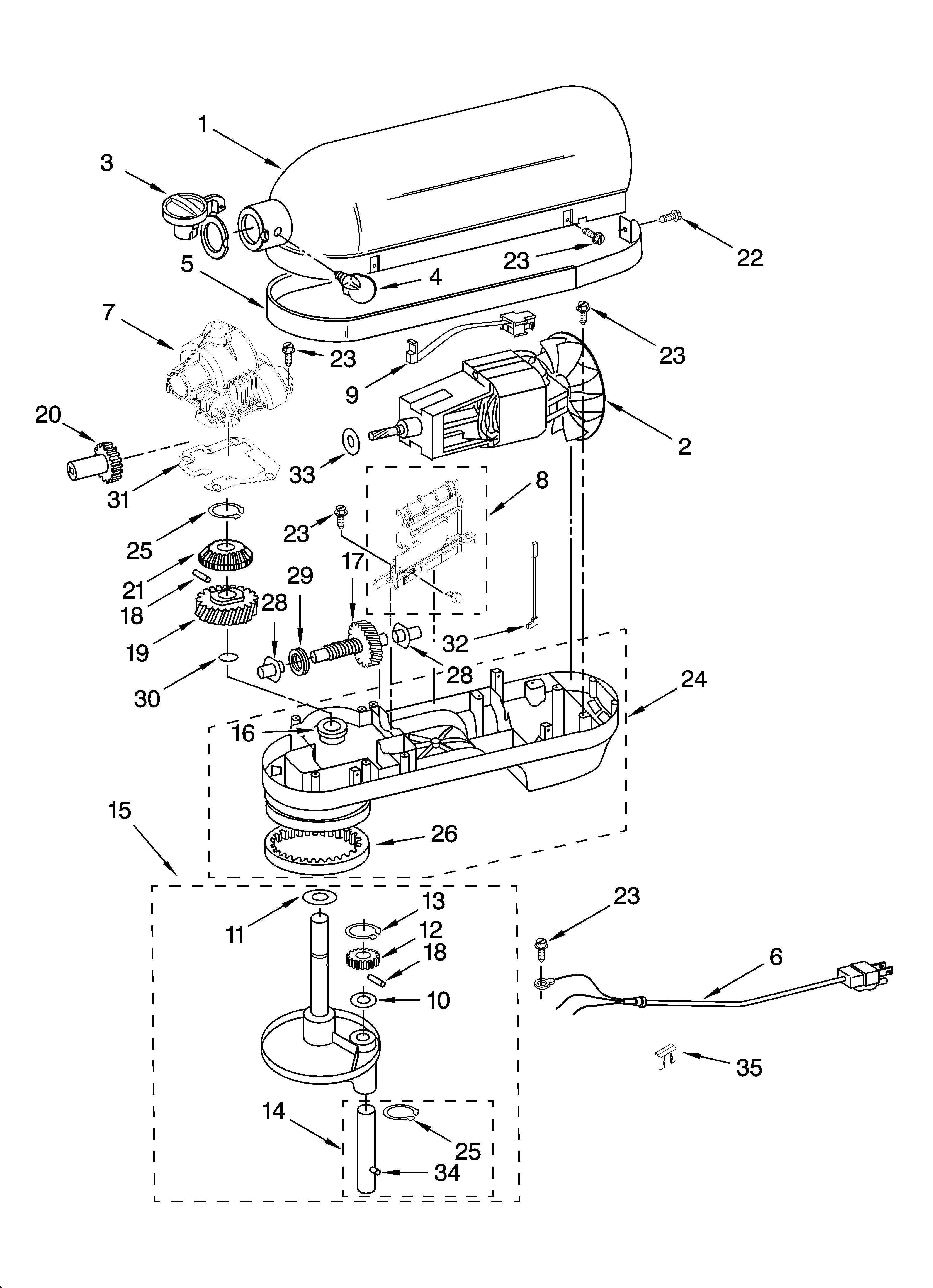

Case, gearing and planetary unit diagram
Mixer Control Assembly
Part #9706649Replaced by #WP9706648
Manufacturer substitutionThis part replaces 9706649. Substitute parts can look different from the original.This item is not returnableIn Stock$63.339% OFF Phone Price : $69.33
Qty
Case, gearing and planetary unit diagram
Sensor
Part #9703312Replaced by #WP9706648
Manufacturer substitutionThis part replaces 9703312. Substitute parts can look different from the original.This item is not returnableIn Stock$63.339% OFF Phone Price : $69.33QtyCase, gearing and planetary unit diagram
Stand Mixer Speed Control Board And Knob (black)
Part #9706648Replaced by #WP9706648
Manufacturer substitutionThis part replaces 9706648. Substitute parts can look different from the original.This item is not returnableIn Stock$63.339% OFF Phone Price : $69.33QtyCase, gearing and planetary unit diagram
Washer
Part #9703445Replaced by #WP9703445
Manufacturer substitutionThis part replaces 9703445. Substitute parts can look different from the original.This item is not returnableIn Stock$11.7715% OFF Phone Price : $13.77QtyCase, gearing and planetary unit diagram
Seal
Part #9706247Replaced by #WP9706247
Manufacturer substitutionThis part replaces 9706247. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2514% OFF Phone Price : $7.25QtyCase, gearing and planetary unit diagram
Screw
Part #9709196Replaced by #WP9709196
Manufacturer substitutionThis part replaces 9709196. Substitute parts can look different from the original.This item is not returnableIn Stock$11.4315% OFF Phone Price : $13.43QtyCase, gearing and planetary unit diagram
Gear
Part #9703337Replaced by #W11192795
Manufacturer substitutionThis part replaces 9703337. Substitute parts can look different from the original.This item is not returnableIn Stock$25.5519% OFF Phone Price : $31.55QtyCase, gearing and planetary unit diagram
Gear
Part #9703338Replaced by #W11192795
Manufacturer substitutionThis part replaces 9703338. Substitute parts can look different from the original.This item is not returnableIn Stock$25.5519% OFF Phone Price : $31.55QtyCase, gearing and planetary unit diagram
Bearing
Part #9703570Replaced by #WPW10170081

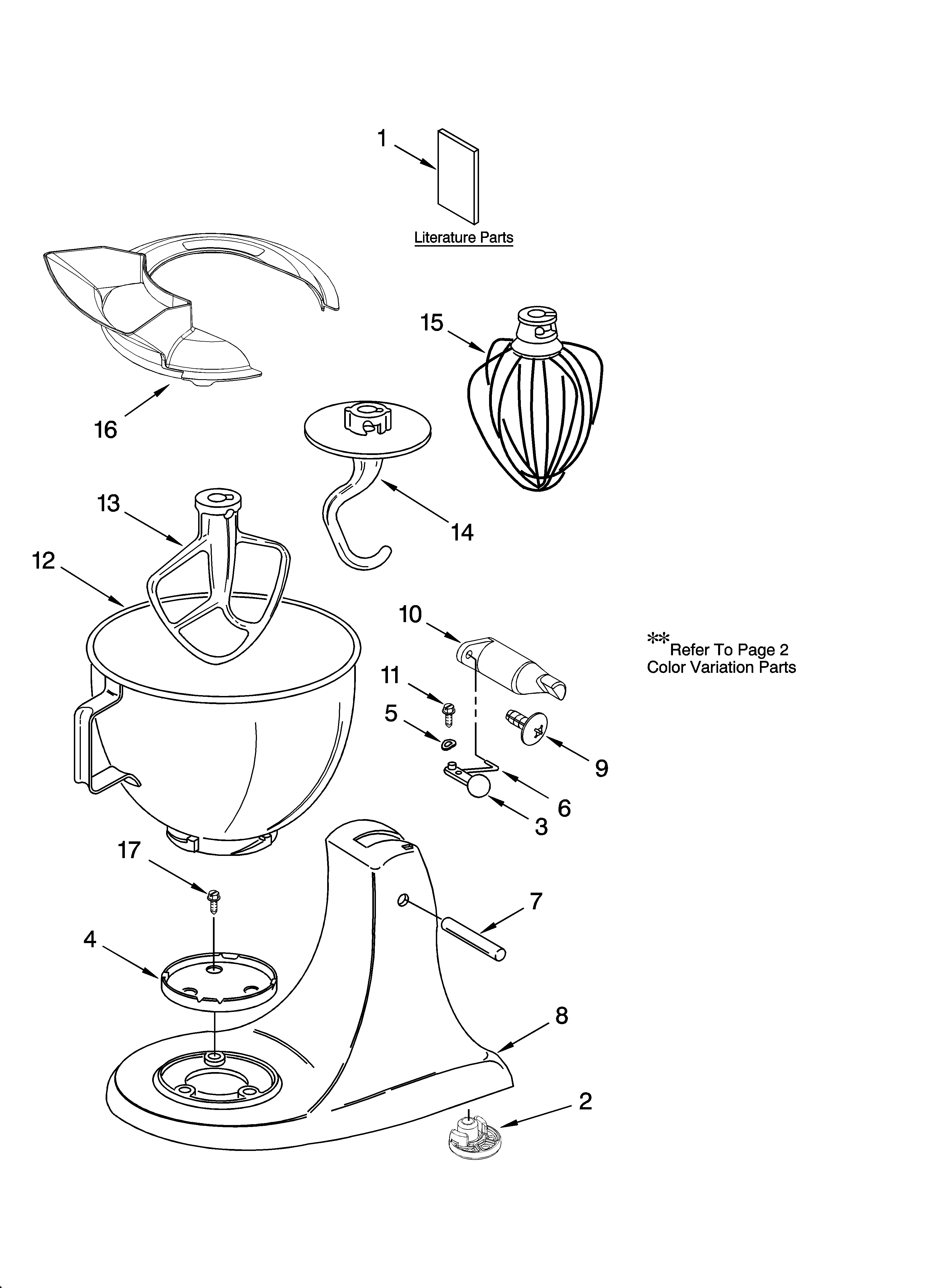

Manufacturer substitutionThis part replaces 9703570. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2514% OFF Phone Price : $7.25QtyBase and pedestal unit, optional parts diagram
Dough Hook
Part #9708471Replaced by #WPW10674618
Manufacturer substitutionThis part replaces 9708471. Substitute parts can look different from the original.In Stock$25.6019% OFF Phone Price : $31.60Qty
