GE JBP45AV2 electric range Parts
Here are the diagrams and repair parts for GE JBP45AV2 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JBP45AV2 Ranges
#161

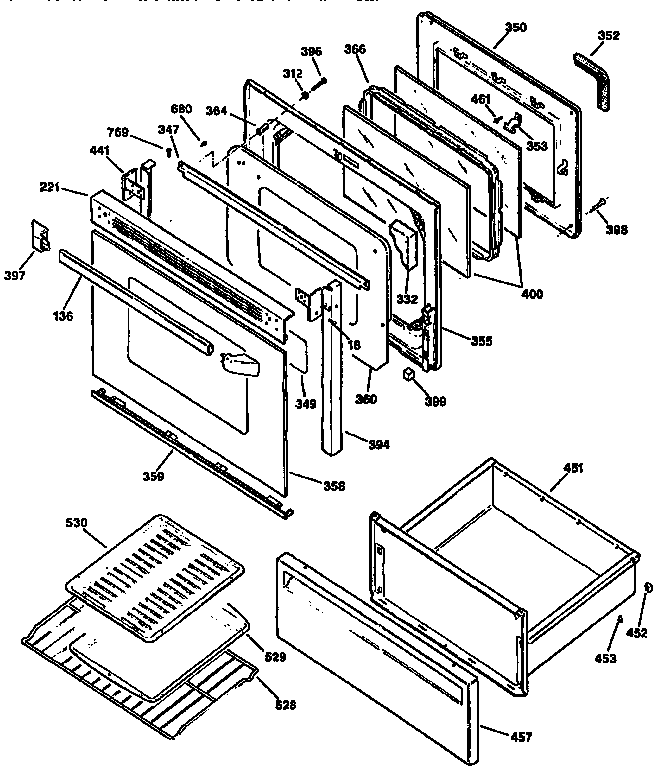

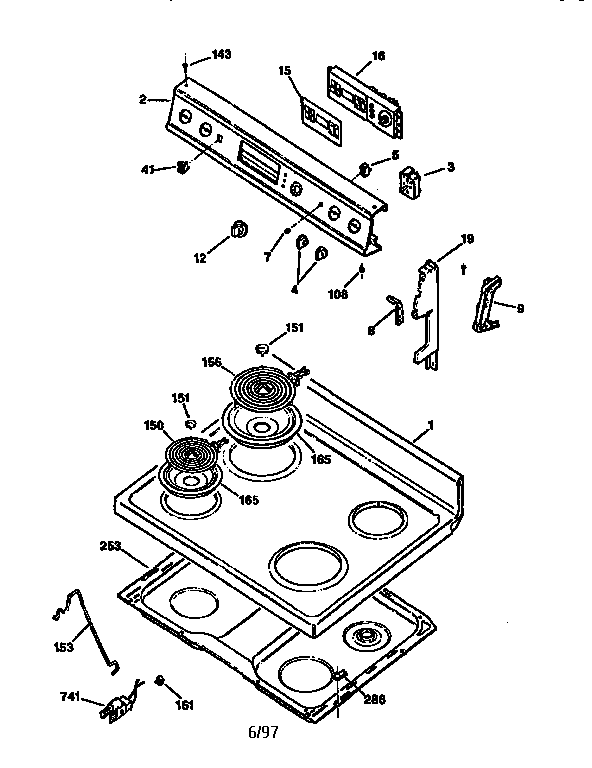

All parts diagram
Wire Clip
Part #WB02X8115Replaced by #WB2X8115
Manufacturer substitutionThis part replaces WB02X8115. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01
Qty
#3
All parts diagram
Range Surface Element Control Switch
Part #WB21X5243Replaced by #WB21X36771
Manufacturer substitutionThis part replaces WB21X5243. Substitute parts can look different from the original.In Stock$36.0014% OFF Phone Price : $42.00Qty#875
All parts diagram
Screw
Part #WH02X0930Replaced by #WH2X930
Manufacturer substitutionThis part replaces WH02X0930. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01Qty#156
All parts diagram
"8""p.i. S/u"
Part #WB30X5130Replaced by #WB30M2
Manufacturer substitutionThis part replaces WB30X5130. Substitute parts can look different from the original.In Stock$59.199% OFF Phone Price : $65.19Qty#NI
All parts diagram
Brkt Antitip
Part #WB02X7876Replaced by #WB02T10415
Manufacturer substitutionThis part replaces WB02X7876. Substitute parts can look different from the original.In Stock$36.4214% OFF Phone Price : $42.42Qty#165A
All parts diagram
Bowl Brnr 8"
Part #WB32X5085Replaced by #WB31T10015
Manufacturer substitutionThis part replaces WB32X5085. Substitute parts can look different from the original.In Stock$19.409% OFF Phone Price : $21.40Qty#19
All parts diagram
Emd Plate Ad
Part #WB07X7270Replaced by #WB07X10129
Manufacturer substitutionThis part replaces WB07X7270. Substitute parts can look different from the original.In Stock$36.61Qty#248
All parts diagram
Sensor
Part #WB24X5340Replaced by #WB23X5340
Manufacturer substitutionThis part replaces WB24X5340. Substitute parts can look different from the original.In Stock$146.638% OFF Phone Price : $158.63Qty#9A
All parts diagram
End Cap
Part #WB07X7131
The manufacturer no longer makes this part, and there's no substitute part
#364
All parts diagram
Spacer
Part #WB02X8558
The manufacturer no longer makes this part, and there's no substitute part
