Kenmore 1039877914 micro-classic electric range Parts
Here are the diagrams and repair parts for Kenmore 1039877914 micro-classic electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

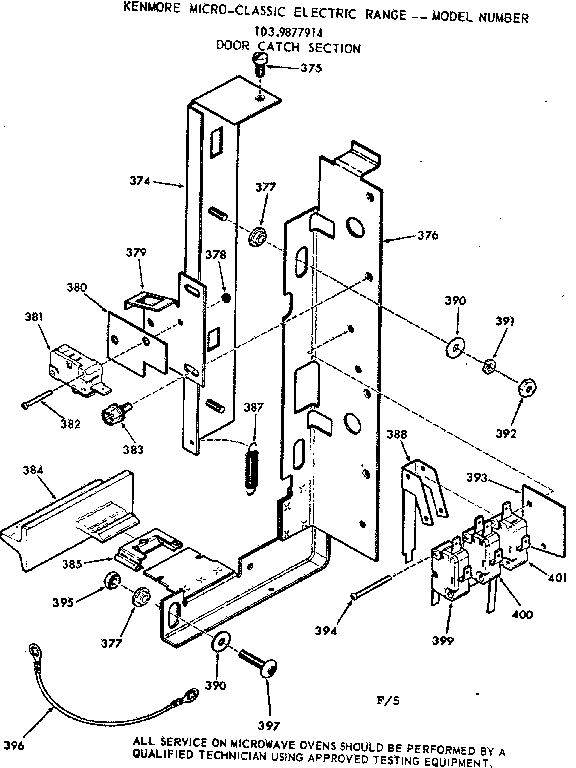

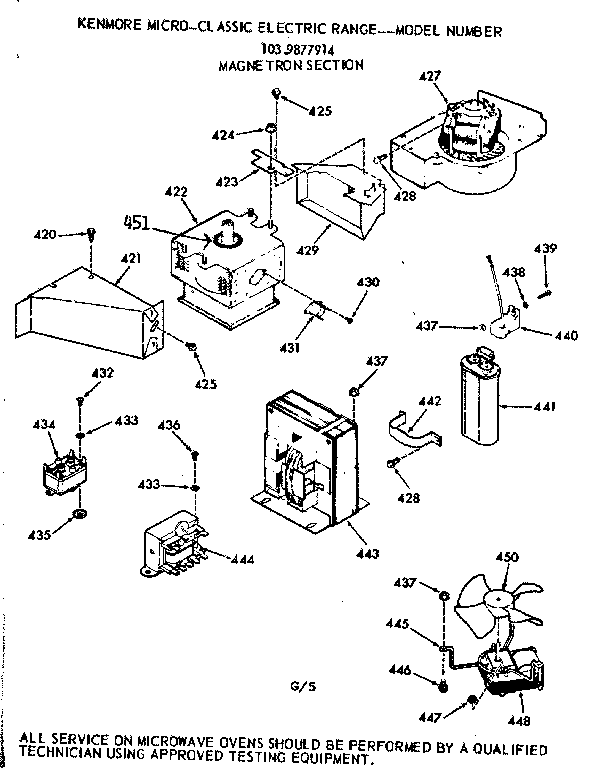

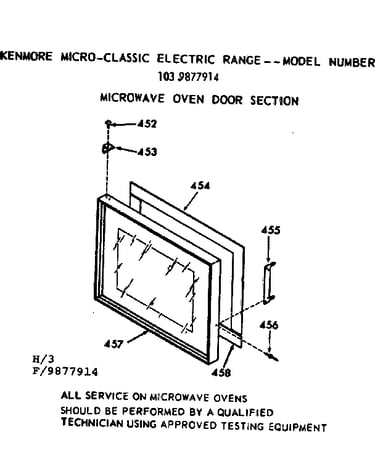

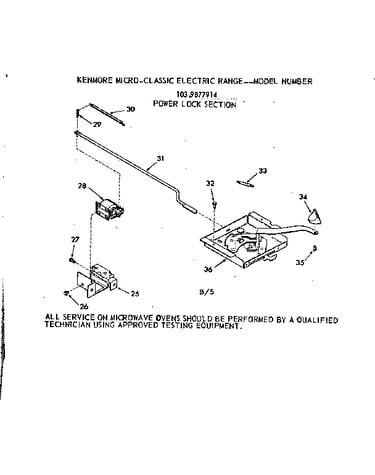

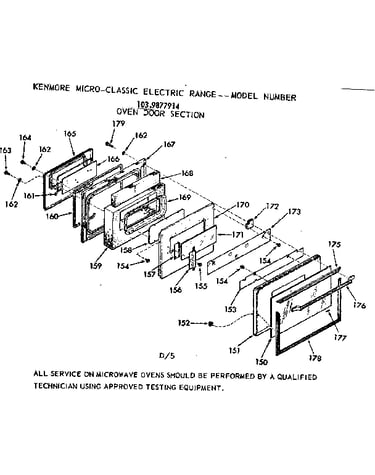

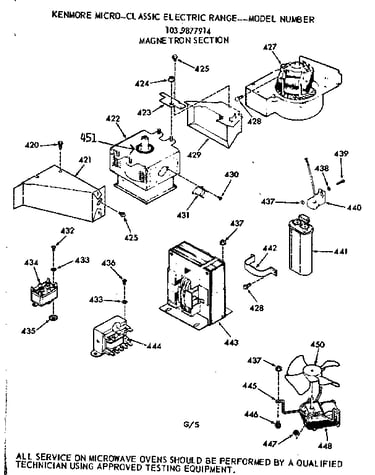

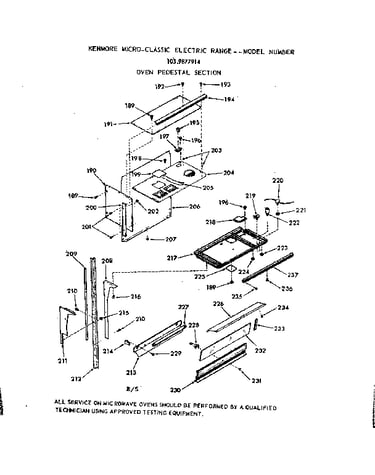

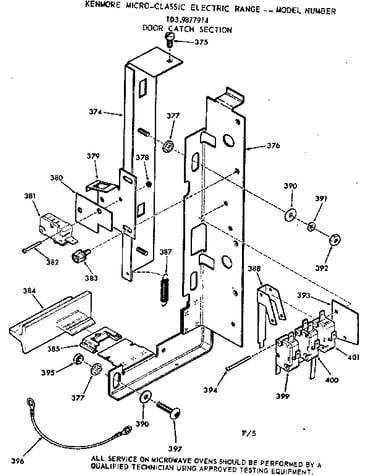

SELECT DIAGRAM

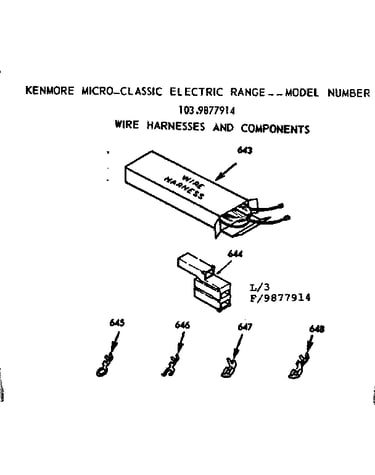

Browse Parts for 1039877914 Ranges

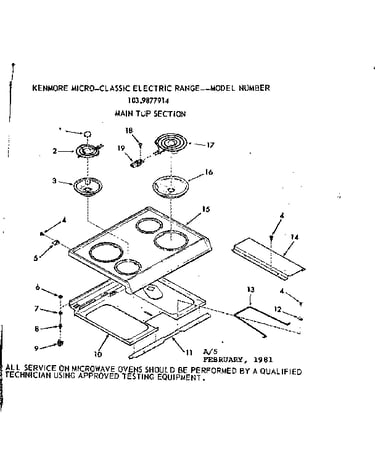

Main top section diagram
Terminal Block
Part #304645Replaced by #330031
Manufacturer substitutionThis part replaces 304645. Substitute parts can look different from the original.In Stock$10.0117% OFF Phone Price : $12.01
Qty

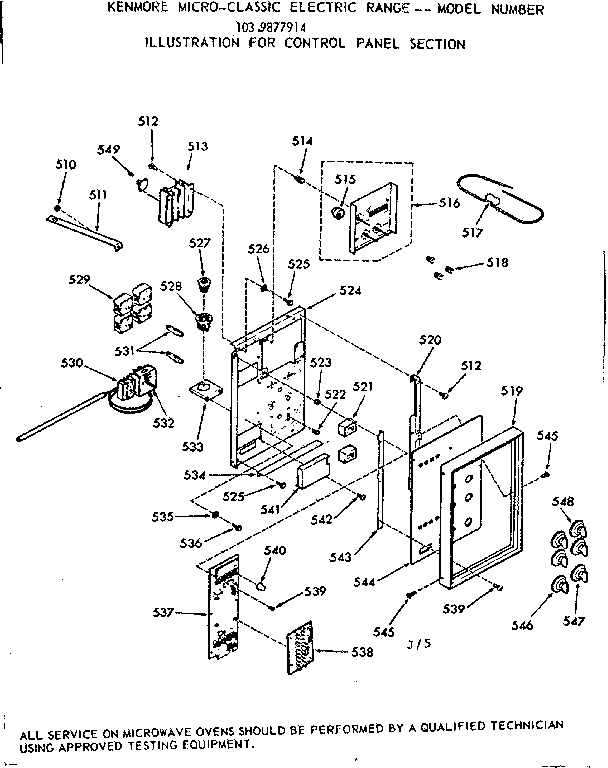

Control panel section diagram
Infinite Switch
Part #301820Replaced by #WB21X36771
Manufacturer substitutionThis part replaces 301820. Substitute parts can look different from the original.In Stock$36.0014% OFF Phone Price : $42.00QtyScrew
Part #105771Replaced by #WB1X1293

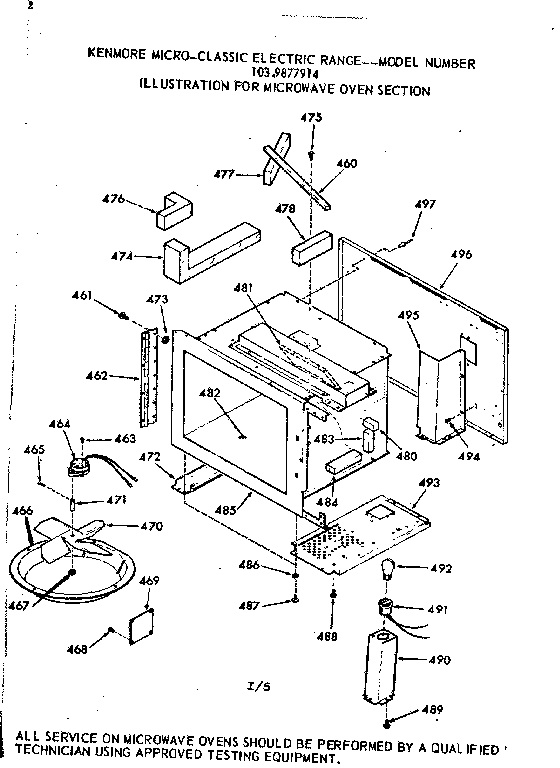

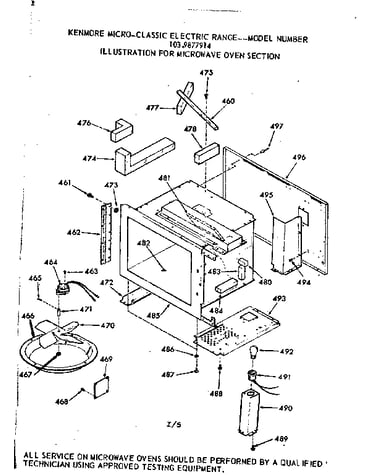

Manufacturer substitutionThis part replaces 105771. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyMicrowave oven section diagram
Sealant
Part #M13D2Replaced by #RTV102
Manufacturer substitutionThis part replaces M13D2. Substitute parts can look different from the original.In Stock$15.1740% OFF Was : $25.38QtyMain top section diagram
Bowl
Part #296481Replaced by #WB32X107
Manufacturer substitutionThis part replaces 296481. Substitute parts can look different from the original.In Stock$13.8213% OFF Phone Price : $15.82QtyScrew
Part #295850Replaced by #WB1X1424D

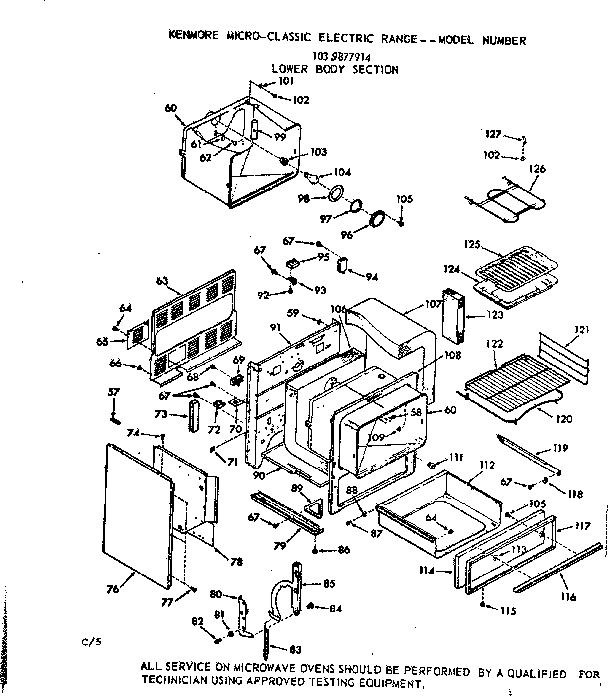

Manufacturer substitutionThis part replaces 295850. Substitute parts can look different from the original.In Stock$7.6812% OFF Phone Price : $8.68QtyLower body section diagram
Hinge
In Stock$37.54QtyOptional pan and rings diagram
Range Drip Pan, Small

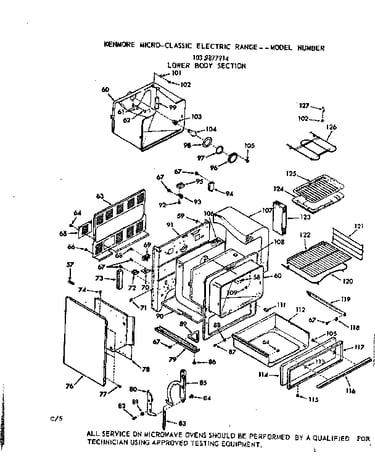

In Stock$46.60QtyLower body section diagram
Body

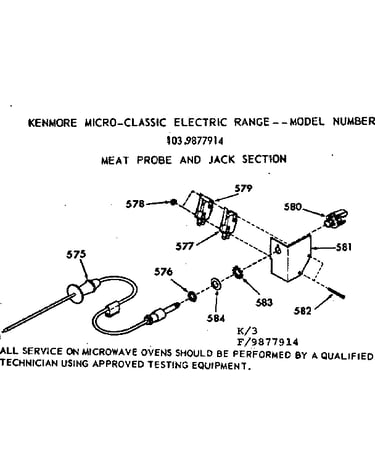

In Stock$103.52QtyMeat probe and jack section diagram
Probe Jack
In Stock$35.96Qty
