Maytag MERL753BAS electric freestanding range Parts
Here are the diagrams and repair parts for Maytag MERL753BAS electric freestanding range, as well as links to manuals and error code tables, if available.

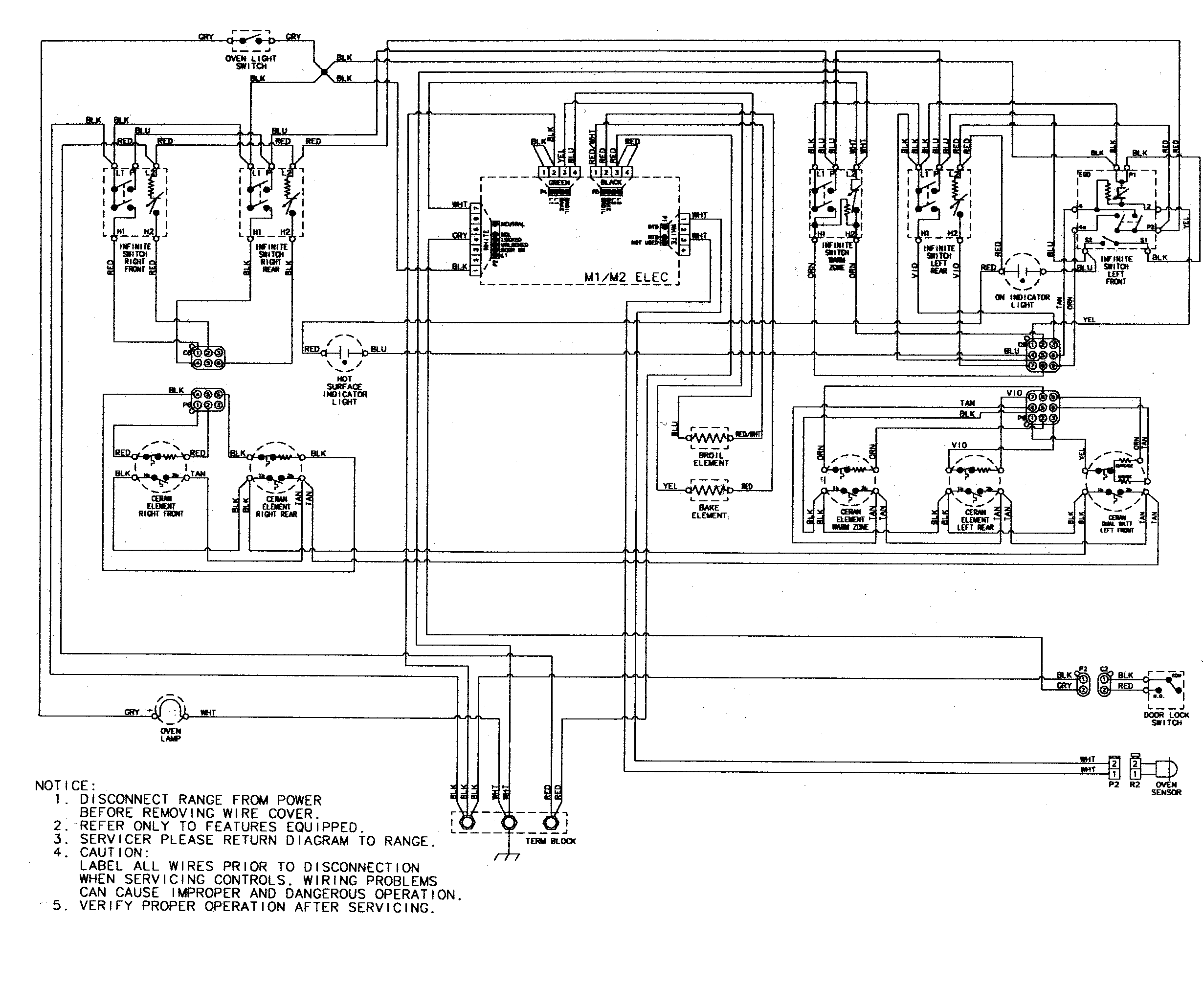

Error CodesBy Schematic
By Part
SELECT DIAGRAM

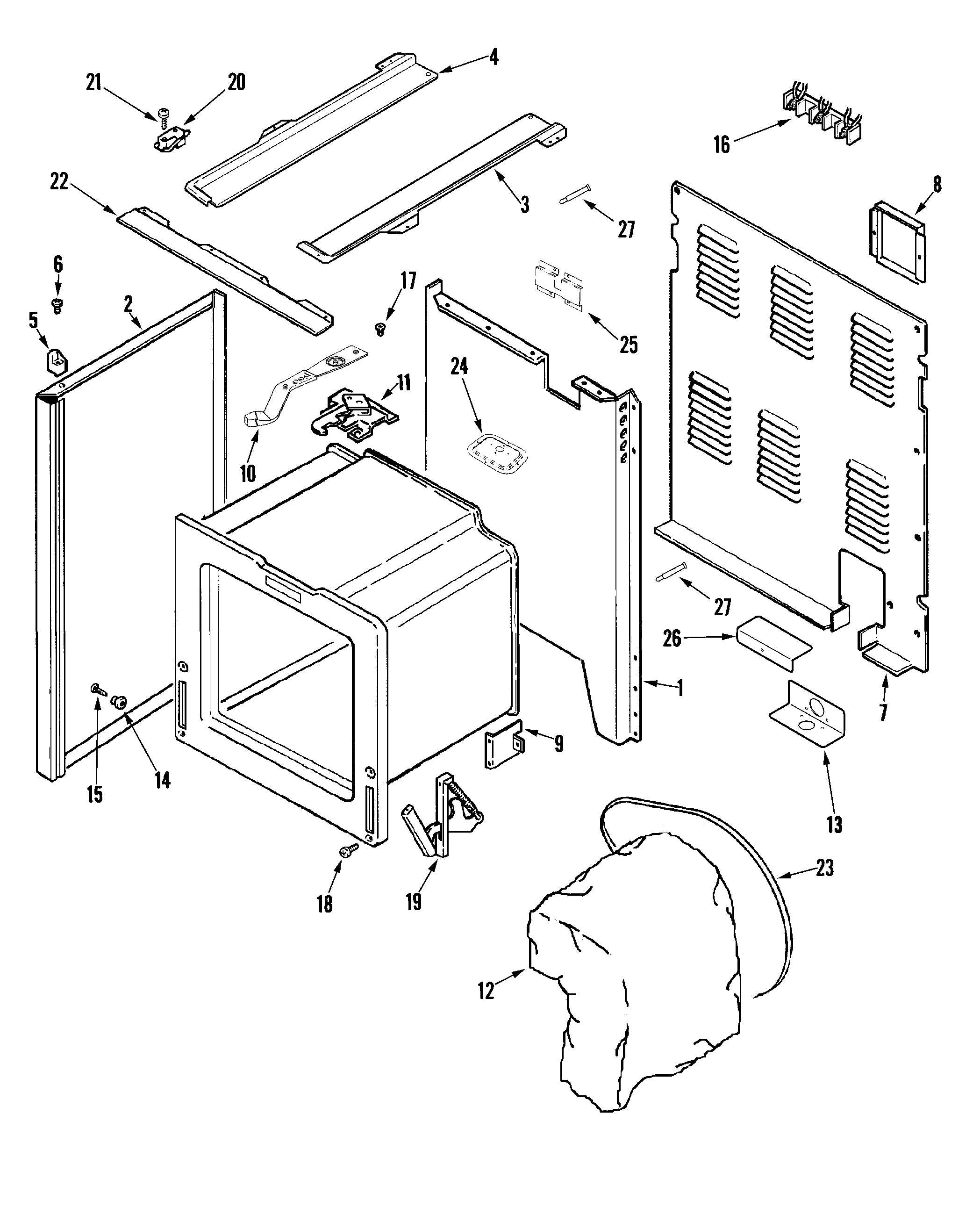

Browse Parts for MERL753BAS Ranges

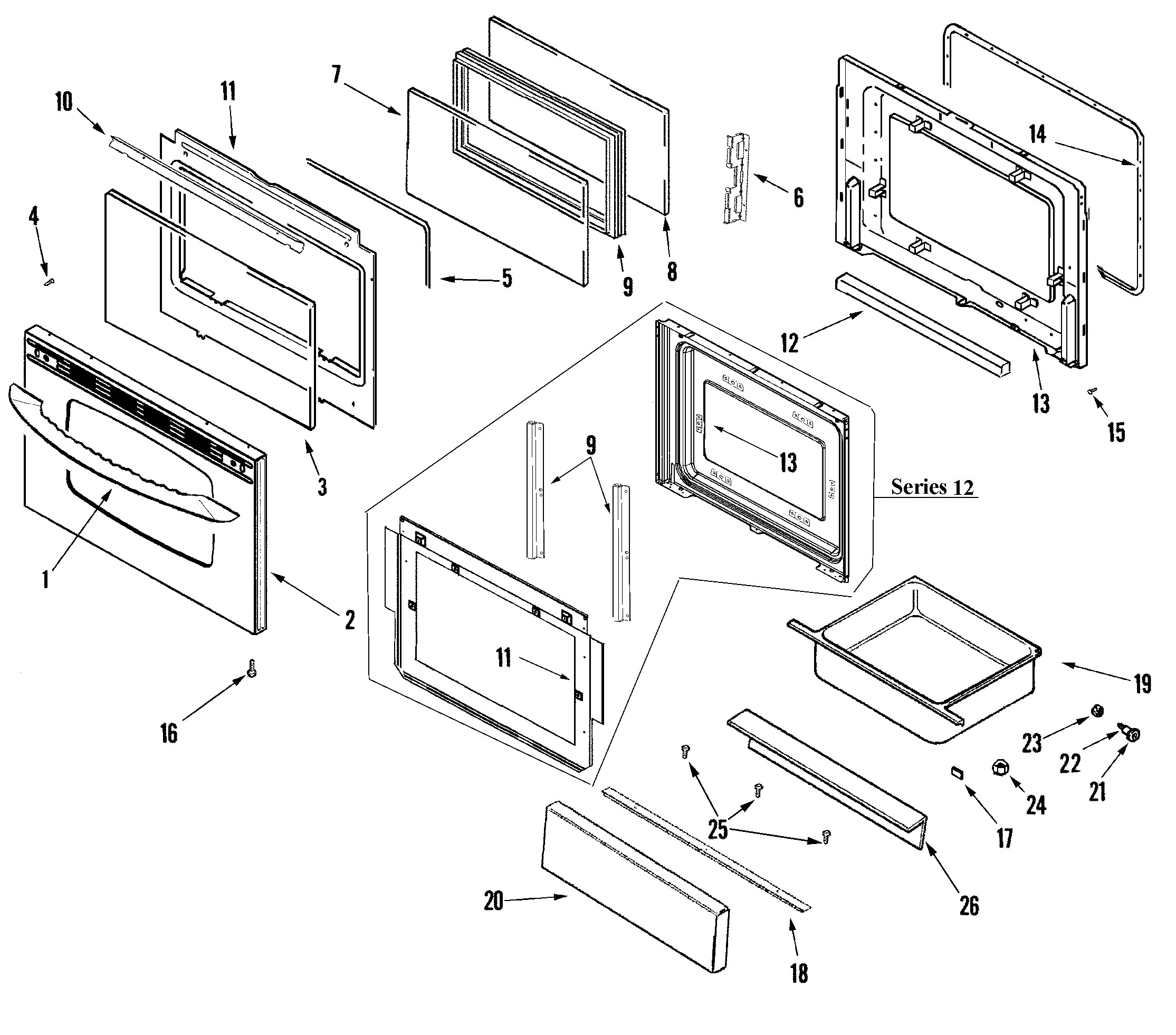

Door/drawer (stl) diagram
Oven Baffle
Part #74011457Replaced by #3601F373-51
Manufacturer substitutionThis part replaces 74011457. Substitute parts can look different from the original.In Stock$206.54
Qty

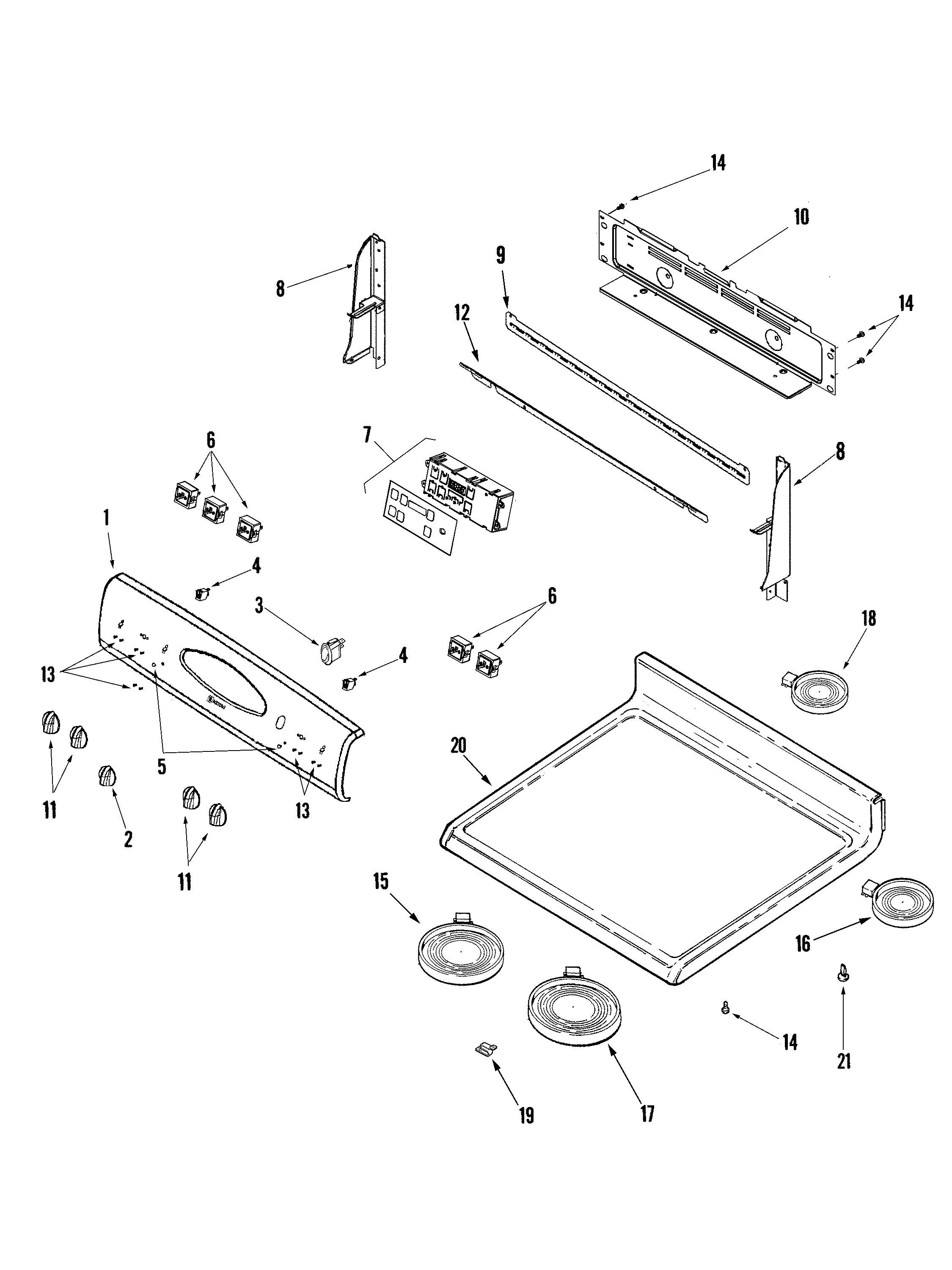

Control panel/top assembly diagram
Element
Part #74008571Replaced by #WP8523700
Manufacturer substitutionThis part replaces 74008571. Substitute parts can look different from the original.In Stock$90.1317% OFF Was : $108.22
QtyControl panel/top assembly diagram
Screw (black)
Part #7101P309-60Replaced by #WP7101P309-60

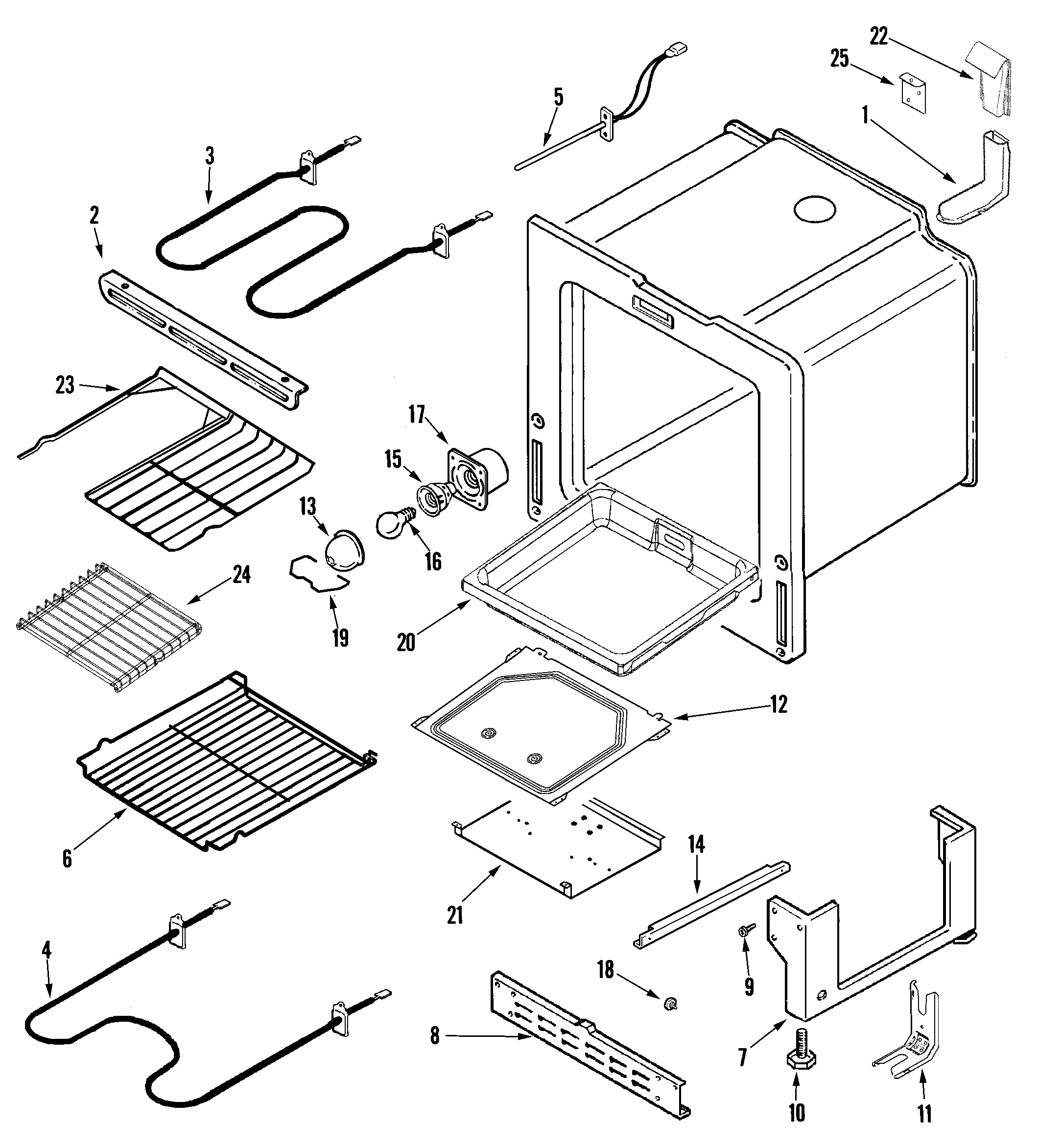

Manufacturer substitutionThis part replaces 7101P309-60. Substitute parts can look different from the original.This item is not returnableIn Stock$33.56QtyOven/base diagram
Screw
Part #7101P352-60Replaced by #WP7101P485-60
Manufacturer substitutionThis part replaces 7101P352-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyDoor/drawer (stl) diagram
Door Gasket
Part #74009029Replaced by #WP74009029
Manufacturer substitutionThis part replaces 74009029. Substitute parts can look different from the original.In Stock$54.7736% OFF Was : $86.06QtyDoor/drawer (stl) diagram
Door Handle
Part #74009700Replaced by #74011777
Manufacturer substitutionThis part replaces 74009700. Substitute parts can look different from the original.In Stock$163.897% OFF Phone Price : $175.89QtyOven/base diagram
Bracket, Ant
Part #74005564Replaced by #WP3801F656-51
Manufacturer substitutionThis part replaces 74005564. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74QtyOven/base diagram
Range Leveling Leg
Part #74002373Replaced by #W11665456
Manufacturer substitutionThis part replaces 74002373. Substitute parts can look different from the original.In Stock$44.24QtyControl panel/top assembly diagram
Oven Indicator Light
Part #74004153Replaced by #WP74004153
Manufacturer substitutionThis part replaces 74004153. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyDoor/drawer (stl) diagram
Rubber Spcr
Part #74005546Replaced by #WP74005546
Manufacturer substitutionThis part replaces 74005546. Substitute parts can look different from the original.In Stock$8.2811% OFF Phone Price : $9.28Qty
