GE
Electric Cooktop

Model # JCP340WC1WW Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JCP340WC1WW electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Control Element WB23M0009
#19

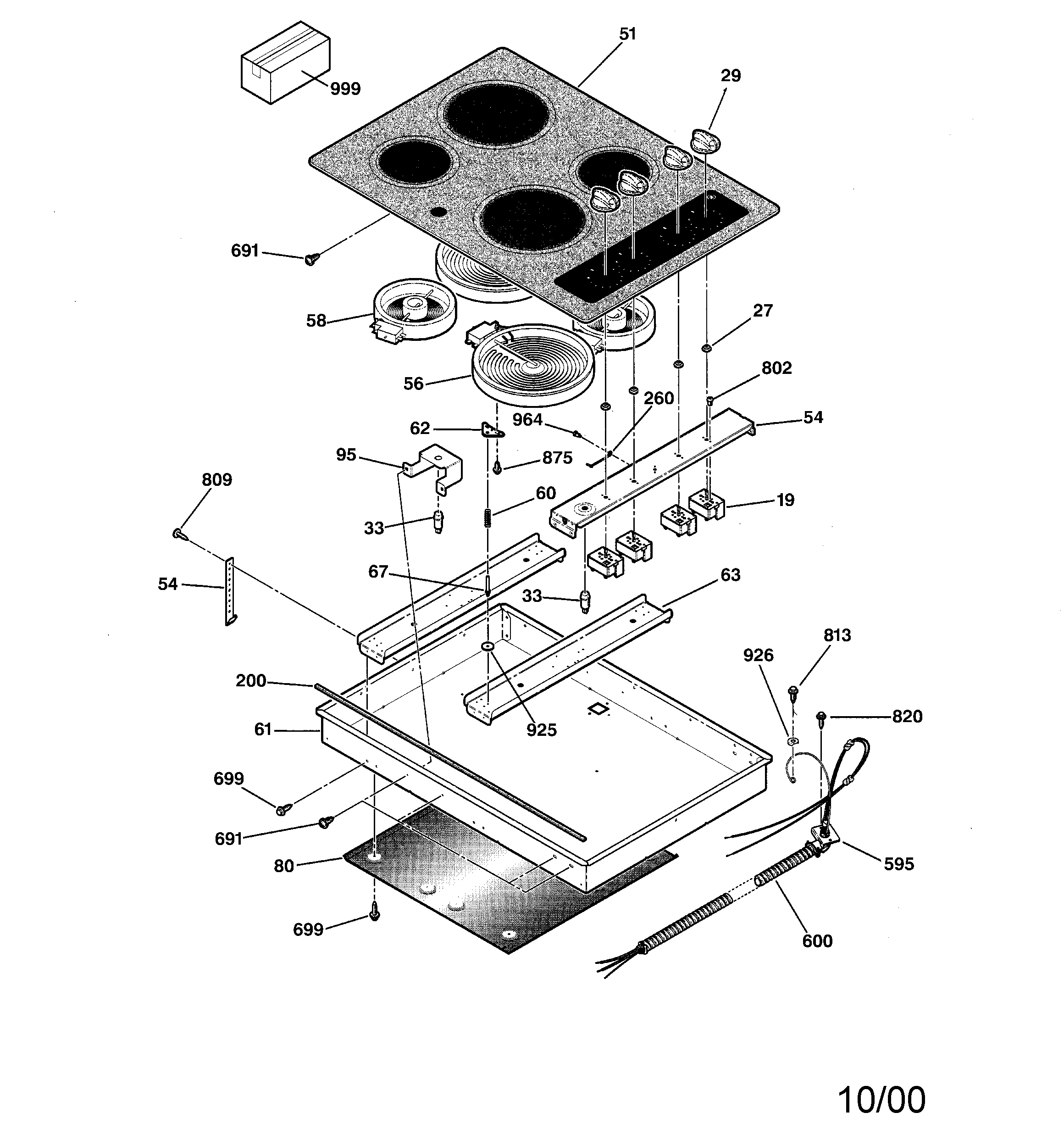

Cooktop diagram

Control element

Part #WB23M0009

Replaced by #WB23M9

?
Manufacturer substitution
This part replaces WB23M0009. Substitute parts can look different from the original.
BEST SELLER
$60.29
8% OFF Phone Price : $65.29
In Stock
Control Element WB23M0008
#19

Cooktop diagram

Control element

Part #WB23M0008

Replaced by #WB23M8

?
Manufacturer substitution
This part replaces WB23M0008. Substitute parts can look different from the original.
BEST SELLER
$48.28
9% OFF Phone Price : $53.28
In Stock
Screw WB01K5150
#699

Cooktop diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Screw WB01X1137
#809

Cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw - Black WB01K5162
#691

Cooktop diagram

Screw - black

Part #WB01K5162

Replaced by #WB1K5162

?
Manufacturer substitution
This part replaces WB01K5162. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Cooktop Indicator Light WB25T10012
#33

Cooktop diagram

Cooktop indicator light

Part #WB25T10012

This item is not returnable
$20.49
20% OFF Phone Price : $25.49
In Stock
Range Wire Harness Retainer WB02T10086
#260

Cooktop diagram

Range wire harness retainer

Part #WB02T10086

$24.29
17% OFF Phone Price : $29.29
In Stock
Cooktop Burner Knob WB03T10030
#29

Cooktop diagram

Cooktop burner knob

Part #WB03T10030

$16.59
11% OFF Phone Price : $18.59
In Stock
Range Radiant Surface Element, 6-in WB30T10043
#56

Cooktop diagram

Range radiant surface element, 6-in

Part #WB30T10043

$230.10
$10.00 OFF Phone Price : $240.10
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30k5031, Wb30t10007) WB30T10045
#58

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30k5031, wb30t10007)

Part #WB30T10045

$134.96
7% OFF Phone Price : $144.96
In Stock
