Gas Walk-Behind Mower

Model # 917370411 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370411 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 224 parts  |
Lawn Mower 22-in Deck 3-in-1 Blade
#47

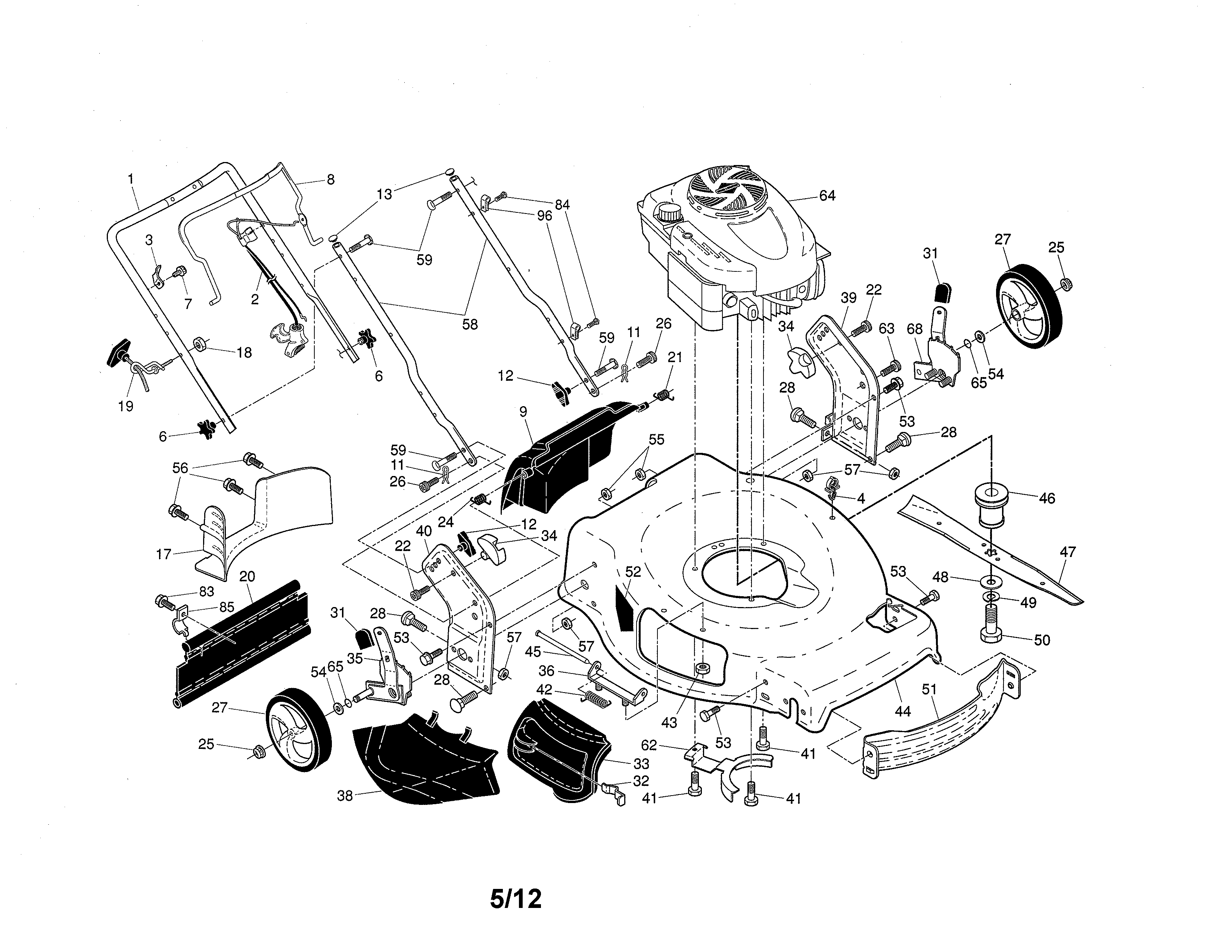

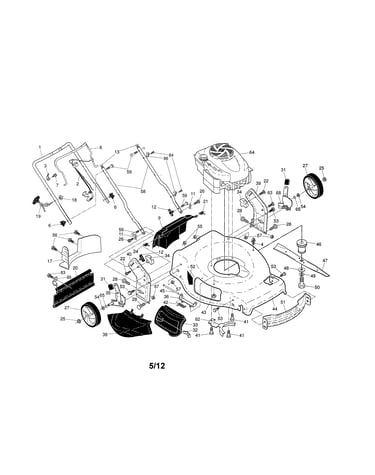

Engine/housing/handle diagram

Lawn mower 22-in deck 3-in-1 blade

Part #421825

BEST SELLER

Get free shipping with Automatic Reorder

$16.63 |
17% OFF MSRP : $20.00
In Stock
Lawn Mower Blade Adapter (replaces 421782)
#46

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
36% OFF MSRP : $15.00
In Stock
Lawn Mower Lock Nut, 3/8-in (replaces 409149, 532409148)
Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.64 |
18% OFF Phone Price : $5.64
In Stock
Lawn Mower Clipping Deflector (replaces 419942X418)
#38

Engine/housing/handle diagram

Lawn mower clipping deflector (replaces 419942x418)

Part #419942X428

BEST SELLER
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Lawn Mower Wheel Dust Cover (replaces 189403, 532189403, 5321894-03)
#14

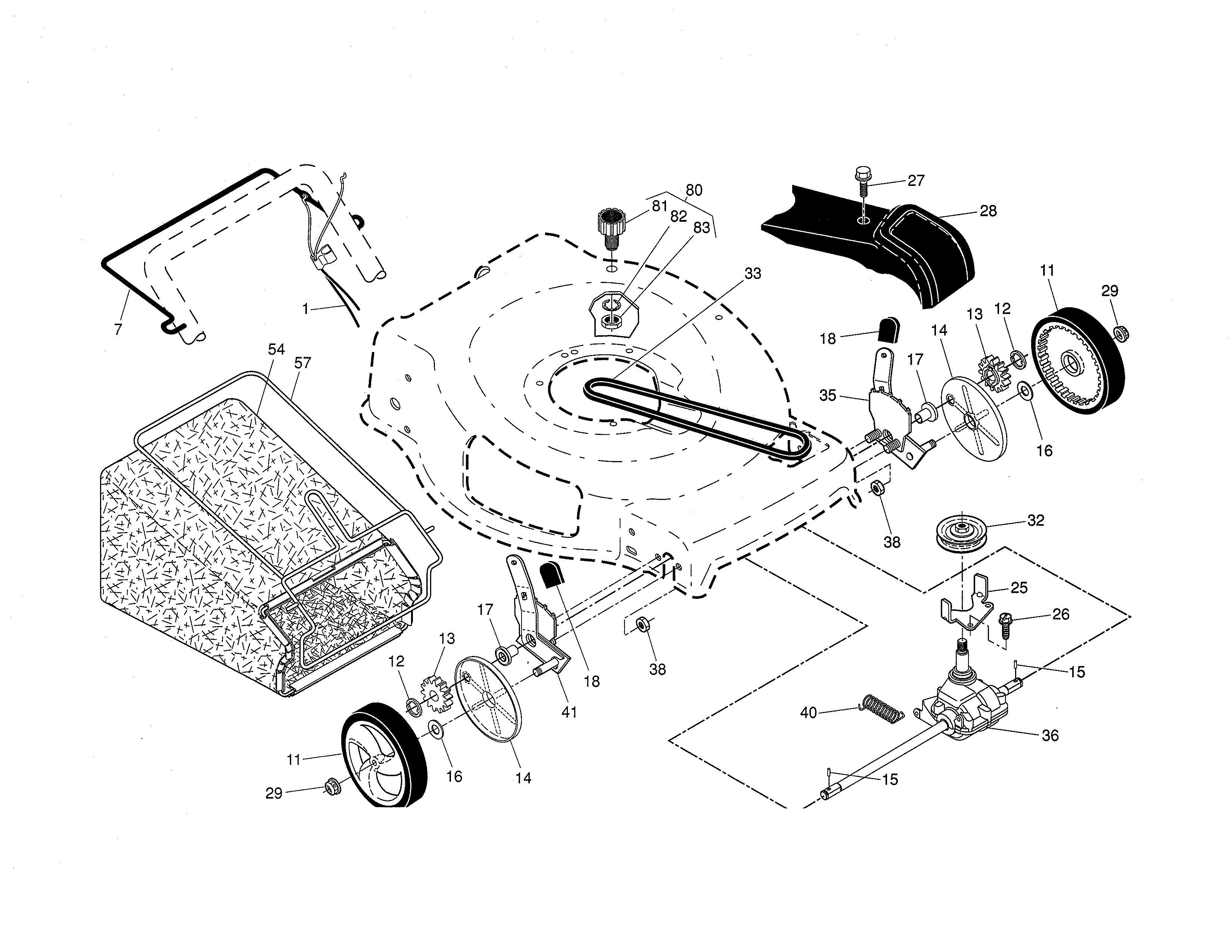

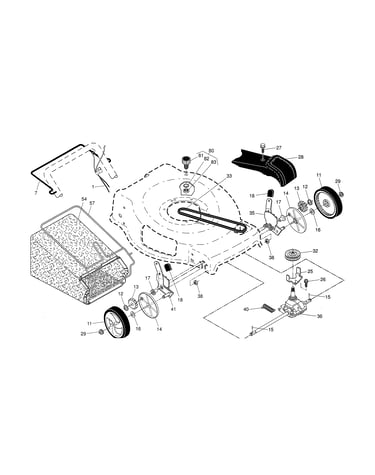

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
Back Order
Lawn Mower Bolt (replaces 191574)
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
In Stock
Engine Fuel Stabilizer, 12-oz (replaces 33500)

#NI03

All parts diagram

Fuel stabilizer

Part #33500

Replaced by #95012

?
Manufacturer substitution
This part replaces 33500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$4.99 |
17% OFF Phone Price : $5.99
In Stock
Lawn Mower Discharge Chute Door
#9

Engine/housing/handle diagram

Lawn mower discharge chute door

Part #421084

BEST SELLER
$17.94 |
10% OFF Phone Price : $19.94
Back Order
Lawn Mower Transmission Assembly (replaces 424657, 532424741)
#36

Drive control/gear case/wheels diagram

Lawn mower transmission assembly

Part #424741

Replaced by #589600601

?
Manufacturer substitution
This part replaces 424741. Substitute parts can look different from the original.
BEST SELLER
$66.00 |
13% OFF MSRP : $76.00
In Stock
Lawn Mower Discharge Chute Door Spring, Left (replaces 532419949)
#21

Engine/housing/handle diagram

Lawn mower discharge chute door spring, left (replaces 532419949)

Part #419949

BEST SELLER
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
In Stock
