Electrolux EFMG517SIW0 dryer Parts

Electrolux dryers, including model EFMG517SIW0, typically last 10 to 15 years with normal household use. Consistent airflow maintenance (lint screen and venting) and addressing wear parts early are the biggest factors that help this dryer reach the upper end of that range.

What affects lifespan the most

A dryer’s service life is usually determined by heat, airflow, and mechanical wear. For the Electrolux EFMG517SIW0, we recommend focusing on:

• Cleaning the lint screen before or after every load (restricted airflow increases heat stress)
• Keeping the exhaust duct clear and properly sized (4-inch rigid or semi-rigid metal is best)
• Avoiding chronic overloading (extra strain on the drum belt, rollers, and motor)
• Using the lowest effective temperature and dryness settings to reduce overheating
• Fixing squeaks, thumps, or rubbing noises early (often roller, belt, or seal wear)

For model-specific care and cleaning intervals, follow the maintenance guidance in the EFMG517SIW0 use & care manual.

Common wear parts that can shorten dryer life

If the dryer is otherwise in good condition, replacing a few common parts can often restore reliable operation.

Symptom	Likely wear area	Example compatible part for EFMG517SIW0

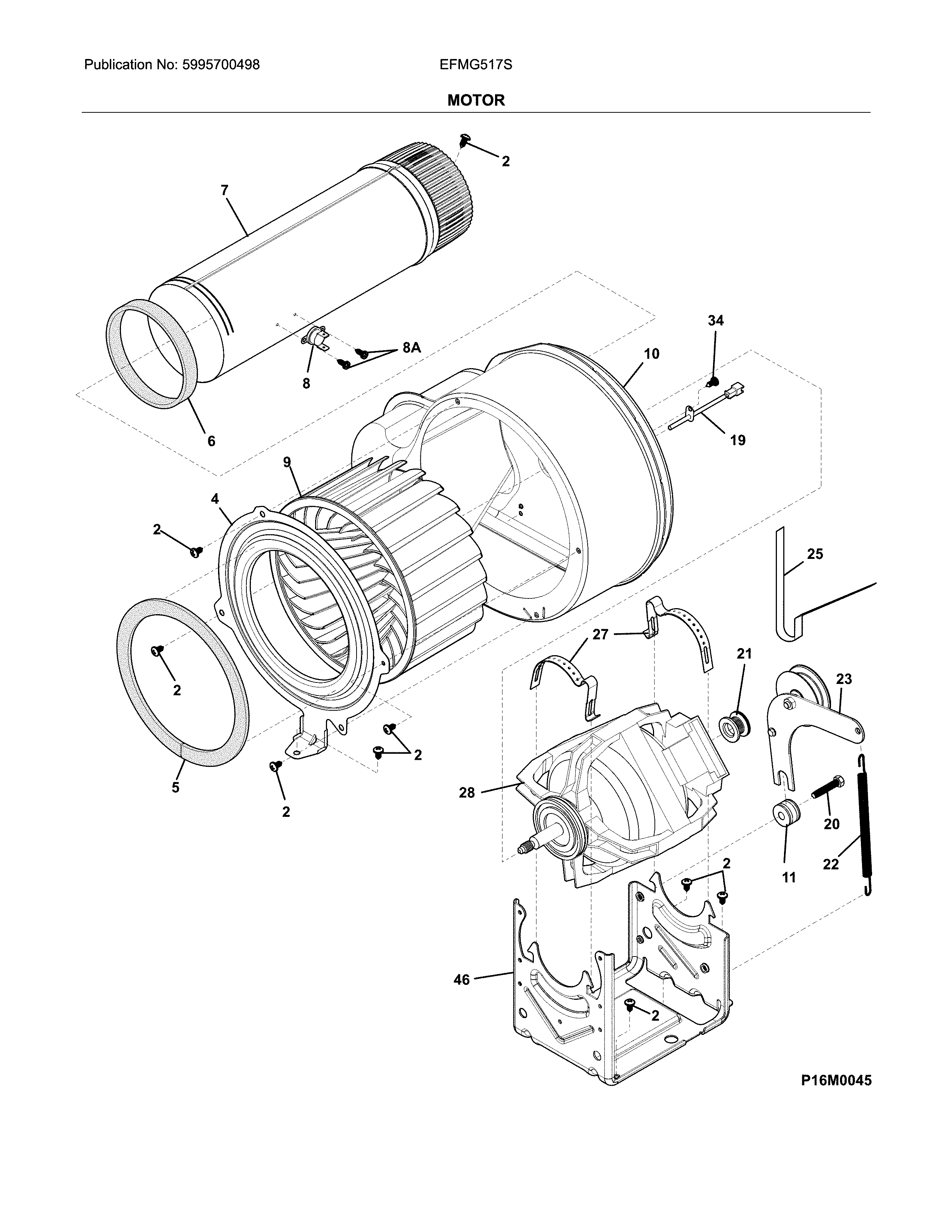

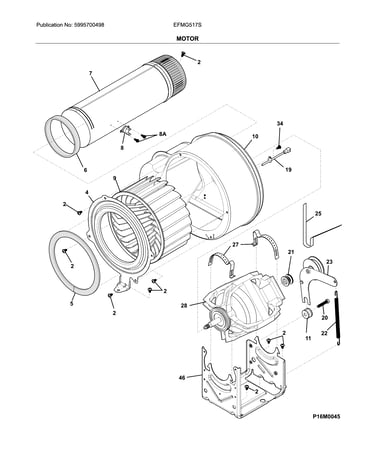

Drum not turning, burning rubber smell	Drive system	White-westinghouse dryer drum belt 134719300

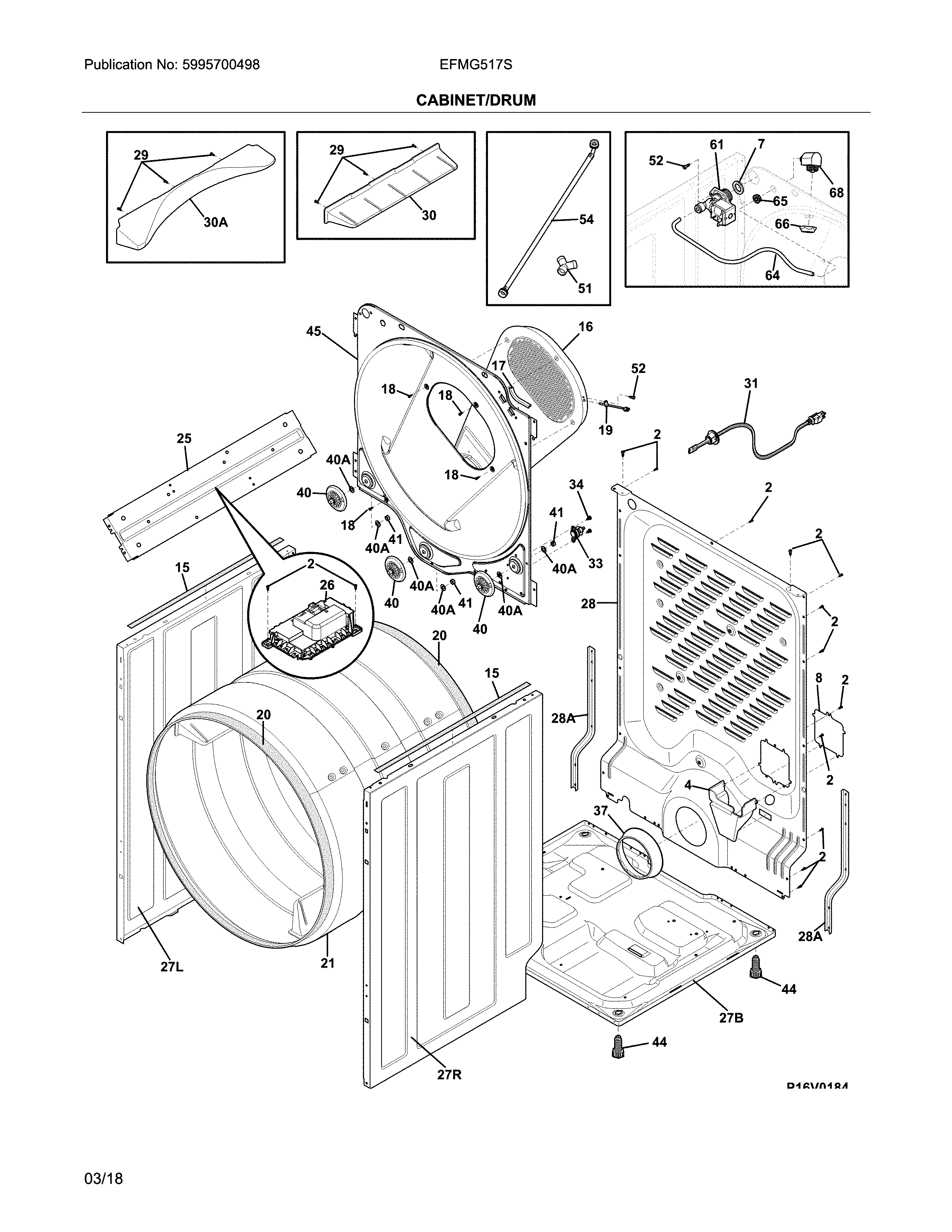

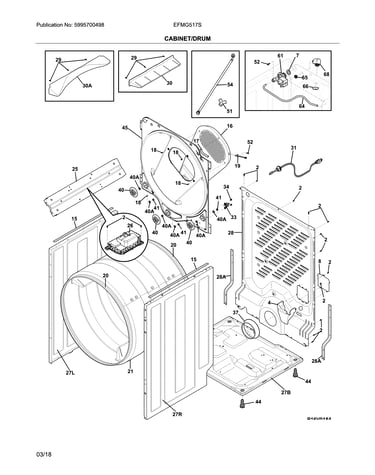

Thumping or rumbling	Drum support	Dryer drum support roller 5304523152

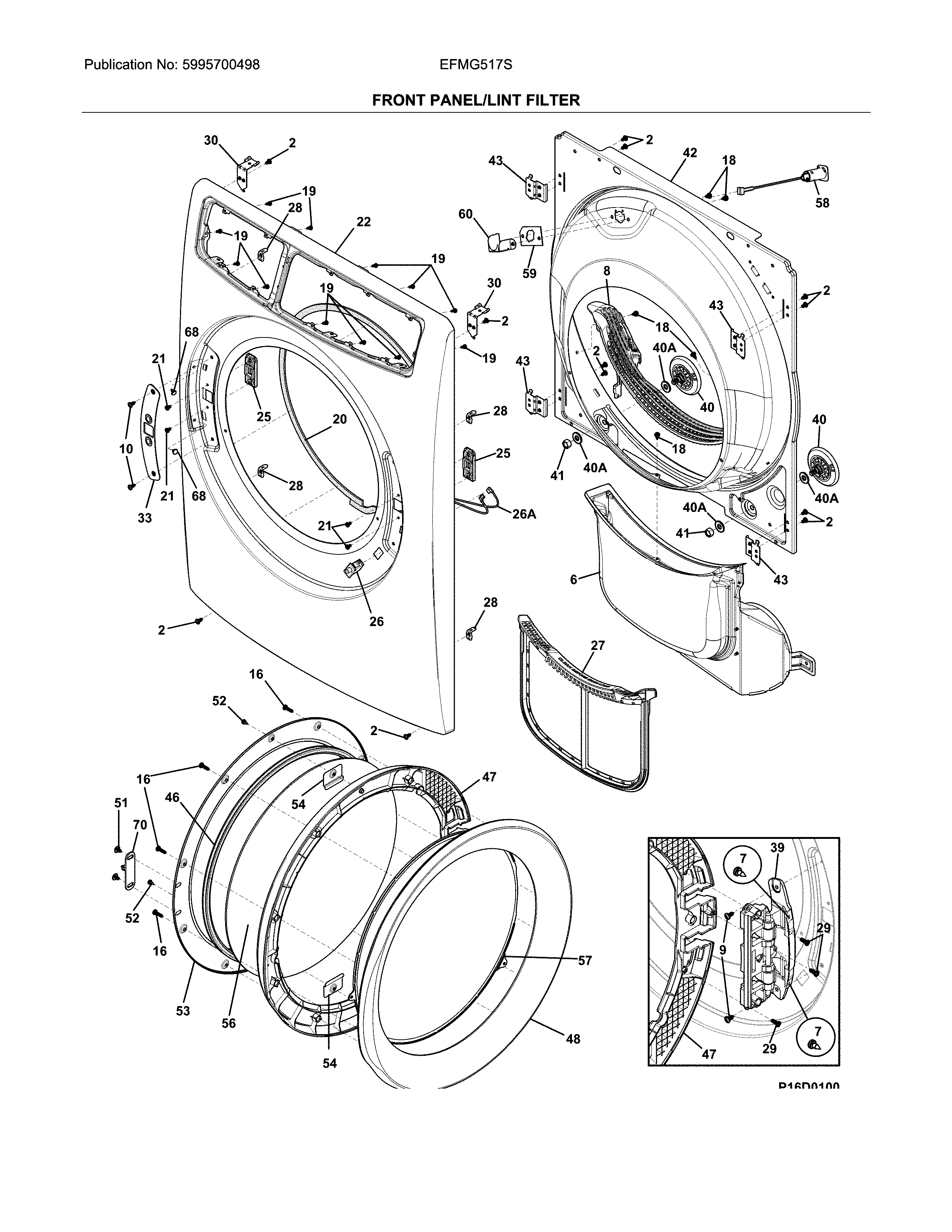

Poor airflow, longer dry times	Lint path	Dryer lint screen 5304511512

Why it matters

A dryer that is running hot or moving air poorly can take longer to dry, stress the heating system, and wear out moving components faster. Good airflow maintenance is the simplest way to protect performance and extend the life of your Electrolux dryer.

Last updated: January 2026

When an Electrolux EFMG517SIW0 dryer takes a long time to dry, the most common cause is restricted airflow (lint buildup, crushed vent, clogged hood). Less often, a weak heating system or a failing airflow component can reduce heat transfer and extend cycle time. See the EFMG517SIW0 use & care guide for cleaning guidance and cycle tips.

Quick checks we recommend first

• Clean the lint filter before every load; wash off any waxy film from dryer sheets with warm, soapy water and dry it fully.
• Confirm the outside vent hood opens freely while the dryer runs.
• Check for a crushed, kinked, or overly long vent run; rigid or semi-rigid metal venting performs best.
• Avoid overloading; the drum should typically be about 1/3 to 1/2 full for good tumbling.
• Try a timed dry cycle to compare performance (helps separate sensor-related issues from airflow/heat issues).

Parts that can cause slow drying on this model

If airflow is still weak after cleaning the venting, these model-compatible parts are common suspects:

• Dryer lint screen 5304511512: a damaged or warped screen can let lint bypass and clog internal ducts.
• Dryer blower wheel 5304513609: a cracked wheel or lint-packed fins reduce airflow.
• Kenmore dryer thermistor 134711300: if temperature sensing is inaccurate, the dryer may not heat or cycle correctly.

What “normal” vs “too long” looks like

Drying time varies by fabric, load size, and venting, but this table helps you judge symptoms:

What you notice	Most likely cause	What to do next
Clothes still damp, dryer feels very hot	Vent restriction	Clean/shorten venting; verify hood opens
Dryer runs, heat seems weak	Heating system issue (gas ignition/valve, thermostat, sensor)	Check heat output; test components
Auto cycles end early, load still damp	Moisture sensor/low load size	Use Time Dry; clean sensor bars
Cycles take much longer in humid room	High humidity/poor makeup air	Improve ventilation; consider dehumidifier

Why it matters

Long dry times usually mean poor airflow, which wastes energy and can overheat internal components. Restoring proper venting and airflow helps the EFMG517SIW0 dry faster, run cooler, and reduce wear on parts like the blower and thermostats.

Last updated: January 2026

To reset an Electrolux dryer and clear an error code on model EFMG517SIW0, we recommend a simple power reset first (turn the dryer off, then restore power). If the code returns, the reset did not fix the cause, so you will need to correct the underlying issue (often airflow, door/controls, or a sensor condition). See the reset steps in the EFMG517SIW0 use & care manual.

Quick reset steps for EFMG517SIW0

1. Press Power to turn the dryer off.
2. Unplug the dryer (or switch the breaker off).
3. Wait at least 60 seconds.
4. Restore power.
5. Press Power, select a cycle, and press Start.

If the display shows “dn” (demo mode behavior), the manual notes you can restore factory default settings: press Power, wait about 10 seconds, then press and hold Dry level + Options together until you hear the signal.

If the error code comes back: what to check first

Most recurring dryer codes are telling you a condition is still present. We recommend checking these common causes before replacing parts:

• Clean the lint screen and confirm strong airflow at the outside vent hood
• Check the exhaust duct for kinks, crushing, or lint buildup (rigid or semi-rigid metal venting is best)
• Make sure the door closes fully and the latch engages
• Avoid overloading; heavy loads can trigger moisture-sensing and airflow complaints
• Run a Time Dry cycle to see if the issue is cycle-specific

For airflow-related problems, our dryer takes a long time to dry guide is a good next step.

When a part is likely involved

If the dryer won’t start, stops unexpectedly, or the code points to a door/starting issue, the door switch is a common suspect. For this model, the compatible replacement is the universal/multiflex (frigidaire) dryer door switch 134813600.

Symptom after reset	Most likely area	Typical next step
Code returns immediately	Control or sensor input	Recheck connections, then diagnose per manual
Long dry times, hot cabinet	Venting/airflow	Clean venting and lint path
Won’t start, door seems “loose”	Door switch/latch	Inspect door switch and latch alignment

Why it matters

Resetting clears the display, but it does not correct unsafe or performance problems. On a gas dryer like the EFMG517SIW0, restricted venting can cause overheating, shutdowns, and poor drying, so fixing airflow issues is just as important as clearing the code.

Last updated: January 2026
