KitchenAid KFGC558JSS00 free standing gas range Parts

On the KitchenAid KFGC558JSS00 gas range, we clean the igniter area by turning all knobs OFF, letting the cooktop cool, removing the burner cap, and wiping the gas opening and igniter area with a damp cloth; then reinstall the cap and test ignition.

Safe prep before cleaning

• Turn all cooktop knobs to OFF.
• Let the cooktop fully cool.
• Avoid harsh cleaners; use mild soap and water first.
• Do not use oven cleaner, bleach, or rust remover on the cooktop.
• Remove cookware and wipe up loose crumbs before lifting caps.

Steps to clean the igniter area (sealed surface burner)

1. Lift off the burner grate (if needed for access).
2. Remove the burner cap.
3. Wipe the gas opening and the area around the igniter with a damp cloth.
4. If burner ports are clogged, clear them with a straight pin (do not enlarge the ports).
5. Reinstall the burner cap so it sits flat and centered.
6. Turn the burner on and visually confirm the flame lights.

Quick checks if the burner still will not light

What you notice	Most common cause	What we do next
No clicking sound	Power issue or knob not fully pressed	Check breaker/fuse; press knob fully down
Clicking but no flame	Cap misaligned or ports clogged	Re-seat cap; clean ports with a pin
Clicking continues after lighting	Draft or spill triggered reignition	Dry the area; reduce drafts

Parts that commonly come up with ignition problems

If cleaning does not restore reliable lighting, a failed ignition component is possible. For this model, one related part is the electrode, bake W11355922. Order parts from the list for KFGC558JSS00, or search by model on Sears PartsDirect.

Why it matters

A clean, properly seated burner cap and clear ports help the electronic ignition spark light the gas quickly. Misalignment or debris can cause delayed ignition, repeated clicking, or uneven flames.

For model-specific cleaning cautions and burner diagrams, follow the KFGC558JSS00 owner's manual.

Last updated: February 2026

On the KitchenAid KFGC558JSS00 gas range, signs of a faulty or misadjusted part include burners that will not light, continuous clicking after ignition, uneven or yellow flames, popping noises, and poor heating or cooking results. Follow the safety steps in the installation guide immediately if you smell gas.

Safety first (gas smell or suspected leak)

Treat a gas smell as urgent:

• Do not try to light any burner or the oven.
• Do not touch electrical switches.
• Do not use a phone inside the building.
• Move to a safe location and follow the emergency steps in the installation guide.

Common symptoms and what they usually mean

• Burner will not operate: first-use air in the gas line, knob not set correctly, or clogged burner ports.
• Sparks but won’t light: burner cap not aligned; stop using that burner if sparking continues.
• Uneven, yellow, or noisy flames: clogged ports, cap not seated, or an improper propane conversion.
• Popping noises: burner is wet and needs to dry.
• Nothing operates: a tripped breaker or blown household fuse.

Quick checks before replacing parts

• Push in the knob before turning to a setting.
• Reseat the burner cap so it sits flat and centered.
• Clean clogged burner ports with a straight pin (do not enlarge the ports).
• Keep flame under the pan; it should not extend beyond the cookware edge.

Symptom	Best next step
Yellow/uneven flames	Clean ports; reseat cap
Clicking won’t stop	Reseat cap; discontinue use if it continues
Burner won’t light	Release air by turning on a burner; clean ports

Parts that may be involved

If diagnosis points to a failed component, a common wear item is the oven light; see wall oven light bulb WPW10169757.

Why it matters

Abnormal flames, repeated sparking, and gas odor can signal unsafe operation; clogged ports and misaligned caps also cause uneven heating and poor cooking performance.

You can order replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

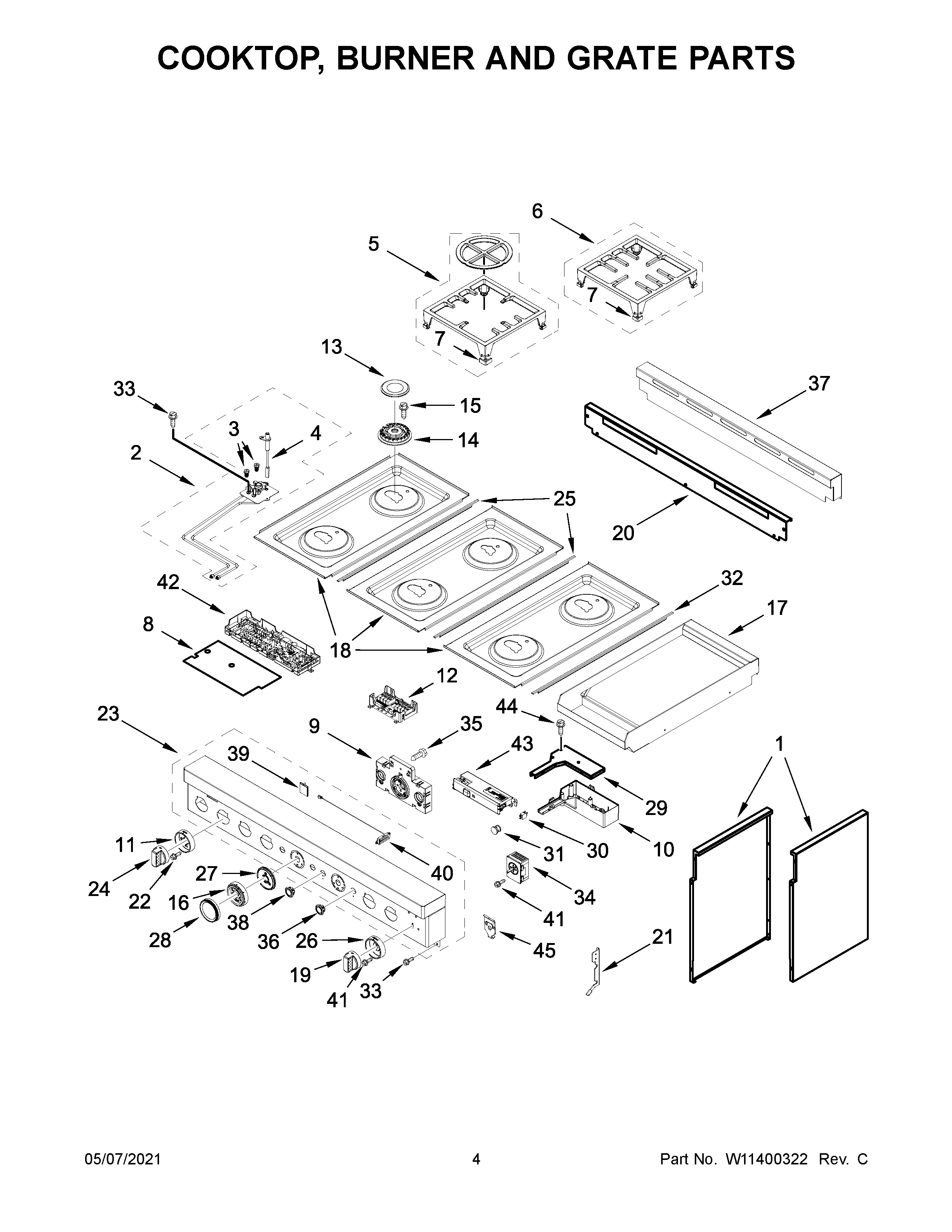

On a KitchenAid KFGC558JSS00 gas range, the main “gas stove” parts are the cooktop burner system (burner bases, burner caps, grates, and igniters), the control knobs/console, and the oven system (racks, burner/ignition components, door, and oven light). For model-specific names and diagrams, use the KFGC558JSS00 owner's manual and the parts list on this page, or search by model on Sears PartsDirect.

Common gas range parts (what they do)

• Surface burners: mix gas and air to create the flame on the cooktop
• Burner caps and grates: spread flame properly and support cookware
• Ignition system (spark igniters/electrodes): creates the spark to light gas
• Gas valves and regulator: control and stabilize gas flow to burners
• Control knobs and console: let you select burner flame level and oven settings
• Oven cavity parts: racks, door glass, and interior surfaces that handle heat and spills

Parts you will commonly replace on this model

These are examples of real replacement parts available for KFGC558JSS00:

• Electrode, bake W11355922 (helps ignite the bake burner)
• Wall oven light bulb WPW10169757 (oven light)
• Rack, oven (sliding) W11496977 (rack hardware/wear)
• Motorized latch W11029221 (door latch mechanism on models with locking features)
• Range griddle grease tray W10276497 (captures grease from the griddle)

Quick “name mapping” table

What customers call it	What it is usually called	Where it is
Burner	Surface burner (base/head)	Cooktop
Spark igniter	Electrode/igniter	At each burner and in oven
Stove top grate	Burner grate	Cooktop
Oven light	Oven light bulb	Oven cavity
Griddle tray	Griddle grease tray	Under/near griddle area

Why it matters

Using the correct part name (and matching it to your KFGC558JSS00 diagrams) prevents ordering the wrong item and helps you troubleshoot faster, especially for ignition issues, uneven flames, and oven heating problems.

Last updated: February 2026
