Model # 2681044281 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 2681044281 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

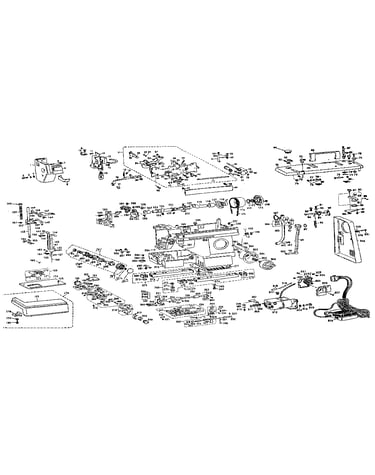

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 296 parts  |

Screw 131337001
#288

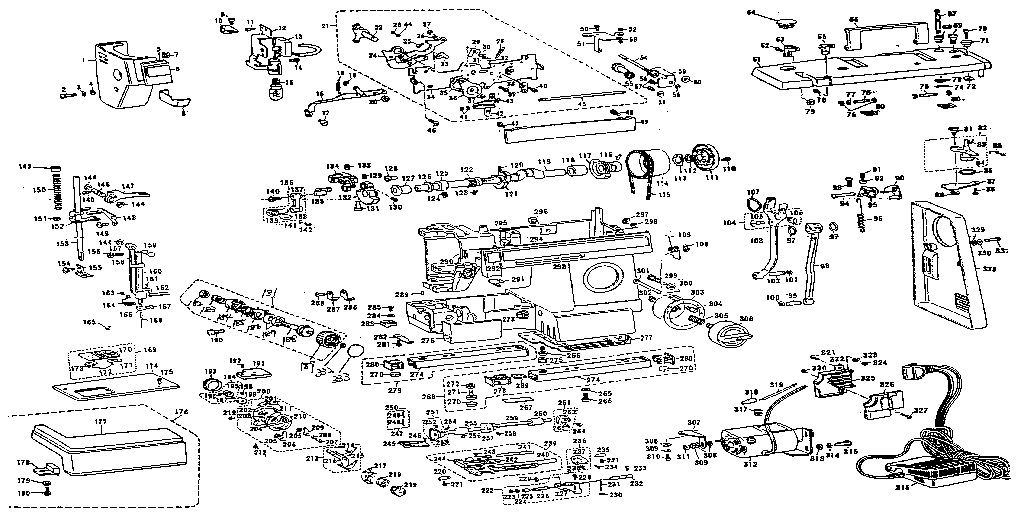

Unit parts diagram

Screw

Part #131337001

The manufacturer no longer makes this part, and there's no substitute part

Bed Arm X52570252
#295

Unit parts diagram

Bed arm

Part #X52570252

The manufacturer no longer makes this part, and there's no substitute part

Nut 021680202
Nut

Part #021680202

The manufacturer no longer makes this part, and there's no substitute part

Washer 188440001
#126

Unit parts diagram

Washer

Part #188440001

The manufacturer no longer makes this part, and there's no substitute part

Washer 117851001
#77

Unit parts diagram

Washer

Part #117851001

The manufacturer no longer makes this part, and there's no substitute part

Screw X50065051
#190

Unit parts diagram

Screw

Part #X50065051

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly X53511051
#134

Unit parts diagram

Lever assembly

Part #X53511051

The manufacturer no longer makes this part, and there's no substitute part

Washer 122977001
#205

Unit parts diagram

Washer

Part #122977001

The manufacturer no longer makes this part, and there's no substitute part

Crank Shaft 129625001
#262

Unit parts diagram

Crank shaft

Part #129625001

The manufacturer no longer makes this part, and there's no substitute part

Feed Bar 130872000
#244

Unit parts diagram

Feed bar

Part #130872000

The manufacturer no longer makes this part, and there's no substitute part
