Model # 14C11Y-90001 Official Emerson electronic air cleaner

Here are the diagrams and repair parts for Official Emerson 14C11Y-90001 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Circuit Board F859-0269
#16

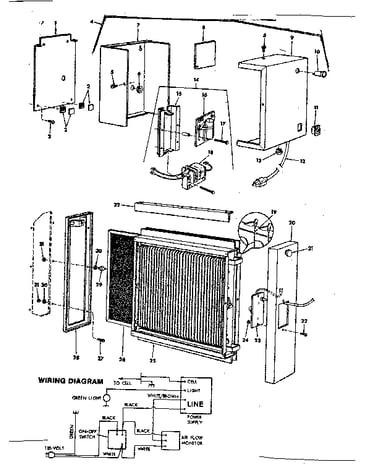

Replacement parts diagram

Circuit board

Part #F859-0269

The manufacturer no longer makes this part, and there's no substitute part

Power Supply F858-0598
#14

Replacement parts diagram

Power supply

Part #F858-0598

The manufacturer no longer makes this part, and there's no substitute part

Screw F868-0038
Screw

Part #F868-0038

The manufacturer no longer makes this part, and there's no substitute part

Cover F820-0230
#20C

Replacement parts diagram

Cover

Part #F820-0230

The manufacturer no longer makes this part, and there's no substitute part

Stud Guide F875-0024
#29

Replacement parts diagram

Stud guide

Part #F875-0024

The manufacturer no longer makes this part, and there's no substitute part

Collector Cell F811-0296
#25C

Replacement parts diagram

Collector cell

Part #F811-0296

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer STD551210
#30

Replacement parts diagram

Lock washer

Part #STD551210

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter F825-0297
#26C

Replacement parts diagram

Pre-filter

Part #F825-0297

The manufacturer no longer makes this part, and there's no substitute part

Cord F843-0967
#12

Replacement parts diagram

Cord

Part #F843-0967

The manufacturer no longer makes this part, and there's no substitute part

Collector Cell F811-0294
#25D

Replacement parts diagram

Collector cell

Part #F811-0294

The manufacturer no longer makes this part, and there's no substitute part
