The most common issues we see on Kenmore refrigerators like model 25354669402 are cooling problems, water leaks, ice maker or dispenser trouble, and unusual noises. Many of these come down to airflow restrictions (dirty condenser coils), door seal leaks, or defrost system problems; our 25354669402 owner's manual covers key operating and care checks.

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan issues, or a defrost problem causing frost buildup
• Runs too long: doors opened often, control set too cold, dirty condenser, or a worn door gasket
• Water leaking or puddles: clogged defrost drain, loose water line, or a door not sealing
• Ice maker or dispenser not working: restricted water supply, frozen fill tube, clogged filter, or dispenser mechanism icing
• Noises (buzzing, rattling, clicking): fan blade hitting ice, condenser fan area debris, or normal defrost cycling

1. Confirm the unit is powered and controls are not set to OFF (some controls use “0” for off).
2. Clean condenser coils and make sure there is good airflow around the cabinet.
3. Check both doors close fully and inspect gaskets for gaps, tears, or hardened sections.
4. Look for frost buildup on the freezer back wall (often points to a defrost issue).
5. If water or ice is slow, replace the filter and flush the system.

These problems usually get worse over time: poor airflow and bad seals make the compressor run longer, temperatures drift, and ice buildup can block vents and fans. Staying on top of cleaning, door sealing, and filter changes helps prevent repeat failures.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 25354669402, a “not cooling” problem is most often caused by a control set to OFF (“0”), a normal defrost cycle (about 30 minutes), dirty condenser coils, or doors not sealing. Start with power and control checks, then airflow and cleaning. See the 25354669402 owner's manual.

• Make sure the freezer control is not set to “0” (OFF).
• Confirm the plug is fully seated in the outlet; check the house breaker or fuse.
• Wait 30 minutes if the unit just stopped; it may be in a normal defrost cycle.
• Verify doors close fully and nothing is holding them open.
• Set temperatures colder and allow 24 hours for temperatures to stabilize.

If the basics look good, these are common reasons a side-by-side stops cooling well:

• Dirty condenser: heat cannot dissipate, so cooling performance drops.
• Warm air leaks: worn or misfit door gaskets let humidity and heat in.
• Airflow blockage: packed food can block vents and prevent cold air circulation.
• Fan or defrost issues: frost buildup or a failed fan can stop airflow across the evaporator.

A refrigerator that is not cooling can be as simple as a control set to OFF, but ongoing warm temperatures can lead to food spoilage and extra compressor run time. Addressing airflow, door sealing, and condenser cleaning restores normal cooling and efficiency.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; with consistent maintenance (clean airflow, good door sealing, and timely repairs), many units can reach the upper end of that range. For your Kenmore 25354669402 side-by-side, following the care and operating guidance in the 25354669402 owner's manual helps maximize longevity.

A refrigerator’s lifespan is driven less by the brand name on the badge and more by operating conditions and maintenance.

• Condenser airflow: keeping the condenser area clear reduces compressor run time.
• Door seal condition: worn gaskets cause warm air leaks and longer run cycles.
• Defrost performance: defrost issues can lead to frost buildup and poor cooling.
• Water and ice use: clogged filters and low water flow can strain dispenser and ice maker components.
• Power quality: stable voltage and proper grounding help protect controls and motors.

We recommend these habits for Kenmore side-by-side refrigerators like model 25354669402:

• Vacuum dust from the condenser area regularly.
• Keep doors closing squarely; avoid overloading door bins.
• Inspect and clean door gaskets; replace if torn or permanently deformed.
• Replace the water filter on schedule (many systems perform best around every 6 to 9 months).
• Avoid chipping ice with sharp tools in the bin; it can damage dispenser parts.

If you’re maintaining water quality and flow, the genuine Kenmore refrigerator water filter WF2CB is a common replacement item for this model family.

A refrigerator that runs longer than necessary (airflow restrictions, leaky gaskets, clogged filters) puts extra hours on the compressor and fans. Reducing run time is one of the most effective ways to extend overall appliance life.

Last updated: February 2026

The Kenmore side-by-side refrigerator model 25354669402 is typically in the mid-20 cubic foot class (about 25 to 26 cu. ft.). For the exact capacity for your specific configuration, we recommend confirming it in the 25354669402 owner's manual.

Capacity can vary slightly by configuration, so the most reliable way is to verify it using model-specific documentation and labeling.

• Check the specifications section in the 25354669402 owner's manual
• Look for a rating label inside the fresh food compartment (often on a side wall)
• If your unit has an ice and water system, note that usable space can feel smaller than total capacity
• Compare your shelf and bin layout to the “features at a glance” pages in the manual

Some appliance model numbers include internal codes, but they are not a dependable way to calculate cubic feet across all Kenmore 253-series refrigerators.

Knowing the correct cubic feet helps when you are comparing replacement refrigerators, planning kitchen fit, and estimating storage space for groceries. It also helps when ordering bins, shelves, and door storage parts that match your interior layout.

Last updated: February 2026

You can find the model number for your Kenmore refrigerator on the appliance’s rating label; on model 25354669402, it’s typically inside the fresh food (refrigerator) compartment on a side wall near the crisper area, or on a label behind the lower toe grille (kickplate). Use the exact model number when ordering parts or checking specs in the 25354669402 owner's manual.

• Inside the refrigerator compartment on the side wall (often near or behind the crisper drawers)
• Behind the toe grille (kickplate) at the bottom front
• On the cabinet frame near the door hinge area (open the door and look along the edge)
• On the back exterior panel (less common, but worth a quick look)

Record the information exactly as shown on the label:

• Model number (example: 25354669402)
• Serial number (helps confirm production run)
• Electrical rating (volts/amps) if you’re troubleshooting power issues
• Manufacturing date code if listed

The model number is what ties your refrigerator to the correct diagrams, parts, and instructions. For example, the correct water filter for many 253-series Kenmore side-by-side units is the genuine Kenmore refrigerator water filter WF2CB, and using the model number helps prevent ordering the wrong cartridge.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 25354669402, the model number is printed on the serial plate located inside the refrigerator (fresh food) compartment. Open the refrigerator door and look along the interior walls near the front for the rating label.

• Open the fresh food (refrigerator) door, not the freezer door
• Look for a serial plate/rating label inside the compartment
• Check the upper side walls and the front frame area near the door opening
• Use a flashlight; the print can be small or lightly colored
• Write down both the model number and serial number for parts lookup and service

The label typically lists both identifiers together.

We use the model number to match the correct Kenmore parts (like a water filter, door gasket, or temperature sensor) to your exact refrigerator configuration. Even small model differences can change which parts fit.

For the exact label location notes and how Sears recommends recording the information, use the 25354669402 owner's manual.

Last updated: February 2026

On Kenmore model 25354669402, the ice and water filter is located inside the fresh food (refrigerator) compartment, in the upper right front corner. You access it from the front of the housing, not from the back of the unit.

• Open the refrigerator (fresh food) door, not the freezer door
• Look at the top front area on the right-hand side
• Find the filter housing and release button next to the cartridge
• Pull the cartridge straight out after releasing it
• Keep the dispenser off while you swap the filter (no need to shut off the water supply)

Most 253-series Kenmore side-by-side units use a front-access cartridge that sits in a small housing. The housing typically has a release button to the right of the filter.

• Replace the cartridge about every 6 to 9 months for best water quality
• Replace sooner if water flow slows or taste/odor returns
• If the refrigerator sat unused during a move, replace the filter before using the dispenser
• Turn the ice maker off during the swap, then turn it back on after installation

For the correct replacement cartridge used with this model’s system, use genuine Kenmore refrigerator water filter WF2CB and follow the steps in the 25354669402 owner's manual.

Using the correct filter location and procedure helps prevent leaks, protects the dispenser system, and keeps ice and drinking water tasting clean while maintaining normal water flow.

Last updated: February 2026

Kenmore model 25354669402 is a Kenmore 253-prefix refrigerator, which is a model series built for Kenmore by Frigidaire (Electrolux). Kenmore is the brand name; the actual manufacturing is done by the supplier tied to the model prefix.

We recommend verifying the model and prefix directly from the rating label, then matching it to the documentation.

• Open the fresh food door and look for the model/serial tag on the cabinet wall
• Confirm the model reads 25354669402 (the 253 prefix is the key)
• Compare the model number to the 25354669402 owner's manual
• If you still have the original paperwork, check the model number there as well

Kenmore uses model prefixes to identify the supplier/manufacturer behind the Kenmore badge.

Knowing the supplier platform helps you avoid look-alike parts that do not fit your exact side-by-side refrigerator.

• Parts can vary by supplier even when the refrigerator looks similar
• The correct model number ensures the right fit for items like a door gasket, sensor, or fan blade
• For water filtration, this model family commonly uses the Kenmore replacement cartridge 9911, sold as genuine Kenmore refrigerator water filter WF2CB

Last updated: February 2026

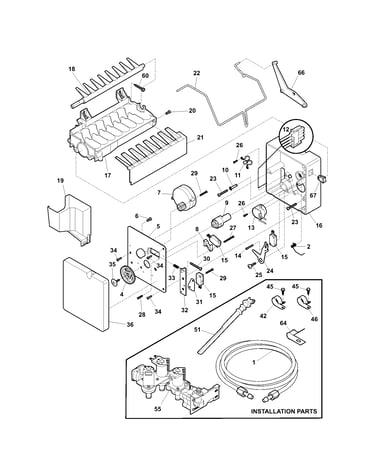

If the ice maker in your Kenmore 25354669402 side-by-side refrigerator isn’t making ice, the most common causes are the ice maker switch being OFF, the household water valve being closed or restricted, the freezer not being cold enough, or a clogged ice and water filter. Use the 25354669402 owner's manual to confirm the exact checks for your control style.

• Make sure the ice maker power switch is set to ON.
• Confirm the freezer temperature is cold enough for ice production (ice makers typically need about 0°F).
• Verify the household water supply valve is fully open.
• Dispense water at the door; slow or no water points to a supply or filter restriction.
• Check the shutoff arm (wire signal arm) and make sure nothing is holding it down.
• Break up clumped cubes in the bin by removing and shaking the container (do not use sharp tools).

Your refrigerator uses an ice and water filter system that feeds both the ice maker and the dispenser. If the dispenser flow is slow, the filter is often the restriction.

• Replace the filter on schedule (many homes need it about every 6 to 9 months).
• After replacing, flush water through the dispenser to clear air and carbon fines.
• If you need the correct replacement, use the genuine Kenmore refrigerator water filter WF2CB.

An ice maker depends on three things working together: cold freezer temperature, steady water pressure, and an unobstructed water path (valve, tubing, filter). Fixing the restriction or temperature issue usually restores ice production without replacing the entire ice maker.
