Model #Z42PX2D-UCAUSLZAK Zenith 42" plasma television

Here are the diagrams and repair parts for Zenith Z42PX2D-UCAUSLZAK 42" plasma television, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 53 parts

Jack

#NI

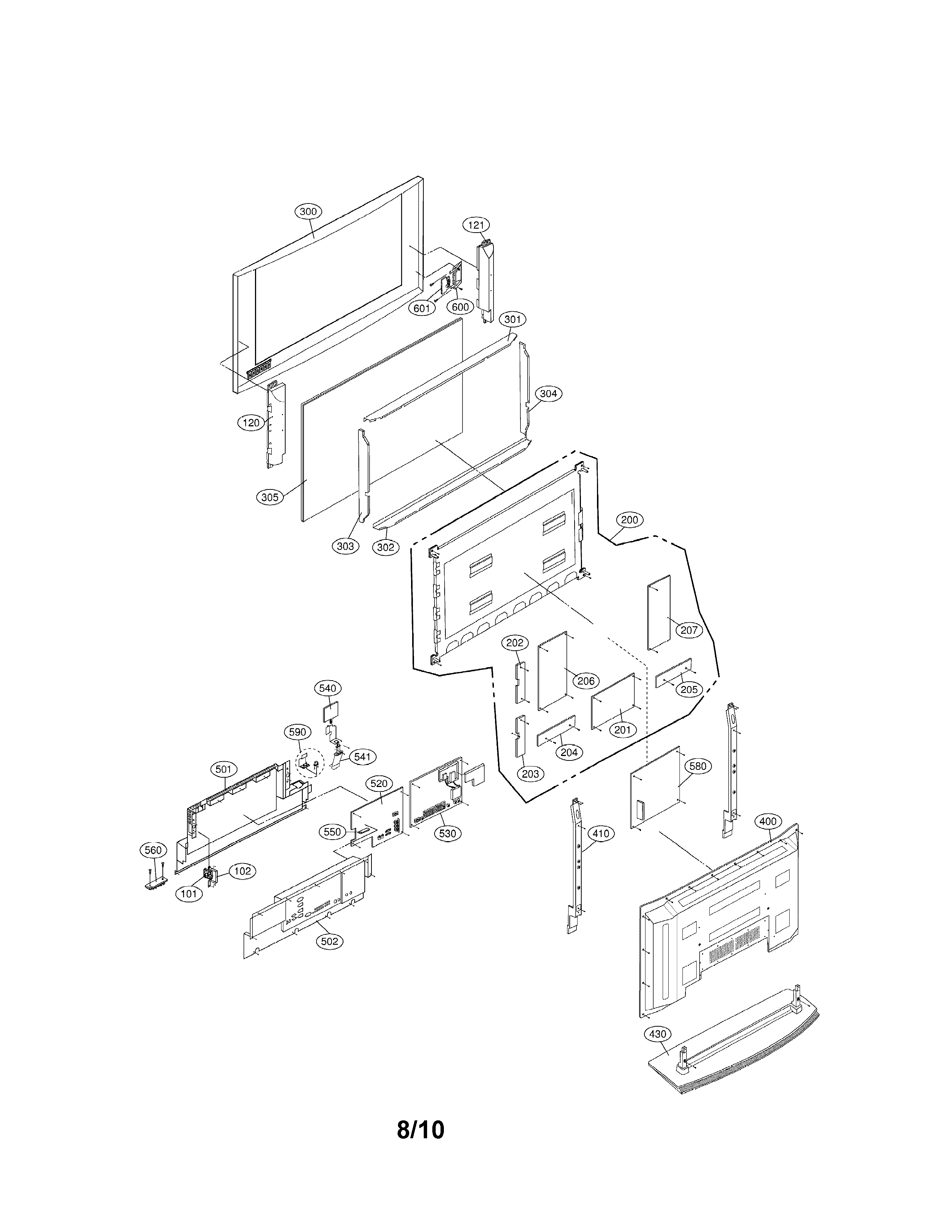

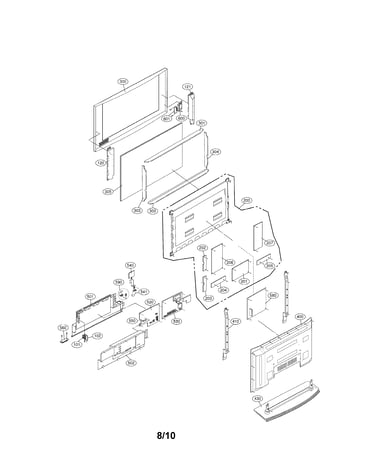

Tv pdp 42 Diagram

Jack

Part #6612B00015B
$10.49

In Stock

Tuner

#NI

Tv pdp 42 Diagram

Tuner

Part #6700NC0001B
$17.99

In Stock

PCB Assembly

#201

Tv pdp 42 Diagram

Pcb assembly

Part #6871QCH053A
$207.99

In Stock

Connector

#NI

Tv pdp 42 Diagram

Connector

Part #6612J00042G
$12.49

In Stock

PCB Assembly

#203

Tv pdp 42 Diagram

Pcb assembly

Part #6871QDH085A
$95.99

In Stock

PCB Assembly

#540

Tv pdp 42 Diagram

Pcb assembly

Part #6871VSMH11A
$10.49

In Stock

Adapter,rf

#NI

Tv pdp 42 Diagram

Adapter,rf

Part #6634D00010B
$47.49

In Stock

PCB Assembly

#204

Tv pdp 42 Diagram

Pcb assembly

Part #6871QLH047A
$75.49

In Stock

Plasma Display

#200

Tv pdp 42 Diagram

Plasma display

Part #6348Q-E080Q
$467.59

In Stock

PCB Assembly

#202

Tv pdp 42 Diagram

Pcb assembly

Part #6871QDH084A
$95.99

In Stock
