Amana AMV1150VAW4 1.5 cubic foot microwave Parts

Name: Amana AMV1150VAW4 Parts | Diagrams, Manuals, Installation guides | Sears PartsDirect
Brand: Amana
SKU: AMV1150VAW4
Availability: InStock

Here are the diagrams and repair parts for Amana AMV1150VAW4 1.5 cubic foot microwave, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

SELECT DIAGRAM

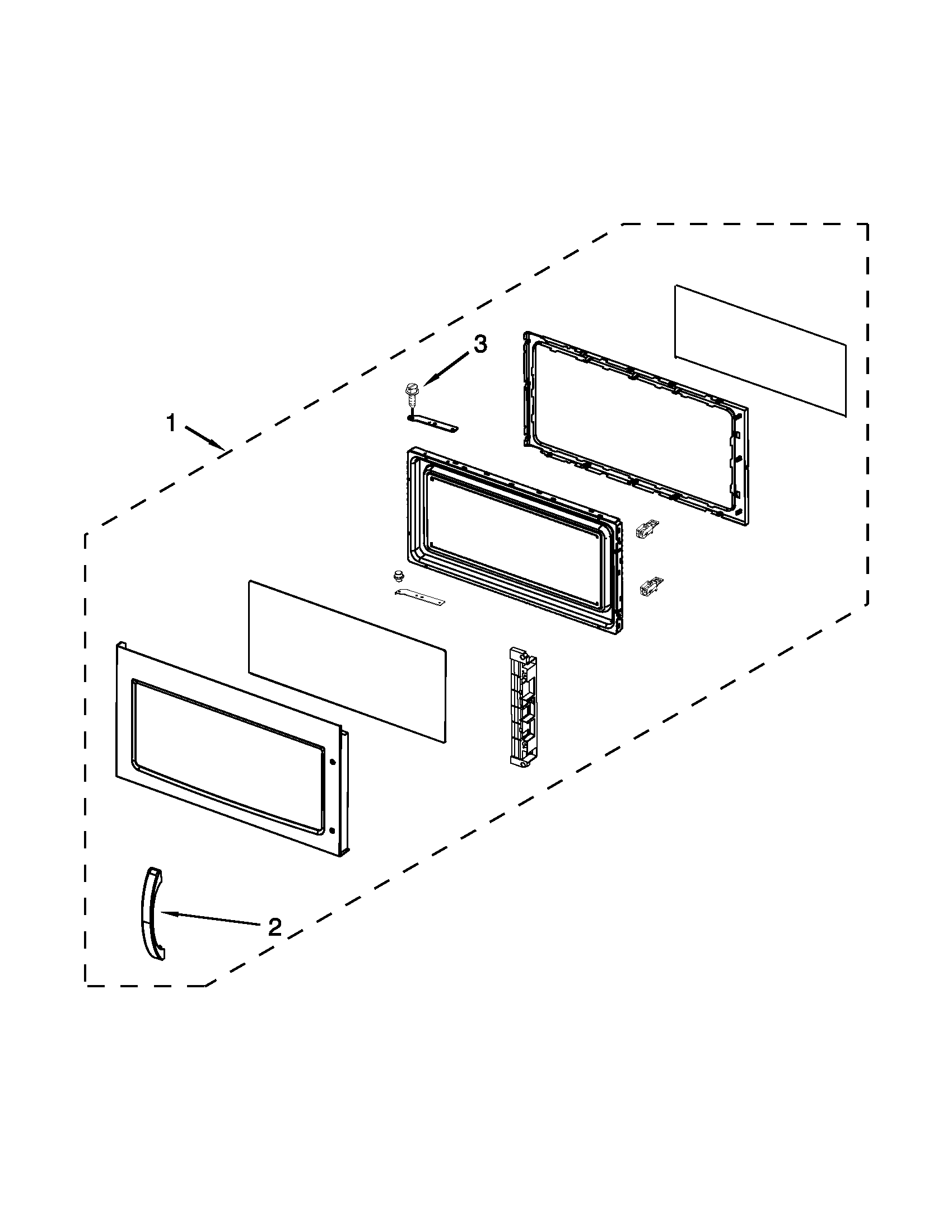

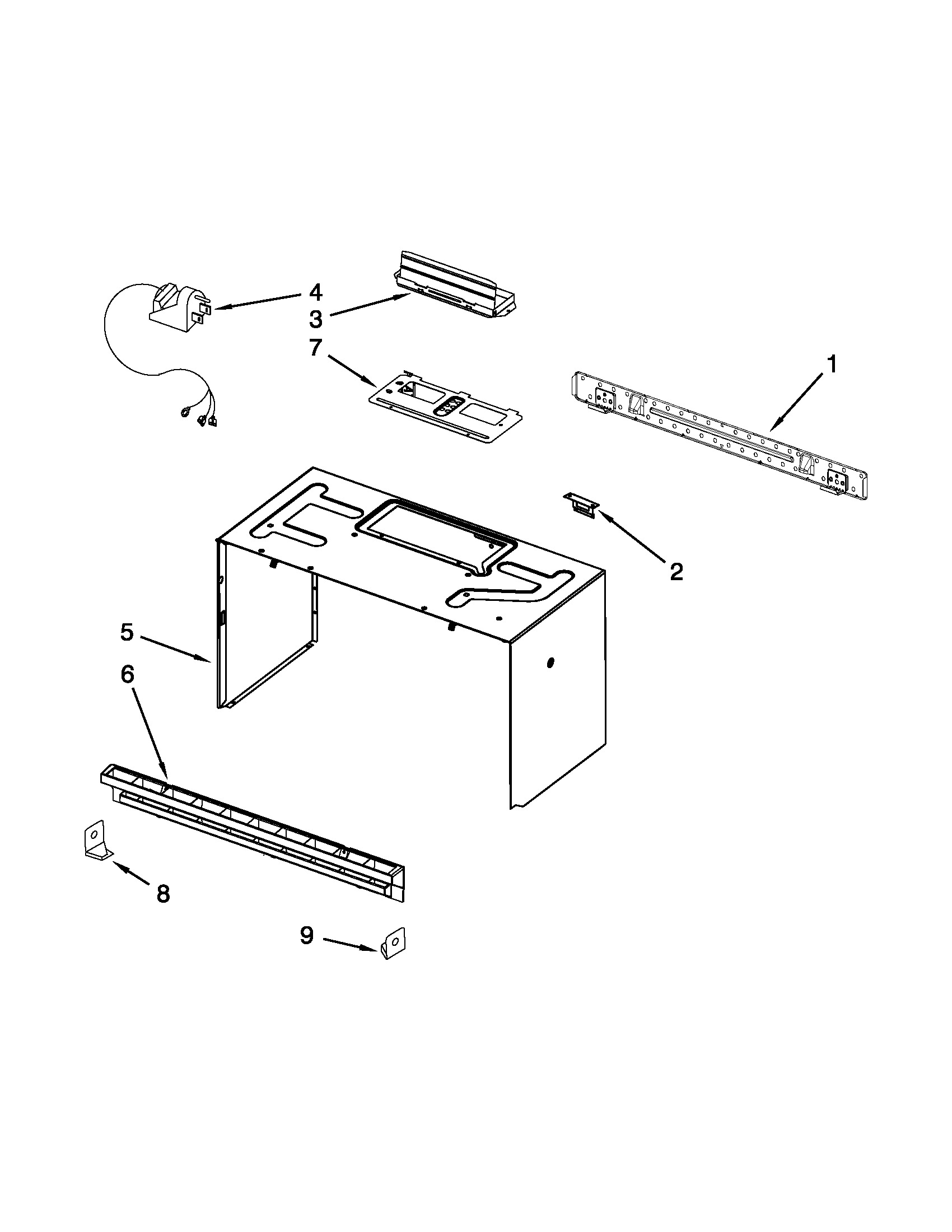

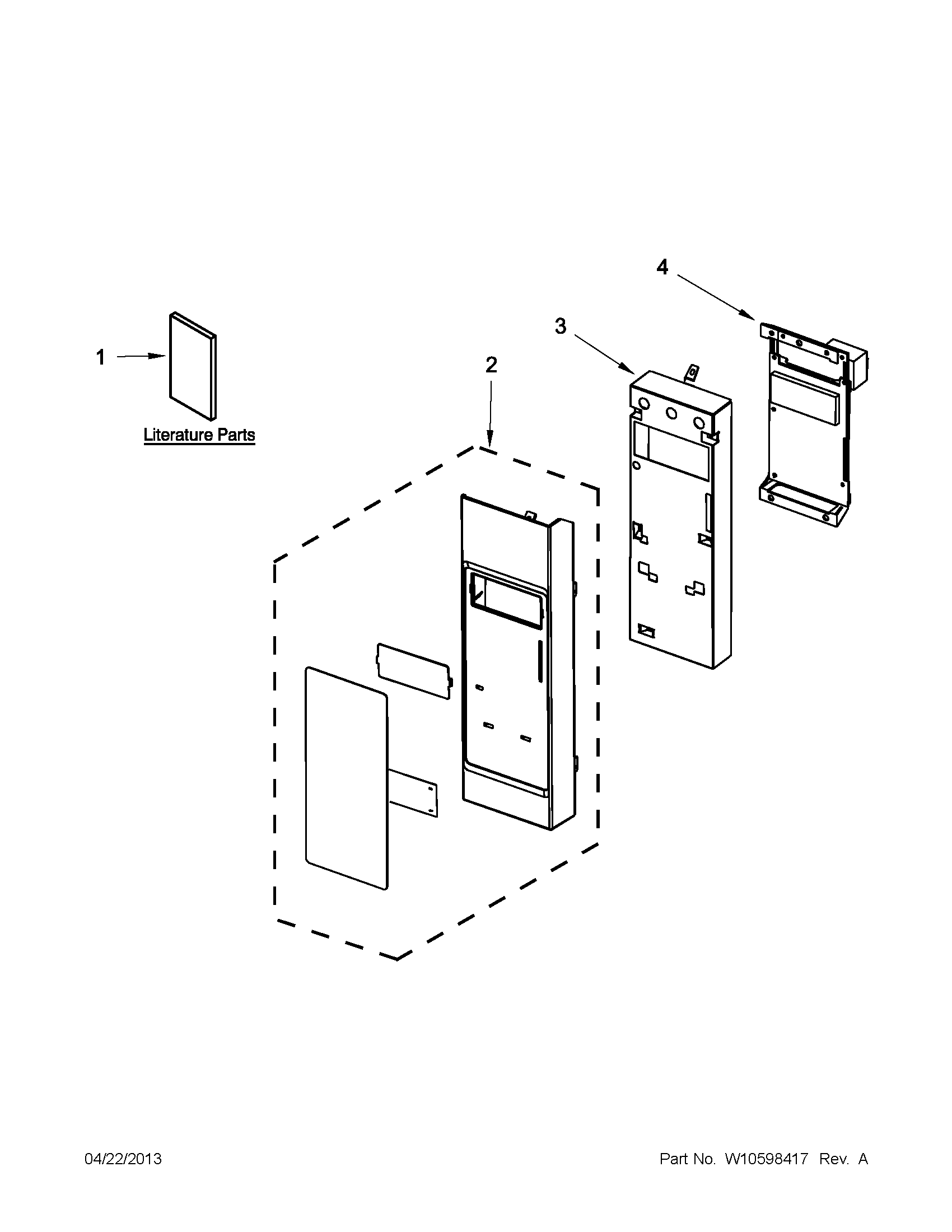

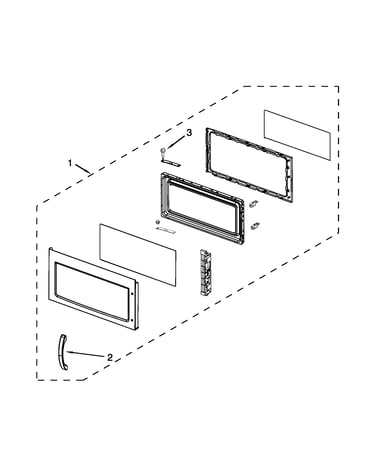

Browse Parts for AMV1150VAW4 1.5 Cubic Foot Microwave

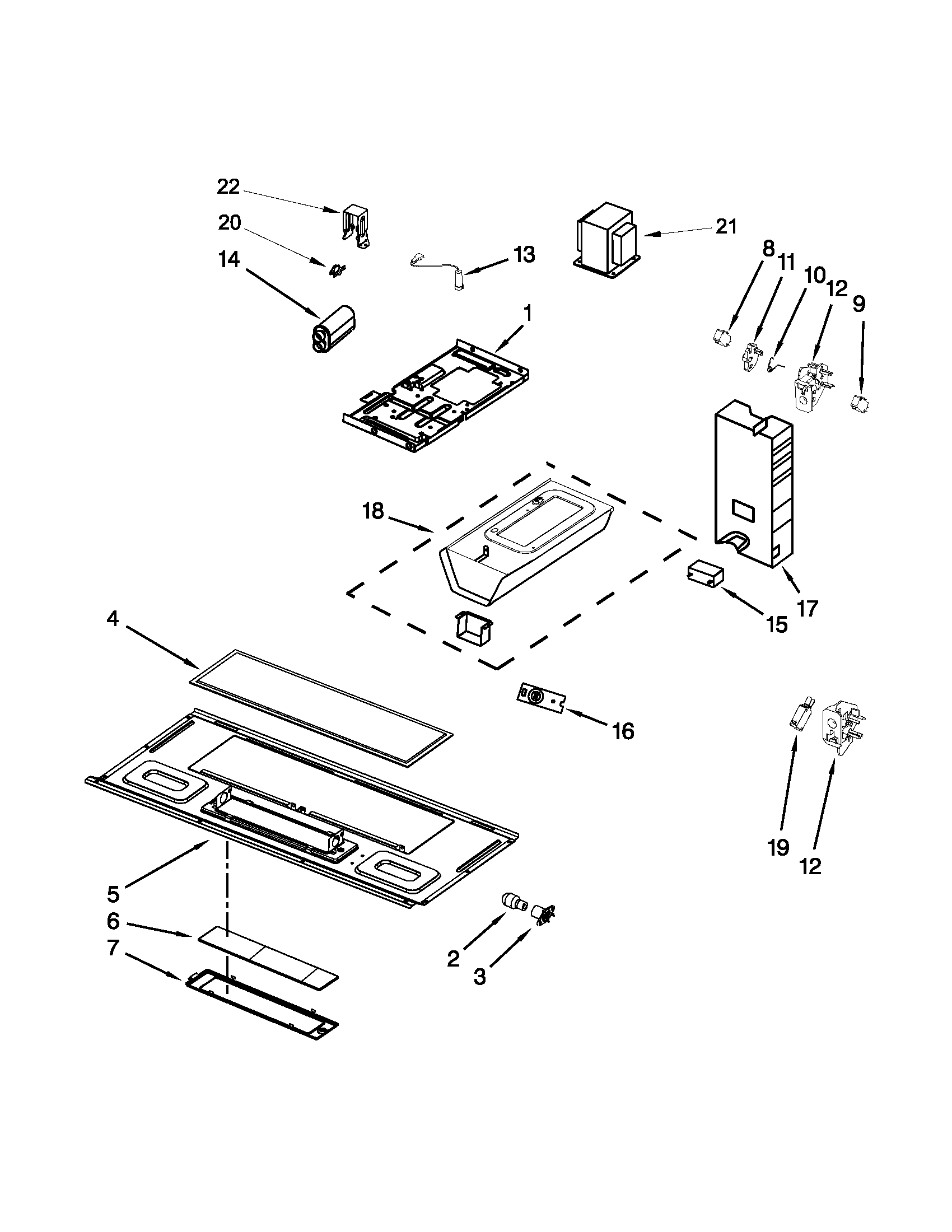

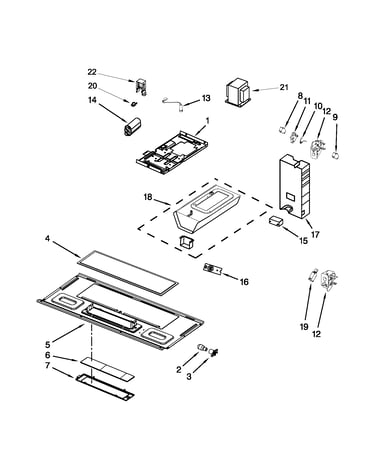

Interior and ventilation parts diagram
Microwave High-voltage Diode
Part #W10492276
Replaced by #W11256462
Manufacturer substitution
This part replaces W10492276. Substitute parts can look different from the original.
In Stock
$26.84
18% OFF Phone Price : $32.84
Qty
Interior and ventilation parts diagram
Microwave Door Switch
Part #W10269457
Replaced by #W10727360
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.33
16% OFF Phone Price : $6.33
Qty
Interior and ventilation parts diagram
Microwave/hood Light Bulb
Part #8206232
Replaced by #8206232A
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.74
15% OFF Phone Price : $6.74
Qty

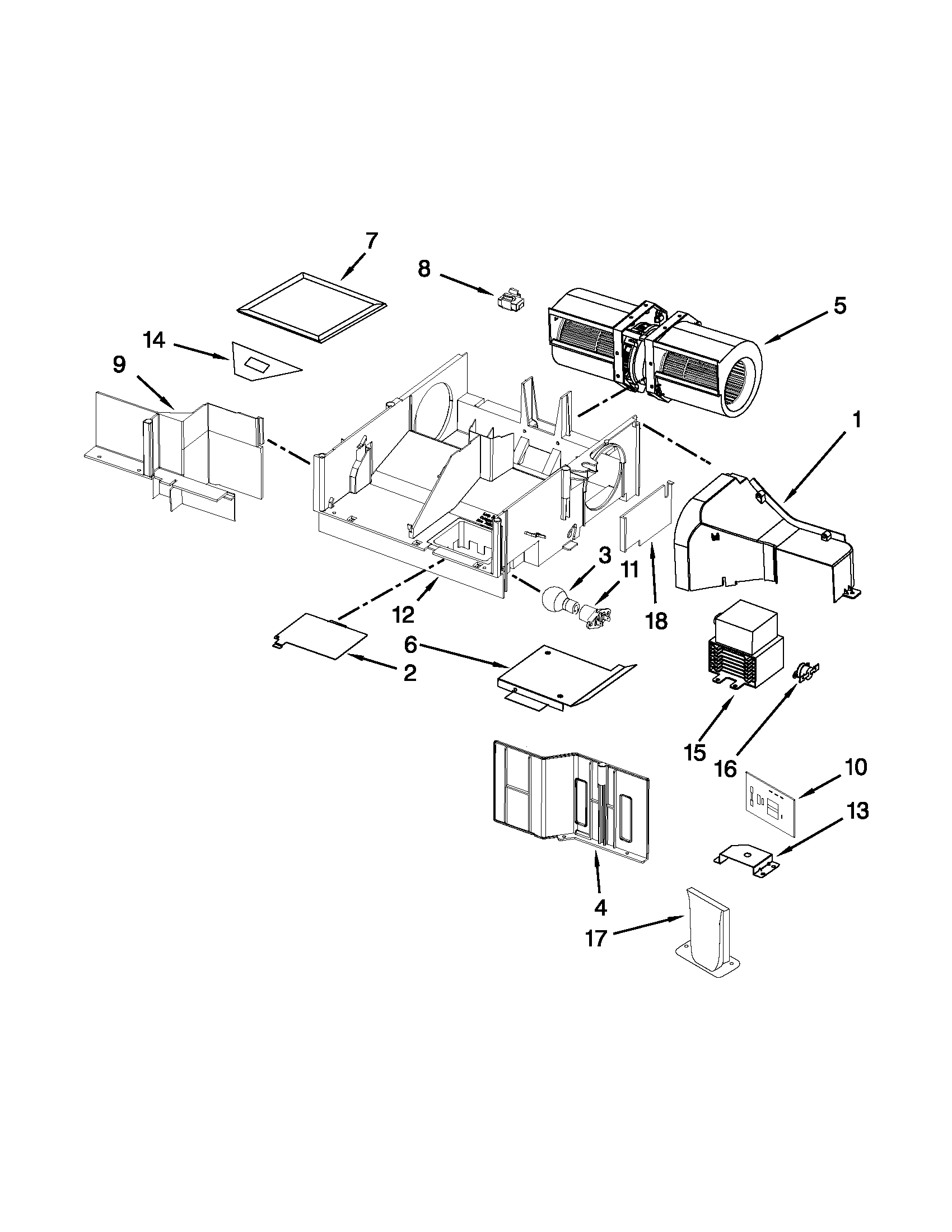

Air flow parts diagram
Lamp Assembly
Part #4393681
Replaced by #8206232A
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.74
15% OFF Phone Price : $6.74
Qty
Interior and ventilation parts diagram
Microwave Door Interlock Support, Upper
Part #8206419
Replaced by #WP8206419
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
In Stock
$13.72
13% OFF Phone Price : $15.72
Qty
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
In Stock
$8.14
11% OFF Phone Price : $9.14
Qty
Interior and ventilation parts diagram
Microwave High-voltage Capacitor
Part #W10138798
Replaced by #W10850446
Manufacturer substitution
This part replaces W10138798. Substitute parts can look different from the original.
In Stock
$126.62
9% OFF Phone Price : $138.62
Qty
Interior and ventilation parts diagram
Microwave Light Socket
Part #W10210871
In Stock
$8.39
11% OFF Phone Price : $9.39
Qty

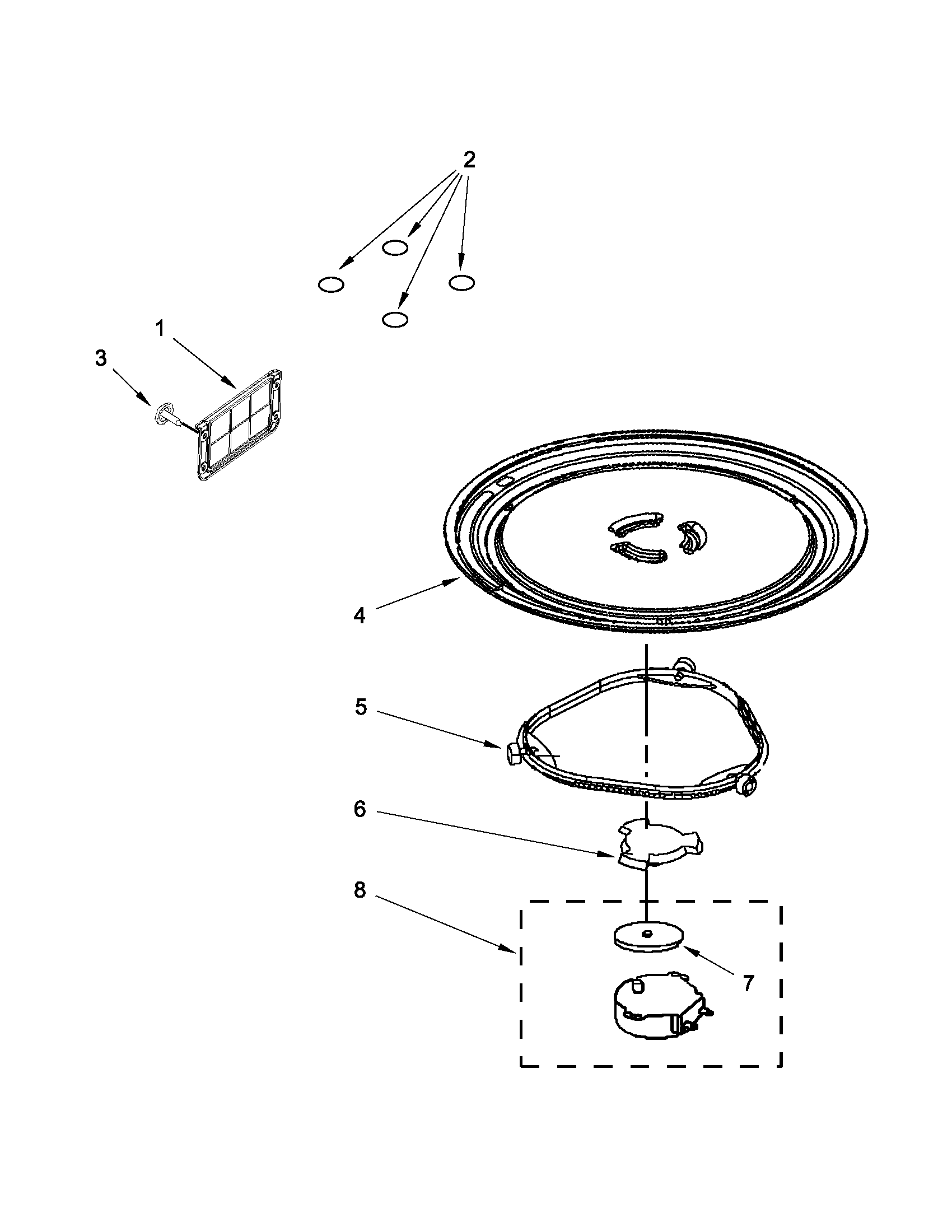

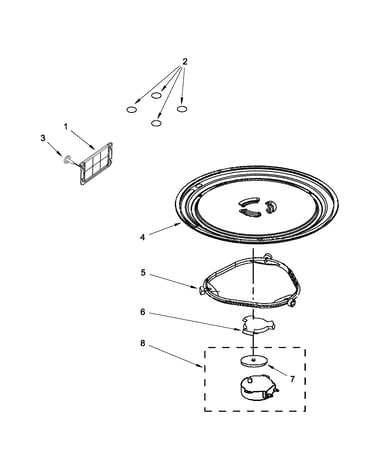

Turntable parts diagram
Microwave Turntable Motor
Part #W10210848
Replaced by #WPW10466420
Manufacturer substitution
This part replaces W10210848. Substitute parts can look different from the original.
In Stock
$40.12
13% OFF Phone Price : $46.12
Qty
Interior and ventilation parts diagram
Microwave Door Interlock Spring
Part #W10156812
In Stock
$8.57
10% OFF Phone Price : $9.57
Qty
