Kenmore
Countertop Microwave

Model # 72167490790 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72167490790 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

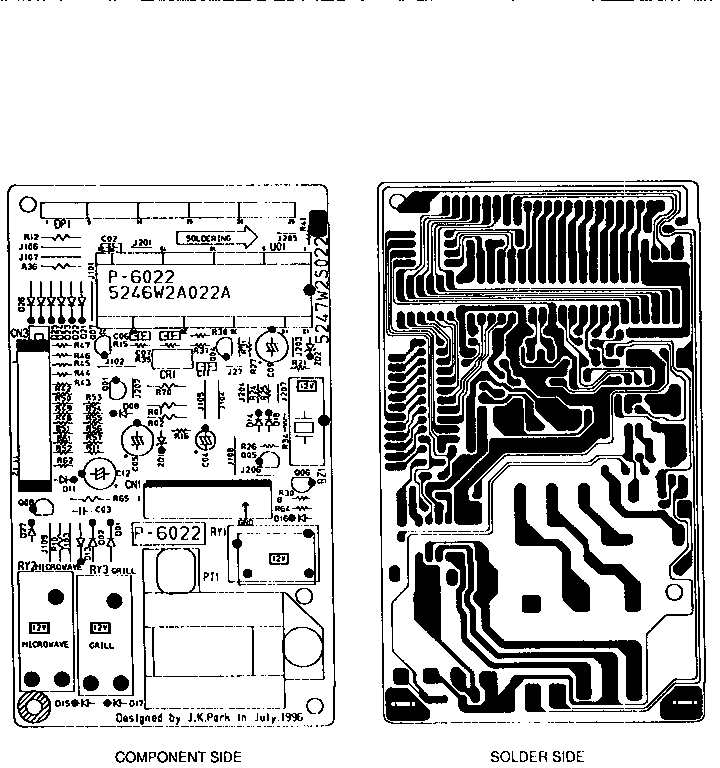

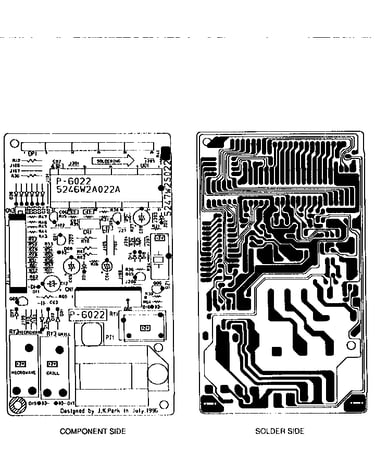

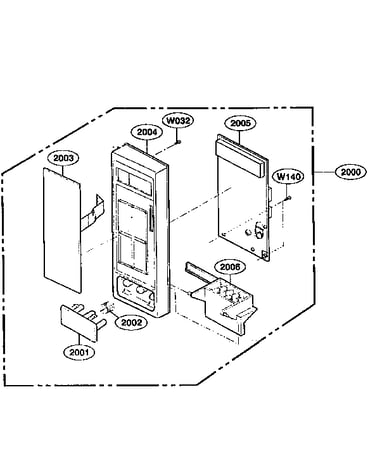

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Magnetron 2B73104B
#5002

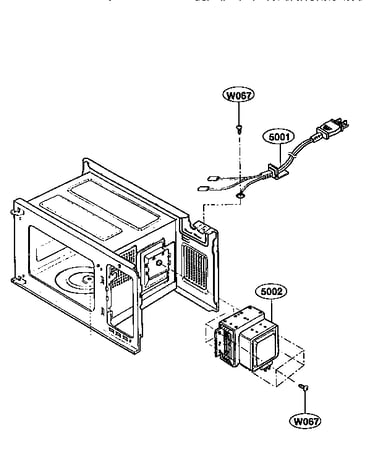

Oven interior diagram

Magnetron

Part #2B73104B

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode 6021W3B001A
#6006

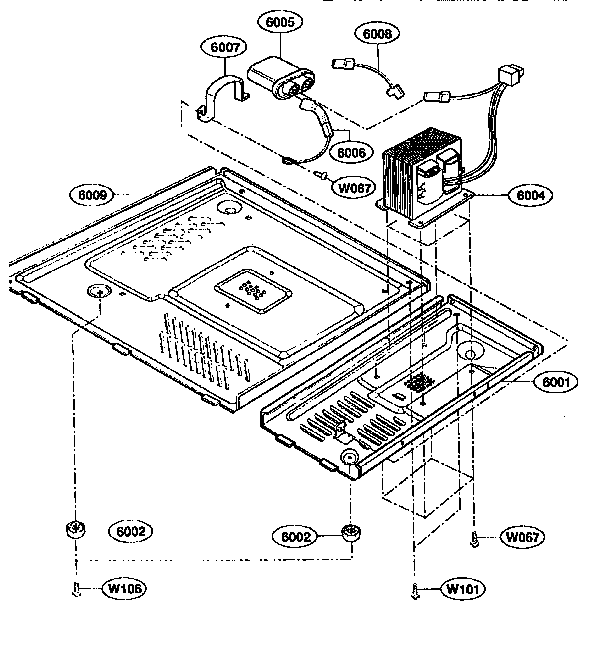

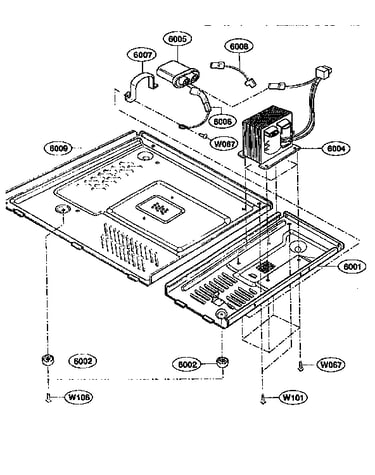

Base plate diagram

High-voltage diode

Part #6021W3B001A

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Capacitor 6120W3H003H
Capacitor

Part #6120W3H003H

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 6120W3H003H. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Oven Switch 503387
Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lamp 6912W3B002G
#4008A

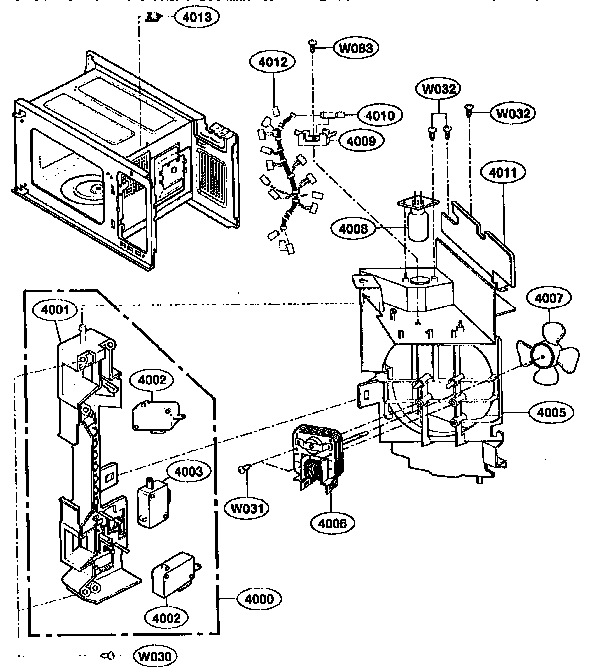

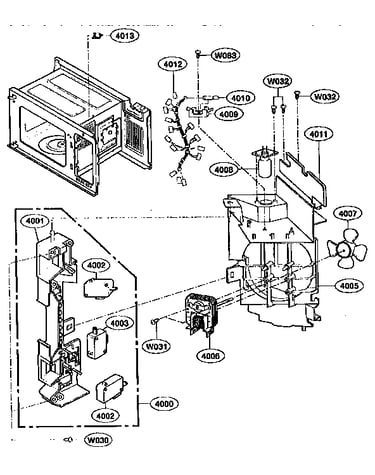

Suction guide diagram

Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Latch Board 3501W1A003H
#4000

Suction guide diagram

Latch board

Part #3501W1A003H

Replaced by #3501W1A053A

?
Manufacturer substitution
This part replaces 3501W1A003H. Substitute parts can look different from the original.
BEST SELLER
$21.40 |
19% OFF Phone Price : $26.40
In Stock
Latch 4026W2A012A
#1005

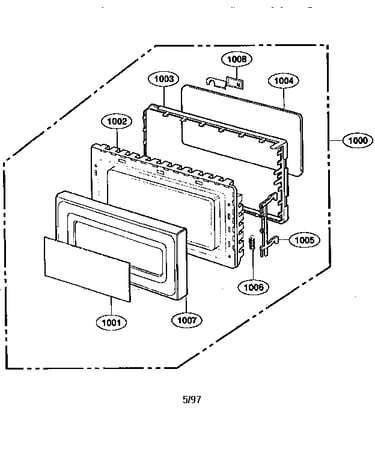

Door diagram

Latch

Part #4026W2A012A

Replaced by #4026W2A016A

?
Manufacturer substitution
This part replaces 4026W2A012A. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Glass Turntable Tray 3390W1G004B
#3008

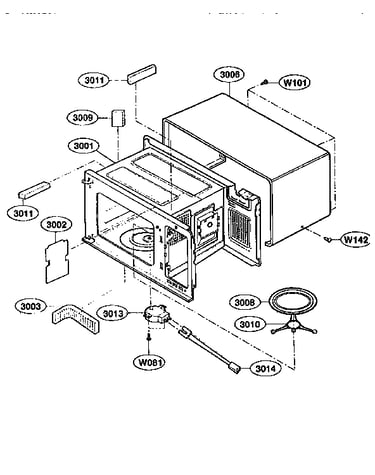

Oven cavity diagram

Microwave glass turntable tray

Part #3390W1G004B

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004B. Substitute parts can look different from the original.
$23.92 |
17% OFF Phone Price : $28.92
In Stock
Microwave Glass Turntable Tray 3390W1G004A
#3008A

Oven cavity diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
$23.92 |
17% OFF Phone Price : $28.92
In Stock
